Victron Energy GX LTE 4G-A Cellular Modem for GX Devices - North America

GX LTE 4G-A Cellular Modem for GX Devices - North America Only

The GX LTE 4G is an accessory for GX devices. It is a cellular modem that supports 2G, 3G, and 4G technologies. It provides mobile internet for the system and a connection to the Victron Remote Management (VRM) portal.

Built-in GPS Receiver

The GX LTE 4G includes a built-in GPS receiver. When the optional active GPS antenna is installed, the system can be tracked as well as geo-fenced on the VRM Portal.

The required accessory part number is GSM900200100 - Active GPS Antenna for GX GSM.

GX Compatibility

The GX LTE 4G can be used with any of the GX devices and requires Venus OS v2.60 or newer to be installed on the GX device.

SIM Card

It requires a SIM card in the Mini-SIM format.

When to Use a Mobile Router Instead

The GX LTE 4G provides an internet connection for the GX device only. There is no option to share the internet with laptops, phones, or other devices. For installations where more devices need internet, such as a yacht or RV, consider installing a mobile router instead.

Antennas and Accessories

A small indoor LTE antenna is included. Optionally, Victron sells an outdoor LTE antenna, which increases the range.

Part number GSM900100400 - Outdoor 4G GSM Antenna.

Specifications:

• Region: For North America
• Used Module: SIMCom, SIM7600A
• Supported LTE Bands: 2, 4, 12
• Supply Voltage Range: 8 - 70VDC
• Power Draw: 2.5W while 2G/3G/4G data transfer / <1.0W in idle mode / +0.4W if GPS is enabled
• Operating Temperature Range: -40 +50C (-40 - 120F)
• Power Cable (Included): 1.4m cable with inline fuse holder, terminal block, and 10mm ring terminals
• Inline Fuse (included): T3.15A250V

Communication Specifications:

• USB Communication Port: Fixed 1.0m cable with USB-A connector (connects to the GX device)
• LTE Antenna Connector: Type SMA Female (optional 4G outdoor antenna GSM900100400)
• GPS Antenna Connector: Type SMA Female (optional GPS antenna GSM900200100)
• GNSS: GPS/Beidou/GLONASS/GALILEO/QZSS
• SIM Card: Regular Mini SIM (supports both 1.8V and 3V)
• Data Transmission (max. Download/Upload) LTE Cat-1: 10 Mbps / 5 Mbps
• Data Transmission (max. Download/Upload) 3G (HSPA+): 42 Mbps / 5.76 Mbps
• Data Transmission (max. Download/Upload) 2G (EDGE): 236.8 Kbps / 236.8 Kbps
• Data Transmission (max. Download/Upload) 2G (GPRS): 85.6 Kbps / 85.6 Kbps
• Status Indicator: Blue LED

Installation Dimensions:

• Dimensions (l x w x h): 106 42.5 22mm
• Weight: 0.08kg (0.177lbs)
• Wire Gauge (power cable): 0.5..1.5mm2 / AWG 28..16 or use supplied power cable
• Recommended Fuse Size: 500mA @ 12V / 250mA @ 24V / 100mA @ 48V or use supplied inline fuse

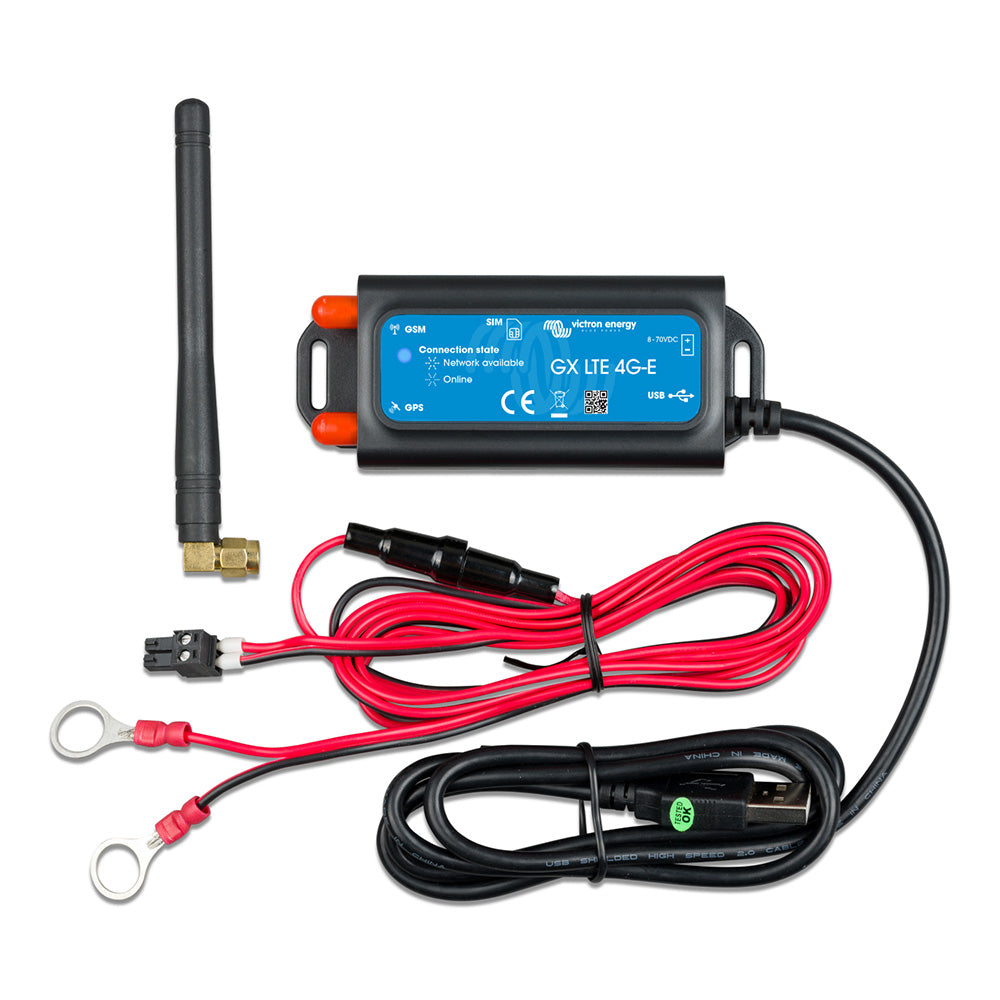

In the Box:

• GX LTE 4G (with integrated USB cable)
• GSM 2G/3G/4G mini-rod antenna (for indoor use)
• DC power cable (with inline fuse and terminal block)

Standrads:

• Safety: EN 60335-1 / EN 60335-2-29 / EN 62368-1
• Emission / Immunity: ECE R10-5
• QM: EN 9001:2015

The Victron Energy GX LTE 4G-A cellular modem is designed to provide reliable mobile internet connectivity for GX series systems in North America. Supporting 2G, 3G, and 4G LTE technologies, this modem enables seamless communication with the Victron Remote Management (VRM) portal, allowing users to monitor and manage their systems remotely. Its compact design, including a built-in GPS receiver, ensures efficient tracking and geo-fencing capabilities when paired with the optional active GPS antenna, enhancing system security and location-based management.

The GX LTE 4G-A supports a range of LTE bands including 2, 4, and 12, ensuring broad coverage across North America. It features a USB communication port with a fixed 1-meter cable for easy connection to GX devices, along with SMA Female connectors for optional outdoor LTE and GPS antennas. The device operates on an input voltage range of 8 to 70VDC, drawing minimal power during idle and data transfer modes. Its robust construction allows operation in temperatures from -40°C to 50°C, making it suitable for demanding environments.

Included in the package is a compact indoor LTE antenna, a power cable with inline fuse, and a terminal block for secure wiring. For enhanced range and signal strength, Victron offers an outdoor LTE antenna as an optional accessory. The modem supports multiple satellite navigation systems such as GPS, Beidou, GLONASS, Galileo, and QZSS, ensuring precise location tracking. Its data transmission capabilities include LTE Cat-1 with speeds up to 10 Mbps download and 5 Mbps upload, as well as fallback options to 3G and 2G networks. The device features a status indicator LED for quick operational status assessment, making installation and troubleshooting straightforward.

Designed to be compatible with GX devices running Venus OS v2.60 or newer, the Victron Energy GX LTE 4G-A is an essential component for remote monitoring systems in stationary or mobile applications like yachts, RVs, or off-grid installations. Its compact dimensions and lightweight design facilitate easy installation in limited spaces, while its compliance with safety and emission standards ensures reliable and safe operation across North American environments.

Features:

• Supports LTE, 3G, and 2G technologies for reliable connectivity in North America

• Built-in GPS receiver with optional active GPS antenna for tracking and geo-fencing

• Compatible with GX devices running Venus OS v2.60 or newer

• Includes a 1-meter USB communication cable with USB-A connector

• Supports multiple satellite navigation systems including GPS, Beidou, GLONASS, Galileo, and QZSS

• Robust design with operating temperature range from -40°C to 50°C

• Supports LTE Cat-1 with maximum speeds of 10 Mbps download and 5 Mbps upload

• Optional outdoor LTE antenna available to extend range and signal strength

• Low power consumption with idle and GPS-enabled modes

• Compact size and lightweight for easy installation in tight spaces
