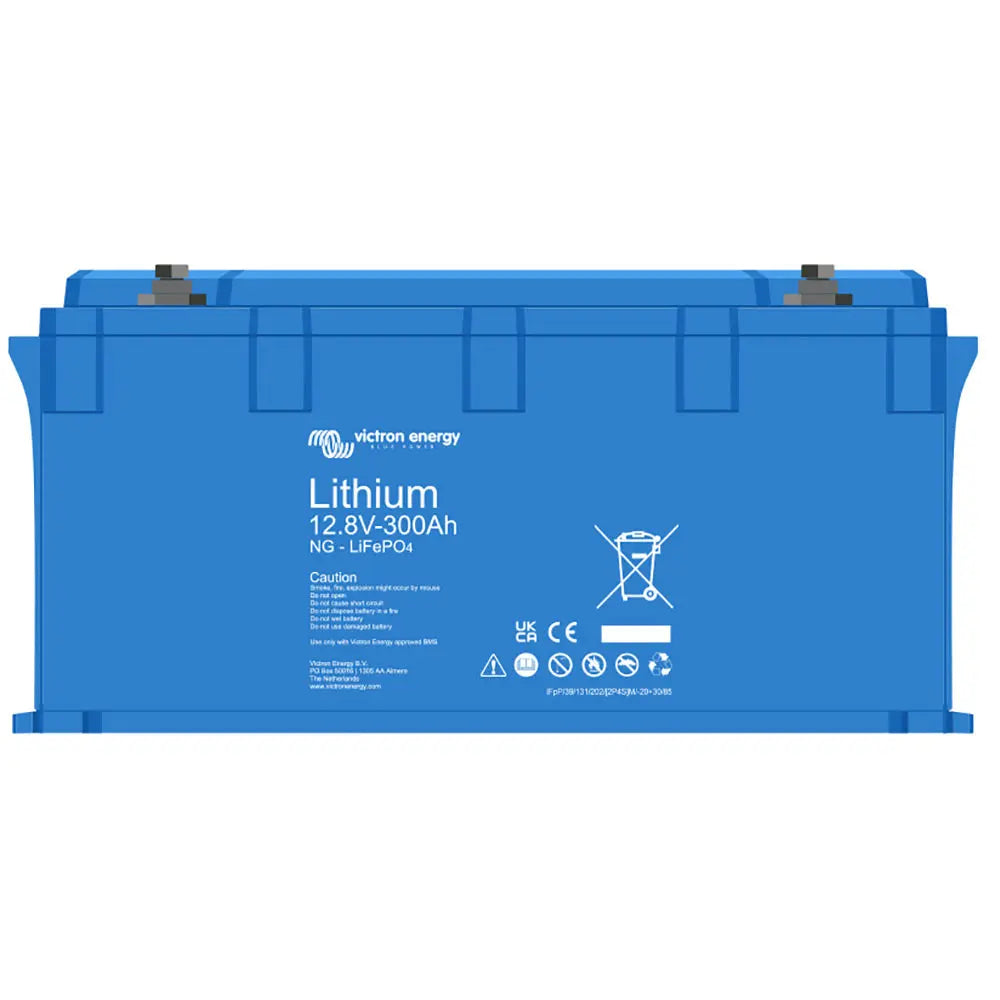

Victron Energy Lithium Battery 12V 300Ah NG Smart LiFePO4 for Reliable Energy Storage

Lithium Battery 12VDC 300Ah NG Smart LiFePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (Lynx Smart BMS NG 500A and 1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

The Victron Energy Lithium Battery 12V 300Ah NG Smart LiFePO4 is a high-performance energy storage solution designed for demanding applications. Built with advanced Lithium Iron Phosphate (LiFePO4) chemistry, this battery offers enhanced safety, longevity, and efficiency for both residential and commercial setups. Its robust construction and intelligent management system make it suitable for a variety of power needs, from off-grid solar systems to backup power solutions. The NG series builds upon previous innovations, incorporating significant improvements such as integrated cell voltage and temperature readouts, which facilitate precise monitoring and maintenance.

This battery features a sealed design with an IP65 ingress protection rating, ensuring resistance against dust and low-pressure water jets, making it suitable for outdoor or challenging environments. The compact form factor allows for easy mounting with included brackets and straps, providing secure installation in tight spaces. Its low self-discharge rate of just 2% per month guarantees long-term reliability and readiness, while the ability to connect in series or parallel expands system flexibility. Depending on configuration, the battery bank can reach up to 385 kWh in a single system, accommodating large-scale energy storage needs.

The integrated BMS (Battery Management System) automatically detects system voltage and battery connections, simplifying setup and operation. Data such as voltage, current, and temperature are transmitted to the BMS for real-time evaluation, with monitoring accessible via VictronConnect app, GX communication centers, or VRM portal. Firmware updates are performed automatically, ensuring the battery remains up-to-date with the latest features and security enhancements. Designed for ease of use and durability, the NG series offers a comprehensive solution for sustainable energy storage, backed by Victron Energy's reputation for quality and innovation.

Features:

• Advanced Lithium Iron Phosphate (LiFePO4) chemistry for safety and longevity

• Integrated shunt for real-time voltage, current, and temperature monitoring

• Automatic system detection and configuration via BMS and VictronConnect app

• Sealed IP65 enclosure providing dust and water resistance for outdoor use

• Easy mounting with included brackets and straps for secure installation

• Low self-discharge rate of up to 2% per month enhances reliability

• Expandable system capacity up to 385 kWh in a single battery bank

• Supports series and parallel connections for flexible system design

• Automatic firmware updates for optimal performance and security

• Built and tested to meet demanding energy storage requirements
