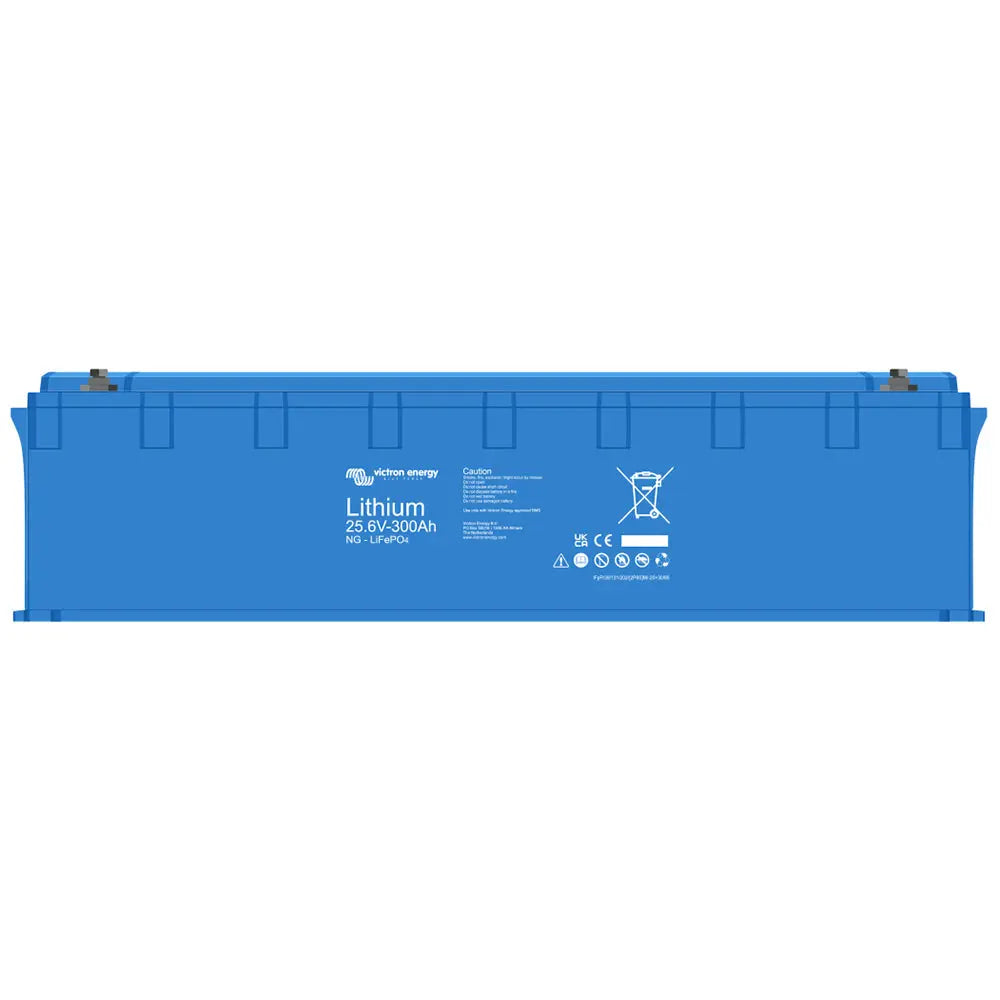

Victron Energy Lithium Battery 24VDC 300Ah NG Smart LifePO4 for Reliable Energy Storage

Lithium Battery 24VDC 300Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

The Victron Energy Lithium Battery 24VDC 300Ah NG Smart LifePO4 is a high-performance energy storage solution designed for demanding applications requiring reliable and efficient power. Building on the success of previous series, the NG (Next Generation) series introduces significant enhancements in durability, monitoring, and installation ease. Crafted with Lithium Iron Phosphate (LiFePO4) chemistry, this battery offers superior safety, longevity, and stability for various off-grid and backup power systems.

Each NG series battery features an integrated shunt that transmits real-time data such as voltage, current, and temperature to the Battery Management System (BMS). This data enables precise state of charge calculations and facilitates remote monitoring and control via the VictronConnect app, GX communication centers, or the VRM Portal. The BMS automatically detects system configurations, simplifying installation and ensuring optimal operation without manual setup. The batteries are compatible with series, parallel, and series-parallel connections, allowing system voltages of 12V, 24V, or 48V, with a maximum capacity supporting up to 385 kWh per bank.

Designed for ease of installation, the batteries include mounting brackets that secure the units against slipping or tipping, ensuring safe and stable operation. Its IP65 ingress protection rating guarantees resistance against dust and low-pressure water jets, making it suitable for outdoor or challenging environments. The low self-discharge rate of a maximum of 2% per month enhances reliability and extends the lifespan of the battery, reducing maintenance needs over time.

These batteries are engineered for demanding applications, providing scalable energy storage for solar, backup power, or mobile systems. The advanced monitoring features, combined with robust physical protection and straightforward installation, make the Victron Lithium NG series an ideal choice for professionals seeking dependable, long-lasting energy storage solutions. Please contact your dealer for any returns, repairs, or support issues related to this product.

Features:

• Integrated shunt for real-time voltage, current, and temperature monitoring

• Automatic detection of system voltage and battery configuration

• Supports series, parallel, and series/parallel connections for flexible system design

• Maximum single bank capacity of 385 kWh

• Available in 12V, 24V, and 48V modules

• IP65 ingress protection rating for dust and water resistance

• Mounting brackets included for easy installation and secure placement

• Low self-discharge rate of up to 2% per month, enhancing longevity

• Enhanced cell voltage and temperature readouts for better system management

• Bluetooth-enabled BMS for remote monitoring via VictronConnect app
