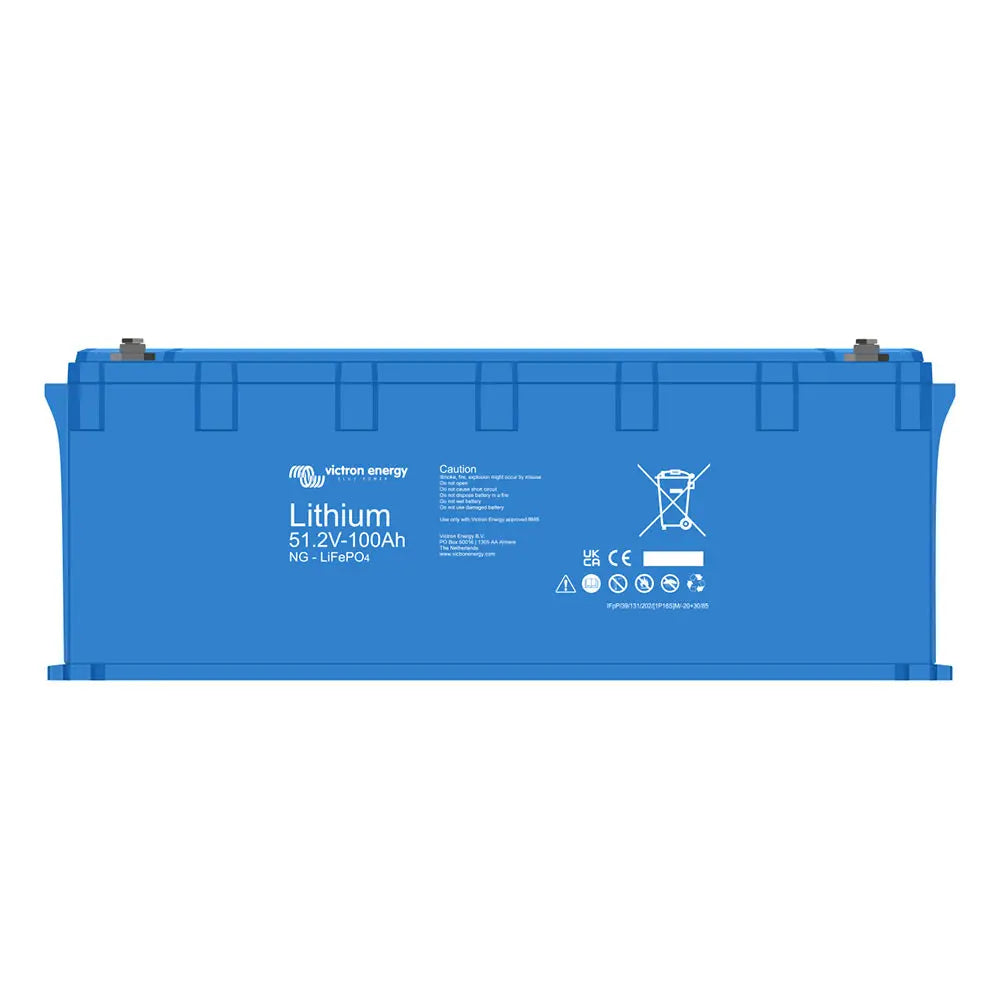

Victron Energy Lithium Battery 48VDC 100Ah NG Smart LifePO4 for Reliable Energy Storage

Lithium Battery 48VDC 100Ah NG Smart LifePO4

The NG (Next Generation) series builds on the achievements of the Lithium Smart Series, featuring substantial improvements. Designed for individuals in need of sophisticated and dependable energy storage solutions, the Lithium NG series represents a crucial development in our product range, prepared to address the challenges of the future.

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with nominal voltages of 12.8V, 25.6V, and 51.2V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24V, or 48V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12V system and up to 384 kWh in a 24V and 48V system.

Integrated shunt

The battery data (battery voltage, current, and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication center, or to create and issue specific warnings and alarms.

Automatic setup, monitoring, and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series, and series/parallel connections. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication center, or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current, and temperatures in real time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Features:

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Modules available in 12, 24 and 48V
• Protection class IP65
• Bracket mounting and strap mounting

The Victron Energy Lithium Battery 48VDC 100Ah NG Smart LifePO4 is an advanced energy storage solution designed for demanding applications requiring high performance and durability. Building on the success of previous series, the NG series introduces significant improvements such as enhanced cell monitoring and increased capacity, making it an ideal choice for off-grid power systems, renewable energy setups, and backup power applications. Its robust design ensures dependable operation in various environments, supported by an IP65 ingress protection rating that guards against dust and low-pressure water jets, making it suitable for outdoor and challenging conditions.

This lithium iron phosphate (LiFePO4) battery features integrated Bluetooth connectivity, allowing users to effortlessly monitor critical parameters like voltage, current, and temperature through the VictronConnect app or a GX device. The built-in BMS (Battery Management System) automatically detects system configuration, including series and parallel connections, simplifying installation and ensuring optimal performance. The BMS also provides real-time data updates and firmware management, enhancing the battery's longevity and reliability. With a maximum single bank capacity of 385kWh, this module supports extensive energy storage needs, making it suitable for large-scale systems.

Designed for versatile configurations, the NG series batteries are available in 12V, 24V, and 48V modules, allowing for flexible system design. Multiple batteries can be connected in series and parallel to build a custom battery bank tailored to specific energy requirements, with a maximum of 50 units per system. Ease of installation is further supported by mounting brackets that secure the batteries firmly in place, preventing slipping or tipping. The low self-discharge rate of just 2% per month ensures long-term storage without significant capacity loss, enhancing overall system efficiency and lifespan.

The Victron Energy Lithium Battery 48VDC 100Ah NG Smart LifePO4 combines cutting-edge technology with practical features. Its modular design, combined with comprehensive monitoring capabilities and durable construction, makes it an excellent choice for professionals and serious enthusiasts seeking a reliable, high-capacity energy storage solution. For support, repairs, or returns, please contact your dealer. Detailed installation and operation instructions are available in the provided manual link.

Features:

• Enhanced cell monitoring with read-out of cell voltages and temperatures

• Maximum single bank capacity increased to 385kWh

• Available in 12V, 24V, and 48V modules for flexible system design

• Ingress protection rated IP65 for dust and water resistance

• Easy mounting with brackets and straps for secure installation

• Built-in Bluetooth connectivity for real-time monitoring via VictronConnect app

• Automatic detection of system configuration by the BMS

• Low self-discharge rate of up to 2% per month for long-term storage

• Supports series and parallel connections—up to 50 batteries per system

• Durable sealed design suitable for outdoor and rugged environments
