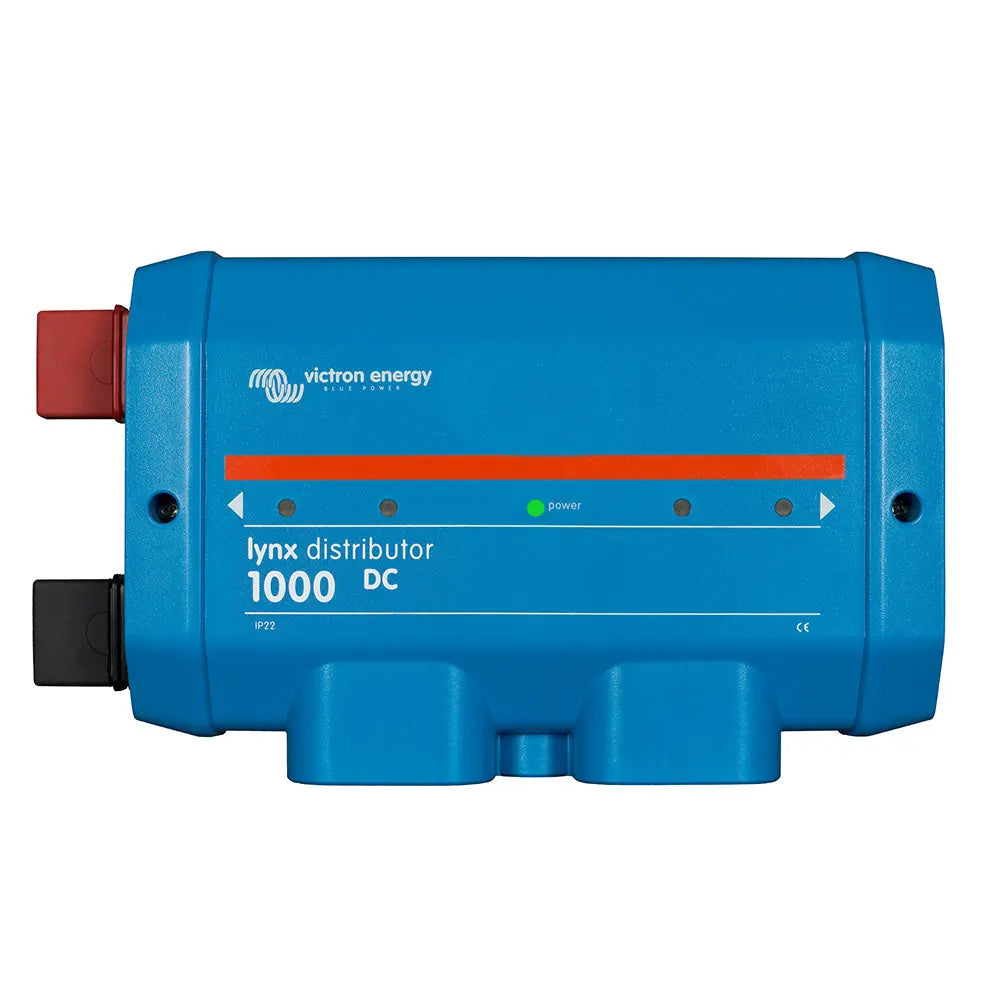

Lynx Distributor with M10 Terminals

The Lynx Distributor contains a positive and a negative busbar. The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection. This model is part of the Lynx distribution and is a M10 busbar model. Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.

The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.

Features:

• 1000A model with M10 busbars
• The Lynx Distributor ships together with a 40cm RJ10 cable, which provides power to the Lynx Distributor and is also used to transmit data if connected to a Lynx Smart BMS
• The Lynx Distributor is designed to hold MEGA fuses
• If the Lynx Distributor is connected to a Lynx Smart BMS, it can be monitored and set up with the VictronConnect App
• Up to 4 connected Lynx distributors can be monitored with a GX device if connected to a Lynx Smart BMS

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

The Victron Energy Lynx Distributor with M10 Terminals is a versatile and reliable component designed for advanced DC distribution systems. This model features a positive and negative busbar configuration, with the positive busbar equipped with four fuse-protected connections that include fuse monitoring capabilities. The negative busbar provides four connections along with a dedicated ground connection, making it suitable for complex battery and DC equipment setups. The M10 busbar connections facilitate robust and secure module linking, while the fuse and cable connections utilize M8 terminals for compatibility with a wide range of marine and industrial applications. The Lynx Distributor is equipped with a power LED and four fuse status LEDs, providing real-time system monitoring. When connected to a Lynx Smart BMS, up to four distributors can transmit fuse status updates to the BMS, enhancing system oversight and safety. This feature, however, is not compatible with Lynx Shunt VE.Can configurations. The device ships with a 40cm RJ10 cable that supplies power and data transmission capabilities, streamlining installation and integration. Designed to hold MEGA fuses, the Lynx Distributor supports high-current applications up to 1000A, ensuring reliable protection for your battery system. When paired with the VictronConnect App and a GX device, users can monitor and configure up to four Lynx Distributors, enabling comprehensive management of your DC power system. The Lynx Distribution System itself is modular, incorporating DC connections, fusing, distribution, and battery monitoring, simplifying complex power management in off-grid, marine, or RV setups. It includes key components such as the Lynx Power In for main connections, the Lynx Shunt VE.Can for battery monitoring, and the Lynx Smart BMS for lithium battery management, all designed for seamless integration and scalability. This system offers an efficient, organized approach to managing high-current DC power, with features tailored to both professional and enthusiast applications. For detailed setup instructions and support, consult the owner’s manual available online.

Features:

• 1000A model with M10 busbars for robust high-current connections

• Ships with a 40cm RJ10 cable for power supply and data transmission

• Designed to hold MEGA fuses for reliable circuit protection

• Fuse and status LEDs for real-time monitoring

• Compatible with Lynx Smart BMS for fuse status reporting

• Supports monitoring of up to 4 Lynx Distributors with GX device

• Part of the modular Lynx Distribution System for scalable DC power management
