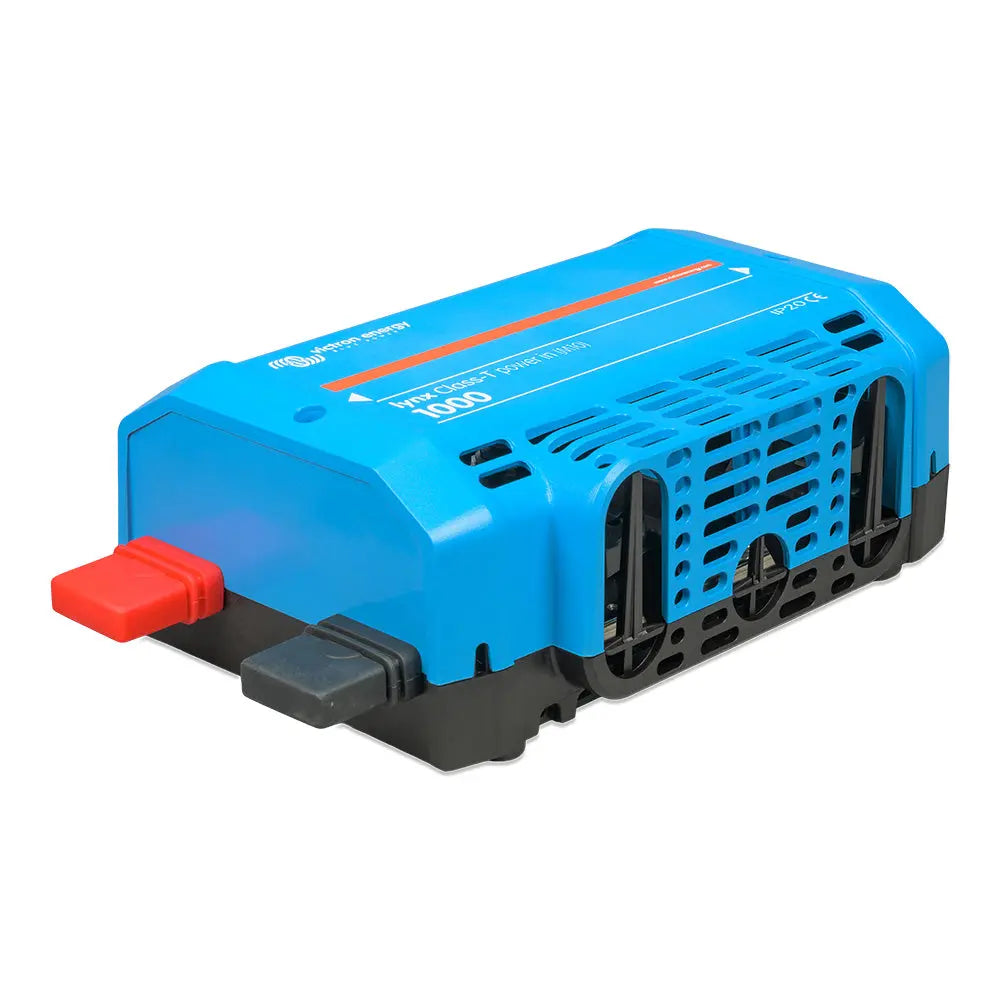

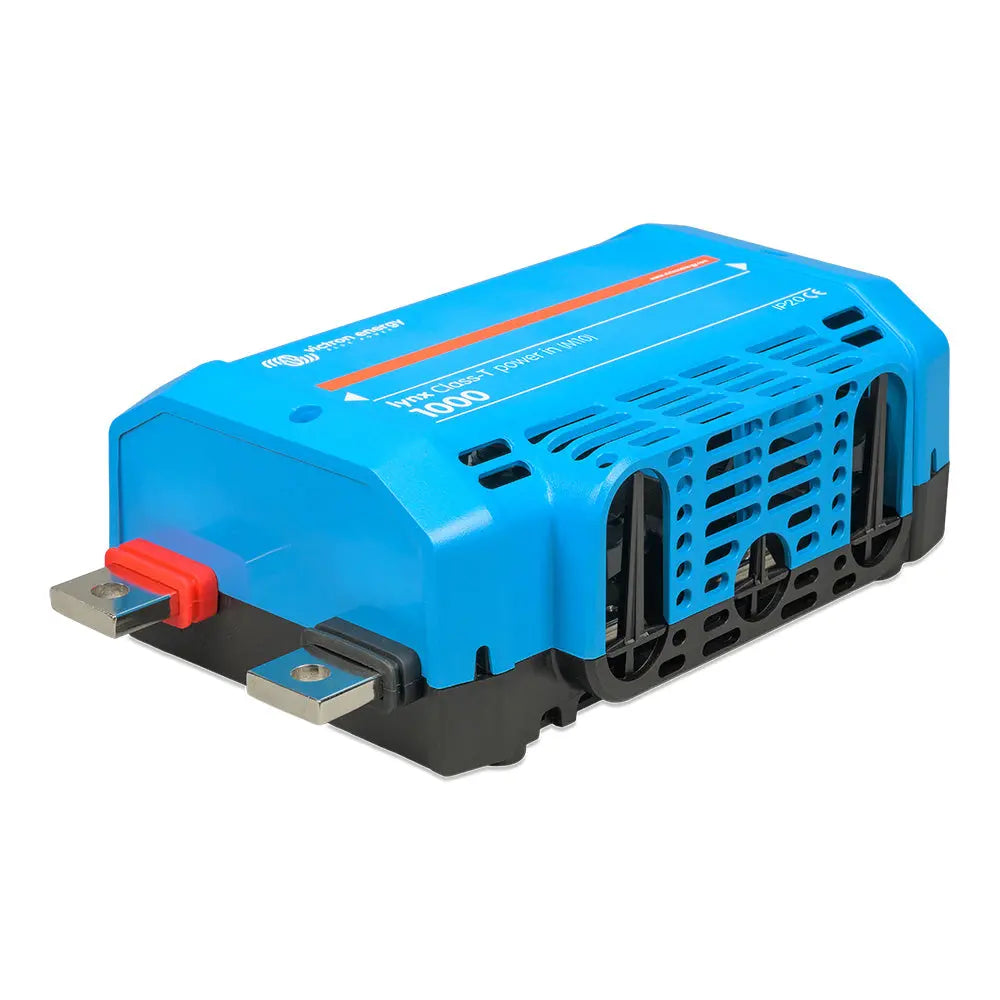

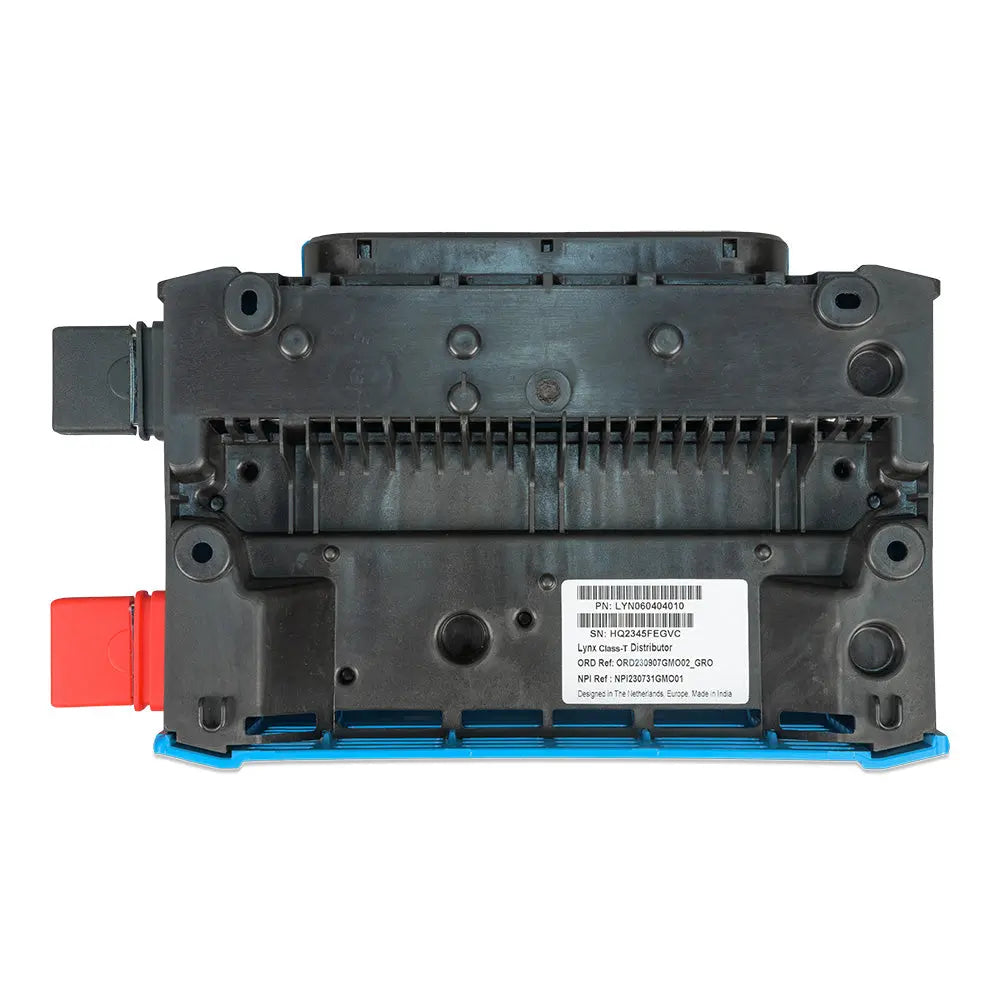

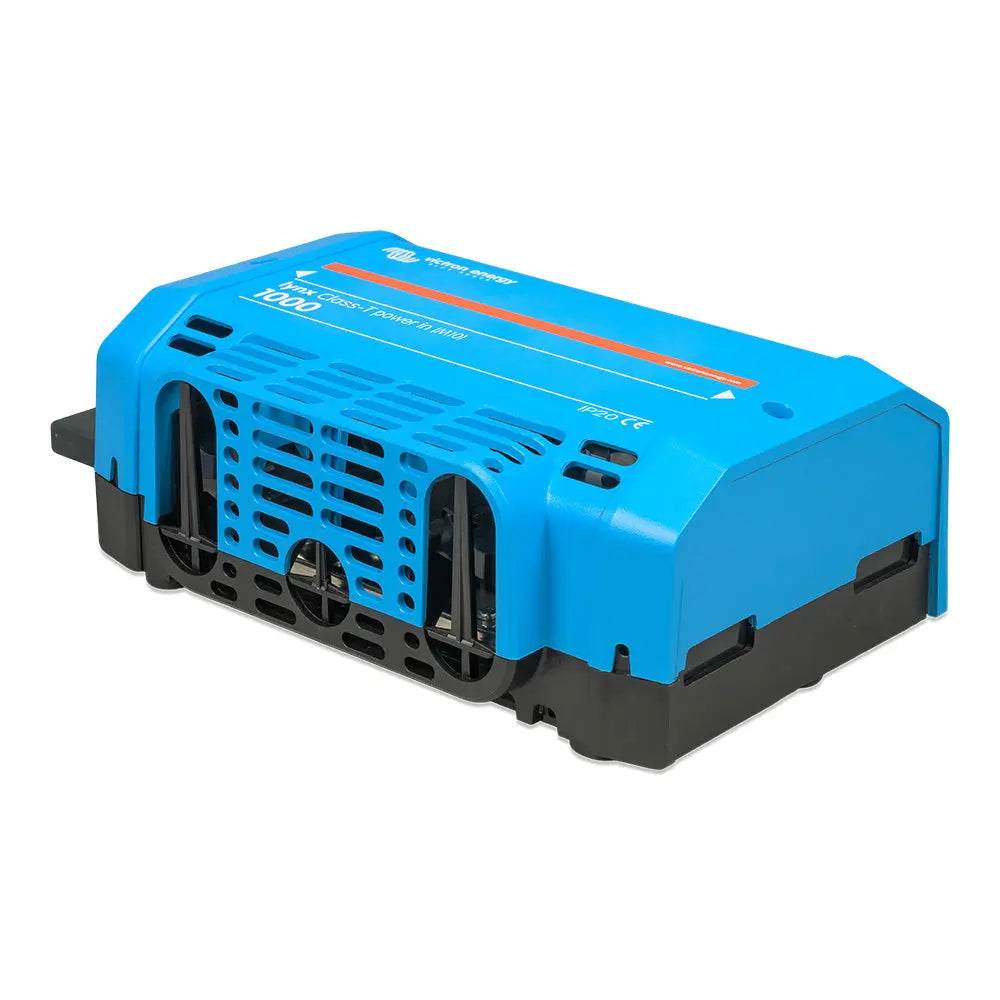

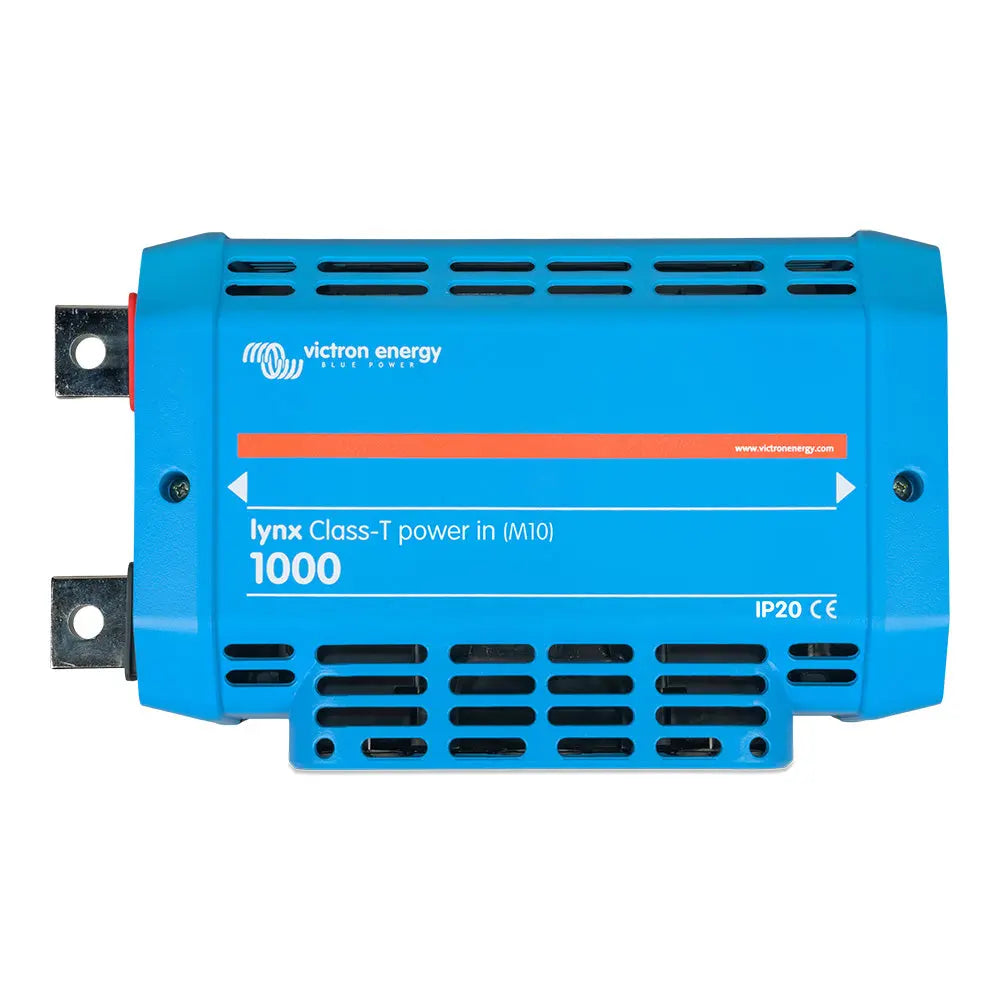

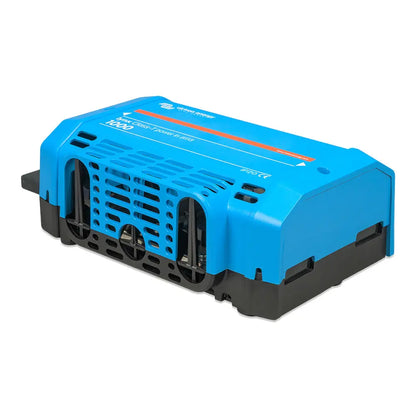

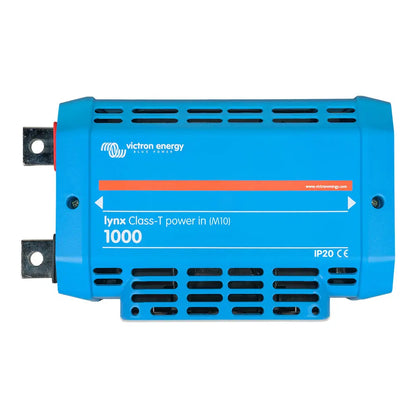

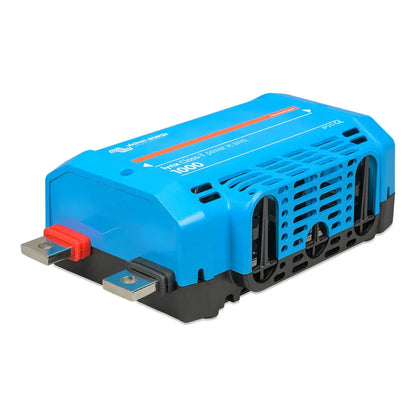

Victron Energy Lynx Power-In Class-T M10 Terminals for Lithium Battery Systems

Lynx Power-In Class-T M10 Terminals

The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).

For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Specifications

Power:

• Voltage Range: 9 - 60Vdc
• Current Rating: 1000Adc continuous
• Connections: M10
• Busbar: 3/8

Physical:

• Enclosure Material: ABS
• Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
• Unit Weight: 2.1 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (H x W): 8 x 30mm

Environmental:

• Operating Temperature Range: -40C to +60
• Storage Temperature Range: -40C to +60
• Humidity: Max. 95% (non-condensing)
• Protection Class: IP20

The Victron Energy Lynx Power-In Class-T M10 Terminals are essential components for integrating and managing multiple lithium battery strings in your DC system. Designed to connect and fuse up to two battery strings, these terminals feature both positive and negative busbars, along with connections for two Class-T fuses, and a grounding point to ensure system safety and reliability. The Class-T fuses, available in ratings of 225A, 250A, 350A, and 400A (sold separately), provide customizable overcurrent protection tailored to your specific energy setup. When installing systems with three or more battery strings, multiple Lynx Power-In modules can be used to expand capacity seamlessly, maintaining system integrity and performance. As a core element of the Victron Lynx Distribution System, the Power-In module integrates effortlessly with other Lynx components, forming a modular, versatile solution for complex DC power configurations. The Lynx Distribution System itself consolidates DC connections, distribution, fusing, and battery monitoring into a unified, easy-to-manage platform. Components like the Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS work together to provide comprehensive system oversight, ensuring optimal battery management, safety, and performance. Crafted with durable ABS enclosure material, the module measures approximately 11 inches high, 6.6 inches wide, and 3.8 inches deep, with a weight of around 2.3 pounds for easy installation. The busbars are made of tinned copper, ensuring excellent conductivity and corrosion resistance. Operating within a voltage range of 9 to 60V DC and rated for a continuous current of 1000A, the Lynx Power-In is suitable for a wide range of renewable energy applications. Its environmental ratings include an operating temperature of -40°C to +60°C and an IP20 protection class, making it suitable for indoor use in various climatic conditions. Designed for professionals and system integrators, this product ensures secure, reliable, and expandable lithium battery system management. For detailed installation instructions and support, consult the owner’s manual available online. The Lynx Power-In Class-T M10 Terminals are a vital part of any advanced DC power system, providing flexibility, safety, and efficiency in managing multiple lithium battery strings.

Features:

• Connects and fuses up to two lithium battery strings for secure management

• Positive and negative busbars facilitate organized wiring

• Connections for two Class-T fuses allow personalized overcurrent protection (fuses sold separately)

• Ground connection enhances system safety and grounding

• Modular design supports expansion for three or more battery strings

• Compatible with Victron Lynx Distribution System for integrated power management

• Durable ABS enclosure with corrosion-resistant tinned copper busbars

• Rated for continuous 1000A current at 9-60V DC voltage range

• Compact, lightweight design for easy installation
