Lynx Power-In with M10 Terminals

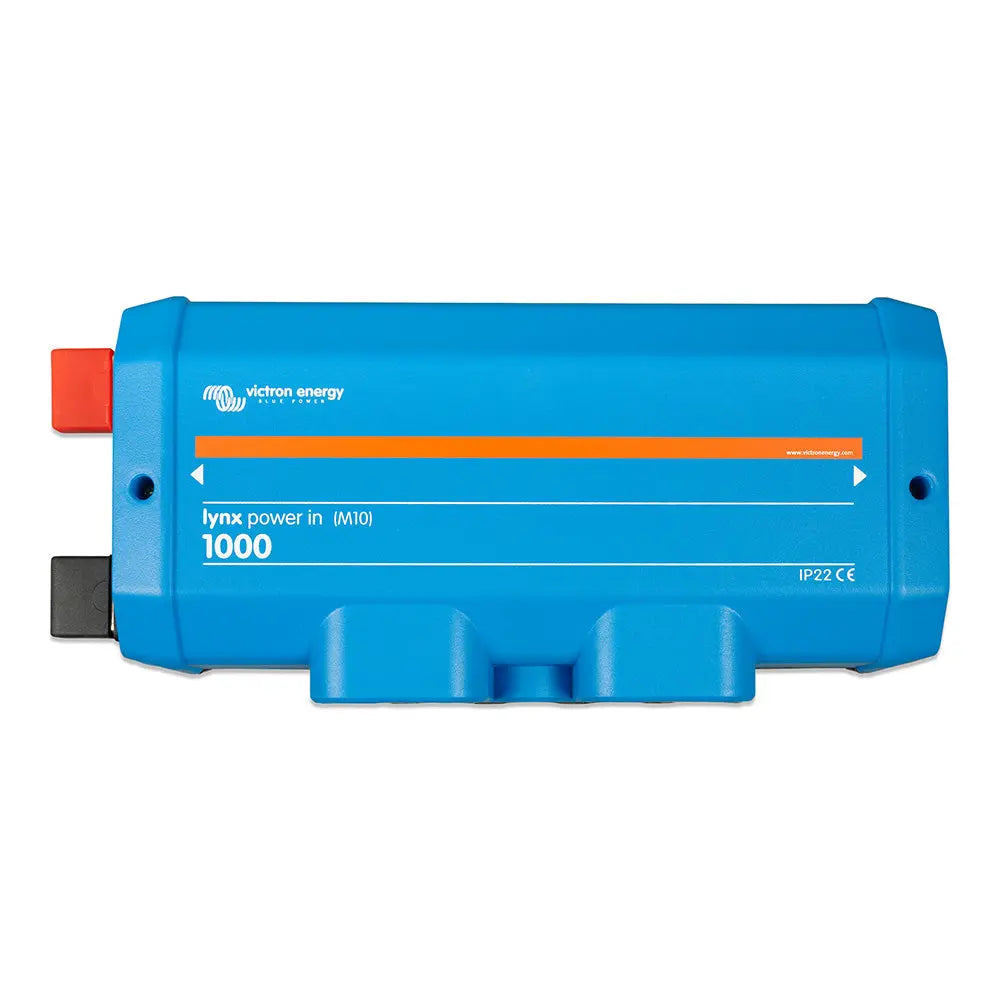

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads, or chargers and a ground connection. It is part of the Lynx Distribution System. This version is a M10 busbar.

Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

The Victron Energy Lynx Power-In with M10 Terminals is a crucial component of the Lynx Distribution System, designed for efficient and flexible power distribution in marine, RV, or off-grid renewable energy setups. This busbar module features a positive and negative busbar with four connection points for batteries, loads, or chargers, along with a dedicated ground connection. The M10 terminal design ensures secure and reliable connections at the joint points, facilitating seamless integration with other Lynx modules. The device's robust construction supports high-current applications, making it suitable for demanding power management needs.

The Lynx Power-In is part of an innovative modular system that incorporates DC connections, distribution, fusing, and battery monitoring capabilities. Its configuration allows for easy expansion and customization, enabling users to build a tailored power management network. The system's design emphasizes safety and reliability, with fuse monitoring and the capacity to handle multiple DC sources, ensuring optimal performance and protection for your batteries and electrical equipment.

Compatibility with other components such as the Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS extends the functionality of the system. The Lynx Power-In's M10 connections are specifically designed for secure joint assembly, while fuse and cable connections utilize M8 terminals for added versatility. The device supports advanced monitoring options via VE.Can communication, enabling connection to Victron GX devices and the VRM portal for real-time system oversight. The model supports high current capacity, with a 1000A version available, making it suitable for large-scale energy systems. The Lynx Power-In is a reliable, modular solution for managing complex power distribution systems with ease and confidence.

For detailed installation instructions and safety guidelines, refer to the official owner’s manual available here.

Features:

• Positive and negative busbars with four connection points for batteries, loads, or chargers

• M10 busbar connection joints for secure module integration

• Ground connection for safety and system grounding

• Compatible with Lynx Distribution System components including Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS

• Supports high-current applications up to 1000A with M10 terminals

• Fuse and cable connections utilize M8 terminals for versatility

• VE.Can communication for system monitoring and setup with Victron GX devices

• Designed for modular and expandable power management systems

• Durable construction suitable for demanding marine, RV, or off-grid environments
