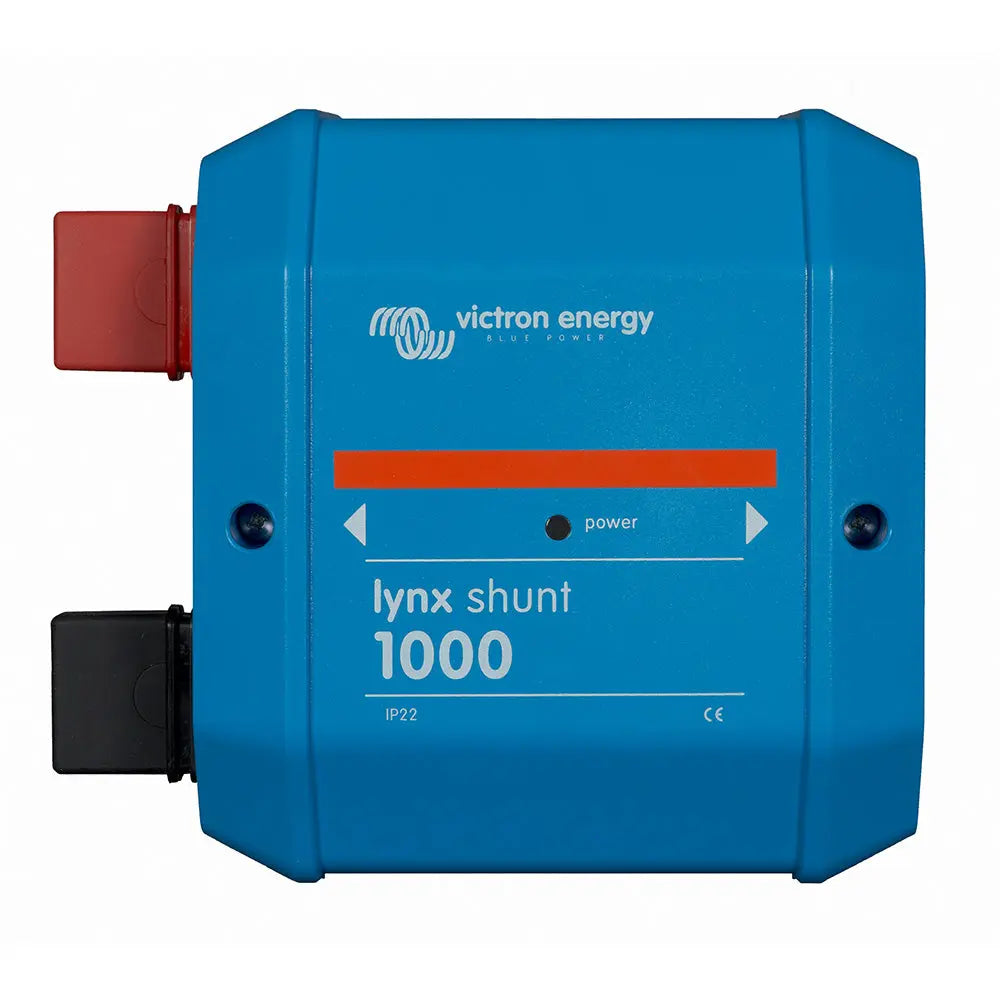

Victron Energy Lynx Shunt VE.Can (M10) Battery Monitoring System for Lynx Distribution

Lynx Shunt VE.Can (M10)

Busbar Integrated Battery Monitoring

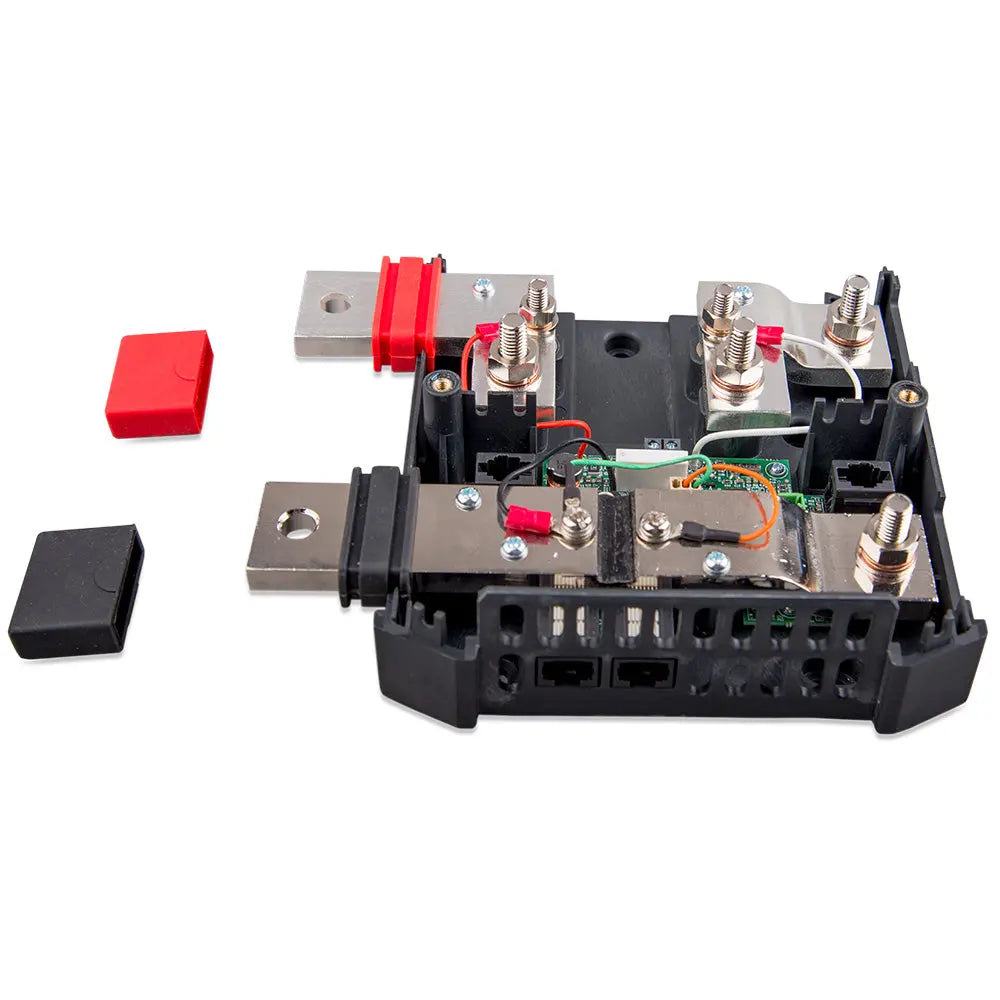

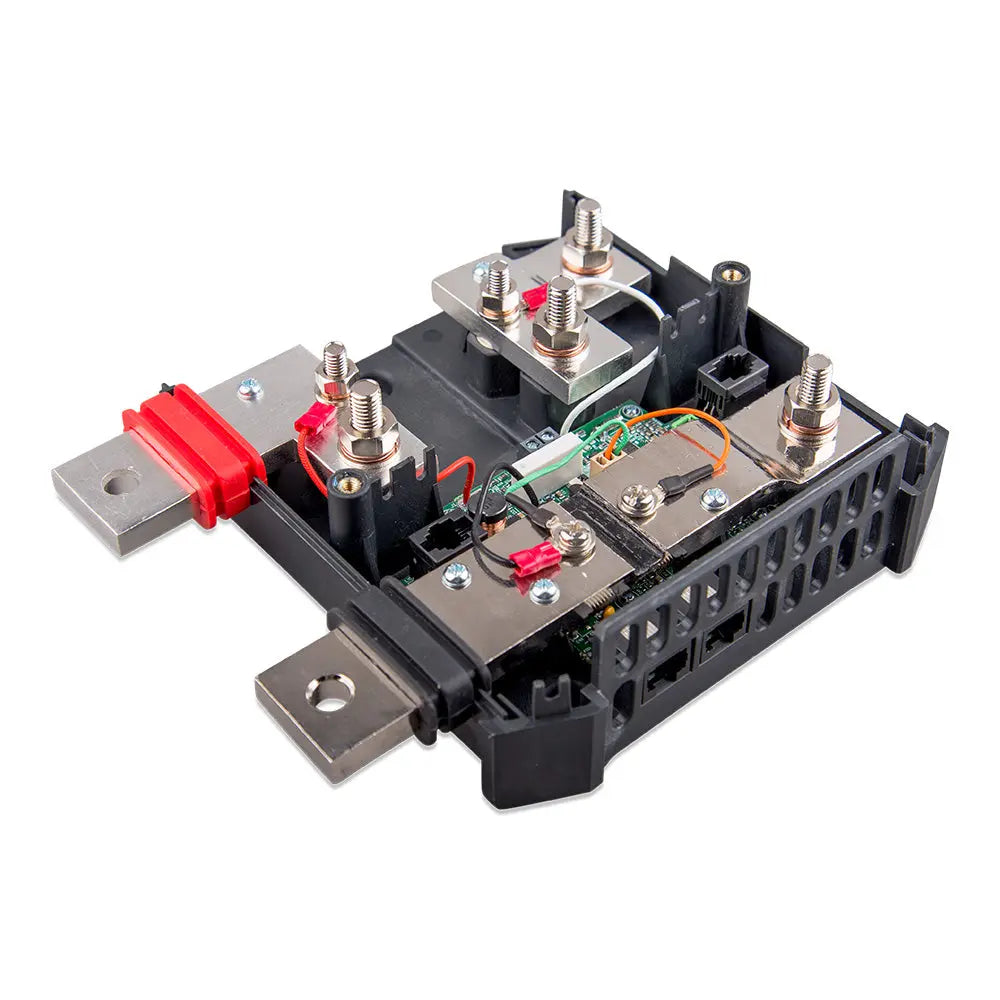

The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device.

The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.

The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management.

The Lynx Distribution System Consists of the Following Parts:

• Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections.
• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring
• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device
• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal

Specifications:

Power:

• Supply Voltage Range: 9 - 70 Vdc
• Supported System Voltages: 12, 24 or 48V
• Reverse Polarity Protection: No
• Current Rating: 1000Adc continuous
• Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V
• Potential Free Alarm Contact 3A, 30Vdc, 250Vac

Connections:

• Busbar: M8
• Fuse: M8
• VE.Can: RJ45 and RJ45 terminator
• Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor)
• Temperature Sensor: Screw terminal
• Relay: Screw terminal

Physical:

• Enclosure Material: ABS
• Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm
• Unit Weight: 1.4 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (H x W): 8 x 30 mm

Environmental

• Operating Temperature Range: -40C to +60
• Storage Temperature Range: -40C to +60
• Humidity: Max. 95% (non-condensing)
• Protection Class: IP22

The Victron Energy Lynx Shunt VE.Can (M10) is an essential component of the Lynx Distribution System, designed to facilitate efficient battery monitoring and system management. It features a positive and negative busbar, a dedicated space for a main system fuse (fuse purchased separately), and a shunt for precise battery current measurement. The device communicates via VE.Can protocol with GX series devices, enabling seamless integration into your power management setup. Equipped with a power LED indicator, the Lynx Shunt VE.Can ensures straightforward status monitoring and diagnostics. The inclusion of two RJ45 VE.Can terminators simplifies network connections, making installation and expansion straightforward. Its robust design includes a tinned copper busbar, rated for continuous currents up to 1000A, supporting system voltages of 12V, 24V, or 48V, with a supply voltage range from 9V to 70VDC. Constructed from durable ABS, it measures approximately 7.5 inches high, 7 inches wide, and 3.1 inches deep, with a weight of about 1.5 pounds, making it suitable for various installation environments. The Lynx Shunt VE.Can is built to operate reliably in temperatures ranging from -40°C to +60°C and is rated IP22 for environmental protection. It connects to the Lynx Distributor via M8 busbar and fuse connections, and the VE.Can communication is managed through RJ45 ports. The device also includes screw terminals for temperature sensing and relay connections, providing comprehensive system integration options. Whether used in residential, commercial, or mobile power setups, the Victron Energy Lynx Shunt VE.Can (M10) offers precise battery monitoring, system protection, and seamless communication to optimize your energy system's performance.

Features:

• Busbar Integrated Battery Monitoring: Combines busbar, fuse holder, and shunt for comprehensive system oversight

• VE.Can Communication: Supports seamless data exchange with GX devices for real-time monitoring

• High Current Rating: Handles continuous currents up to 1000A for demanding power applications

• Multiple System Voltages: Compatible with 12V, 24V, or 48V systems within a voltage range of 9-70VDC

• Durable Construction: ABS enclosure with tinned copper busbar for reliable environmental performance

• Easy Installation: Includes RJ45 VE.Can terminators and standard M8 connections for quick setup

• Temperature and Environmental Resilience: Operates in extreme temperatures from -40°C to +60°C with IP22 protection
