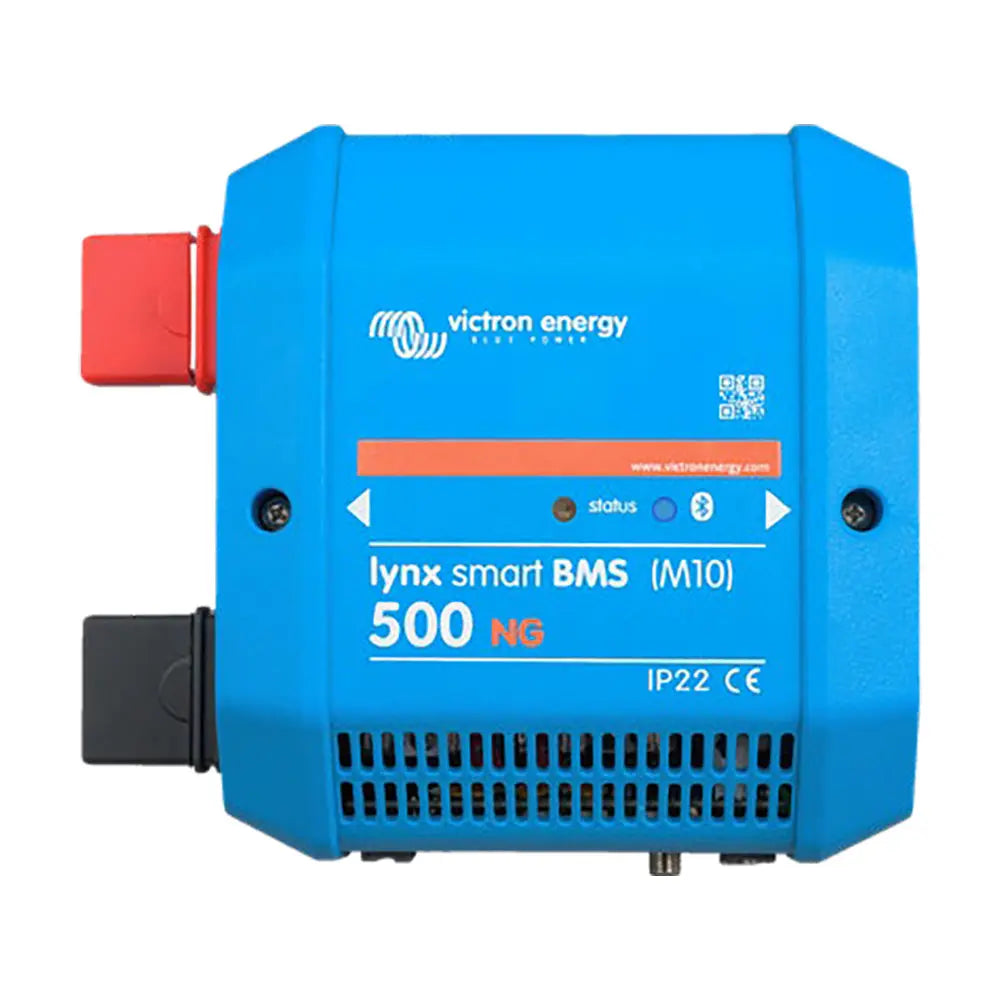

Victron Energy Lynx Smart BMS 500 NG (M10) Battery Management System for Lithium NG Batteries

Lynx Smart BMS 500 NG (M10)

The Lynx Smart BMS NG is a dedicated Battery Management System (BMS) designed specifically for the Victron Lithium NG batteries. These batteries utilize Lithium Iron Phosphate (LiFePO4) technology and are available in 12.8 V, 25.6 V, and 51.2 V variants with various capacities. They can be configured in series, parallel, and series/parallel arrangements, allowing for the creation of battery banks with system voltages of 12V, 24V, or 48V. The maximum number of batteries in a single system is 50, enabling a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system. For comprehensive details about these batteries, visit the Victron Lithium NG battery product page.

Out of the various BMSes available* for the Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and complete option and integrates seamlessly with other M10 products in the Lynx Distributor system. It is available in 500 A (M10) and 1000 A (M10) versions¹).

Built-in 500 A or 1000 A Contactor

• Available in 500 A (M10) and 1000 A (M10) versions
• Acts as a secondary safety system to protect the battery in case primary controls (ATC, ATD, and/or DVCC) fail
• Suitable as a remote controllable main system switch

Pre-Charge Circuit

• Prevents high inrush currents when connecting capacitive loads like inverters
• Eliminates the need for external pre-charging devices

Monitoring Control

• Bluetooth connectivity for monitoring and control via the VictronConnect App or VE.Can connectivity in combination with GX devices such as the Cerbo GX or Ekrano GX and the VRM portal
• Readout of cell voltages and temperatures also on GX devices and the VRM portal
• Built-in battery monitor provides data such as state of charge, voltage, current, historical data, status info, and more in real-time
• Diagnostic at a Glance with Instant Readout

DVCC Closed Loop Control as well as ATC/ATD Contacts

• Compatible Victron inverter/chargers, the Orion XS 12/12-50A DC-DC battery charger, and solar charge controllers are automatically controlled via a connected GX device and DVCC.
• ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port

Programmable Relay

• Can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable)
• Features Alternator ATC mode for safe alternator disconnection before battery disconnects

AUX Terminal

• Onboard auxiliary power supply (1.1 A @ system voltage) for powering specific loads (i.e. a GX device) post-BMS shutdown
• Automatic shutdown of BMS and AUX connection if no charge voltage is detected within 5 minutes after a low voltage event

VE.Can and NMEA 2000 Data Communication

• Easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable
• Integration into marine networks via NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable)

Lynx Distributor Fuse Monitoring

• Monitor fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices
• Receive alarms in case of blown fuses

¹) Up to 5 BMS-es can be paralleled. This requires a firmware update, expected in Q3 2024.

Specifications

Power:

• Battery Voltage Range: 9 60 VDC
• Maximum Input Voltage: 75 VDC
• Supported System Voltages: 12, 24, or 48V
• Reverse Polarity Protection: No
• Main Safety Contactor Continuous Current Rating: 500 A continuous
• Main Safety Contactor Peak Current Rating: 600 A for 5 minutes
• Power Consumption OFF Mode: 0.3 mA for all system voltages
• Power Consumption in Standby Mode: Approximately 0.6 W (50 mA at 12 V)
• Power Consumption in ON Mode: Approx. 2.6 W (217 mA at 12 V) depending on the state of the relays
• Minimum Load Resistance for Pre-Charging: 10 and above for 12 V systems 20 and above for 24 V and 48 V systems
• AUX Output Maximum Current Rating: 1.1 A continuous, protected by resettable fuse
• Allow-to-Charge Port Maximum Current Rating: 0.5 A at 60 VDC, protected by resettable fuse
• Allow-to-Discharge Port Maximum Current Rating: 0.5 A at 60VDC, protected by resettable fuse
• Alarm Relay (SPDT) Maximum Current Rating: 2 A at 60 VDC

Connections:

• Busbar: M10 (Torque: 33 Nm) can be combined with all M10 Lynx products
• VE.Can: RJ45
• I/O: Removable multi-connector with screw terminals
• Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring Up to 50 batteries can be connected in one system
• Lynx Distributor Fuse Monitoring (up to 4 modules): RJ10 (cable ships with each Lynx Distributor)

Physical:

• Enclosure Material: ABS
• Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm
• Unit Weight: 1.9 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (H x W): 8 x 30 mm

Environmental:

• Operating Temperature Range: -40 C to +60 C
• Storage Temperature Range: -40 C to +60 C
• Humidity: Max. 95 % (non-condensing)
• Protection Class: IP22

Standards:

• Safety: EN-IEC 63000:2018
• EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
• QMS: NEN-EN-ISO 9001:2015

The Victron Energy Lynx Smart BMS 500 NG (M10) is a comprehensive battery management system designed specifically for Victron Lithium NG batteries utilizing Lithium Iron Phosphate (LiFePO4) technology. This BMS supports system voltages of 12V, 24V, and 48V, with configurations in series, parallel, or series/parallel arrangements, allowing you to create versatile battery banks with a maximum of 50 batteries. It offers a maximum energy storage capacity of up to 192kWh in 12V systems and 384kWh in higher voltage setups, making it suitable for large-scale energy storage applications. The Lynx Smart BMS 500 NG seamlessly integrates with other M10 and Lynx Distributor products, providing a unified and reliable energy management solution.

Built with advanced features, the Lynx Smart BMS 500 NG includes a 500 A or 1000 A contactor, which acts as a secondary safety device to protect the batteries in case of primary control failure. The integrated pre-charge circuit prevents high inrush currents when connecting capacitive loads like inverters, eliminating the need for external pre-charging devices. Bluetooth connectivity ensures real-time monitoring and control via the VictronConnect App, while VE.Can communication allows integration with GX devices such as Cerbo GX or Ekrano GX and the VRM portal for comprehensive system oversight. The BMS also provides cell voltage and temperature readouts, real-time state of charge data, historical logs, and diagnostics, enabling efficient system management and troubleshooting.

Additional features include DVCC closed-loop control compatibility, ATC/ATD contacts for remote control of chargers and loads, and a programmable relay that can serve as an alarm or control an external device such as an alternator. The onboard auxiliary terminal supplies power to specific loads post-BMS shutdown, with automatic shutdown capabilities if no charge voltage is detected after a low voltage event. Communications via VE.Can and NMEA 2000 enable easy integration into marine and other networked systems, while fuse monitoring across multiple Lynx Distributors enhances system safety. Designed with durable ABS enclosure and tinned copper busbars, the Lynx Smart BMS 500 NG is built to operate reliably in demanding environments, supporting a wide temperature range and humidity conditions. Compliant with industry standards like EN-IEC 63000:2018 and EN-IEC 61000-6-3:2007/A1:2011/AC:2012, it is a dependable choice for advanced energy management systems.

Features:

• Supports system voltages of 12V, 24V, and 48V with series/parallel configurations

• Built-in 500 A or 1000 A contactor for battery safety and remote control

• Pre-charge circuit prevents high inrush currents during load connection

• Bluetooth and VE.Can connectivity for real-time monitoring and control

• Cell voltage and temperature monitoring with data readouts on GX devices and VRM portal

• Compatible with Victron inverter/chargers, Orion XS DC-DC charger, and solar controllers

• DVCC closed-loop control and ATC/ATD contacts for system automation

• Programmable relay for alarms or external device control

• Auxiliary terminal supplies power for loads post-shutdown

• VE.Can and NMEA 2000 communication protocols for marine and network integration

• Fuse monitoring for up to 4 Lynx Distributors with alarm alerts

• Rugged ABS enclosure with IP22 protection, suitable for demanding environments

• Designed to operate across a wide temperature range, from -40°C to +60°C
