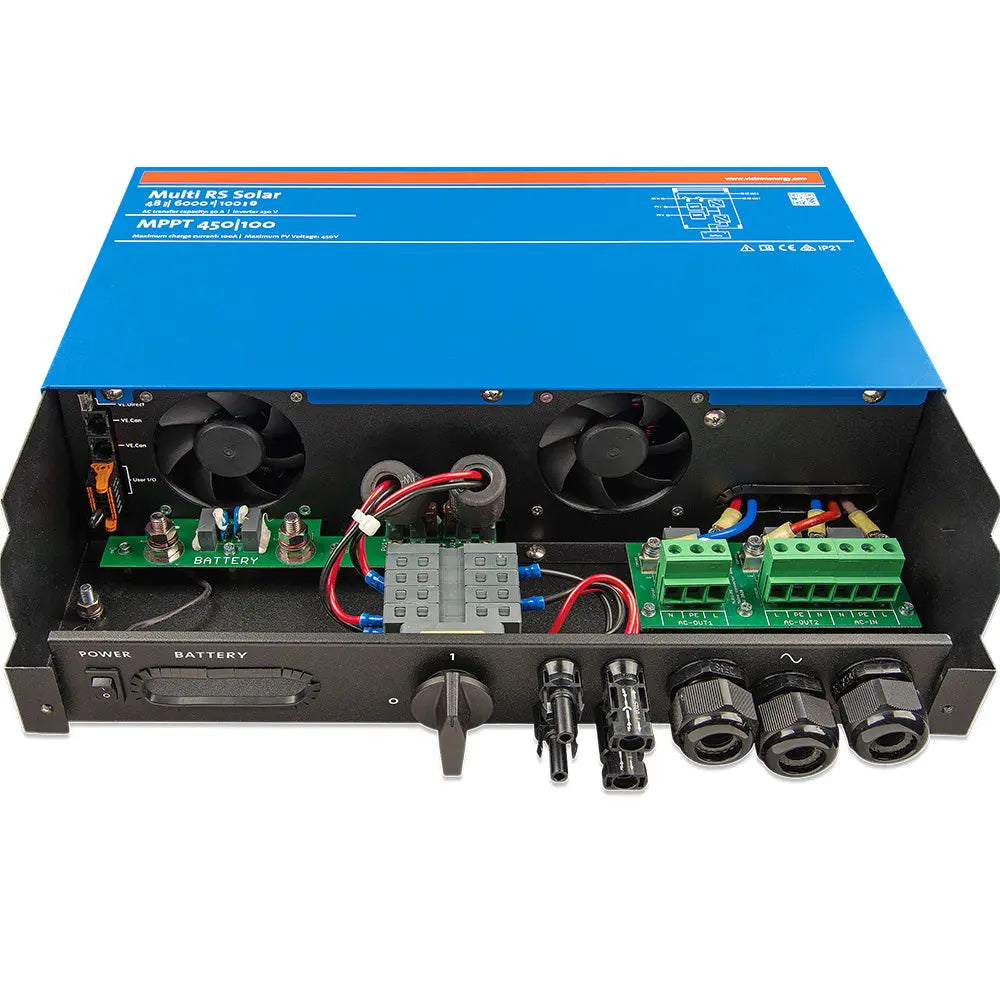

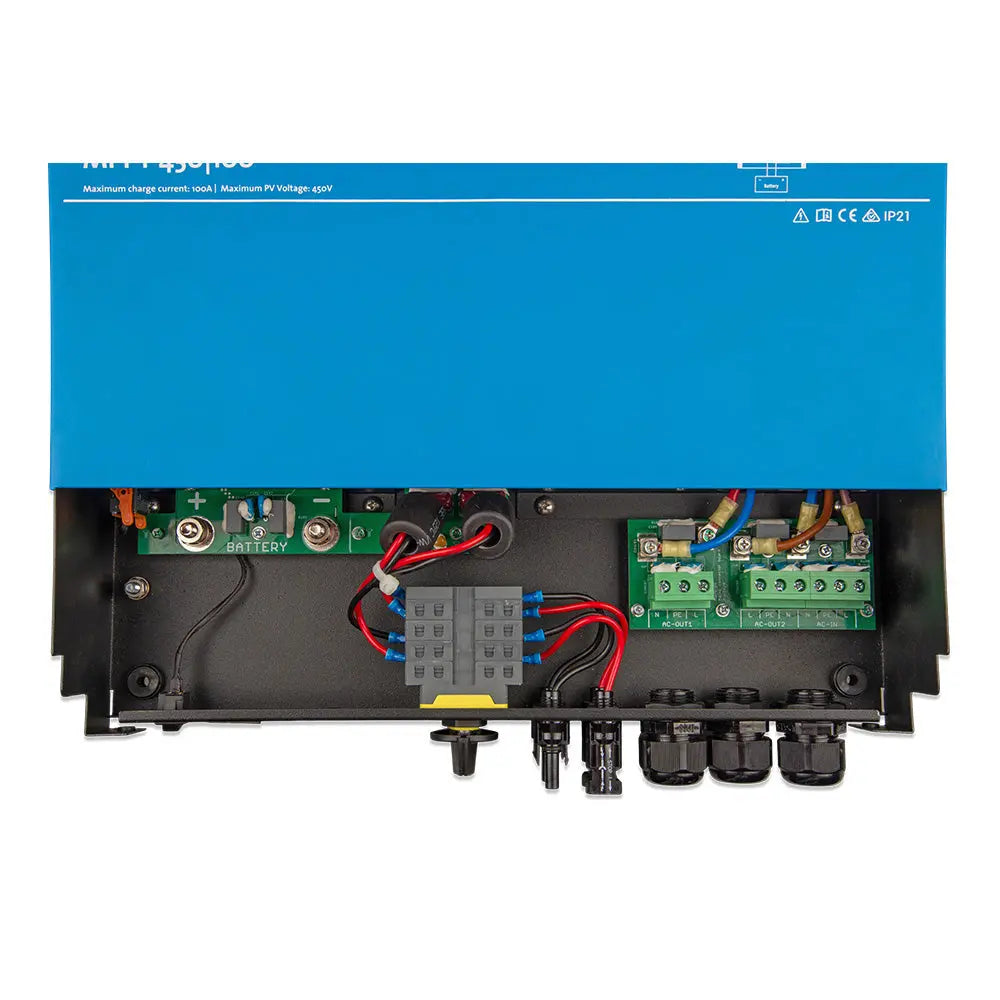

Victron Energy Multi RS Solar 48/6000 Inverter/Charger

Multi RS Solar 48/6000 Inverter/Charger

The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent 3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct grid connection without batteriesperfect for starting simple and adding storage later.

Updated in mid-2023 to a dual tracker design, its high-frequency technology delivers exceptional efficiency in a quiet, lightweight package with low standby power. Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trends, firmware updates, and configuration tools. Connect to a Cerbo GX for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.

Operating Modes:

• Hybrid mode Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
• Backup mode Switches to backup mode during a grid outage.
• Off-grid mode Operates without a grid connection.
• Generator mode Controls the generator to minimize run hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.
• PV Inverter mode Works as a PV inverter without a battery.

PowerControl PowerAssist - Boosting the capacity of the grid or a generator

A maximum grid or generator current can be set. The Multi RS will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi RS will compensate insufficient generator or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

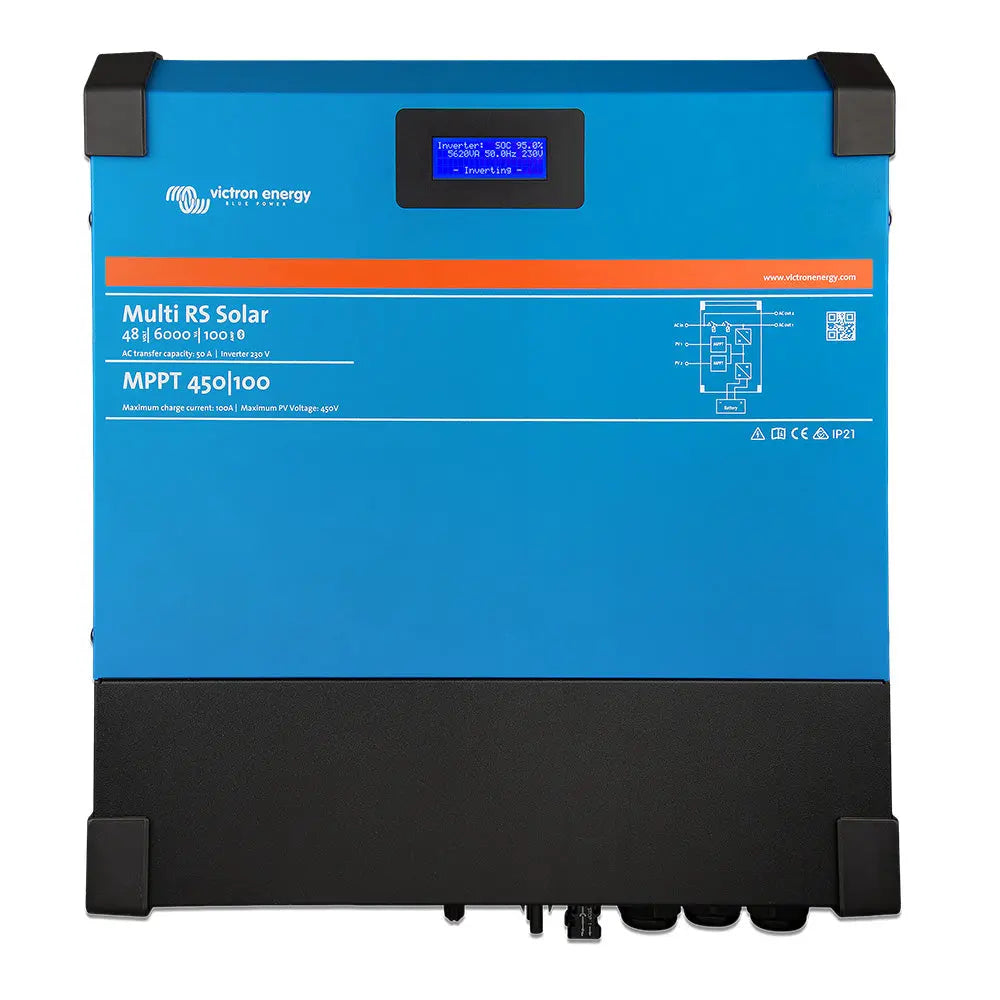

Display, Bluetooth VictronConnect app

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device , using the VictronConnect app.

Extendable PV capacity, both AC -coupled DC -coupled

The integrated 6 kWp PV capacity can be extended by adding solar chargers to the system. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated frequency shift power control.

Communication Ports

VE.Can connection to a GX device for system monitoring, energy meter (11), data logging, and remote firmware updates.

VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O Connections

Programmable relay, temperature sensor and voltage sensor connections

The Victron Energy Multi RS Solar 48/6000 inverter/charger is a versatile and efficient power management solution designed for off-grid, backup, and grid-tied solar applications. Featuring a 48V system and a 6kVA continuous power output, this unit incorporates two independent 3kWp PV MPPT trackers with 450V capacity, allowing for optimal solar energy harvesting from multiple panels. Its high-frequency technology ensures exceptional efficiency, along with a lightweight and quiet design that minimizes standby power consumption. The integrated display provides real-time monitoring of battery, inverter, and solar parameters, which can also be accessed remotely via the VictronConnect app for convenient system management, firmware updates, and historical data analysis.

Features:

• Dual MPPT trackers: Two independent 3kWp PV trackers for maximum solar input flexibility

• Multiple operating modes: Hybrid, backup, off-grid, generator, and PV inverter modes for versatile power solutions

• PowerControl and PowerAssist: Prevent overloads and boost capacity by supplementing grid or generator power with battery energy

• Extendable PV capacity: Compatible with additional solar chargers or PV inverters to expand system capacity

• Remote monitoring: Connects via Bluetooth with the VictronConnect app and VE.Direct or VE.Can interfaces for system oversight and updates

• Advanced system integration: Compatible with Cerbo GX for features like zero-export grid feed-in and critical load backup

• Low standby power: Designed for energy efficiency with minimal power draw when idle
