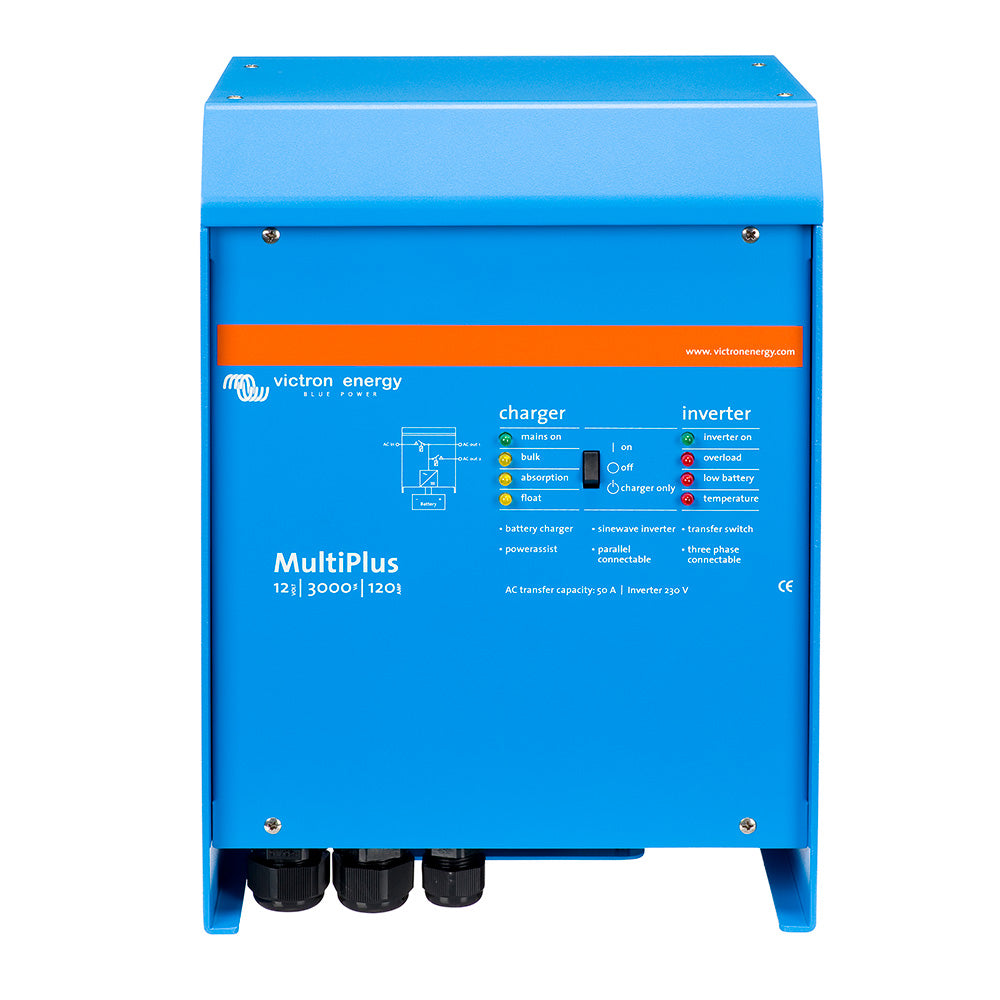

Victron Energy MultiPlus 12/3000 Inverter/Charger with VE.Bus - 230V Power Solution

MultiPlus 12/3000 - 120-50 - 230V - VE.Bus

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.

Two AC Outputs

The main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).

Virtually Unlimited Power Thanks to Parallel Operation

Up to 6 Multis can operate in parallel to achieve a higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 AMP charging capacity.

Three Phase Capability

In addition to parallel connections, three units of the same model can be configured for three-phase output. But thats not all up to 6 sets of three units can be connected in parallel for a 75 kW / 90 kVA inverter and more than 2000 Amp charging capacity.

PowerControl - Dealing with Limited Generator, Shore Side or Grid Power

The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power

This feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces the spare power is used to recharge the battery.

Solar energy: AC Power is Available Even During a Grid Failure

The MultiPlus can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.

System Configuring:

• In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure
• Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software
• Off-grid, grid-interactive, and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications)

On-site Monitoring and Control

Several options are available: Battery Monitor, Multi Control Panel, Color control for GX or other GX devices, smartphone, tablet (Bluetooth Smart), laptop, or computer (USB or RS232).

Remote Monitoring and Control

Color Control GX or other GX devices. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote Configuring

When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed, and settings can be changed remotely

Specifications:

• PowerControl: Yes
• PowerAssist: Yes
• Transfer Switch (A): 16 or 50

Inverter Specifications:

• Input Voltage Range (V DC): 9,5 17 V 19 33 V 38 66 V
• Output: Output voltage: 230 VAC, 2% / Frequency 50 Hz 0,1%
• Continuous Output Power at 25C (VA): 3000
• Continuous Output Power at 25C (W): 2400
• Continuous Output Power at 40C (W): 2200
• Continuous Output Power at 65C (W): 1700
• Peak Power (W): 6000
• Maximum Efficiency (%): 93 / 94 / 95
• Zero Load Power (W): 20 / 20 / 25
• Zero Load Power in AES Mode (W): 15 / 15 / 20
• Zero Load Power in Search Mode (W): 8 / 10 / 12

Charger Specifications:

• AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 65 Hz / Power factor: 1
• Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6
• Charge Voltage Float (V DC): 13,8 / 27,6 / 55,2
• Storage Mode (V DC): 13,2 / 26,4 / 52,8
• Charge Current House Battery (A): 120 / 70 / 35
• Charge Current Starter Battery (A): 4 (12 V and 24 V models only)
• Battery Temperature Sensor: Yes

General Specifications:

• Auxiliary Output: Yes (16A)
• Programmable Relay: Yes
• Protection: a - g
• VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration
• General purpose com. Port: Yes
• Remote On-Off: Yes
• Common Characteristics: Operating temp. range: -40 to +65C (fan-assisted cooling) / Humidity (non-condensing): max 95%

Enclosure Specifications:

• Common Characteristics: Material Color: aluminum (blue RAL 5012) / Protection category: IP 21
• Battery-Connection: Four M8 bolts (2 plus and 2 minus connections)
• 230 V AC-Connection: Screw terminals 13mm^2 (6 AWG) M6 bolts
• Weight (kg): 18
• Dimensions (hxwxd in mm): 362 x 258 x 218

Standards

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
• Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: 12V and 24V models: ECE R10-4
• Anti-Islanding: See Victron's website
• Can be adjusted to 60 HZ. 120 V models available on request
• Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on the inverter output, input voltage ripple is too high
• Non-linear load, crest factor 3:1
• Up to 25C ambient
• Switches off when no external AC source is available
• Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 230 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS

The Victron Energy MultiPlus 12/3000 is a versatile combined inverter and charger designed for reliable power management in off-grid, grid-connected, and hybrid energy systems. With a true sine wave inverter rated at 3000 VA and a powerful 120 A charger, this unit ensures smooth operation of sensitive electronics and efficient battery maintenance. Its compact design integrates advanced features like PowerAssist technology, enabling the unit to boost available power from the grid or generator during peak loads, preventing overloads and optimizing energy use. The MultiPlus's adaptive charging algorithm minimizes battery wear while delivering fast, efficient charging, making it suitable for a wide range of applications including RVs, boats, and off-grid installations.
Two AC outputs enhance system flexibility: the main no-break output ensures an uninterrupted power supply during grid failures or disconnections, while the second output, active only when AC is present, allows for loads like water heaters that should not drain the batteries. Multiple units can be connected in parallel (up to six) to achieve higher power outputs—up to 25 kW / 30 kVA—making it an ideal solution for large-scale installations or three-phase systems. The device's three-phase capability allows for complex power configurations, supporting extensive systems with significant load demands.
Designed for integration and remote management, the MultiPlus supports system configuration via software tools, enabling quick setup for stand-alone, grid-tie, or off-grid applications. It features on-site monitoring options—including a Multi Control Panel, Bluetooth-enabled smartphone control, and compatibility with GX devices for remote access and data logging via Victron's VRM platform. The unit's advanced power management features, such as PowerControl and PowerAssist, dynamically balance power loads, preventing overloads and ensuring efficient utilization of available power sources. Built to meet international safety standards, the MultiPlus features robust protection functions, a durable aluminum enclosure, and a user-friendly design for easy installation and maintenance. Whether used in small renewable energy systems or large hybrid installations, the Victron Energy MultiPlus 12/3000 delivers reliable, efficient, and flexible power management tailored to demanding energy needs.

Features:

• True sine wave inverter: Provides clean, stable AC power suitable for sensitive electronics

• Adaptive charging: Optimizes battery charging for longevity and efficiency

• PowerAssist technology: Boosts shore or generator power during peak loads

• Two AC outputs: No-break main output and auxiliary output for specific loads

• Parallel operation: Connect up to six units for increased power capacity

• Three-phase support: Configurable for complex three-phase systems

• PowerControl: Manages generator and shore power to prevent overloads

• Remote monitoring: Access system status via Bluetooth, USB, RS232, or network

• System configuration software: Quick setup for various applications

• Robust protection: Includes overload, short circuit, and temperature safeguards

• Durable aluminum enclosure: IP 21 rated for reliable outdoor and indoor use

• Compliance: Meets international safety and emission standards
