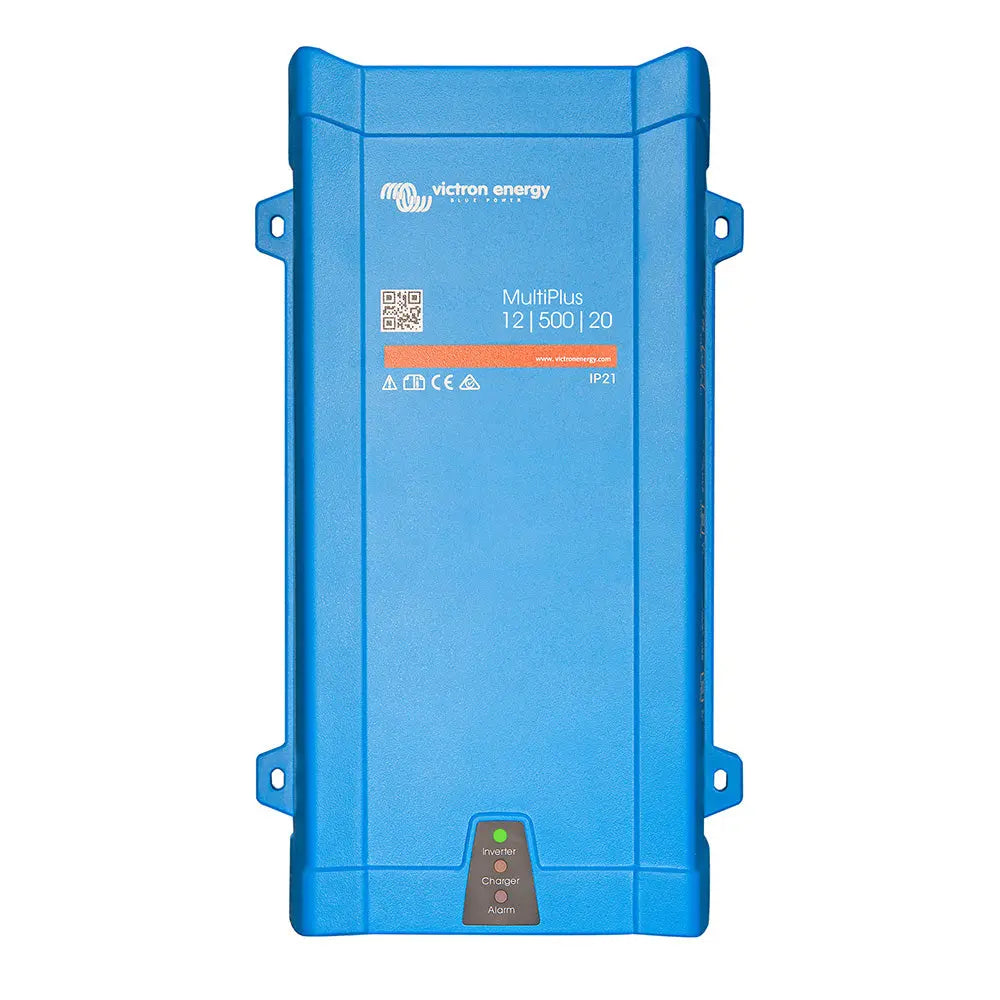

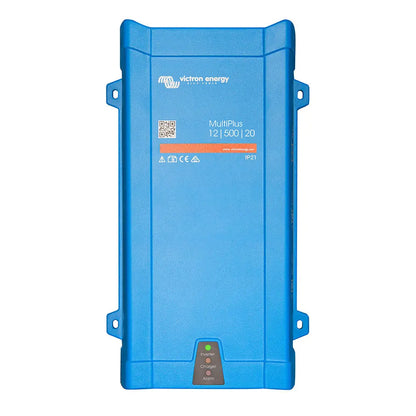

Victron Energy MultiPlus 12/500 - 120V Inverter and Charger with VE.Bus UL Approval

MultiPlus 12/500 - 20-16 - 120V - VE. Bus UL Approved

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.

Parallel Operation and Three-Phase Capability

Up to six Multis can operate in parallel to achieve higher power output. In addition to parallel connection, three units can be configured for three-phase output.

PowerControl - Dealing with Limited Generator, Shore Side or Grid Power

With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the Capacity of Shore or Generator Power

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load is reduced, the spare power is used to recharge the battery.

Four Stage Adaptive Charger and Dual-Bank Battery Charging

The main output provides a powerful charge to the battery system using advanced adaptive charge software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.

High Start-Up Power

It is needed to start high-inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.

Search Mode

When Search Mode is on, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the Multi, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable Relay

By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

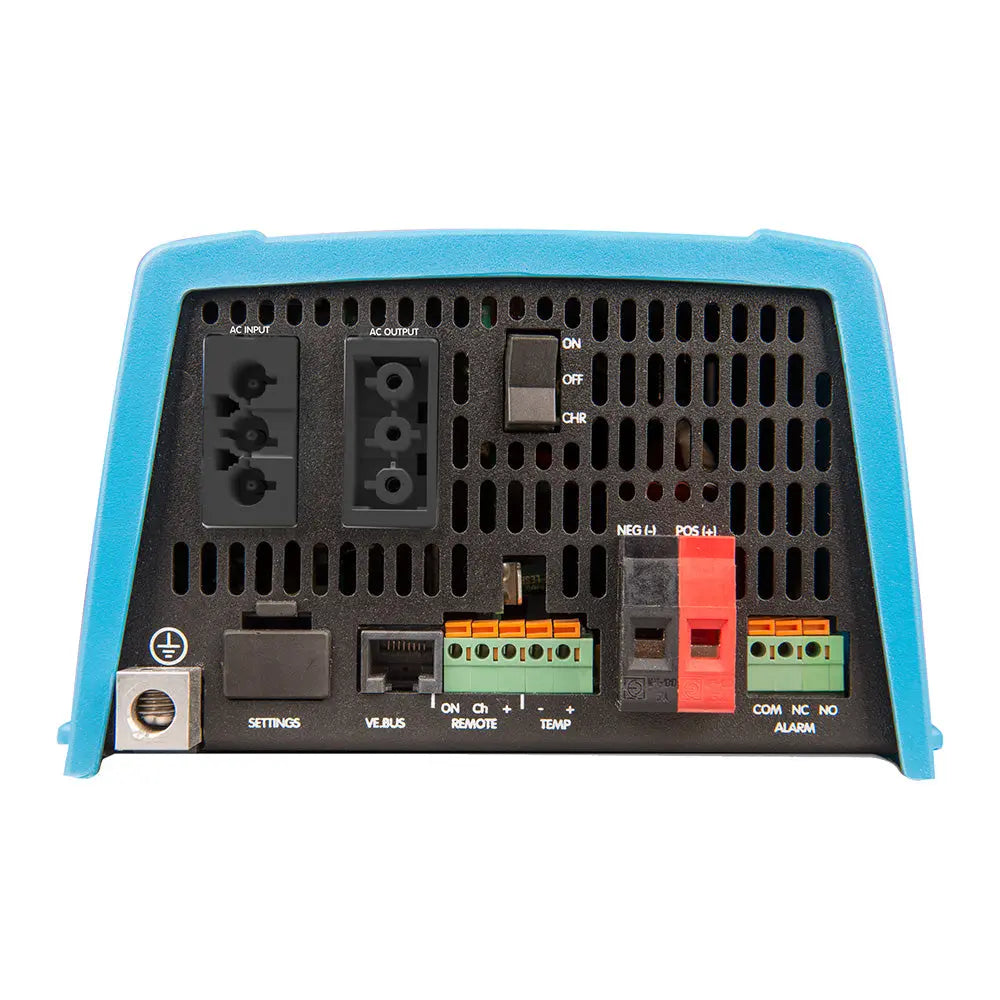

Remote On/Off/Charger On

Three pole connector.

On-Site System Configuring, Monitoring, and Control

After installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 500/800/1200VA models: remote switch/battery charge voltage/inverter frequency/search mode. 1600/2000VA models: battery charge voltage/search mode. For more settings use VE-Config or the VE. Bus Smart dongle.

Remote Configuring and Monitoring

Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Specifications:

• PowerControl: Yes
• PowerAssist: Yes
• Transfer Switch (A): 16

Inverter Specifications:

• Input Voltage Range (V DC): 9,5 17 V, 19 33 V, 38 66 V
• Output voltage: 230 VAC, 2% / Frequency 50 Hz 0,1%
• Continuous Output Power at 25C (VA): 500
• Continuous Output Power at 25C (W): 430
• Continuous Output Power at 40C (W): 400
• Continuous Output Power at 65C (W): 300
• Peak Power (W): 900
• Maximum Efficiency (%): 90 / 91 / 92%
• Zero Load Power (W): 6 / 6 / 7W
• Zero Load Power in Search Mode (W): 2 / 2 / 3W

Charger Specifications:

• AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 65 Hz
• Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6
• Charge Voltage Float (V DC): 13,8 / 27,6
• Storage Mode (V DC): 13,8 / 27,6 / 55,2
• Charge Current House Battery (A): 20 / 10 / 6 A
• Charge Current Starter Battery (A): 1A (12 V and 24 V models only)
• Battery Temperature Sensor: Yes

General Specifications:

• Programmable Relay: Yes (1x)
• Protection: a - g
• VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models)
• Remote On-Off: On/off/charger only
• DIP Switches: Yes
• Internal DC Fuse: 125 / 60 /30 A
• Operating Temperature Range: -40 - +65C / -40 to 150F (fan-assisted cooling), Humidity (non-condensing) max 95%

Enclosure Specifications:

• Common Characteristics: Material Color: aluminum (blue RAL 5012) / Protection category: IP 21
• Battery-Connection: 16 / 10 / 10 mm
• 230 V AC-Connection: G-ST18i connector
• Weight: 4,4 kg
• Dimensions (H x W x D): 311 x 182 x 100 mm / 12.2 x 7.2 x 3.9 in.

Standards:

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
• Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive: ECE R10-5
• Can be adjusted to 60Hz and 240V
• Protection: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high
• Non-linear load, crest factor 3:1
• Up to 25C ambient
• A programmable relay that can be set for General alarm, DC under voltage or generator start/stop signal function, AC rating: 230V/4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
• Remote/battery charge voltage/inverter frequency/search mode
• Battery charge voltage/search mode

The Victron Energy MultiPlus 12/500 is a versatile and robust inverter and battery charger designed for demanding energy applications. It features a true sine wave inverter that provides clean, reliable AC power, making it suitable for sensitive electronics and high-inrush loads. Its compact enclosure integrates multiple advanced functions, including adaptive charging, power management, and remote monitoring, to ensure efficient and flexible operation in both mobile and stationary systems.

The MultiPlus's parallel operation capability allows up to six units to work together for increased power output, while its three-phase configuration supports complex power distribution systems. PowerControl and PowerAssist features enable the system to effectively manage limited generator, shore, or grid power by preventing overloads and supplementing capacity during peak loads. This intelligent power management ensures continuous operation and optimal use of available energy sources.

The device includes a sophisticated four-stage adaptive charger with an additional float stage, ensuring optimal battery health and longevity. It also supports charging a secondary battery, such as a starter battery for engines, via an independent trickle charge output. High start-up power allows the inverter to handle high-inrush devices like LED and halogen lamps or electric tools, making it suitable for a wide range of applications. The Search Mode reduces no-load power consumption by approximately 70%, conserving energy during periods of low or no activity.

Designed with user convenience in mind, the MultiPlus features a programmable relay for alarms or system control, remote on/off switching, and settings that can be adjusted via DIP switches or remotely through VE-Config or VE.Bus Smart dongle. Integration with Victron's GX series products allows for comprehensive remote monitoring and system management through the Victron Remote Management (VRM) platform. The device complies with international safety and emission standards, ensuring safe and compliant operation across various environments.

Constructed with a durable aluminum enclosure and rated IP21 for protection, the MultiPlus is suitable for both indoor and outdoor installations. Its compact size and lightweight design make installation straightforward. With a maximum efficiency of up to 92%, the device delivers reliable power and charging performance, supporting continuous output power of up to 430 watts at 25°C. This makes the Victron Energy MultiPlus 12/500 an ideal solution for off-grid, mobile, or backup power systems requiring high reliability and advanced features.

Features:

• PowerControl: Manages generator or shore power to prevent overloads

• PowerAssist: Supplements limited power sources with battery energy

• Parallel Operation and Three-Phase Capability: Supports up to six units for higher power and three-phase distribution

• Four Stage Adaptive Charger: Optimizes battery charging and extends battery life

• High Start-Up Power: Handles high-inrush loads like electric tools and lamps

• Search Mode: Reduces no-load power consumption by approximately 70%

• Programmable Relay: Configurable alarm or control function

• Remote On/Off and Monitoring: Supports remote system control and data access via VE-Config or GX devices

• UL Approved VE.Bus System: Ensures compliance with safety standards

• Compact Aluminum Enclosure: Durable, IP21 rated for indoor and outdoor use

• Efficiency: Up to 92% for reliable power output

• Integrated Battery Charging for Main and Starter Batteries: Supports long-term battery health
