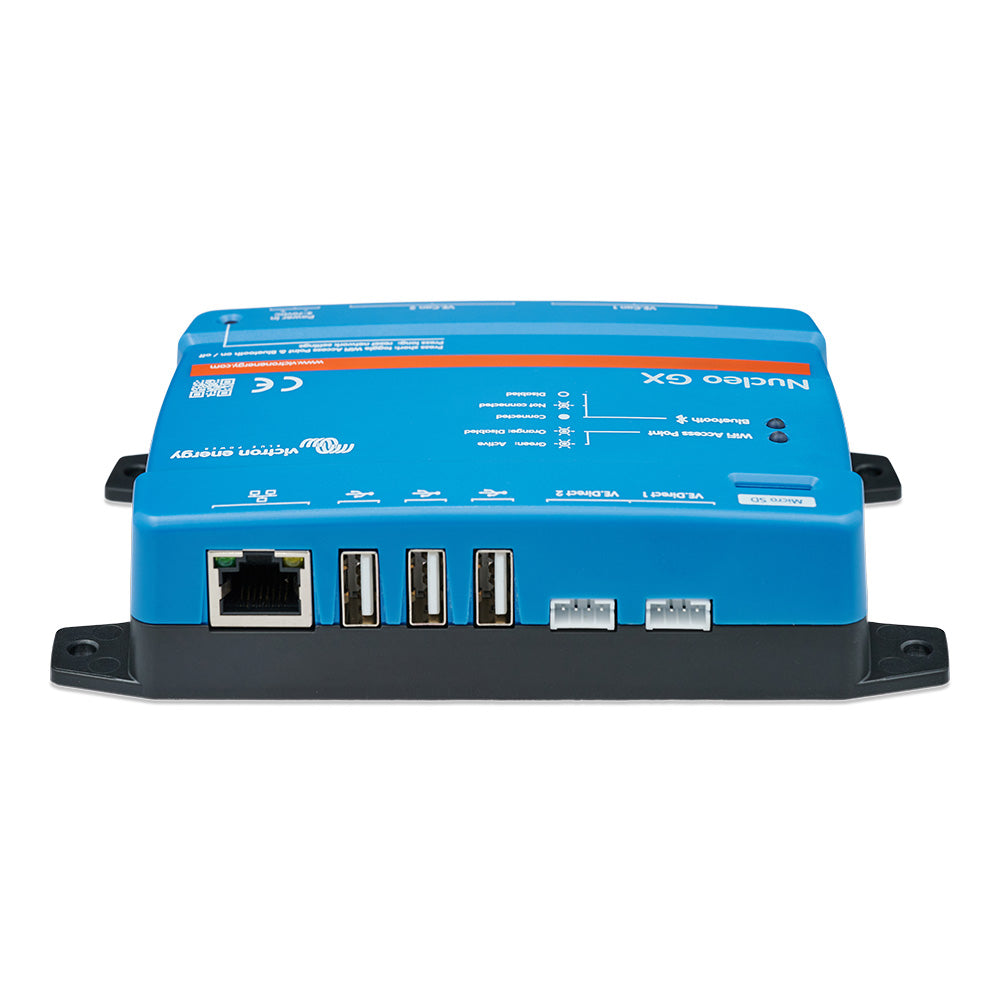

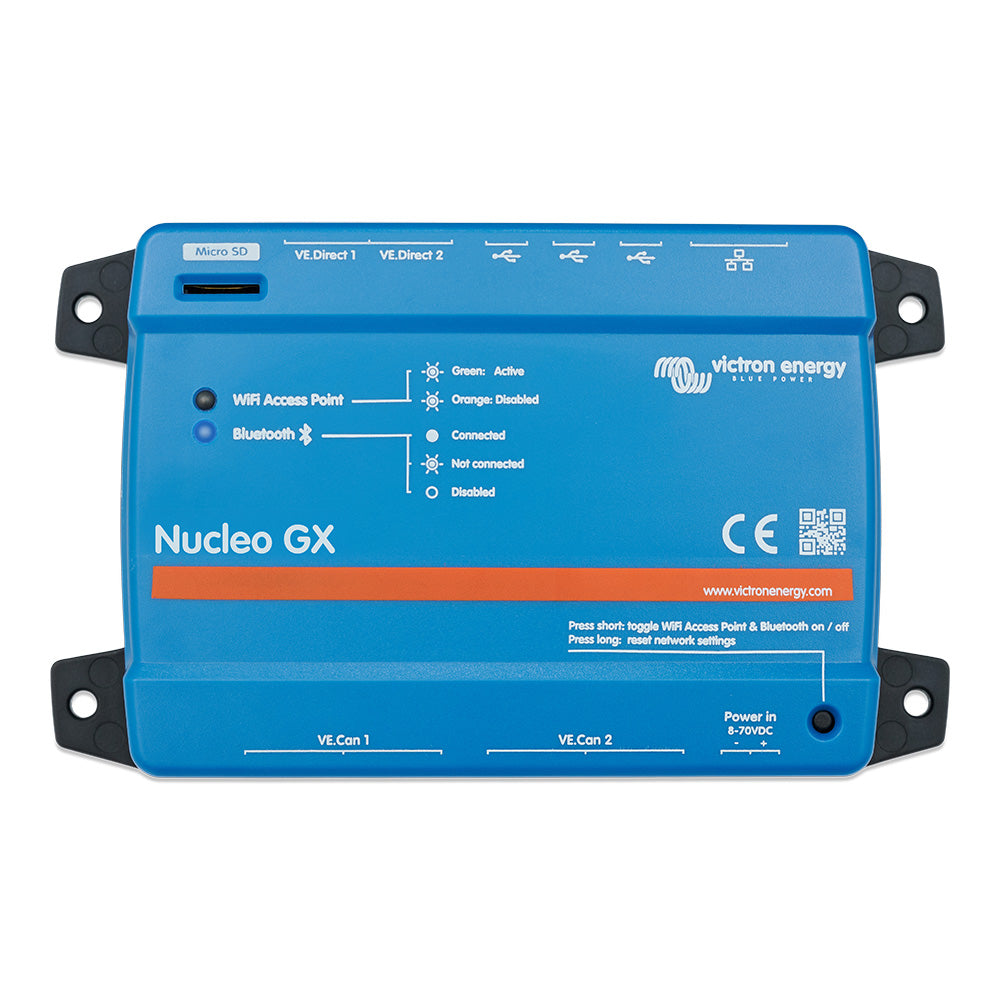

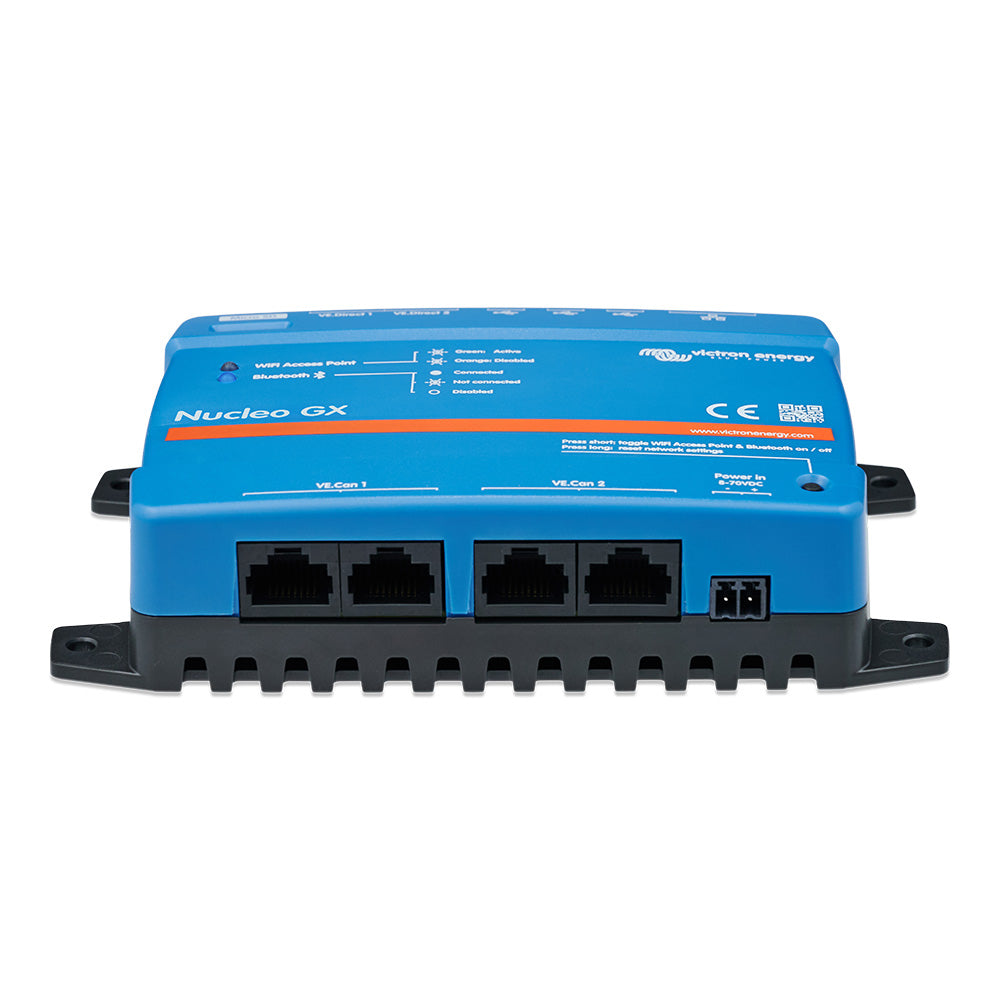

Victron Energy Nucleo GX BPP900453100 Compact GX System Monitor

Nucleo GX

The Nucleo GX is a compact, high-performance GX device that offers Ekrano GX-level speed at a lower cost.

Powered by a quad-core processor, it connects up to 25 devices via VE.Direct and USB, plus more via VE.Can, and provides real-time monitoring of battery status, power consumption, and PV, generator, or mains input, along with automated generator start/stop and alerts. Where needed, the I/Os can be extended with the following optional USB accessories: the MK3-USB interface, GX I/O Extender 150, or GX Tank 140.

The system can be managed from anywhere through Remote Console on the VRM Portal, the VictronConnect app, or a web browser. For local display and control, an Android GX WiFi Display can be added.

With its focused feature set, the Nucleo GX is an ideal choice for ESS and off grid installations built around the Multi RS.

Victron Energy Nucleo GX BPP900453100 is a compact, high-performance GX device designed to deliver Ekrano GX-level speed in a streamlined and cost-conscious format. It provides centralized monitoring and control for energy storage systems, off-grid installations, and Multi RS-based systems, making it a practical choice for applications that require dependable system visibility without unnecessary complexity.

Powered by a quad-core processor, the Nucleo GX supports communication with up to 25 devices through VE.Direct and USB connections, with additional devices available through VE.Can. It provides real-time information about battery status, energy consumption, photovoltaic production, and generator or mains input. The system can also manage automated generator start and stop functions while delivering alerts to help users respond quickly to changing operating conditions.

When additional input and output capabilities are needed, the Nucleo GX supports optional USB accessories, including the MK3-USB interface, GX I/O Extender 150, and GX Tank 140. These accessories allow the system to be adapted for expanded monitoring and control requirements. For local operation, an Android GX WiFi Display can be added to provide a convenient interface for viewing system data and adjusting supported settings.

Remote management is available through Remote Console on the Victron Remote Management (VRM) Portal, the VictronConnect app, or a compatible web browser. This enables users and installers to monitor performance, review system information, and manage connected equipment from virtually anywhere with an internet connection. The Victron Energy Nucleo GX is well suited for focused ESS and off-grid applications built around the Multi RS. Please contact your dealer for returns, repairs, or product support.

Features:

• Compact GX system monitor with high-performance quad-core processing

• Connects up to 25 devices through VE.Direct and USB, with additional connectivity through VE.Can

• Provides real-time monitoring of battery status, power consumption, PV production, and generator or mains input

• Supports automated generator start and stop functions with system alerts

• Expandable I/O through optional MK3-USB, GX I/O Extender 150, and GX Tank 140 accessories

• Remote Console access through the VRM Portal, VictronConnect app, or a web browser

• Compatible with an Android GX WiFi Display for local viewing and control

• Designed for ESS and off-grid installations using the Victron Energy Multi RS
