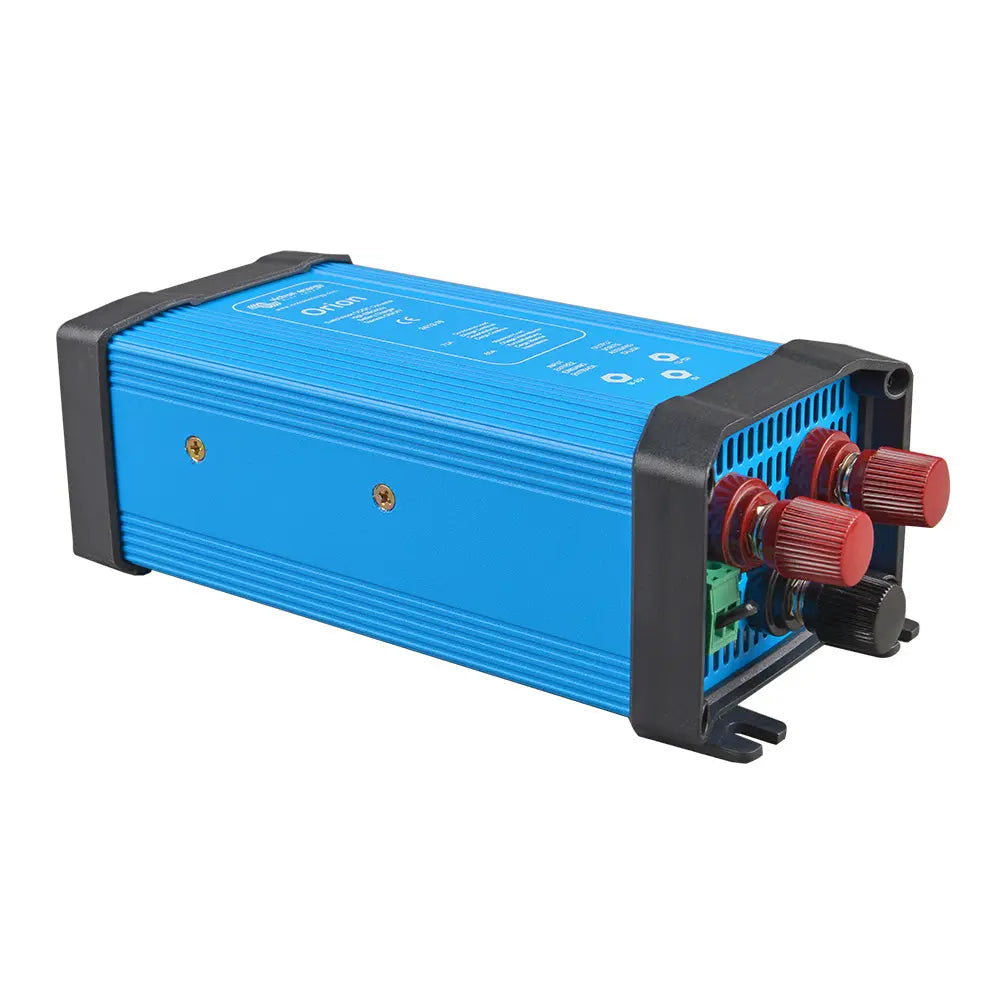

Victron Energy Orion 24/12-70A DC-DC Converter with Binding Posts - IP20

Orion 24/12-70A DC-DC Converter with Binding Posts - IP20

Remote On-Off Connector

The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be.

operated with a low-power switch or by the engine run/stop switch (see manual).

All Models with Adjustable Output Can Also Be Used as a Battery Charger

For example, charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All Models with Adjustable Output Can Be Paralleled to Increase Output Current

Up to five units can be connected in parallel.

Easy to Install

Delivery includes four Insulated Fastons Female Crimp 6.3mm.

Specifications:

• Input Voltage Range (V): 18-35
• Under Voltage Shutdown (V): 14
• Under Voltage Restart (V): 18
• Output Voltage Adjustable with Potentiometer: Yes
• Output Voltage (V): Adjustable, 1015V, F set 13,2V
• Efficiency (%): 92
• Suitable to Buffer-Charge a Battery: Yes
• Can Be Connected in Parallel: Yes
• Continuous Output Current (A): 70
• Max. Output Current (A): 85
• Fan-Assisted Cooling (Temp. Controlled): Yes
• Galvanic Isolation: No
• Off Load Current: < 20mA
• Remote On-off: Yes
• Operating Temperature Range (Derate 3% Per C above 40C): -20 to +55C
• DC Connection: M6 bolts
• Weight: 0,9 kg / 2.0 lbs
• Dimensions (H x W x D): (mm) 65 x 88 x 195 / (inch) 2.6 x 3.5 x 7.7
• Safety Standards: EN 60950
• Emission Standards: EN 61000-6-3, EN 55014-1
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-4

The Victron Energy Orion 24/12-70A DC-DC Converter offers a reliable power solution for demanding electrical systems. Designed with a robust IP20 enclosure, this converter features binding posts for secure connections and is suitable for a variety of applications. Its high efficiency of 92% ensures minimal energy loss during operation, making it an ideal choice for both industrial and automotive setups.

Equipped with a remote on-off connector, this model allows for convenient control without the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or integrated into engine run/stop systems, providing flexibility in system design. All models with adjustable output can also function as battery chargers, enabling you to charge 12-volt starter or accessory batteries within a 24-volt system.

The Orion 24/12-70A can be paralleled with up to five units, allowing an increase in output current to meet higher power demands. Its adjustable output voltage, set via a potentiometer, ranges from approximately 10 to 15 volts, with a factory preset of 13.2 volts, suitable for various battery types and charging profiles. The device includes fan-assisted cooling that is temperature-controlled, ensuring efficient thermal management during operation.

Installation is straightforward, with delivery including four insulated Fastons Female Crimp 6.3mm terminals for secure electrical connections. The converter is built to operate within a temperature range of -20°C to +55°C, derating by 3% per °C above 40°C, making it suitable for diverse environments. Its compact size and light weight facilitate easy integration into existing systems, whether for automotive, marine, or industrial applications. The unit complies with relevant safety and emission standards, ensuring safe and compliant operation in various settings.

Features:

• Remote on-off connector allows for convenient control with low-power switches or engine systems

• Adjustable output voltage from approximately 10V to 15V for versatile charging and power applications

• High efficiency rated at 92% to minimize energy loss during operation

• Paralleling capability supports up to five units for increased current output

• Fan-assisted cooling with temperature control ensures optimal thermal management

• Includes four insulated Fastons Female Crimp 6.3mm terminals for easy installation

• Suitable for buffering and charging batteries within 24V systems

• Robust IP20 enclosure for durability and protection in various environments

• Operates within a wide temperature range of -20°C to +55°C

• Compliance with safety and emission standards including EN 60950 and EN 61000-6-3
