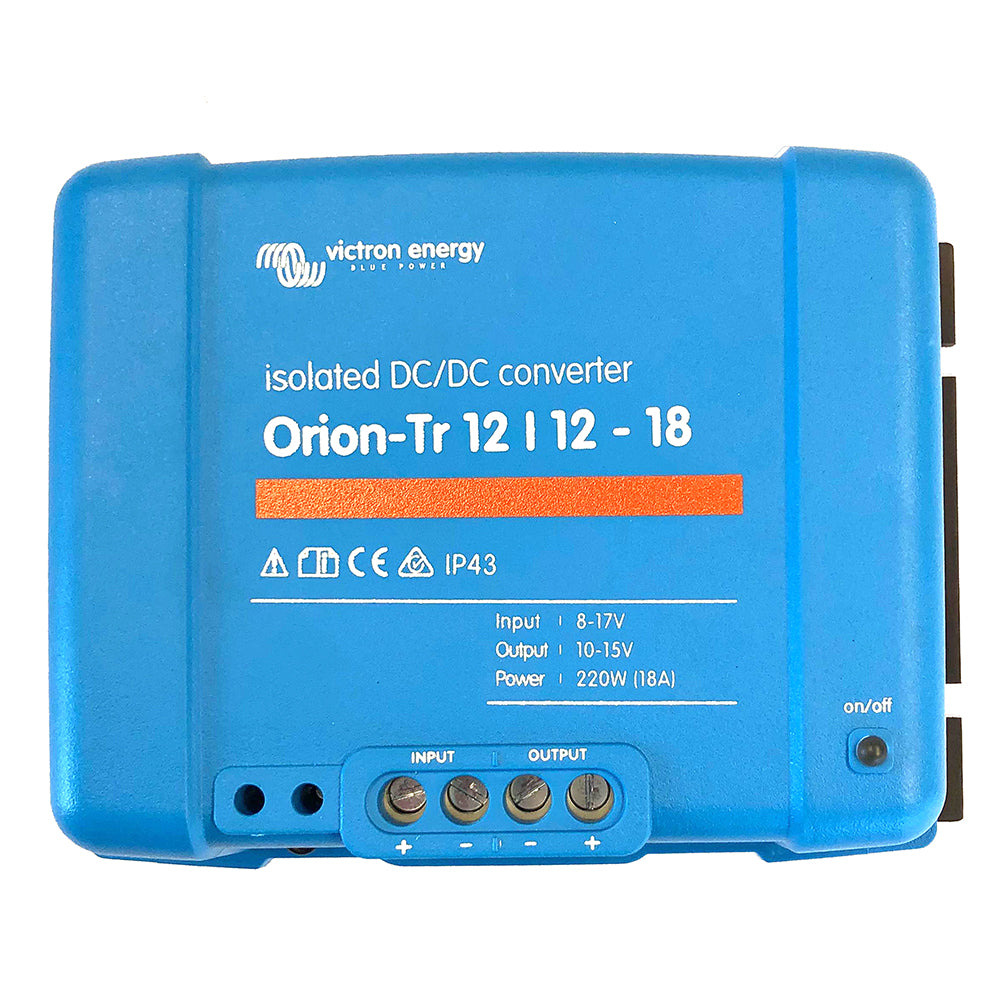

Orion-TR 12/12-18A (220W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40 A
• Cont. Output Power at 25 Degrees C: 280 W
• Cont. Output Power at 40 Degrees C: 220 W
• Efficiency: 87 %
• No Load Input Current (2): < 80 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1.3 kg (3 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR 12/12-18A (220W) is a reliable and efficient isolated DC-DC converter designed for various power conversion applications. Featuring a remote on/off terminal, it allows for easy control without high current switching, making it ideal for integration with engine or low-power control switches. This model is short circuit proof and supports parallel connection of unlimited units, enabling users to increase output current as needed for larger power demands. The converter offers high temperature protection, reducing output current when operating at elevated ambient temperatures to ensure safety and longevity. Its IP43 rating ensures adequate protection against dust and water when installed with screw terminals facing downward, providing durability in challenging environments. The unit’s screw terminals facilitate straightforward installation without the need for special tools, and the input fuse on 12V and 24V models adds an extra layer of safety, although it is not replaceable. The adjustable output voltage feature allows customization within a range of 10 to 15 volts, catering to different system requirements while maintaining a voltage tolerance of ±0.2V for stable operation. With an efficiency of 87%, this converter minimizes energy losses, and its galvanic isolation of 200 VDC ensures safety between input, output, and case. Operating within a temperature range of -20°C to +55°C, the Orion-TR is suitable for a broad range of environments, with derating above 40°C. The unit’s robust design and comprehensive standards compliance (including EN 60950 and automotive standards) make it ideal for professional and industrial applications. Whether used in vehicles, renewable energy systems, or other power conversion setups, this converter provides consistent performance, high current capacity, and reliable operation, ensuring your power needs are met efficiently and safely. For detailed installation instructions and support, refer to the provided manual link.

Features:

• Remote On/Off Terminal: Allows control with low power switch or engine stop/start

• Short Circuit Proof: Supports parallel connection of unlimited units for higher current

• High Temperature Protection: Reduces output current at elevated temperatures

• IP43 Protection: Suitable for installation with screw terminals facing downward

• Screw Terminals: Easy installation without special tools

• Input Fuse: Present on 12V and 24V models for added safety

• Adjustable Output Voltage: Range of 10-15 V for system customization

• High Efficiency: 87% for minimal energy loss

• Galvanic Isolation: 200 VDC between input, output, and case

• Wide Operating Temperature Range: -20°C to +55°C with derating above 40°C
