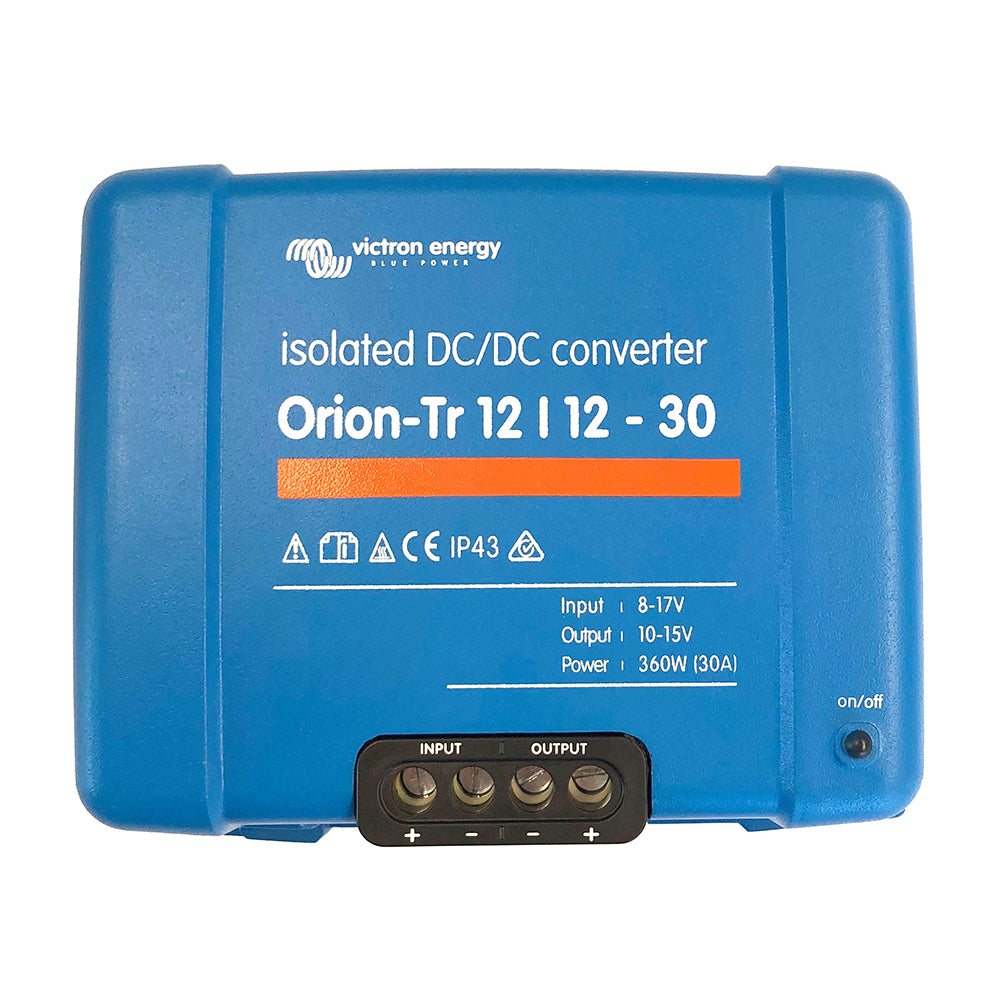

Orion-TR 12/12-30A (360W) Isolated DC-DC Converter
Remote On/Off Terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current
An unlimited number of units can be connected in parallel.
High Temperature Protected
The output current will reduce at high ambient temperatures.
IP43 Protection
When installed with the screw terminals oriented downward.
Screw Terminals
No special tools are needed for installation.
Input Fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable Output Voltage
Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).
Specifications:
- Input Voltage Range: 10-17 V
- Under Voltage Shut Down: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10-15 V
- Output Voltage Tolerance: +/- 0,2 V
- Output Noise: 2 mV rms
- Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
- Maximum output current (10 s) at nominal output voltage minus 20%: 40 A
- Short Circuit Output Current: 60 A
- Cont. Output Power at 25 Degrees C: 430 W
- Cont. Output Power at 40 Degrees C: 360 W
- Efficiency: 87 %
- No Load Input Current (2): < 80 mA
- Current Consumption: < 200uA when disabled via its remote port
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm AWG6
- Weight: 1.8 kg (4 lb)
- Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
- Safety Standards: EN 60950
- Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive Standards: ECE R10-5
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Orion-TR 12/12-30A (Part Number ORI121240110) is a high-performance isolated DC-DC converter designed for demanding power applications. Featuring a remote On/Off terminal, this unit allows control via low power switches or engine run/stop systems, simplifying installation and integration. Its galvanic isolation of 200 VDC ensures safety and prevents ground loops, making it suitable for complex electrical setups. The converter's robust design includes short circuit proofing and the ability to be paralleled with an unlimited number of units to increase output current, providing scalable power solutions for diverse requirements. Its built-in high-temperature protection reduces output current at elevated ambient temperatures, ensuring reliable operation in challenging environments.
Features:
- Remote On/Off Terminal: Enables control with low power switches or engine controls
- Parallel Capability: Unlimited units can be connected in parallel for increased current output
- Short Circuit Proof: Ensures safety and durability during fault conditions
- High Temperature Protection: Reduces output current at elevated temperatures for reliable operation
- IP43 Protection: Suitable for installation with screw terminals oriented downward
- Screw Terminals: Easy installation without special tools
- Adjustable Output Voltage: Range from 10 V to 15 V, with a nominal of 12.2 V
- Efficiency: 87% for optimal power utilization
- Input Voltage Range: 10 V to 17 V, with undervoltage shutdown at 7 V
- Maximum Output Power: Up to 430 W at 25°C, with continuous output of 30 A at nominal voltage
- Maximum Short Circuit Current: 60 A for safety and protection
- Operating Temperature Range: -20°C to +55°C, with derating above 40°C
- Durable Construction: Built to meet EN 60950 and automotive standards
- Easy DC Connection: Screw terminals supporting up to 16 mm² (AWG6) cables
- Compact Design: Dimensions of approximately 5.1 x 7.3 x 3.2 inches and weight of 4 pounds
