Victron Energy Orion-TR 12/12-9A (110W) Isolated DC-DC Converter

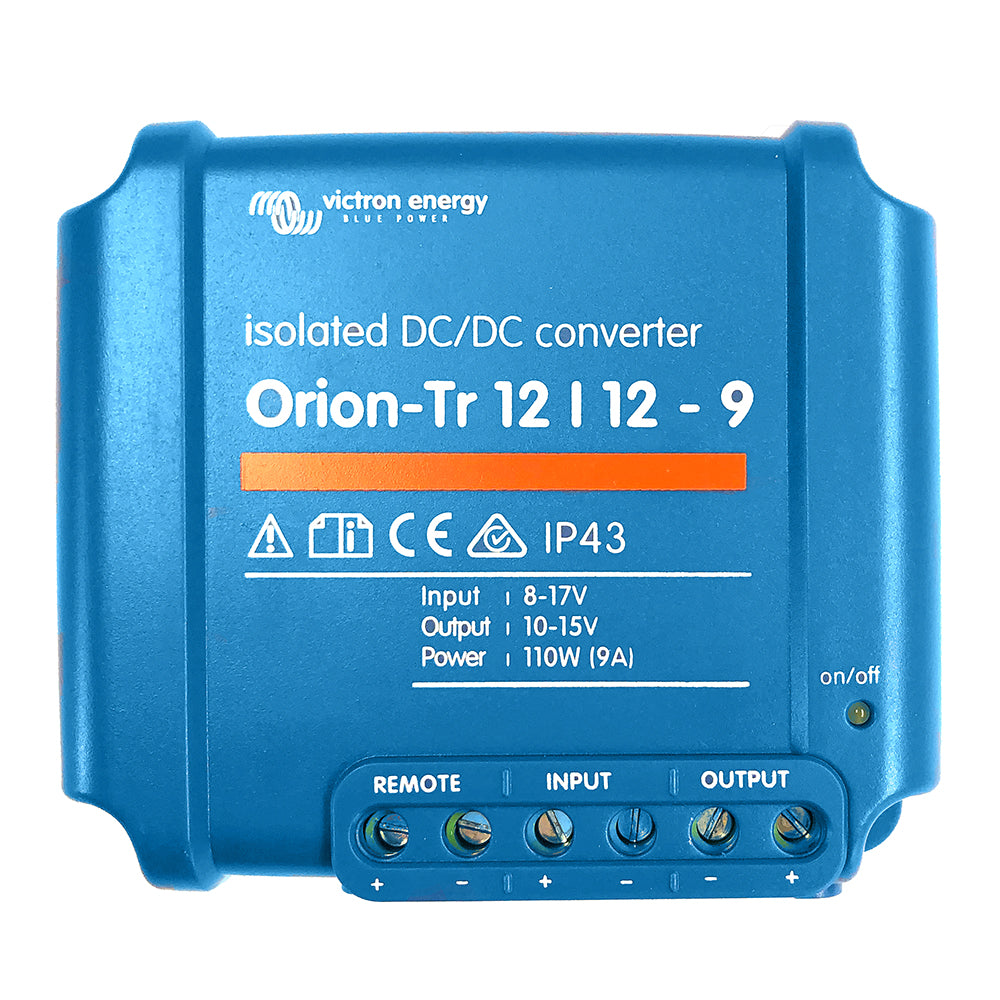

Orion-TR 12/12-9A (110W) Isolated DC-DC Converter

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 9 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 12.5 A
• Short Circuit Output Current: 32 A
• Cont. Output Power at 25 Degrees C: 110 W
• Cont. Output Power at 40 Degrees C: 85 W
• Efficiency: 87 %
• No Load Input Current (2): < 50 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 6 mm AWG10
• Weight: .42 kg (1 lb)
• Dimensions (H x W x D): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR 12/12-9A (Part Number: ORI121210110R) is a reliable isolated DC-DC converter designed for versatile power applications. It features a remote on/off terminal that allows control via low-power switches or engine run/stop systems, eliminating the need for high current switches in input wiring. This model supports parallel operation, enabling you to connect an unlimited number of units in parallel to increase output current, making it suitable for scalable power setups. The converter is protected against short circuits and high temperatures, ensuring safe operation even under demanding conditions.
Constructed with IP43 protection when installed with screw terminals downward, it is built for durability in various environments. The screw terminal connections facilitate straightforward installation without special tools. The input fuse, available on 12 V and 24 V models, provides additional protection, and the output voltage can be adjusted within a range of 10 to 15 volts to meet specific system requirements. The converter operates efficiently with an 87% efficiency rating and offers a maximum continuous output power of 110 watts at 40°C ambient temperature, with a nominal output voltage of 12.2 V.
With a broad input voltage range of 8 to 17 volts, this unit includes features like under-voltage shutdown at 7 volts and automatic restart at 7.5 volts, ensuring stable operation across varying power supplies. Its low no-load input current (<50 mA) and minimal current consumption when disabled make it energy-efficient. Galvanic isolation of 200 VDC enhances safety by separating input, output, and case. Capable of operating in temperatures from -20°C to +55°C, the converter is suitable for automotive, marine, and other mobile or stationary applications. Its compact size, lightweight design, and compliance with safety standards such as EN 60950 make it a versatile and dependable power solution for demanding environments.
For detailed installation instructions and safety information, refer to the owner’s manual available online. Please note that this product may contain chemicals known to cause reproductive harm, as per California's Proposition 65 warning. Contact your dealer for support, repairs, or returns related to this product.
