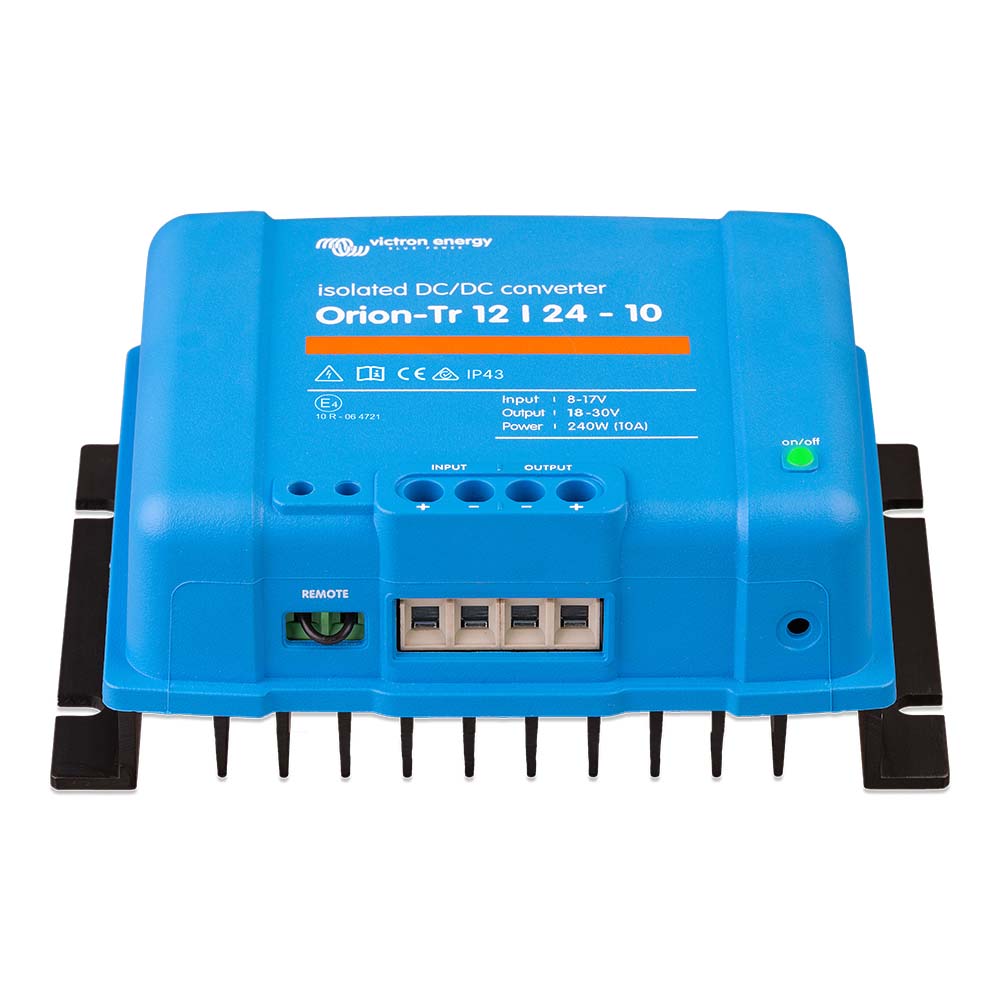

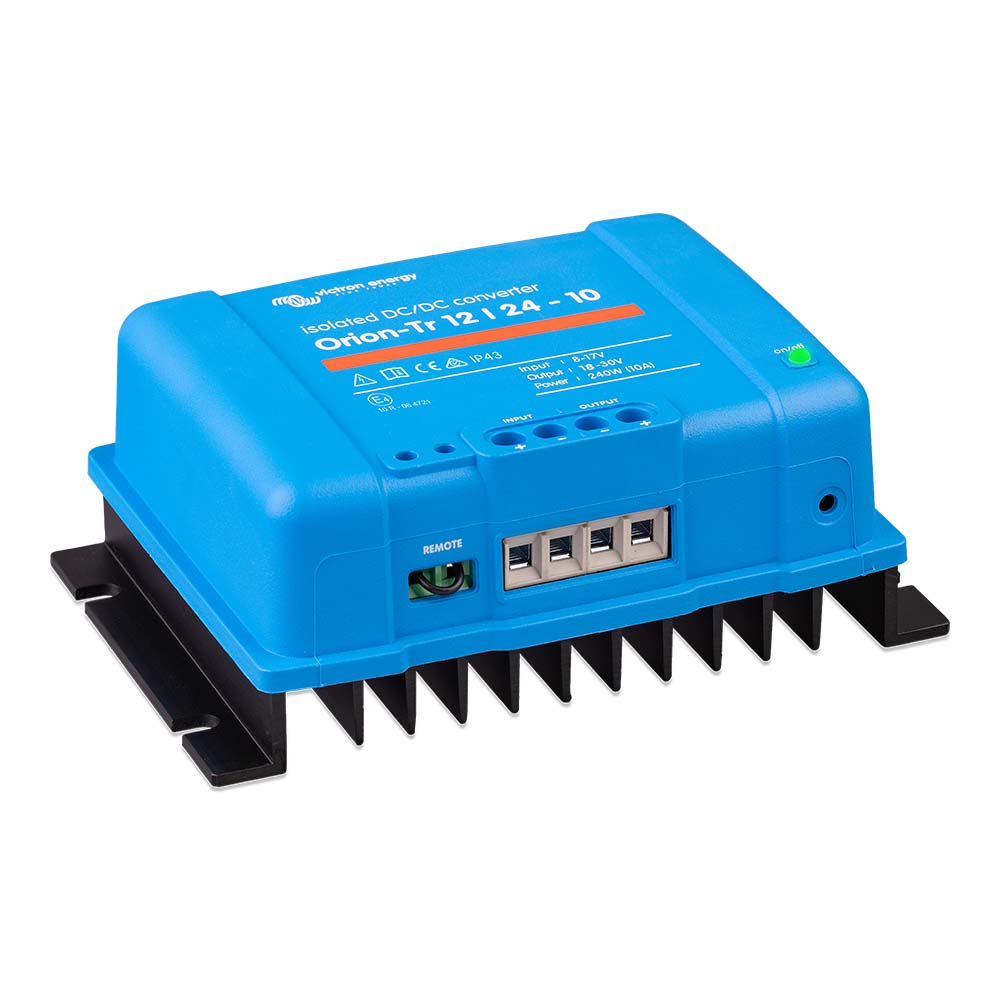

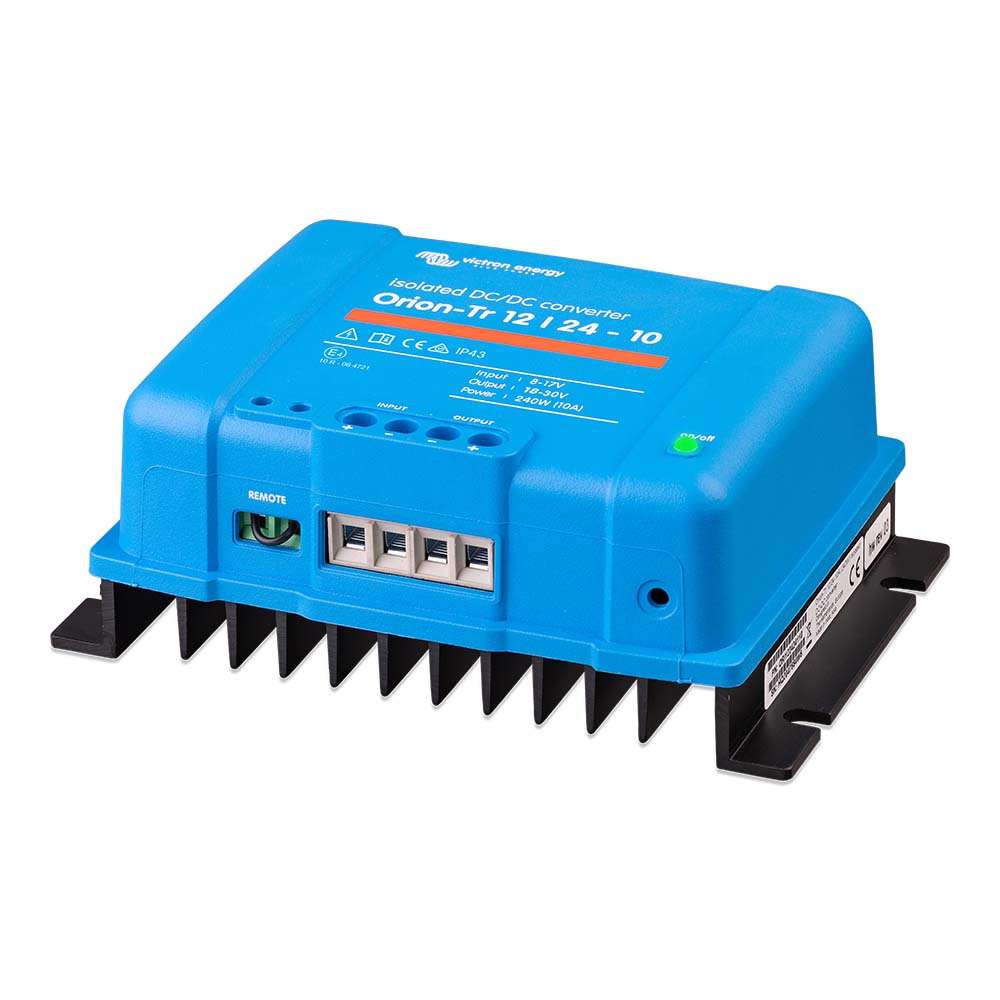

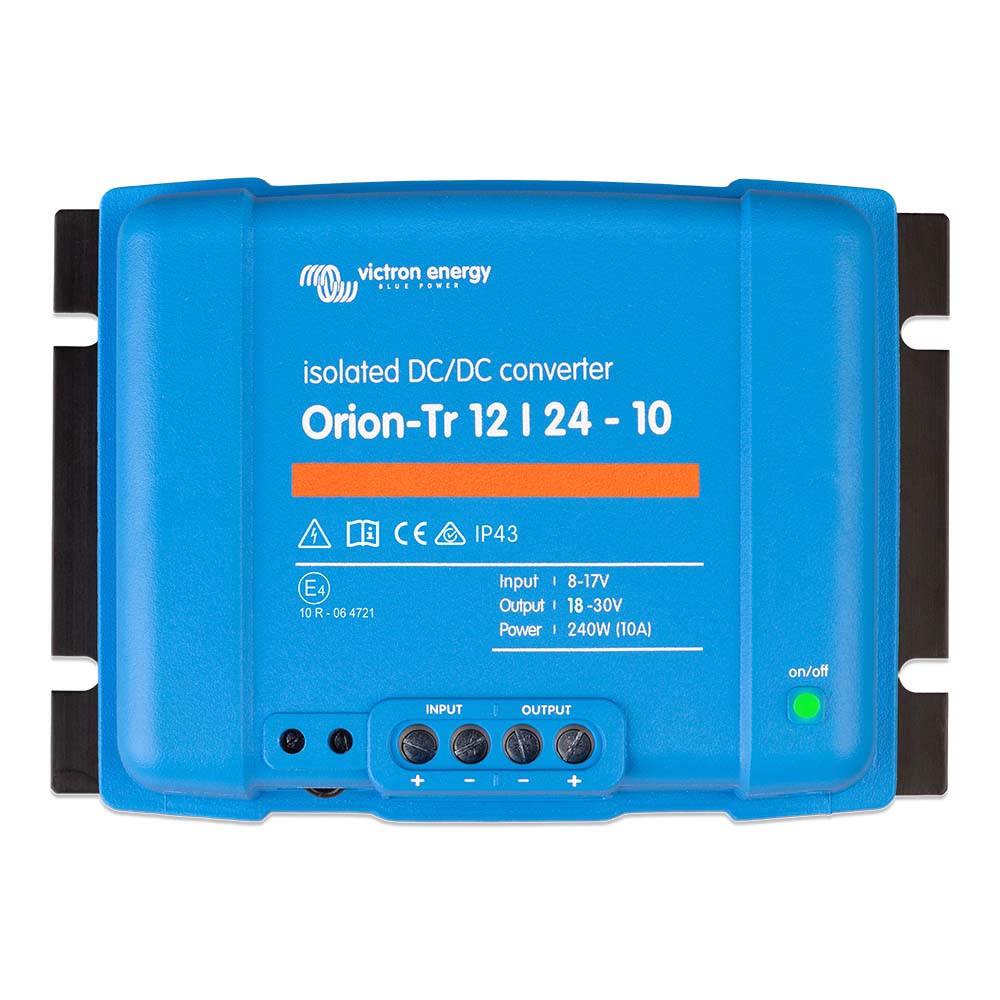

Victron Energy Orion-TR 12/24-10A Isolated DC-DC Converter

Orion-TR 12/24-10A (240W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 10 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 15 A
• Short Circuit Output Current: 25 A
• Cont. Output Power at 25 Degrees C: 280 W
• Cont. Output Power at 40 Degrees C: 240 W
• Efficiency: 88 %
• No Load Input Current (2): < 100 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1.3 kg (3 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Emission: EN 61000-6-3, EN 55014-1
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-TR 12/24-10A (Part Number: ORI122424110) is a reliable, high-performance isolated DC-DC converter designed for versatile power conversion applications. With an input voltage range of 8 to 17 volts, it ensures stable operation across various vehicle and industrial power sources. The converter features a remote on/off terminal, allowing remote control via low current switches or engine run/stop functions, eliminating the need for high current switches in input wiring. This capability enhances safety and simplifies installation in complex electrical systems. The Orion-TR model is short circuit proof and can be paralleled with other units to increase output current, supporting an unlimited number of parallel connections for scalable power solutions. Its high-temperature protection reduces output current at elevated ambient temperatures, safeguarding the device and connected equipment. The IP43 rated enclosure, when installed with screw terminals downward, provides adequate protection against dust and splashes, suitable for many outdoor or industrial environments. The unit's screw terminals facilitate straightforward installation without special tools, and the input fuse on 12V and 24V models ensures added safety, although it is not replaceable. The adjustable output voltage feature allows fine-tuning between 10 and 15 volts, although it is not intended for battery charging; for such applications, the Orion-Tr Smart series is recommended. Operating efficiently at up to 88%, the converter delivers continuous power of up to 240 watts at 40°C ambient temperature and peaks of 280 watts, making it suitable for demanding power conversion tasks. Its galvanic isolation of 200 volts DC between input, output, and case ensures safety and noise reduction. Designed for a broad temperature range from -20°C to +55°C, the device can operate reliably in diverse environments. Its compact dimensions and lightweight design make it a practical choice for installation in confined spaces. Certified to relevant safety and electromagnetic standards, the Orion-TR DC-DC converter offers a robust and versatile power solution for professional and industrial applications.

Features:

• Isolated model with separate input and output negative leads for safety and noise reduction

• Remote on/off terminal for easy remote control without high current switching

• Short circuit proof with unlimited parallel capability for scalable current output

• High temperature protection reduces output at elevated ambient temperatures

• IP43 rated enclosure provides dust and splash protection when installed correctly

• Screw terminal connections for simple installation without special tools

• Input fuse on 12V and 24V models for added safety (not replaceable)

• Adjustable output voltage from 10V to 15V for flexible applications

• High efficiency of 88% supports energy-saving operation

• Galvanic isolation of 200V between input, output, and case for safety and noise immunity
