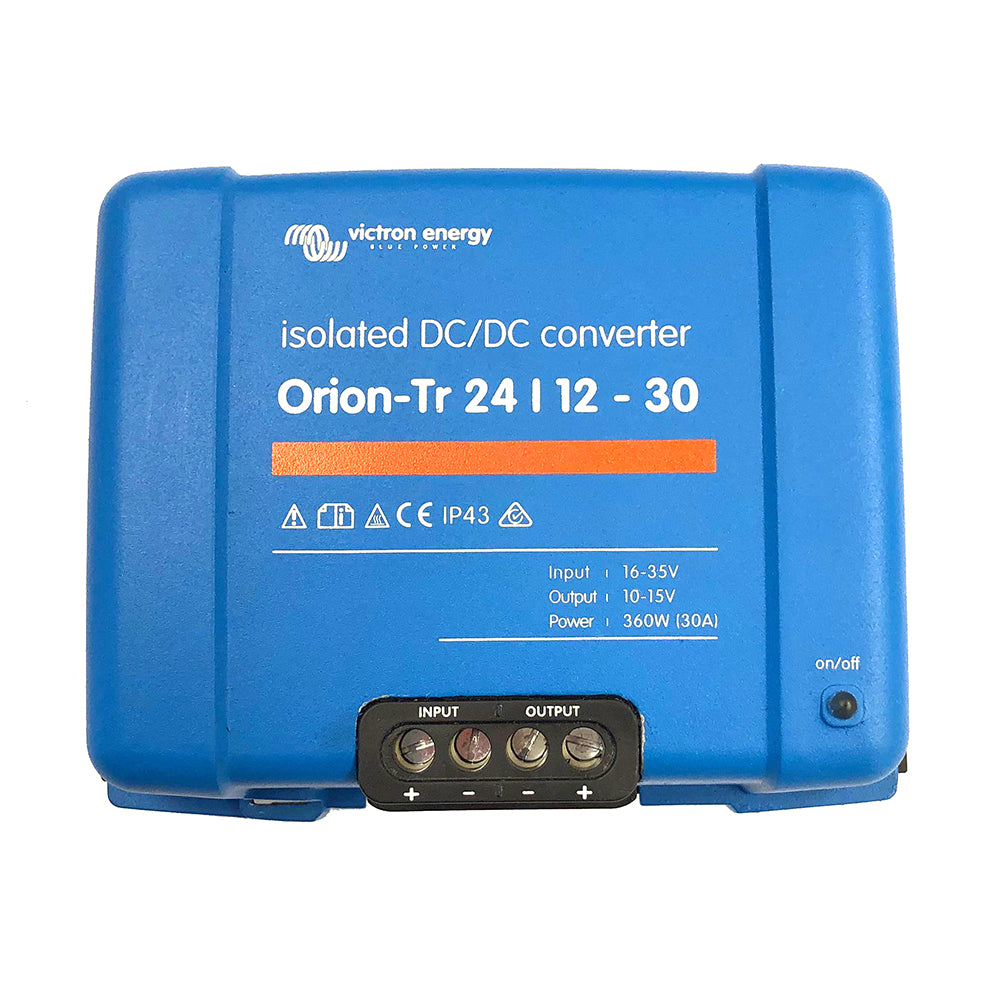

Orion-TR 24/12-30A (360W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 45 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 88 %
• No Load Input Current (2): < 100 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1.3 kg (3 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR 24/12-30A (Part Number: ORI241240110) is a highly reliable isolated DC-DC converter designed for demanding electrical systems. It features galvanic isolation with 200 VDC between input, output, and case, ensuring safe and noise-free power conversion. This unit can handle input voltages ranging from 20 to 35 volts, making it suitable for a variety of vehicle and off-grid applications. Its adjustable output voltage from 10 to 15 volts allows for precise voltage regulation, although it is not intended for battery charging, for which the Orion-Tr Smart series is recommended.

Built with safety and durability in mind, the Orion-TR includes an integrated remote on/off terminal that simplifies system wiring by eliminating the need for high current switches. This feature allows for remote control via low-power switches or engine control systems, providing flexibility in installation. The converter is designed to be short circuit proof and can be paralleled with an unlimited number of units to increase output current, making it scalable for larger power demands. It also offers high-temperature protection, reducing output current at elevated temperatures to prevent damage and ensure consistent operation.

The device is housed with IP43 protection, suitable for installation with screw terminals oriented downward, and features screw terminals that facilitate straightforward installation without special tools. The converter supports a maximum continuous output power of 430 watts at 25°C and up to 45 amps of peak current, with the short circuit current reaching 60 amps for added safety. Its efficiency reaches up to 88%, optimizing power usage and reducing heat generation. The unit operates effectively within a temperature range of -20°C to +55°C, with derating above 40°C. It is also compliant with safety and immunity standards, including EN 60950, EN 61000-6-2, EN 61000-6-1, and EN 55014-2, and meets automotive standards under ECE R10-5.

Designed for robust performance in challenging environments, the Victron Orion-TR converter is suitable for various industrial, automotive, and marine applications. Its compact dimensions and lightweight construction facilitate versatile installation options. Please refer to the owner’s manual available at this link for detailed installation and operation instructions. Note that the product is not intended for battery charging but excels in providing stable, isolated power conversion for auxiliary and auxiliary load systems.

Features:

• Galvanic isolation: 200 VDC between input, output, and case

• Input voltage range: 20-35 V

• Adjustable output voltage: 10-15 V

• Remote on/off terminal for easy system control

• Short circuit proof with unlimited paralleling capability

• High-temperature protection reduces output at elevated temperatures

• IP43 rated enclosure for reliable protection

• Screw terminal connections for easy installation

• Maximum continuous power: 430 W

• Peak output current: 45 A, Short circuit current: 60 A

• Efficiency: 88%

• Operating temperature range: -20°C to +55°C

• Compliance with safety and immunity standards
