Victron Energy Orion-TR 48/12-30A (360W) Isolated DC-DC Converter

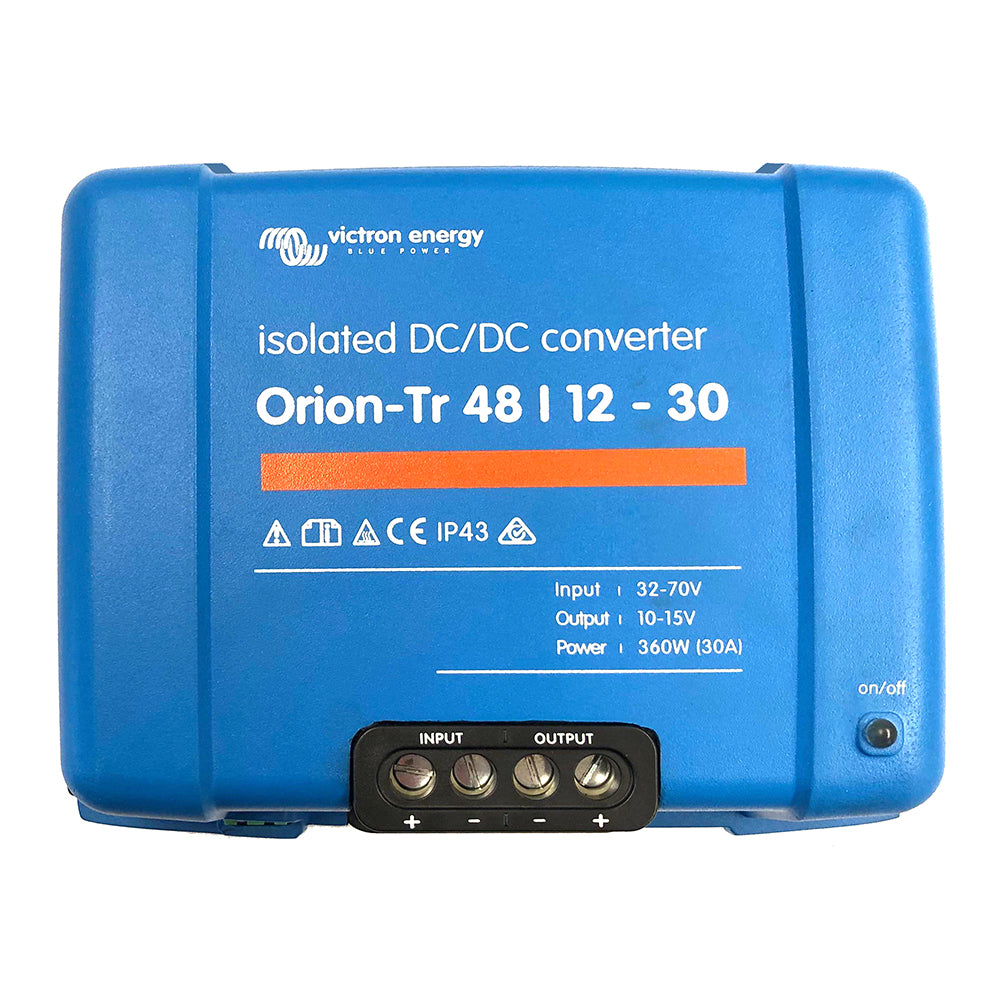

Orion-TR 48/12-30A (360W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 40-70 V
• Under Voltage Shut Down: 28 V
• Under Voltage Restart: 30 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 40 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 87 %
• No Load Input Current (2): < 80 mA
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1.6 kg (3.5 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR 48/12-30A (Part Number: ORI481240110) is a versatile and reliable isolated DC-DC converter designed for demanding power conversion applications. It features an input voltage range of 40 to 70 volts, suitable for various high-voltage systems, and provides a stable 12.2 V output with an adjustable range from 10 to 15 volts. This flexibility allows users to fine-tune the output to match specific load requirements. The converter is built with a high efficiency of 87%, ensuring minimal energy loss during operation and supporting continuous power output of up to 430 watts at 25°C ambient temperature. It is capable of delivering a maximum of 40 amps, with short circuit proofing and the ability to be paralleled with an unlimited number of units to increase current capacity, making it ideal for scalable power systems.

The Orion-TR incorporates a remote On/Off terminal, eliminating the need for high-current switching in input wiring and enabling control via low-power switches or engine run/stop signals. Its screw terminal design simplifies installation without requiring special tools, and the IP43 rated enclosure ensures protection against dust and splashes when installed with terminals downward. The converter includes an input fuse for models with 12V and 24V inputs, adding an extra layer of safety, and features galvanic isolation of 200VDC between input, output, and case for added safety and noise reduction.

Designed to operate reliably in temperatures from -20°C to +55°C, the unit derates by 3% per degree Celsius above 40°C, ensuring stable operation in various environments. It is compliant with multiple safety and immunity standards such as EN 60950, EN 61000-6-3, EN 61000-6-1, and EN 55014-2, as well as automotive standards like ECE R10-5. The robust construction and comprehensive protection features make the Orion-TR a dependable choice for demanding industrial, marine, or vehicle power applications. For detailed installation instructions, consult the online owners manual available at here. Please note, this product may contain chemicals known to cause reproductive harm, as detailed at P65Warnings.ca.gov. For support, repairs, or returns, contact your dealer directly.
