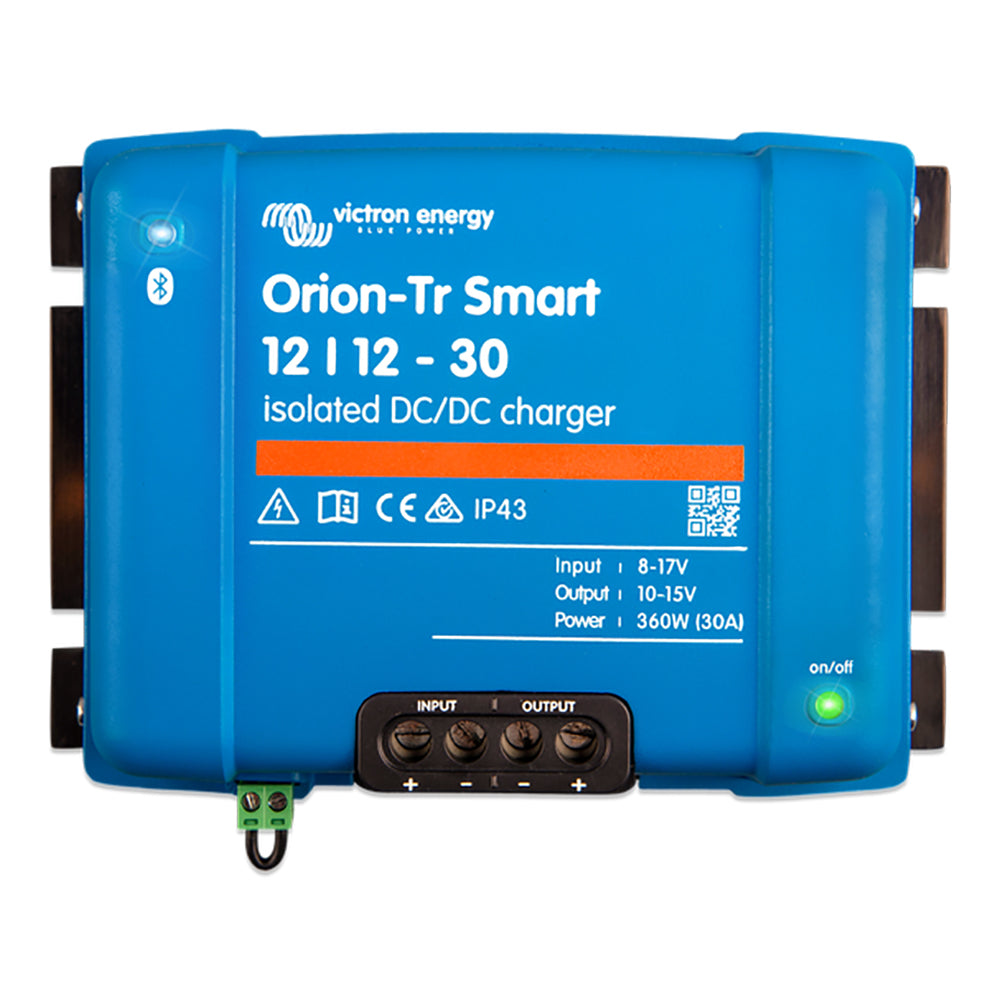

Orion-TR Smart 12/12-30A (360W) Isolated DC-DC Charger or Power Supply

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart Enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart Alternator Compatibility: engine running detection mechanism

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged
• For lithium batteries, the absorption time is fixed; the default is 2 hours
• Alternatively, a fixed output voltage can be chosen

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation. Input fuse (not replaceable)

*Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 10-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 87 %
• No Load Input Current (2): < 80 mA
• Standby Current: Less than 1A
• Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range -20 to +55 C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1,8 kg (3 lb)
• Dimensions (H x W x D):130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR Smart 12/12-30A (Part Number ORI121236120) is a versatile isolated DC-DC charger and power supply designed for demanding applications in vehicles, boats, and RVs. It provides a reliable power source with a wide input voltage range of 10 to 17 volts, ensuring consistent performance even with low or fluctuating voltage inputs typical in modern vehicles with Euro 5 and Euro 6 smart alternators. The charger is engineered to fully charge your service battery while safeguarding your starter battery from unwanted discharge, making it an essential component for maintaining battery health and ensuring reliable operation.

Equipped with Bluetooth Smart technology, the Orion-TR allows users to monitor and adjust settings remotely via the VictronConnect app. This feature enables instant readouts of key data, including warnings and alarms, without the need for direct connections. The device is fully programmable, offering customizable battery charge algorithms—including adaptive three-stage charging for lead-acid batteries and fixed absorption times for lithium batteries—ensuring optimal charging profiles tailored to your specific battery type. Additionally, its smart alternator compatibility and engine running detection mechanism prevent unnecessary battery drain during engine shutdowns.

Designed for durability and flexibility, the Orion-TR features galvanic isolation of 200 VDC between input and output, screw terminals for easy installation, and an IP43 protection rating for electronic components and IP22 for connection areas. It supports parallel operation with an unlimited number of units, increasing output current as needed. The unit includes a remote on/off capability, high-temperature protection that reduces output current at elevated temperatures, and robust safety standards compliant with EN 60950 and ECE R10-5. With an efficiency of 87% and a compact form factor, the Orion-TR is suitable for various mobile and off-grid power applications, providing dependable and intelligent power management in challenging environments.

Features:

• Wide input voltage range: 10-17 V for versatile power management

• Bluetooth Smart enabled: Monitor and configure via the VictronConnect app

• Fully programmable: Customizable charge algorithms and fixed output options

• Adaptive 3-stage charge: Optimizes battery health for lead-acid and lithium batteries

• Smart alternator compatibility: Engine running detection prevents battery drain

• Remote on/off control: Connectable via switch or relay for remote operation

• Parallel capable: Unlimited units can be connected to increase output current

• High temperature protection: Output current reduces at elevated temperatures

• IP43 protection: Suitable for electronic components with proper installation

• Galvanic isolation: 200 VDC between input, output, and case

• Durable and compliant: Meets safety standards EN 60950 and automotive standards

• Compact design: Measures approximately 5.1 x 7.3 x 2.8 inches and weighs 3.1 pounds
