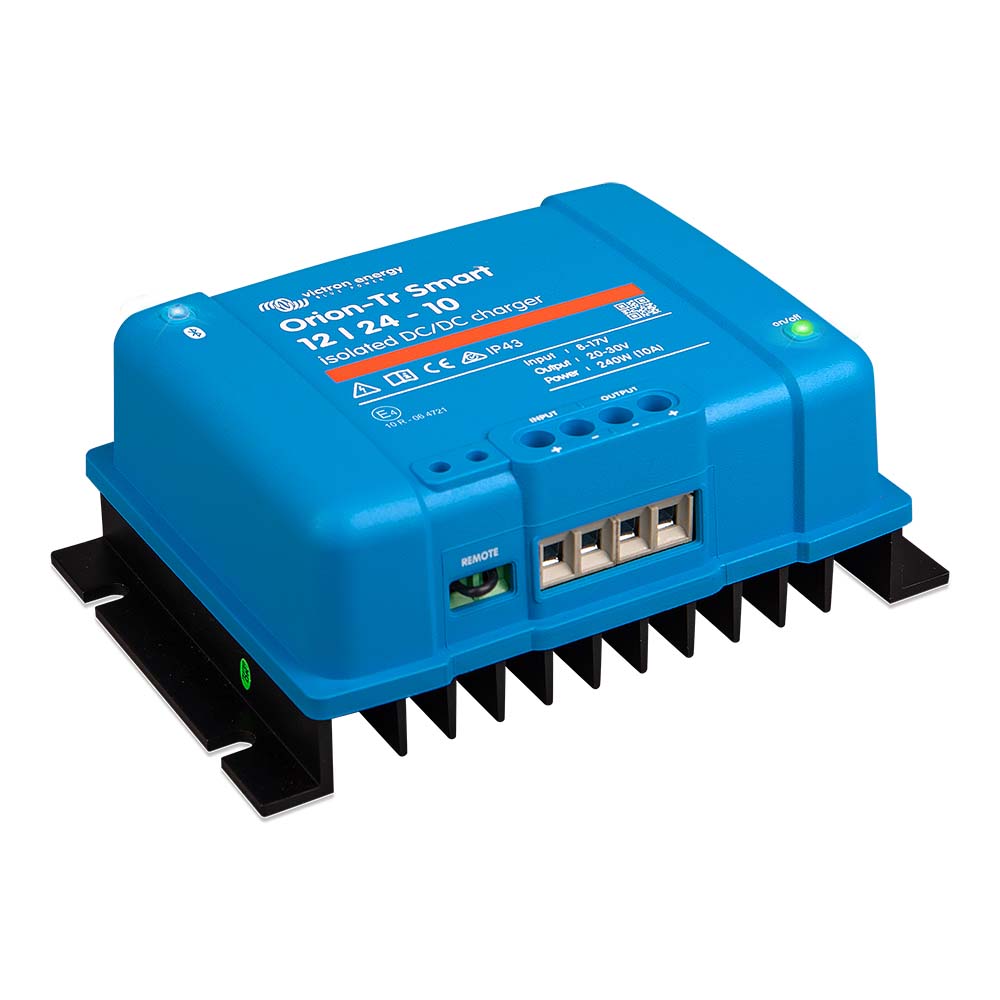

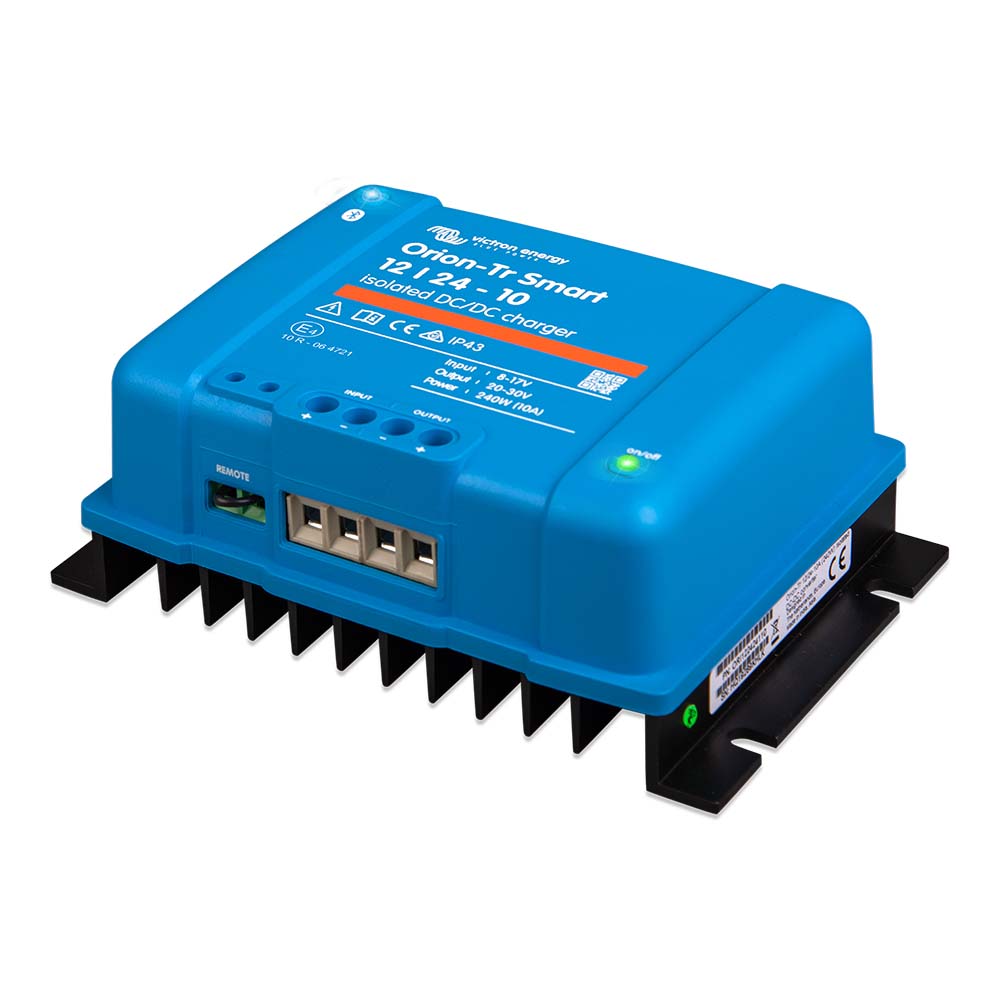

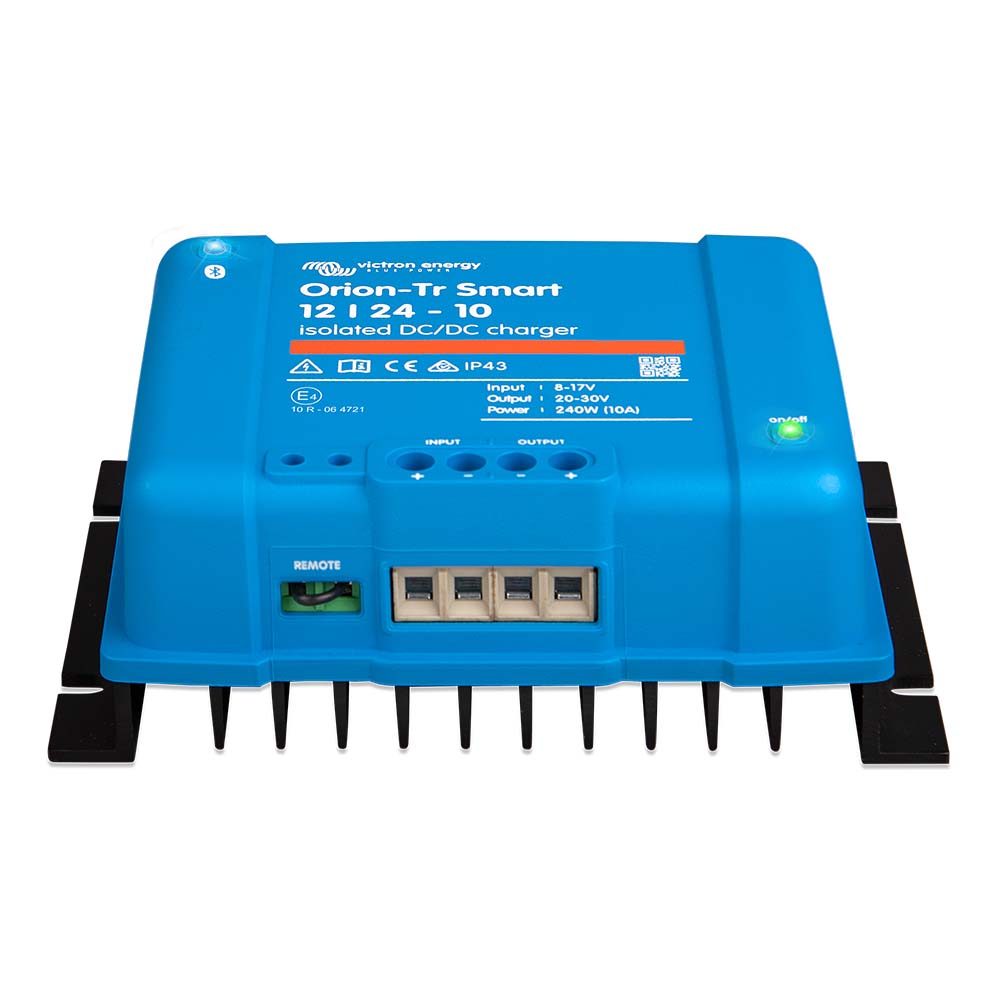

Victron Energy Orion-Tr Smart 12/24 10 Amp Isolated DC-DC Charger and Power Supply

Orion-TR Smart 12/24-10A (240W) Isolated DC-DC Charger or Power Supply

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart Enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart Alternator Compatibility: engine running detection mechanism

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged
• For lithium batteries, the absorption time is fixed; the default is 2 hours
• Alternatively, a fixed output voltage can be chosen

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation. Input fuse (not replaceable)

*Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Adjust Range: 20-30 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 10 A
• Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A
• Short Circuit Output Current: 25 A
• Cont. Output Power at 25 Degrees C: 280 W
• Cont. Output Power at 40 Degrees C: 240 W
• Efficiency: 88 %
• No Load Input Current (2): < 100 mA
• Standby Current: Less than 1A
• Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range -20 to +55 C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1,8 kg (3 lb)
• Dimensions (H x W x D):130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-Tr Smart 12/24 10A (240W) isolated DC-DC charger and power supply is designed to deliver reliable, controlled power in demanding environments such as vehicles, boats, and RVs. Its wide input voltage range (8-17V) and configurable output voltage (20-30V) make it ideal for applications requiring precise charging and stable power delivery. The built-in compatibility with Euro 5 and Euro 6 smart alternators ensures optimal operation by detecting engine running status and preventing unwanted discharge of your starter battery. The device functions as both a battery charger and a constant voltage power supply, providing flexibility for various power management needs. Its galvanic isolation of 200 VDC enhances safety and reduces noise, making it suitable for sensitive electronic systems. The robust design includes features like high temperature protection, short circuit proofing, and the ability to parallel multiple units for increased output capacity, ensuring dependable performance in diverse conditions. The unit's IP43 protection rating, when installed correctly, safeguards the internal components from dust and water splashes, suitable for outdoor environments. Installation is straightforward with screw terminals and no special tools required, while the integrated fuse offers basic input protection. The device supports Bluetooth connectivity, enabling remote monitoring, configuration adjustments, and firmware updates via the VictronConnect app, which displays real-time data and alerts. Its adaptive three-stage charging algorithm optimizes battery health, with automatic adjustments based on discharge depth for lead-acid batteries or a fixed two-hour absorption for lithium batteries. The Orion-Tr Smart also features remote on/off control through a relay or switch, providing convenient operation within integrated systems. Its efficient operation (88%) and compact size (approximately 5.1 x 7.3 x 2.8 inches) make it an excellent choice for professional and DIY installations seeking reliable power conversion and management. For detailed installation instructions and safety information, consult the owner’s manual available online.

Features:

• Wide input voltage range of 8-17 V for versatile vehicle and system integration

• Configurable output voltage from 20 to 30 V for precise battery charging

• Bluetooth Smart enabled for remote monitoring and control via VictronConnect app

• Adaptive three-stage charging algorithm for lead-acid and lithium batteries

• Compatibility with Euro 5 and Euro 6 smart alternators to prevent battery discharge

• Built-in engine shutdown detection to protect starter batteries when engine is off

• Remote on/off switch or relay control for flexible system integration

• Parallel capable units for increased output current without limit

• High temperature protection reduces output current at elevated temperatures

• IP43 protection rating, suitable for outdoor use when installed properly

• Galvanic isolation of 200 VDC enhances safety and noise reduction

• Robust screw terminal connections for easy installation

• Compact and lightweight design facilitates installation in tight spaces

• Compliance with automotive and EMC standards for safe operation
