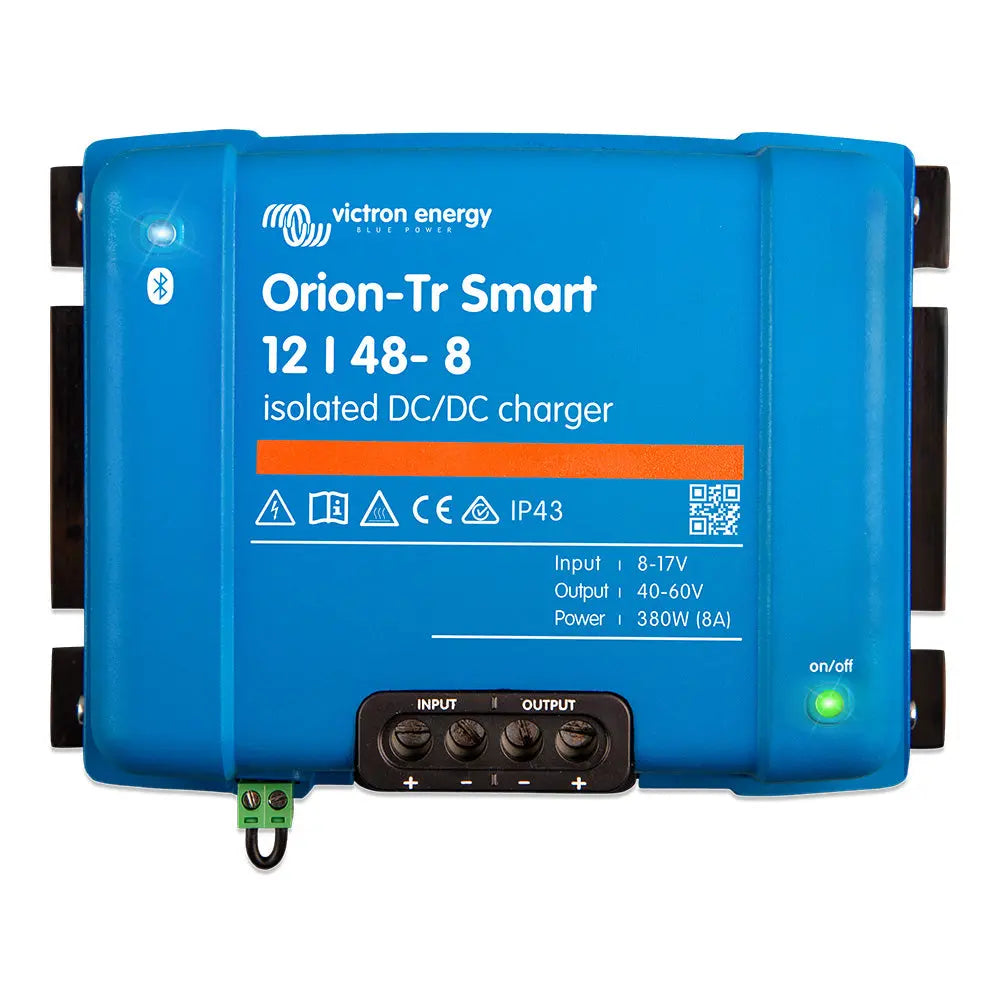

Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger

Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55C with a full rated output up to 40C.

Bluetooth Smart enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk absorption float

• For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

• The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.

Remote on/off

• A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

• An unlimited number of units can be connected in parallel.

High temperature protected

• The output current will reduce at high ambient temperatures.

IP43 protection

• When installed with the screw terminals oriented downward.

Screw terminals

• No special tools are needed for installation.

Input fuse (not replaceable)

The Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger is a professional-grade, Bluetooth-enabled device designed for efficient dual battery system management in vehicles and boats. This adaptive 3-stage charger automatically adjusts its charging profile to optimize battery health, providing bulk, absorption, and float stages tailored to lead acid and lithium batteries. Its intelligent design ensures a complete charge after deep discharges while preventing overcharging during shallow cycles, making it suitable for a broad range of applications including those with high ambient temperatures up to 55°C. The charger supports both 12V and 24V systems and can be connected in parallel with unlimited units to increase overall output power, offering flexibility for various energy needs.

The Orion-Tr Smart features built-in Bluetooth functionality, allowing users to monitor and configure the device remotely via the VictronConnect app on any Bluetooth-enabled smartphone or tablet. Real-time data display, warnings, and firmware updates can be accessed without direct physical connection, streamlining system management. Fully programmable, it allows customization of the battery charge algorithm or fixed output voltage, with compatibility for smart alternators, including Euro 5 and Euro 6 engines, thanks to its engine running detection mechanism. This feature prevents unnecessary discharge of the starter battery when the engine is off, enhancing vehicle reliability and safety.

Designed for ease of installation and durability, the charger is protected against short circuits and features IP43 ingress protection when installed with screw terminals downward. The device employs screw terminals that do not require specialized tools for setup, and it includes an input fuse—though not replaceable—adding an extra layer of safety. Additional features include remote on/off control via a switch or relay contact, and high-temperature protection that reduces output current as ambient temperatures rise. With its robust design and versatile capabilities, the Victron Orion-Tr Smart 12/48-8A (380W) is an ideal solution for modern vehicle and marine electrical systems, ensuring reliable battery management and system monitoring at all times.

Features:

• Bluetooth Smart enabled for remote monitoring and configuration

• Adaptive 3-stage charge algorithm: bulk, absorption, float

• Supports 12V and 24V systems for lead acid and lithium batteries

• Engine running detection for smart alternator compatibility

• Remote on/off control with switch or relay contact

• Unlimited parallel units for increased output power

• Built-in short circuit protection

• High temperature protection with output current reduction

• IP43 ingress protection with proper installation orientation

• Screw terminals for easy installation
