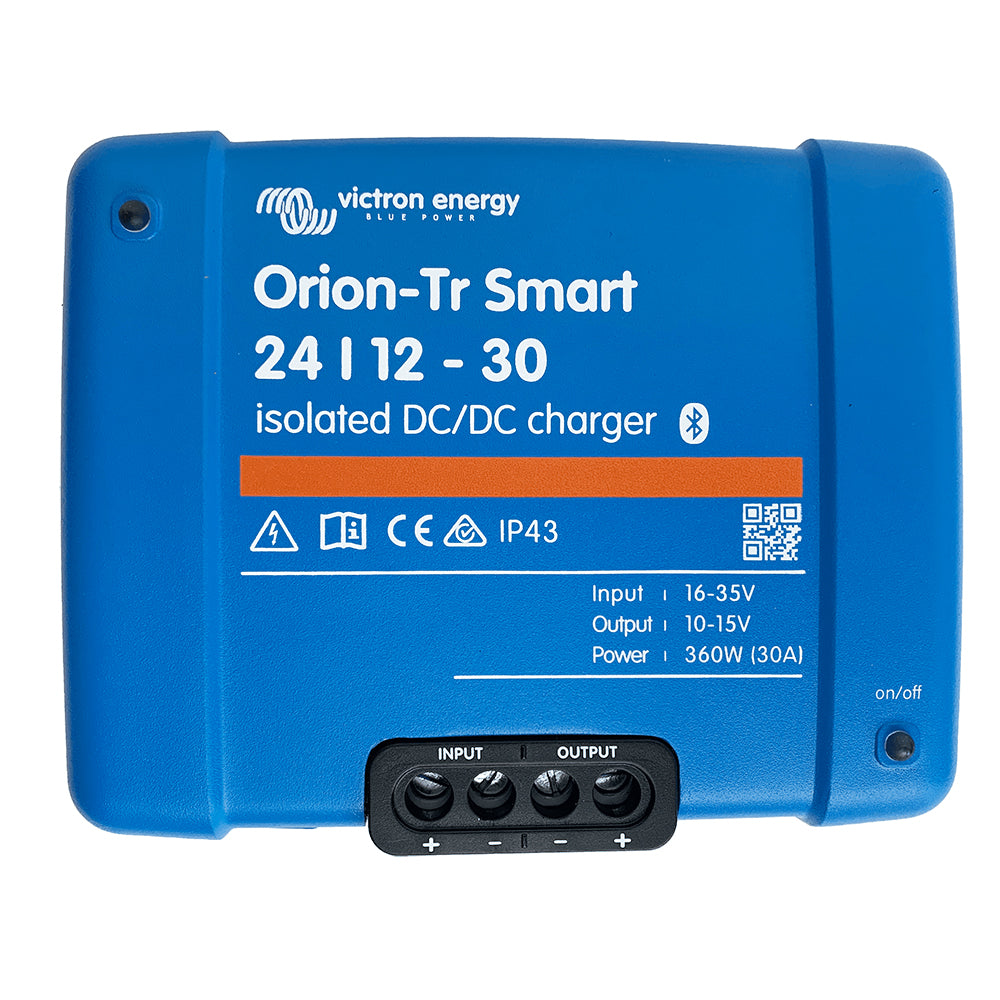

Victron Energy Orion-TR Smart 24/12-30A (360W) Isolated DC-DC Charger and Power Supply

Orion-TR Smart 24/12-30A (360W) Isolated DC-DC Charger or Power Supply

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart Enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart Alternator Compatibility: engine running detection mechanism

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged
• For lithium batteries, the absorption time is fixed; the default is 2 hours
• Alternatively, a fixed output voltage can be chosen

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation. Input fuse (not replaceable)

*Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 45 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 88 %
• No Load Input Current (2): < 100 mA
• Standby Current: Less than 1A
• Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range -20 to +55 C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1,6 kg (3.5 lb)
• Dimensions (H x W x D):130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-TR Smart 24/12-30A (Part Number: ORI241236120) is a versatile and reliable isolated DC-DC charger designed for use in vehicles, boats, and RVs. It functions both as a battery charger and a power supply, providing a stable 12.2 V output with adjustable voltage settings and high efficiency. Its wide input voltage range of 20-35 V makes it suitable for vehicles with Euro 5 or Euro 6 smart alternators, which often supply lower-than-ideal charging voltages, especially during engine operation or over extended cable runs. The Orion-TR Smart ensures your service battery charges fully while safeguarding the starter battery from unwanted discharge, even under challenging electrical conditions.

Features:

• Bluetooth Smart Enabled: Allows monitoring, setting adjustments, and firmware updates via smartphone or tablet using the VictronConnect App

• Fully Programmable: Customizable battery charge algorithms or fixed voltage output for tailored charging profiles

• Adaptive 3-Stage Charging: Supports bulk, absorption, and float stages; automatically adjusts absorption time based on battery depth of discharge

• Smart Alternator Compatibility: Detects engine running status to optimize charging and prevent unnecessary battery drain

• Remote On/Off Control: Connects to switches or relay contacts for remote operation, with options to switch to battery plus or minus

• Parallel Operation: Multiple units can be connected in parallel for increased current capacity without limit

• High Temperature Protection: Adjusts output current at elevated ambient temperatures to prevent overheating

• IP43 Protection: Suitable for installation with screw terminals downward, providing protection against dust and water splashes

• Short Circuit Proof: Designed to withstand short circuits without damage

• Galvanic Isolation: 200 VDC between input, output, and case to prevent unwanted electrical connections

• Robust Construction: Built to meet automotive safety standards, with durable screw terminals for easy installation

• Operational Flexibility: Can serve as a power supply with adjustable output voltage and is compatible with various battery chemistries including lead-acid and lithium
