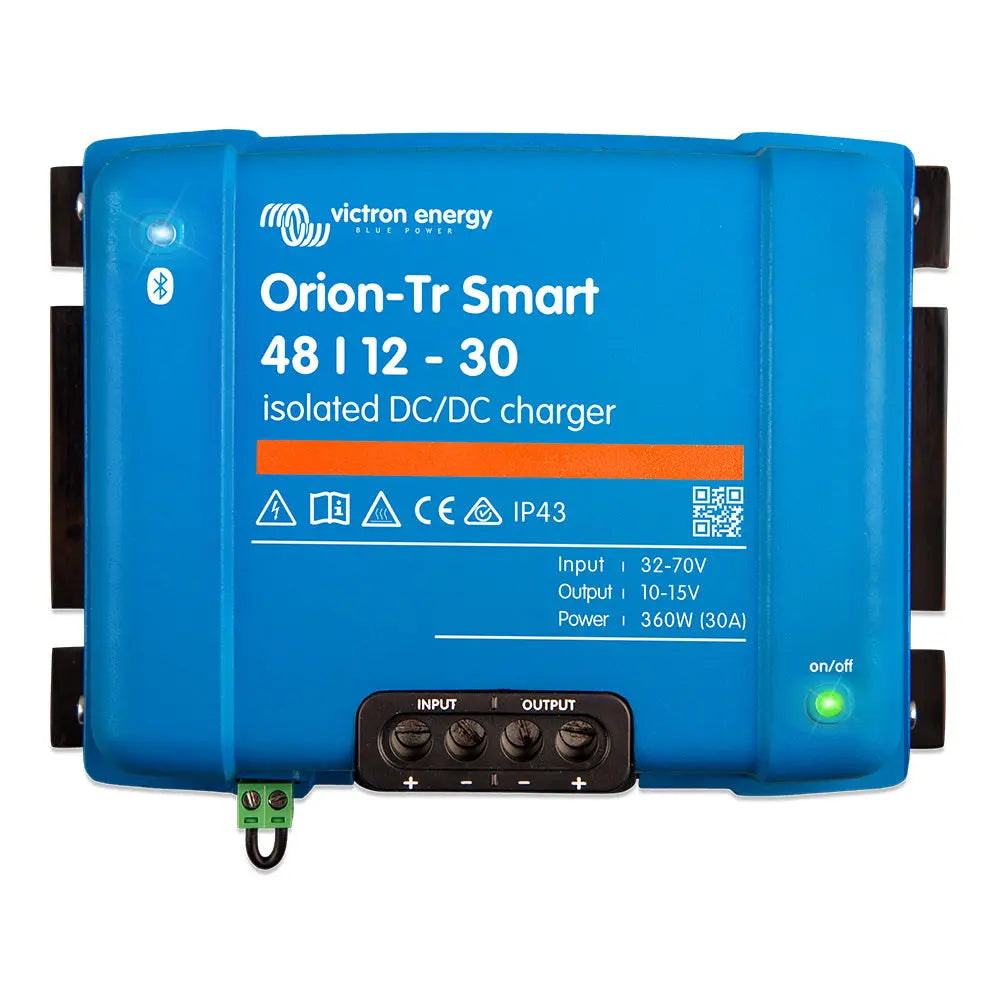

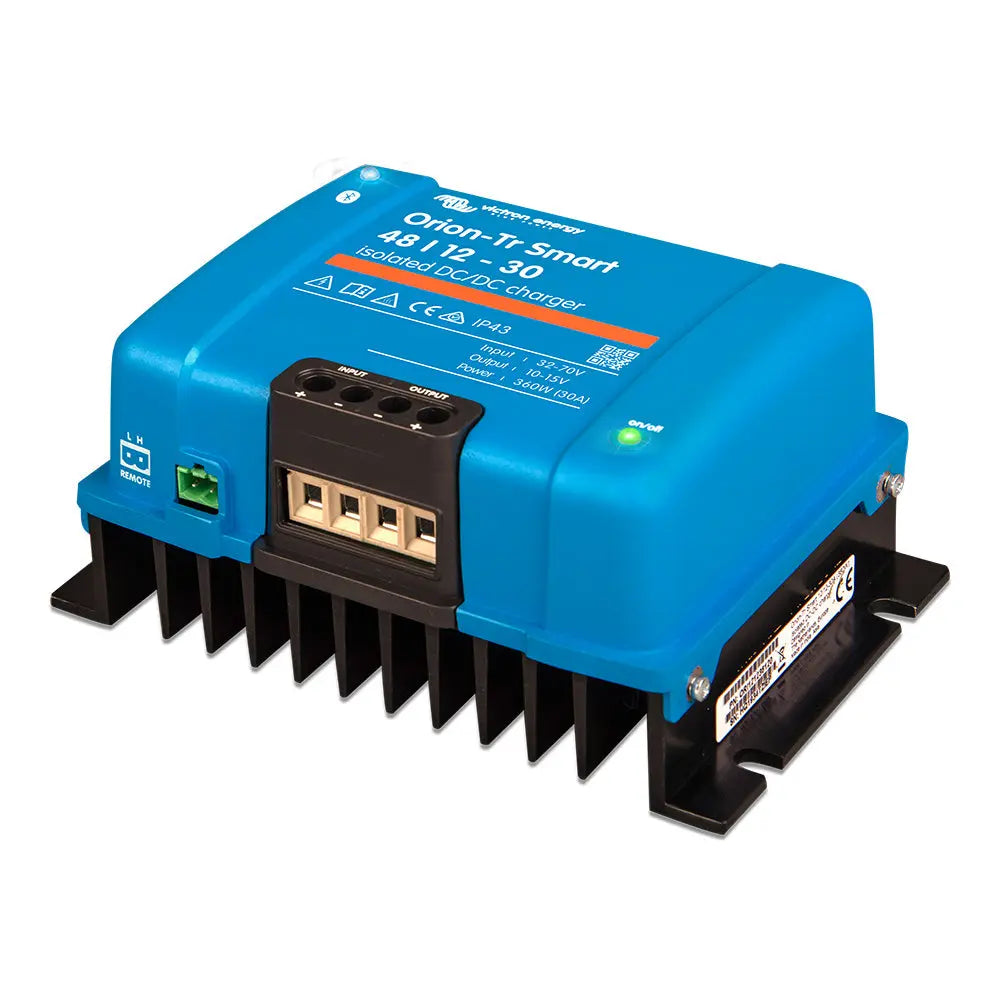

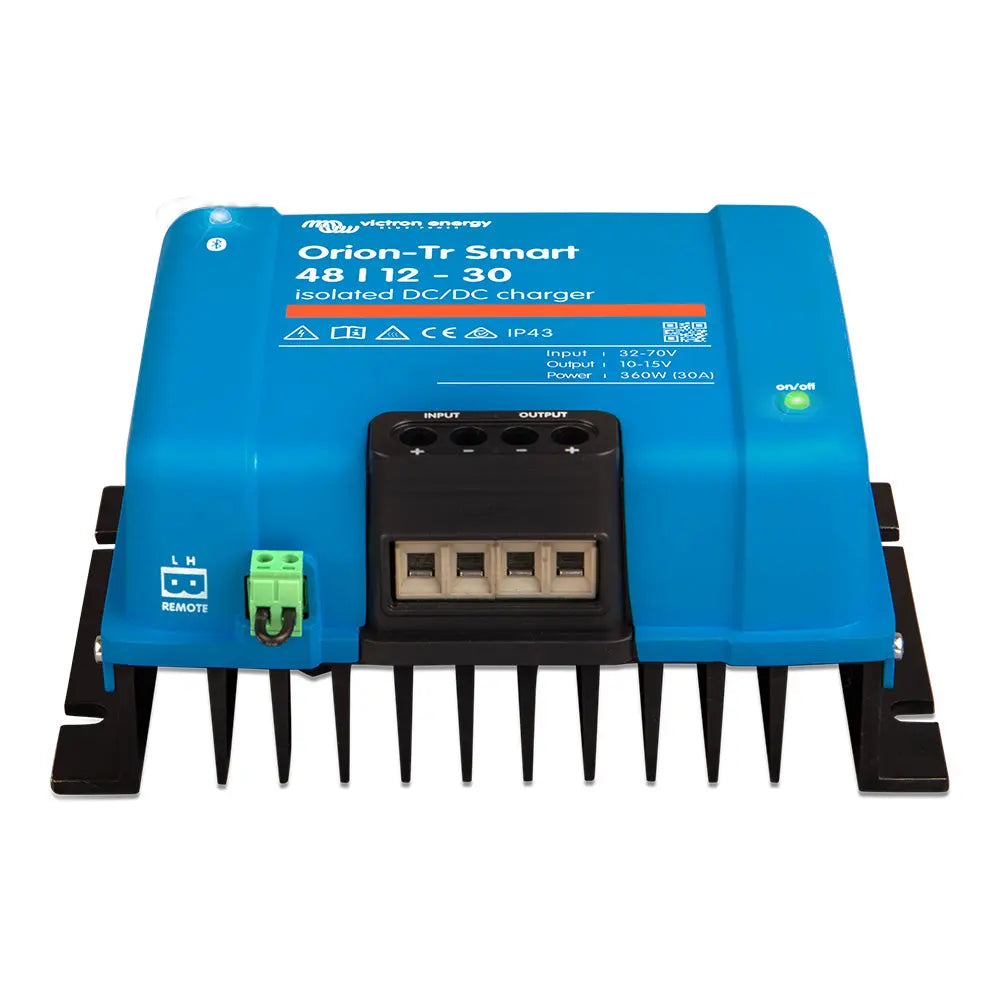

Victron Energy Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger with Bluetooth

Orion-Tr Smart 48/12-30A (360W) Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger can be used in 48V systems and is suitable for both lead acid and lithium batteries. Unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55C with a full rated output up to 40C.

Bluetooth Smart enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk absorption float

• For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

• The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.

Remote on/off

• A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

• An unlimited number of units can be connected in parallel.

High temperature protected

• The output current will reduce at high ambient temperatures.

IP43 protection

• When installed with the screw terminals oriented downward.

Screw terminals

• No special tools are needed for installation.

Input fuse (not replaceable)

The Victron Energy Orion-Tr Smart 48/12-30A (360W) isolated DC-DC charger is a versatile and professional-grade power management solution designed for dual battery systems in vehicles and boats. Its built-in Bluetooth capability allows users to monitor and configure the charger remotely using smartphones or tablets, providing convenient control and real-time data insights. The integrated VictronConnect app displays critical information such as warnings, alarms, and operational status without the need for additional hardware. This feature enhances system oversight and simplifies maintenance tasks, especially in complex setups involving multiple units.

This charger employs an adaptive 3-stage charging algorithm—bulk, absorption, and float—optimized for both lead-acid and lithium batteries. For lead-acid batteries, the absorption phase adjusts automatically based on discharge depth, ensuring optimal recharging without overcharging. Lithium batteries benefit from a fixed absorption time of approximately 2 hours, or alternatively, users can select a fixed output voltage setting. The unit's compatibility with smart alternators, including Euro 5 and Euro 6 engines, is facilitated by its engine running detection, which prevents unnecessary discharge of the starter battery when the engine is off.

Designed for demanding environments, the Orion-Tr Smart charger can operate reliably in high-temperature conditions up to 55°C, with the output current reducing as ambient temperatures increase to prevent overheating. Its IP43-rated enclosure ensures protection against dust and water ingress when installed with screw terminals oriented downward. The device features screw terminals for easy installation without specialized tools and includes an input fuse that enhances safety and durability. Multiple units can be connected in parallel to increase output power, making it suitable for larger systems or high power applications. Additionally, the charger supports remote on/off control through a dedicated switch or relay contact, providing flexible integration into existing systems. Overall, the Victron Orion-Tr Smart 48/12-30A charger offers a robust, intelligent, and scalable solution for managing battery charging in modern vehicles and marine applications.

Features:

• Bluetooth Smart enabled for remote monitoring, configuration, and firmware updates

• Fully programmable charge algorithms for lead acid and lithium batteries

• Adaptive 3-stage charging: bulk, absorption, float, with automatic adjustments

• Engine running detection for compatibility with smart alternators

• Remote on/off control via switch or relay contact

• Parallel capability allows unlimited units to be connected for higher output

• High temperature protection reduces output current at elevated ambient temperatures

• IP43 rated enclosure for dust and water resistance when installed appropriately

• Easy installation with screw terminals, no special tools required

• Built-in fuse for safety and durability
