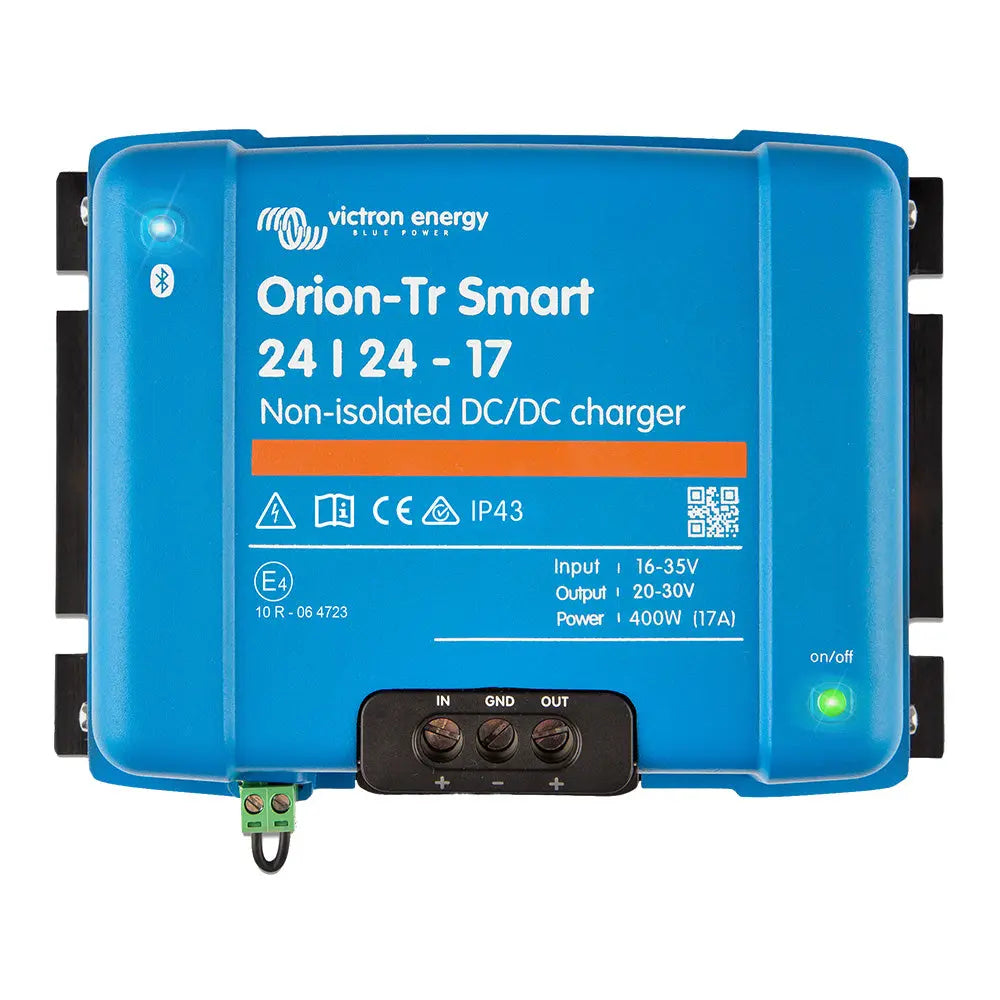

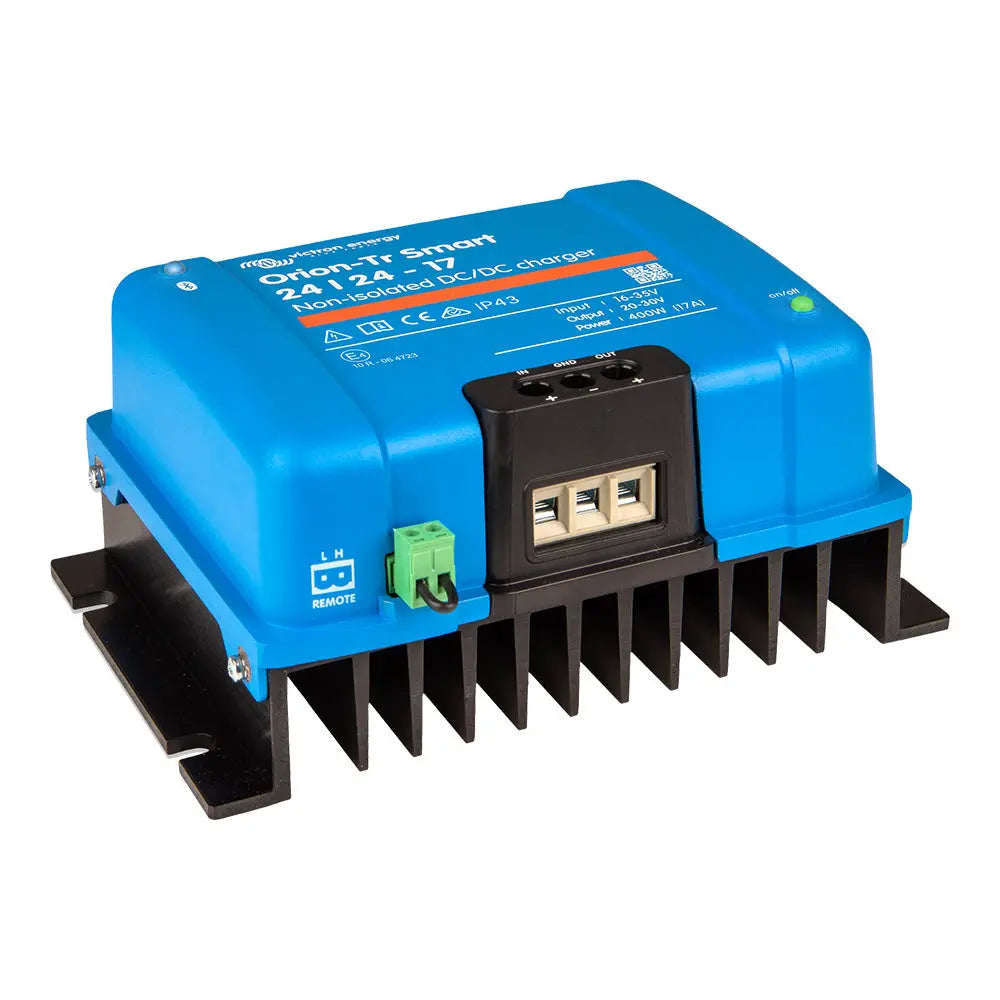

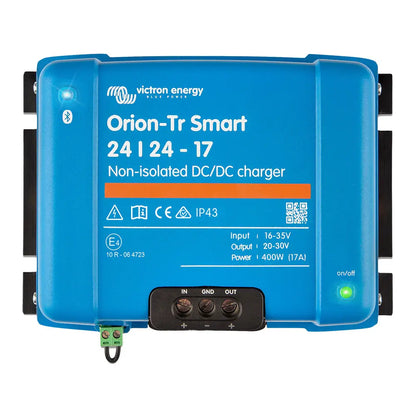

Victron Energy Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W, 17A

Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP

The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.

Bluetooth Smart Enabled:

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.

Fully Programmable:

• Battery charge algorithm (configurable) or fixed output.
• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float:

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries, the absorption time is fixed (the default is 2 hours).
• Alternatively, a fixed output voltage can be chosen.

Remote On/Off:

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:

An unlimited number of units can be connected in parallel.

High Temperature Protected:

The output current will reduce at high ambient temperatures.

IP43 Protection:

When installed with the screw terminals oriented downward.

Screw Terminals:

No special tools are needed for installation.

Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Adjust Range: 20-30 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40A
• Cont. Output Power at 25 Degrees C: 480 W
• Cont. Output Power at 40 Degrees C: 400 W
• Efficiency: 89%
• No Load Input Current (2): < 80 mA
• Standby Current: Less than 1 mA
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1,6 kg (3.5 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-TR Smart DC-DC converter offers reliable power conversion with advanced features suitable for various applications. Designed with Bluetooth connectivity, this professional-grade device allows users to monitor and adjust settings remotely via smartphones or tablets using the VictronConnect app, providing real-time data, warnings, and firmware updates effortlessly. Its fully programmable nature enables customization of the battery charge algorithm, supporting both adaptive 3-stage charging for lead-acid batteries and fixed output options for lithium batteries, ensuring optimal battery health and performance. The converter's smart alternator compatibility and engine running detection make it ideal for automotive and mobile use, facilitating seamless integration with vehicle systems and efficient power management. It incorporates a remote on/off switch capability, enabling remote control of power delivery through relay contacts or terminal switching, enhancing flexibility in system design. The Orion-TR is built with safety and durability in mind, featuring short circuit proofing, high-temperature protection that reduces output current at elevated temperatures, and IP43 ingress protection when installed with screw terminals downward. Its robust construction includes screw terminals for easy installation without special tools, and the unit can be paralleled with unlimited units to meet higher power demands, providing up to 480W at 25°C and 400W at 40°C. Operating within a temperature range of -20°C to +55°C, the converter maintains high efficiency at 89%, minimizing energy losses during operation. With galvanic isolation of 200 VDC and compliance with safety standards such as EN 60950 and automotive standards like ECE R10-5, this converter ensures safe and reliable operation in demanding environments. Compact and lightweight, the unit measures approximately 5.1 x 7.3 x 2.8 inches and weighs about 1.6 kg, making it suitable for space-constrained applications. For detailed installation and operation instructions, refer to the manufacturer’s manual available online. Whether for mobile, marine, or off-grid systems, the Victron Energy Orion-TR Smart DC-DC converter provides a versatile and intelligent power solution designed for demanding conditions and advanced monitoring needs.

Features:

• Bluetooth Smart Enabled: Monitor and configure via smartphone or tablet using the VictronConnect app.

• Fully Programmable: Customize charge algorithms or select fixed output to suit battery types and system requirements.

• Adaptive 3-Stage Charge Algorithm: Optimizes charging for lead-acid and lithium batteries, enhancing longevity and performance.

• Remote On/Off Capability: Connect remote switches or relay contacts for flexible power control.

• Parallel Compatibility: Unlimited units can be connected in parallel to increase output current.

• Short Circuit Proof: Ensures safety and reliability during operation.

• High Temperature Protection: Output current reduces at elevated temperatures to prevent overheating.

• IP43 Ingress Protection: Suitable for installation with screw terminals downward in protected environments.

• Screw Terminals: Easy to install without special tools, supporting cable cross-sections up to 16 mm AWG6.

• Wide Operating Range: Functions reliably from -20°C to +55°C with derating above 40°C.

• High Efficiency: Achieves up to 89% efficiency, reducing energy loss during conversion.

• Galvanic Isolation: 200 VDC between input, output, and case for safety.

• Compact and Lightweight: Measures approximately 5.1 x 7.3 x 2.8 inches and weighs about 3.5 pounds.

• Compliance and Safety: Meets EN 60950, EN 61000 standards, and automotive regulations like ECE R10-5.
