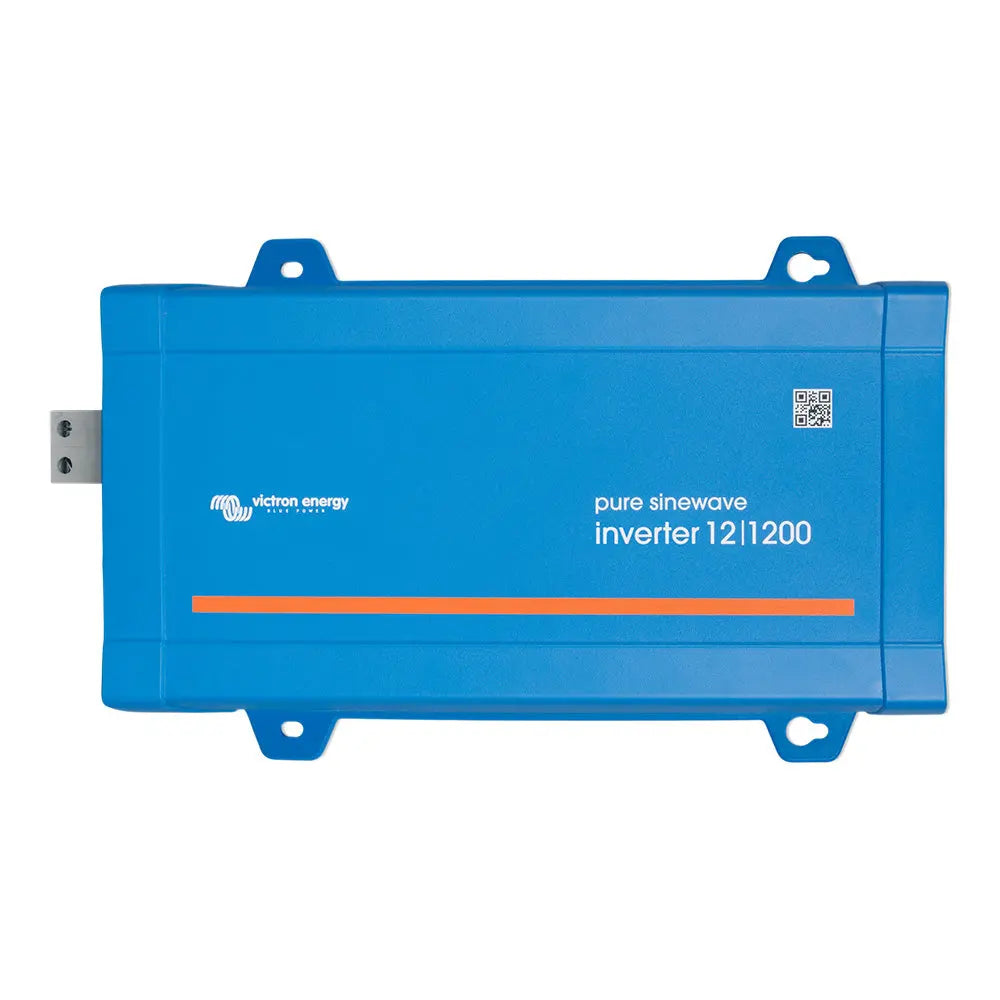

Victron Energy Phoenix Inverter 12/1200 - 120V with VE.Direct and NEMA GFCI (UL 458)

Phoenix Inverter 12/1200 - 120V - VE.Direct NEMA GFCI (UL 458)

Inverters allow users to power domestic equipment, requiring 230V/120V AC, using leisure or automotive batteries rated at 12V, 24V, or 48V DC.

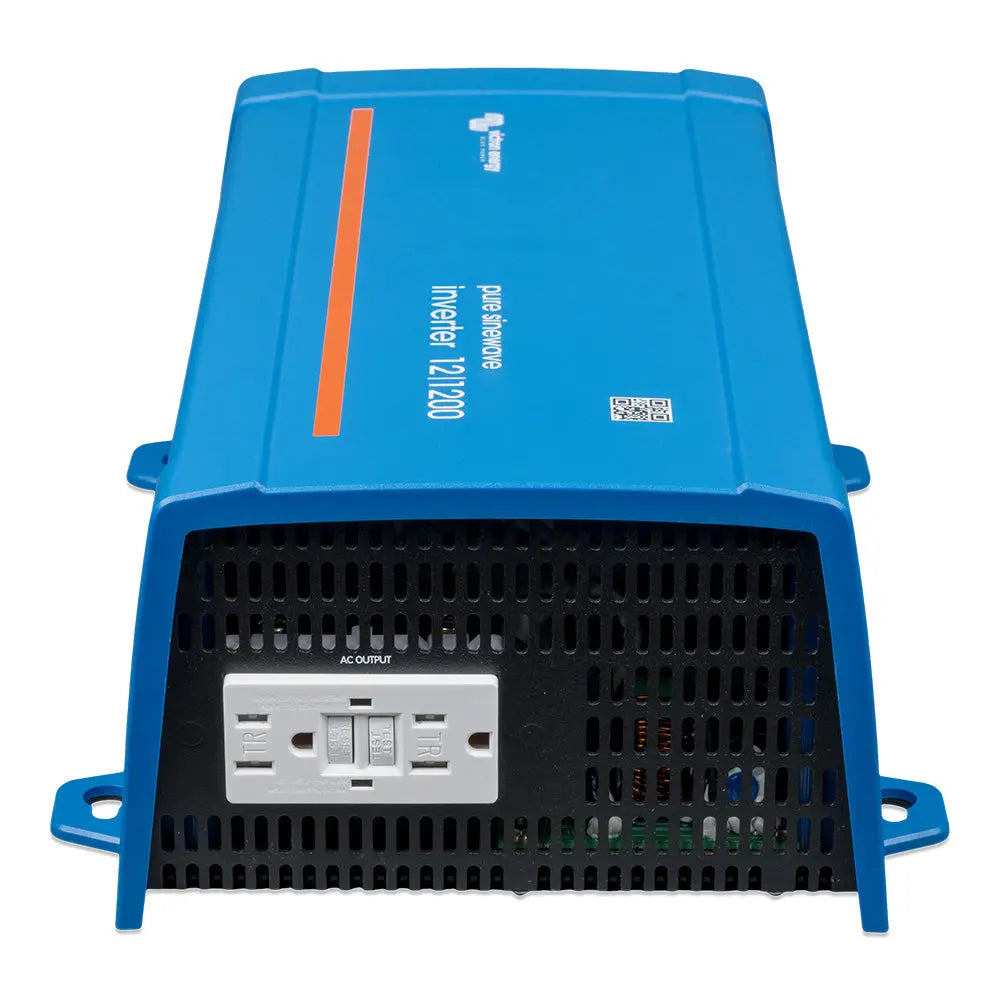

*This inverter has a GFCI Duplex Outlet.

VE.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA
• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)

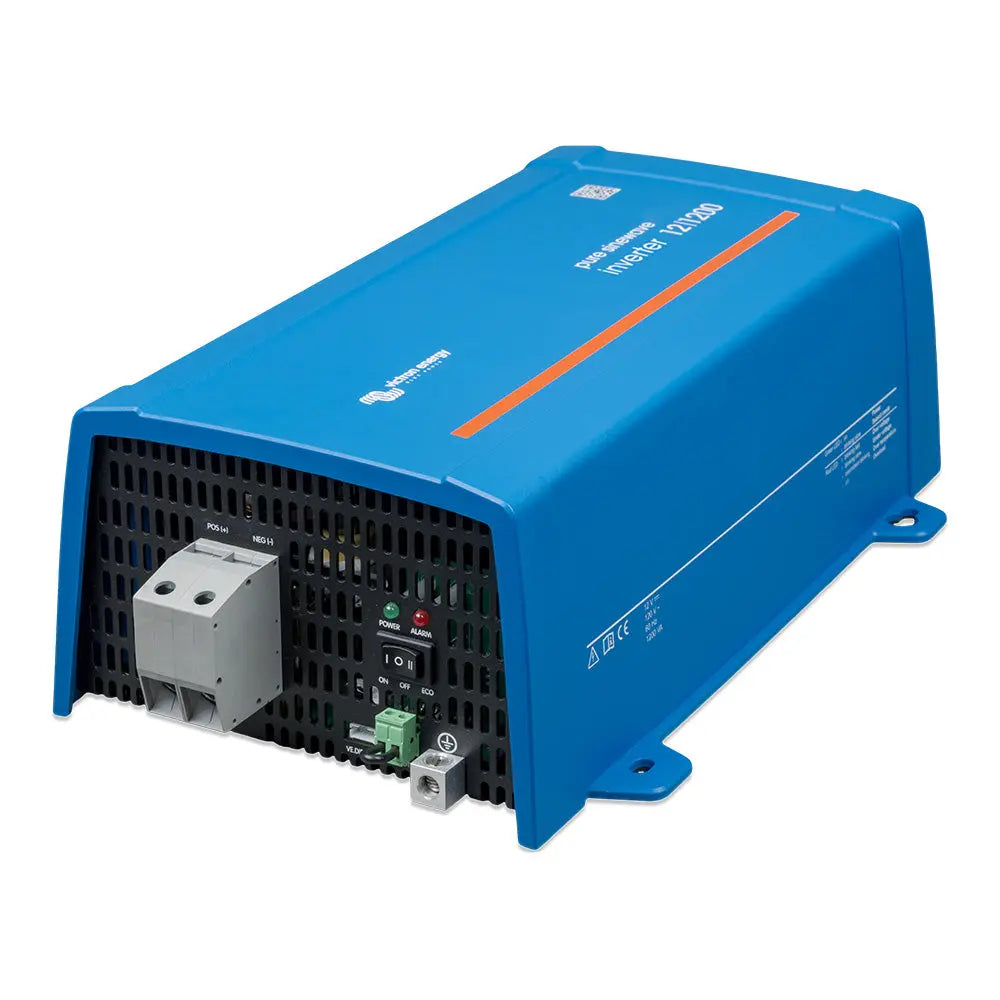

• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5.3 lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/1200 (Part Number: PIN122122510) is a reliable power conversion solution designed for versatile applications. This inverter converts 12V DC power from leisure or automotive batteries into clean, stable 120V AC power suitable for domestic equipment. Its robust design features a full bridge plus toroidal transformer topology, ensuring proven durability and long-term performance. The inverter includes a GFCI duplex outlet, providing added safety and convenience for powering sensitive electronics and household appliances.
The VE.Direct communication port enables seamless connectivity to computers, smartphones, tablets, and other devices, requiring specific interface cables or Bluetooth dongles. This feature allows users to monitor and configure the inverter remotely, offering detailed insights into voltage levels, load percentages, and alarms. Fully configurable parameters include low battery voltage alarms, cut-off and restart levels, output voltage (adjustable between 210V and 245V), frequency (50Hz or 60Hz), and ECO mode sensitivity.
Designed for flexibility, the inverter supports dynamic load-dependent cut-off, ensuring protection during overloads or high ambient temperatures. It boasts high start-up power to handle demanding loads such as LED or halogen lamps, electric tools, and power converters. The ECO mode enhances energy efficiency by switching the inverter to standby during low loads (minimum load: 15W), with adjustable standby intervals. An optional remote on/off switch can be connected to facilitate remote operation, and an automatic transfer switch (Filax) ensures seamless switching between power sources, minimizing downtime for critical equipment.
Operating efficiently at up to 88% peak efficiency, the inverter features a fan-assisted cooling system capable of handling temperatures from -40°C to +65°C. Its rugged steel chassis with a blue protective coating ensures durability, while screw terminals support secure battery connections. Standard AC outlets include various international configurations, including Schuko, IEC-320, NEMA 5-15R GFCI, UK, AU/NZ, and others, making this inverter suitable for a broad range of global applications. The unit weighs approximately 5.3 pounds and measures roughly 6.5 inches high, 10.2 inches deep, and 3.4 inches wide.
Certified to meet safety and EMC standards, including EN-IEC 60335-1, UL 458, and IEC 61000 series, the Victron Phoenix Inverter 12/1200 is an ideal choice for off-grid, mobile, or backup power systems requiring reliable, configurable, and safe operation. For detailed installation and operation instructions, refer to the official manual available online. Please contact your dealer for support, repairs, or returns related to this product.

Features:

• Power Conversion: Converts 12V DC to 120V AC with 250 VA continuous power output

• VE.Direct Communication Port: Enables remote monitoring and configuration via computer or mobile device

• Fully Configurable Settings: Adjust low battery alarms, cut-off levels, output voltage, frequency, and ECO mode parameters

• Safety Features: GFCI duplex outlet, short-circuit protection, overheating protection, and high ambient temperature resilience

• High Start-Up Power: Capable of powering demanding loads like LED, halogen lamps, and electric tools

• ECO Mode: Energy-saving standby mode with adjustable load detection and restart interval

• Remote On/Off: Compatible with remote switch for convenient operation

• Automatic Transfer Switch Compatibility: Supports seamless switching with Filax transfer switch for uninterrupted power

• Durable Enclosure: Steel chassis with IP 21 protection category, suitable for various environments

• International Outlets: Includes multiple plug types for global compatibility
