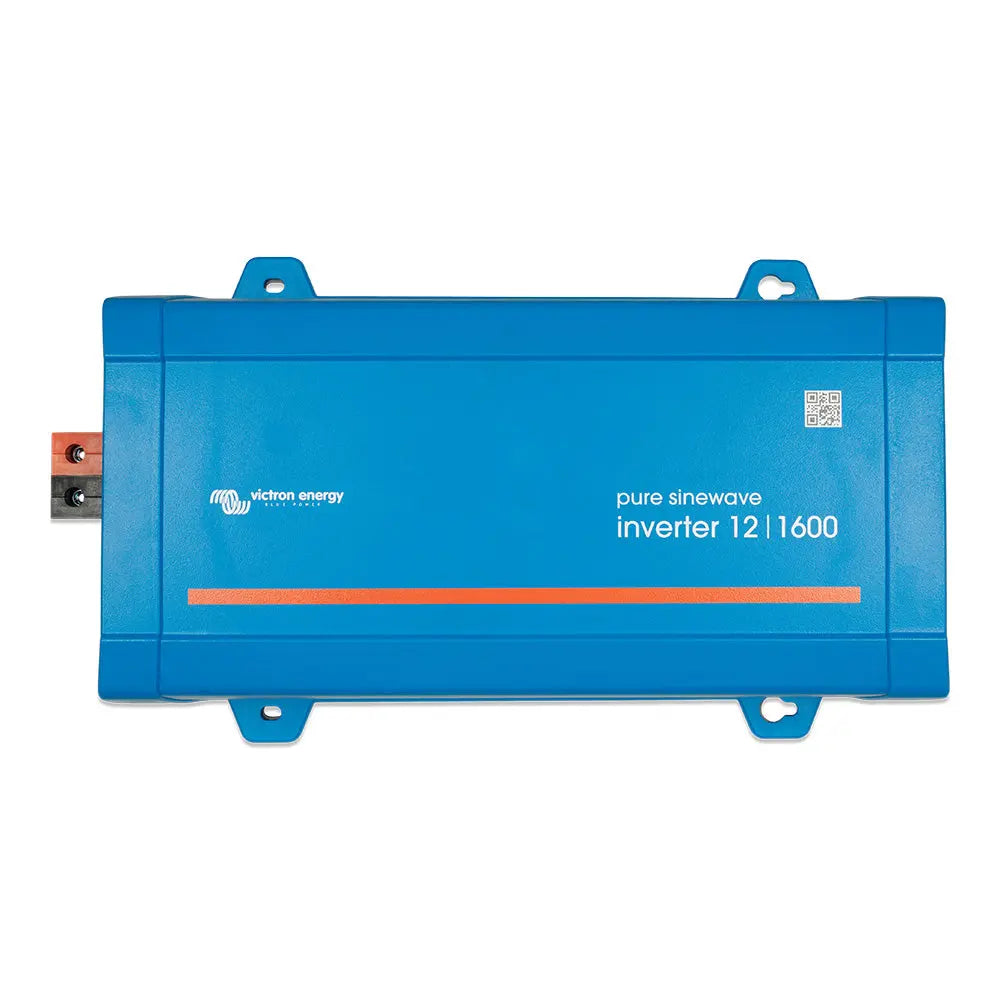

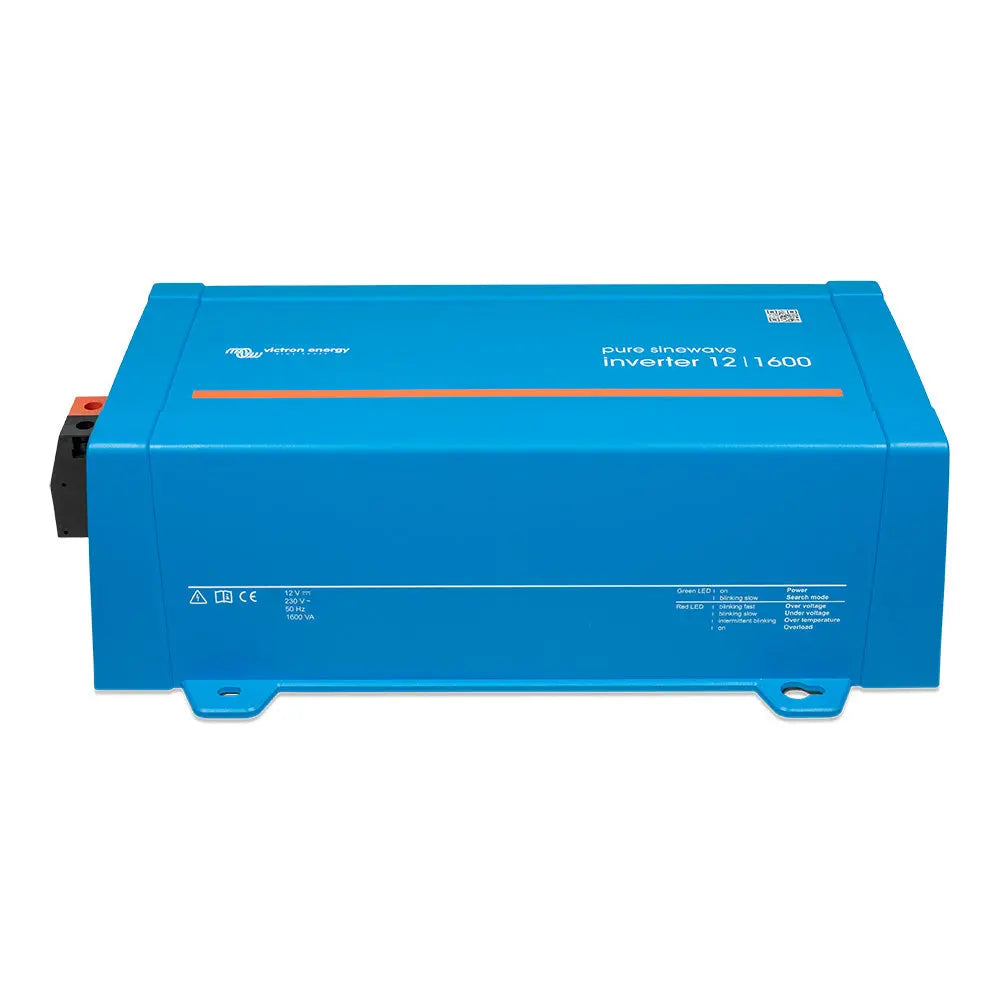

Victron Energy Phoenix Inverter 12/1600 120V VE.Direct with NEMA 5-15R Outlet

Phoenix Inverter 12/1600 120V VE.Direct NEMA 5-15R

Inverters allow users to power domestic equipment, requiring 230V/120V AC, using leisure or automotive batteries rated at 12V, 24V, or 48V DC.

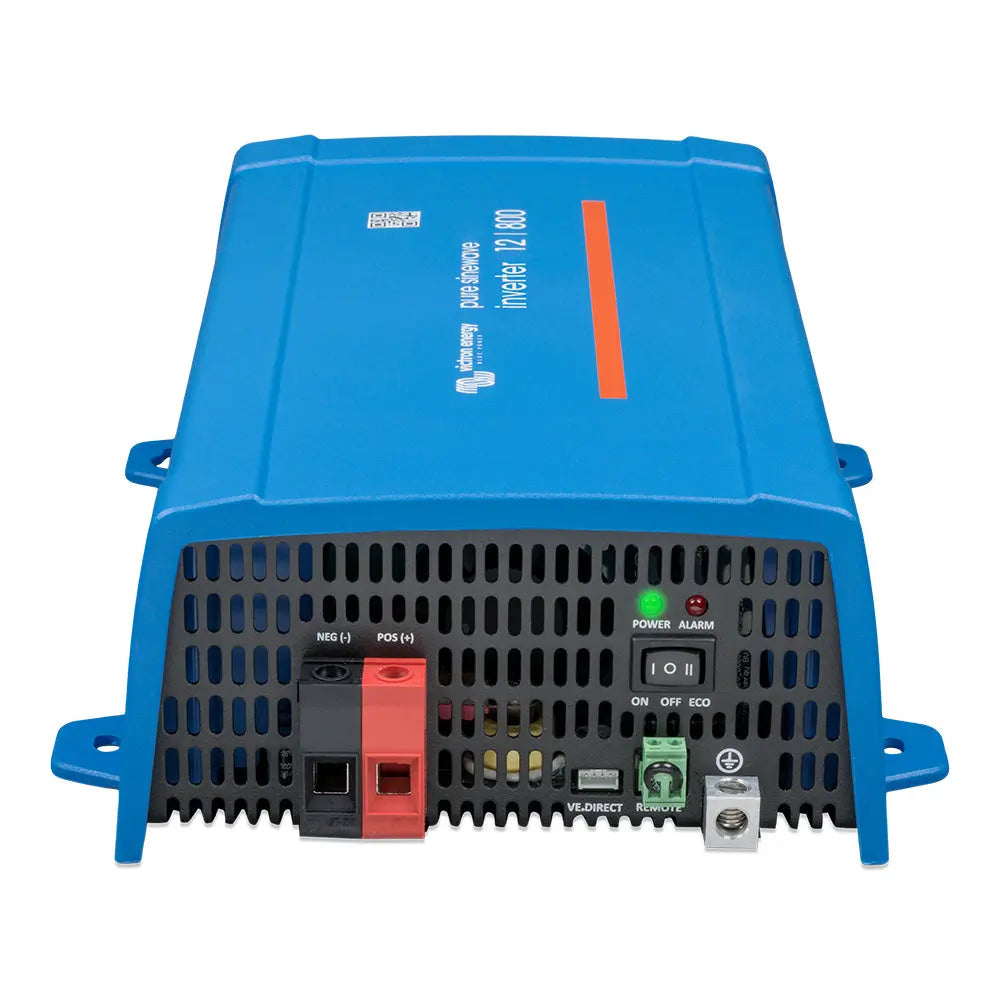

VE.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBooks, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

In and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA
• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8

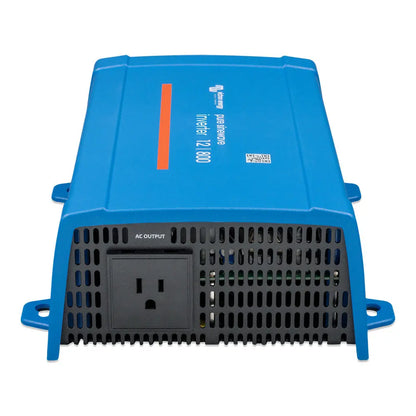

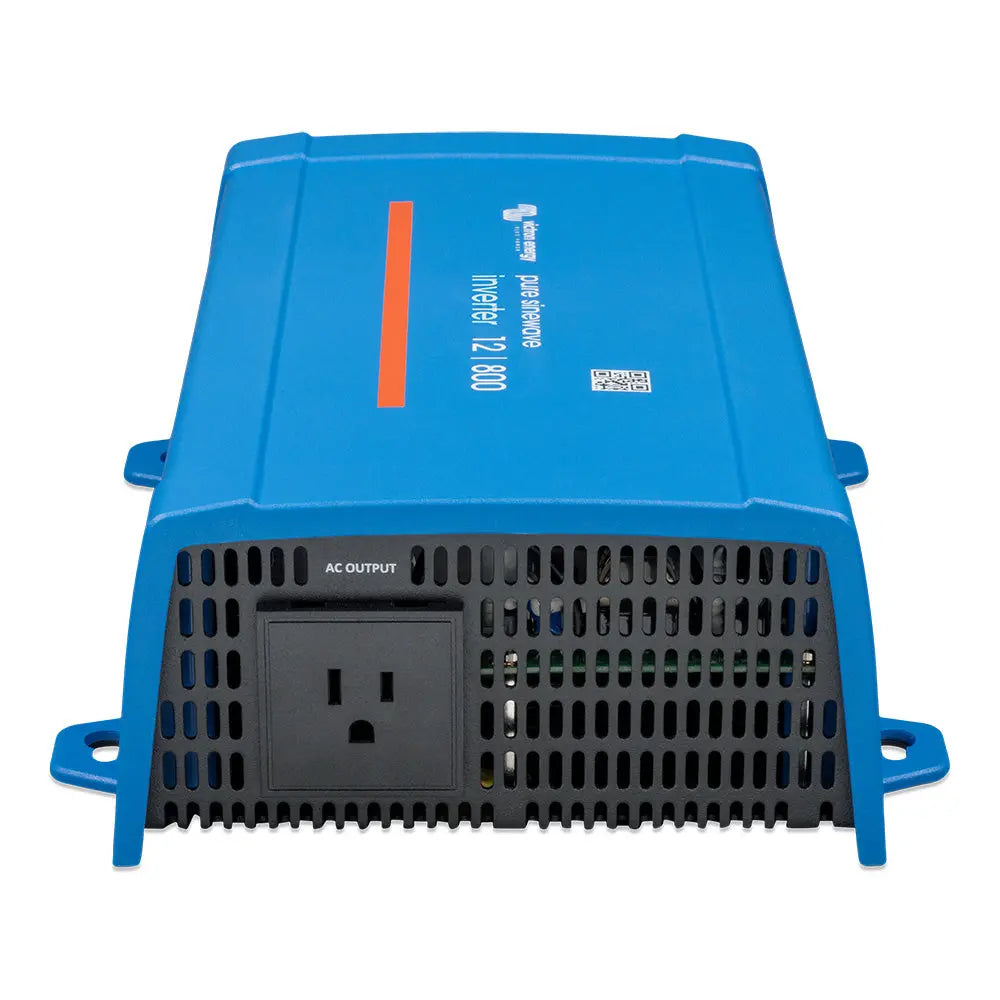

• Standard AC Outlets: 120V: NEMA 5-15R
• Protection Category: IP 21
• Weight: 2,4kg / 5.3 lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/1600 (Part Number: PIN122161500) offers reliable power conversion for mobile and off-grid applications. Designed to operate with 12V, 24V, or 48V DC batteries, this inverter provides up to 1,600 VA of continuous power, making it suitable for powering household appliances, power tools, and electronic devices. Its proven full-bridge and toroidal transformer topology ensure efficiency and durability, with protection against short circuits and overheating even under demanding conditions. This inverter features a robust steel chassis with a blue RAL 5012 finish and screw terminals for secure battery connections, making installation straightforward and secure. It includes a NEMA 5-15R outlet compatible with standard North American power cords, and its IP 21 protection rating ensures some degree of environmental resistance, suitable for indoor use. The inverter’s advanced features include a VE.Direct communication port for seamless connectivity to computers, smartphones, tablets, and other devices, enabling real-time monitoring and configuration. It supports adjustable output voltage (210-245V), frequency (50Hz or 60Hz), and ECO mode settings, allowing users to optimize efficiency and power management. The ECO mode automatically switches to standby when the load drops below 15W, reducing power consumption and extending battery life, while a remote on/off switch adds further convenience. High start-up power capability ensures that demanding loads such as LED and halogen lamps or electric tools can start reliably. Safety features include protection against over-temperature, overload, and battery voltage fluctuations, compliant with international standards such as EN-IEC 60335-1 and UL 458. The inverter operates across a wide temperature range from -40°C to +65°C, with fan-assisted cooling ensuring continuous performance in various environments. Compact and lightweight at just over 5 pounds, the inverter’s dimensions are designed for easy installation in tight spaces. Additional accessories include a remote on/off switch and the optional Filax Automatic Transfer Switch for seamless transfer between power sources, minimizing downtime. Comprehensive monitoring capabilities allow users to track input and output voltages, load percentages, and alarms, facilitating optimal system operation. Detailed technical specifications, including peak power of 400W and efficiency levels up to 88%, make this inverter an excellent choice for off-grid power solutions requiring dependable and configurable AC power from DC sources. For further information or support, refer to the user manual available online.

Features:

• Power Output: 1,600 VA continuous power with peak 400W for demanding loads

• Connectivity: VE.Direct port for monitoring and system configuration

• Input Voltage Range: 9.2V to 62V DC with adjustable low voltage shut down and restart

• Output Voltage & Frequency: 230VAC or 120VAC with 50Hz or 60Hz options, adjustable

• Efficiency: Up to 88% for optimized power use

• Protection: Over-temperature, overload, short circuit, and battery voltage safeguards

• ECO Mode: Reduces power consumption by switching to standby below 15W load

• Remote Control: Compatible with remote on/off switches for convenience

• Durable Build: Steel chassis with IP 21 rating suitable for indoor environments

• Monitoring: Real-time display of voltage, load, and alarm status

• Temperature Range: -40°C to +65°C with fan-assisted cooling

• Certified Standards: EN-IEC, UL, and EMC compliance for safe operation
