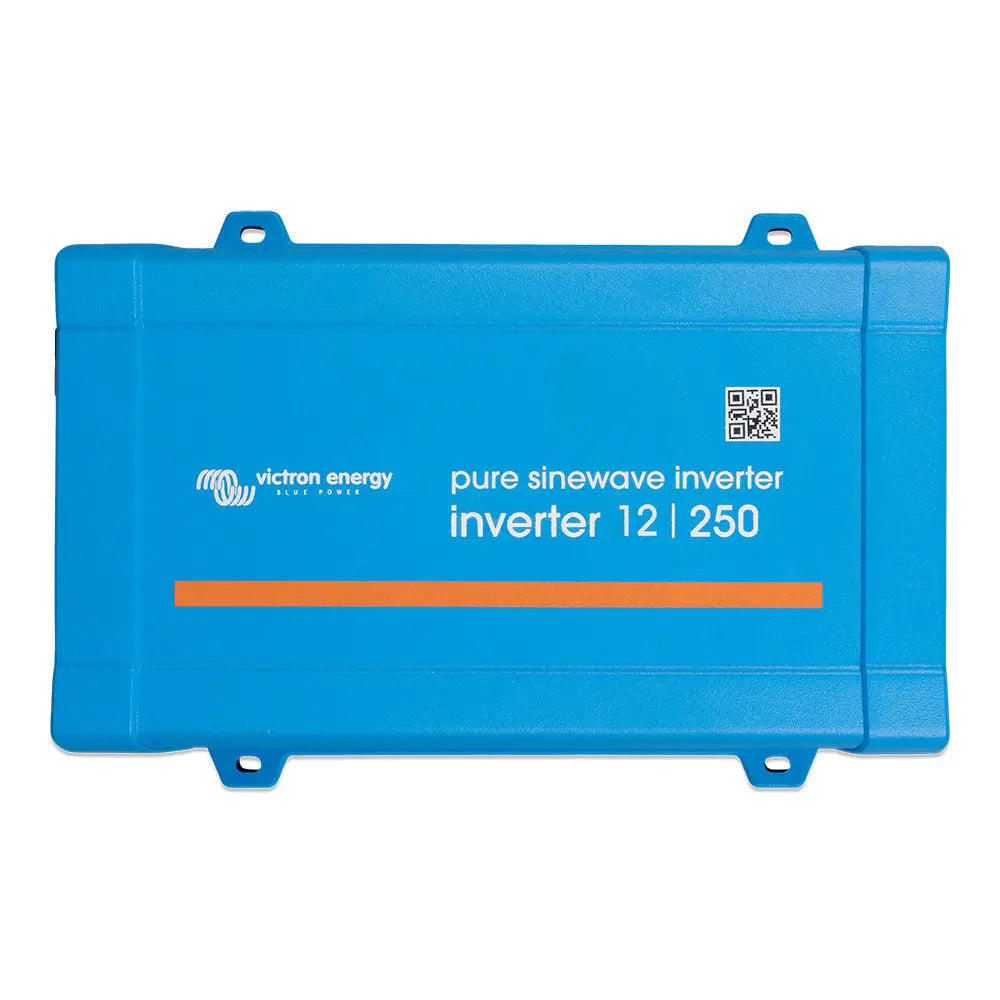

Victron Energy Phoenix Inverter 12/250 - 120V with VE.Direct GFCI Duplex Outlet - 200W

Phoenix Inverter 12/250 - 120V - VE.Direct GFCI Duplex Outlet - 200W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

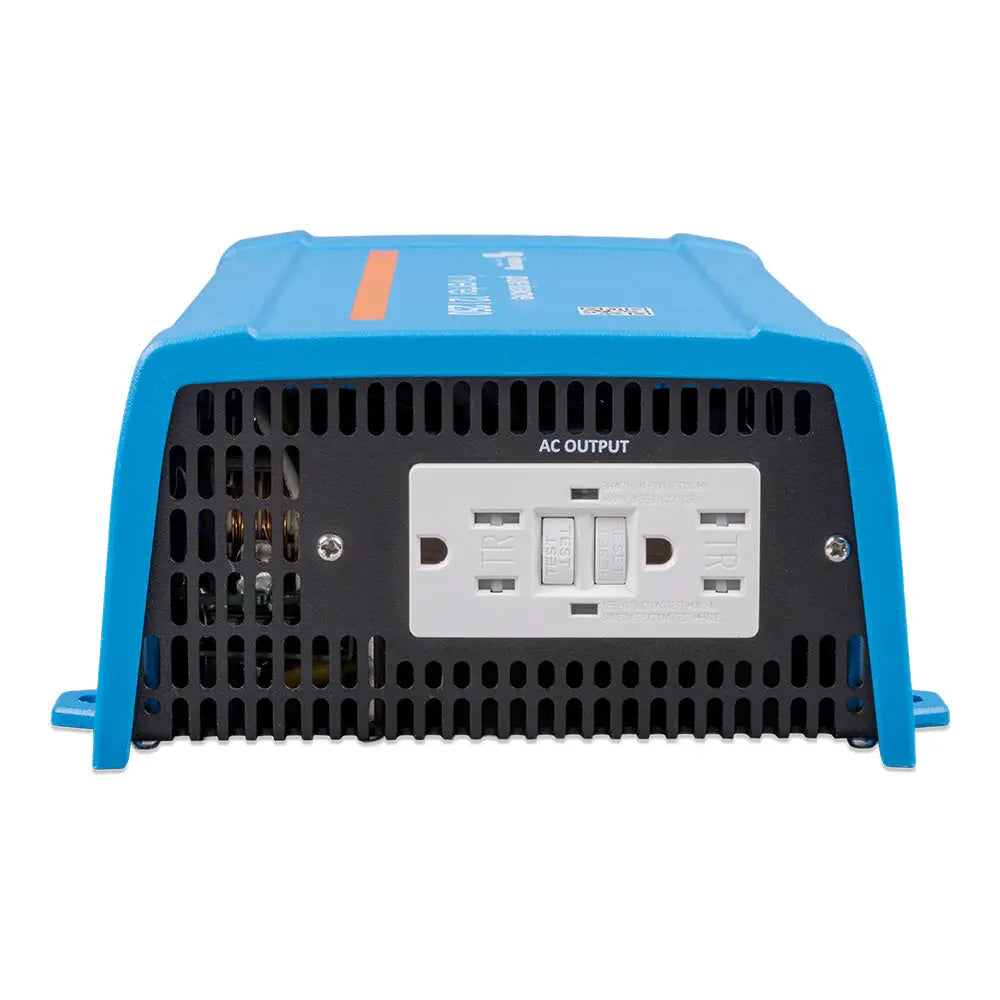

*This inverter has a GFCI Duplex Outlet.

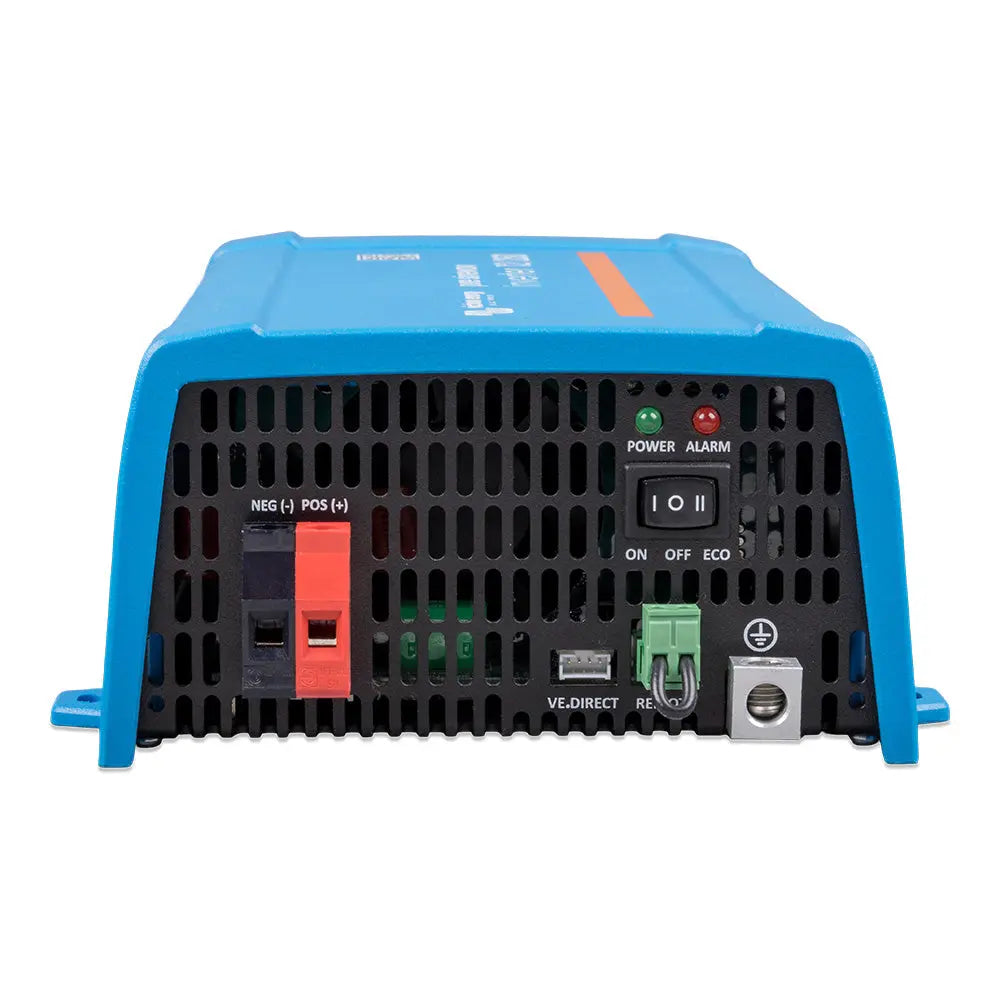

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

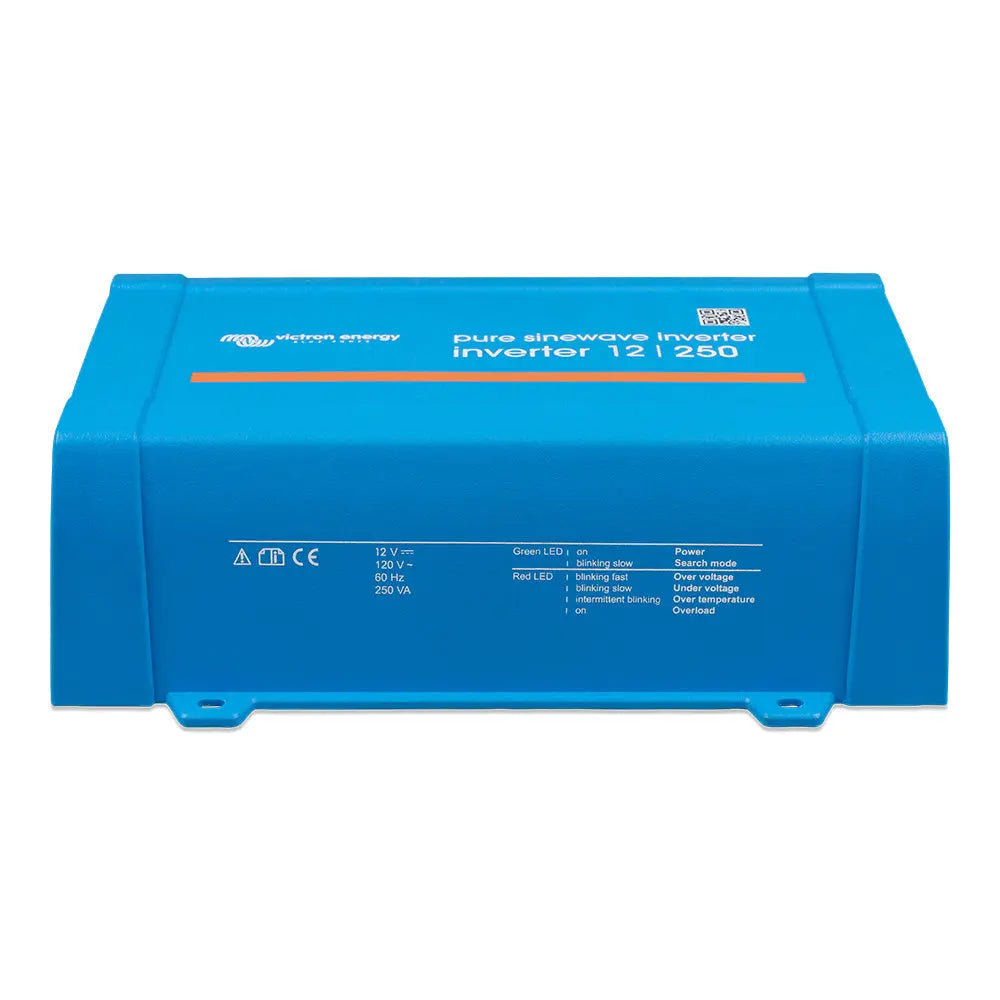

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA
• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/250 offers reliable power conversion for off-grid applications, converting 12V DC from leisure or automotive batteries into 120V AC power suitable for household devices. Designed with a fully protected, short-circuit proof full bridge and toroidal transformer topology, this inverter ensures durability and safe operation in demanding environments. Its robust construction and advanced protection features make it ideal for use in mobile, RV, or backup power setups, where dependable performance is essential.

This inverter includes a GFCI duplex outlet, providing a safe and convenient AC power source that complies with modern safety standards. The VE.Direct communication port allows seamless integration with computers, smartphones, tablets, and other devices, facilitating remote monitoring and configuration. The inverter’s fully configurable settings include low battery voltage alarms, load-dependent cut-offs, adjustable output voltage and frequency, ECO mode controls, and dynamic cut-off features, giving users precise control over power management.

Equipped with high start-up power capabilities, the inverter can handle demanding loads such as LED and halogen lamps or power tools. The ECO mode feature reduces energy consumption by switching the inverter to standby when the load is below 15W, and it automatically restarts when higher loads are detected. An optional remote on/off switch can be connected for convenient operation, and the inverter is compatible with the Filax Automatic Transfer Switch for uninterrupted power transfer with minimal switching time.

Built to operate reliably across a wide temperature range from -40°C to +65°C, the Victron Phoenix inverter is protected against overheating, overload, and short circuits. Its durable steel chassis with a blue RAL 5012 finish ensures longevity, and the modular design supports various AC outlet configurations, including Schuko, NEMA 5-15R GFCI, and others. Weighing approximately 5.3 pounds and measuring roughly 6.5 x 3.4 x 10.2 inches, this compact inverter is suitable for portable and stationary power solutions. The included accessories and comprehensive safety standards support make it a versatile choice for residential, commercial, and mobile applications.

Features:

• Power Output: 200W continuous with 250VA peak power for demanding loads

• Input Voltage Range: 9.2V to 17V, 18.4V to 34V, or 36.8V to 62V DC

• Adjustable Output Voltage: 210V to 245V AC

• Selectable Frequency: 50Hz or 60Hz

• Built-in GFCI Duplex Outlet: Ensures safety and convenience

• VE.Direct Communication Port: Enables remote monitoring and configuration

• Configurable Settings: Low battery alarms, load-dependent cut-offs, ECO mode control

• High Start-Up Power: Suitable for LED lamps, halogen bulbs, and power tools

• ECO Mode: Reduces energy consumption with automatic standby and restart

• Remote On/Off: Connects to external switch for easy control

• Protection Features: Overload, short circuit, overheating, and battery voltage protection

• Durable Enclosure: Steel chassis with IP 21 protection rating

• Operating Temperature Range: -40°C to +65°C, fan-assisted cooling

• Multiple AC Outlets: Schuko, IEC, NEMA 5-15R GFCI, AU/NZ configurations

• Compact and Lightweight: Weighing approximately 5.3 pounds with dimensions suitable for portable use
