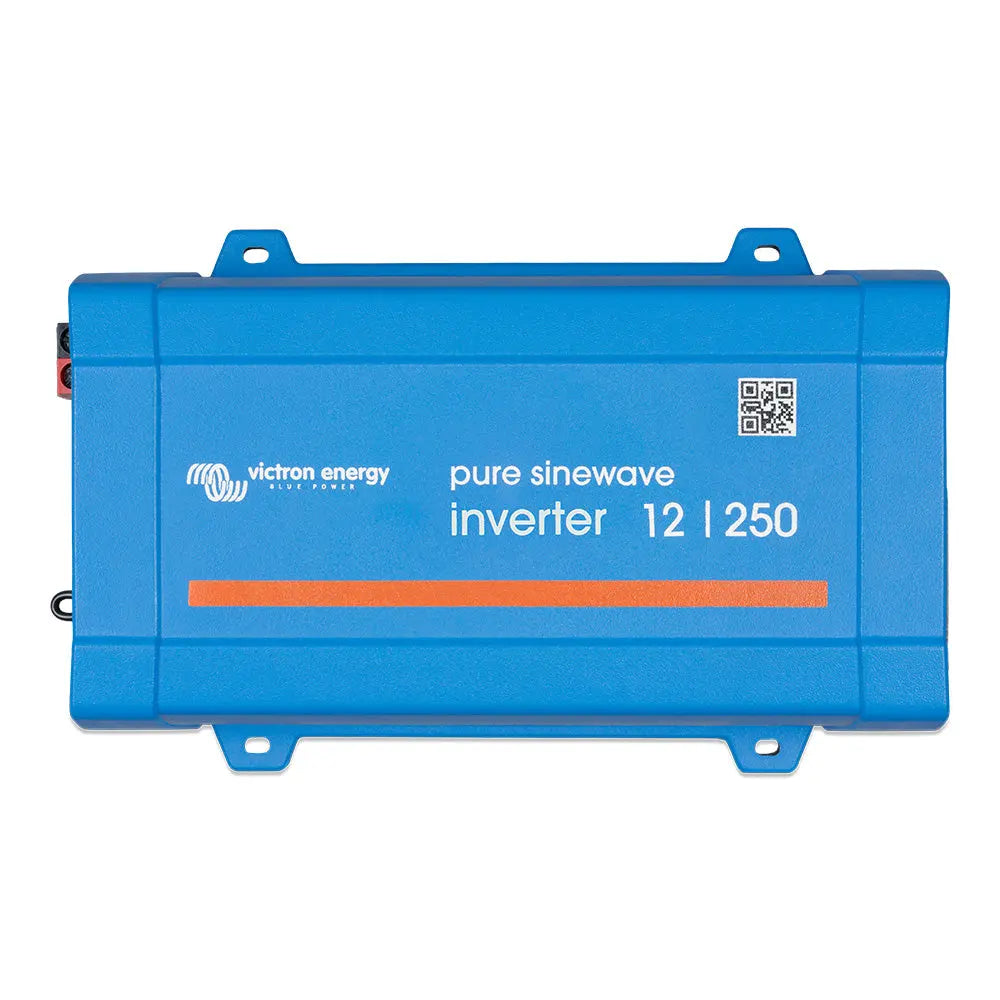

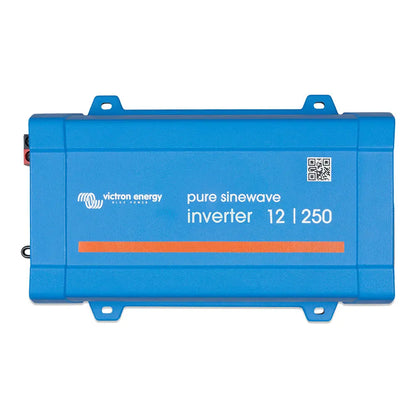

Victron Energy Phoenix Inverter 12/250 - 120V with VE.Direct NEMA 5-15R Outlet, 200W

Phoenix Inverter 12/250 - 120V - VE.Direct NEMA 5-15R - Single Outlet - 200W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

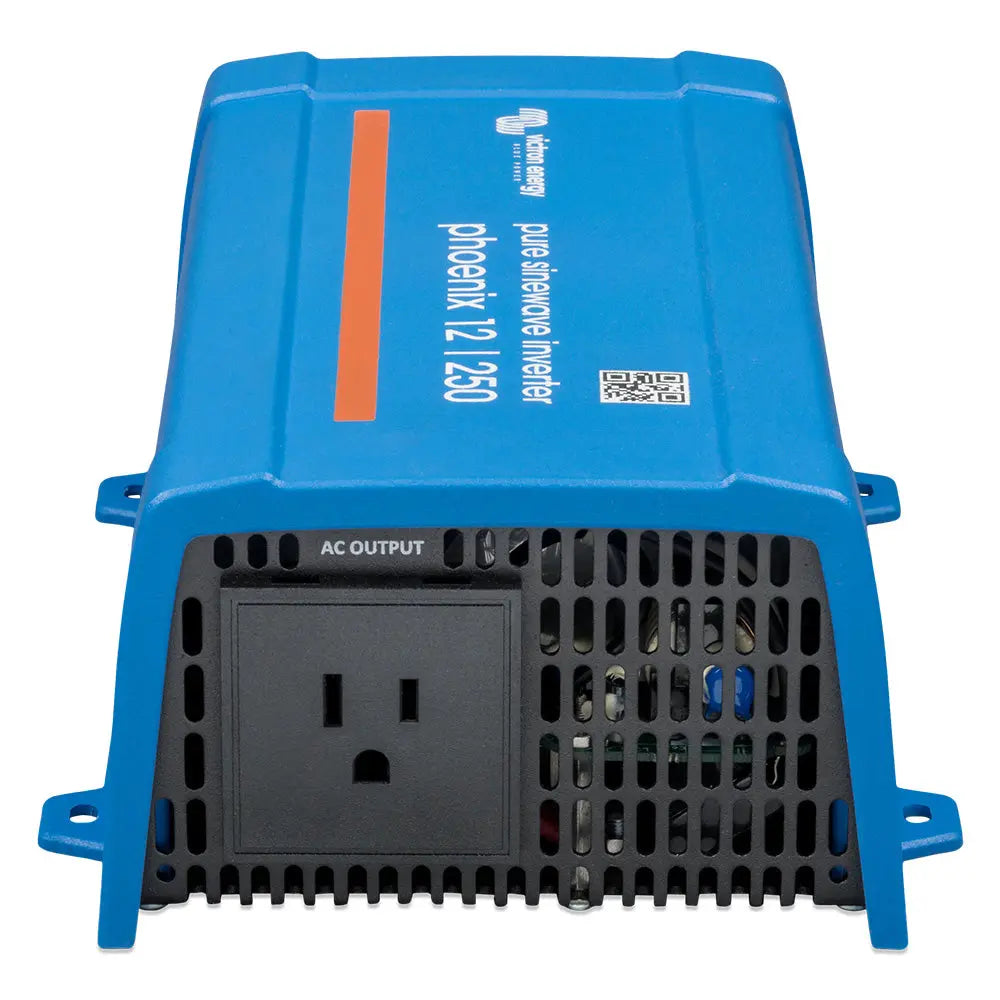

*This inverter has a NEMA 5-15R outlet.

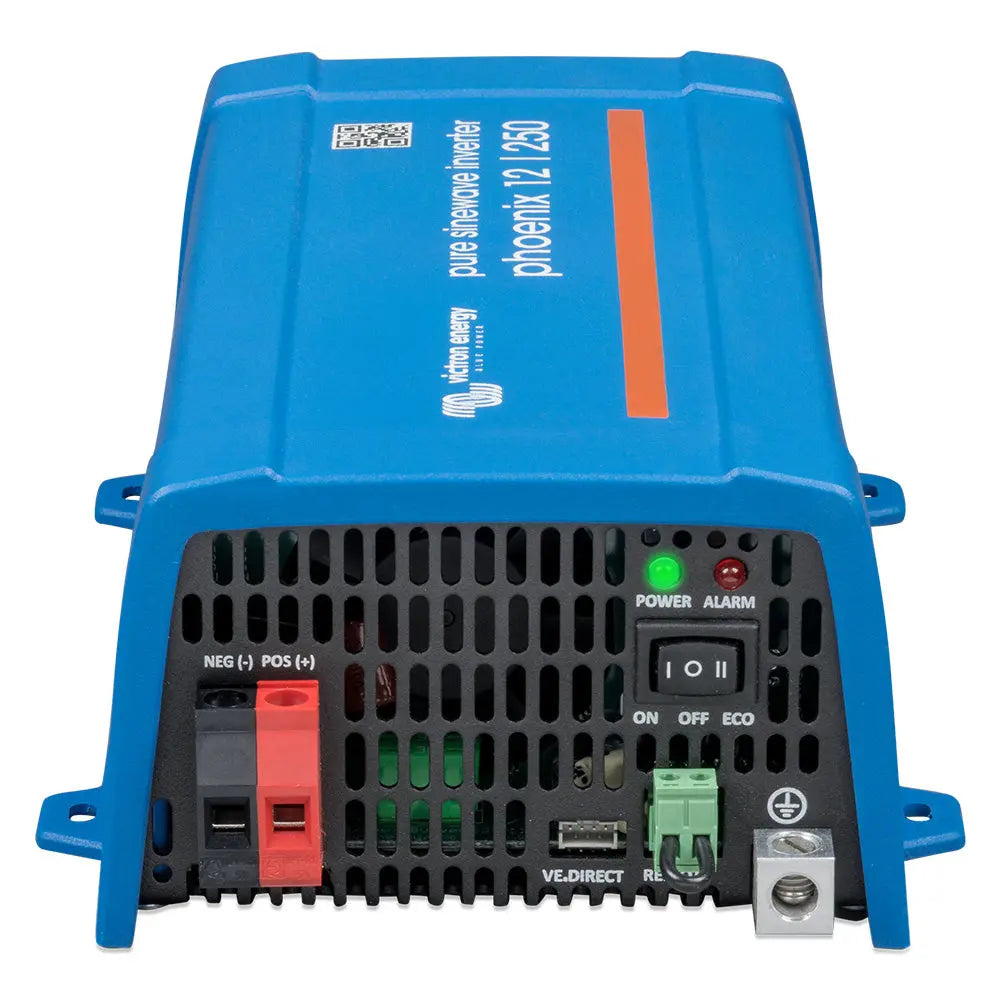

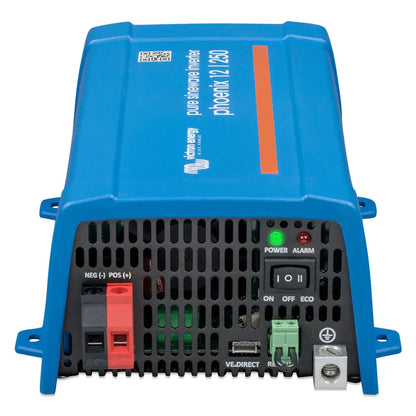

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA
• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/250 is a reliable power solution designed to convert 12V DC from leisure or automotive batteries into clean, stable 120V AC power for household appliances. With a continuous power output of 200W and a peak power capacity of 400W, this inverter is capable of powering essential devices such as LED lamps, small power tools, and electronic equipment. Its robust design features a proven full bridge and toroidal transformer topology that ensures durability and consistent performance over years of use. The inverter is protected against short circuits and overheating, making it suitable for demanding environments and extended operation.

Equipped with the VE.Direct communication port, the Victron Phoenix inverter allows seamless integration with computers, smartphones, and tablets, providing real-time monitoring and configuration options. You can connect via a USB interface or Bluetooth Smart dongle, enabling detailed insights into in- and output voltages, load percentages, and alarms. The inverter offers extensive configurability, including adjustable low battery voltage alarms, dynamic load-dependent cut-offs, and output voltage and frequency settings, ensuring optimal performance tailored to specific applications. ECO mode functionality further enhances efficiency by reducing power consumption when the load is minimal, automatically switching the inverter to standby when not in use, with an adjustable delay for reactivation.

Designed for versatility and safety, the Victron Phoenix inverter features remote on/off capabilities, LED diagnostics for quick troubleshooting, and comprehensive protection features such as overload, short circuit, high temperature, and battery voltage safeguards. Its durable steel chassis and plastic cover are rated IP21 for protection against dust and moisture, and the unit includes multiple standard AC outlets suitable for various regional plugs, including NEMA 5-15R, Schuko, UK, and AU/NZ types. The inverter's operational temperature range from -40°C to +65°C ensures reliable performance in diverse environments. Compact and lightweight, it measures approximately 6.5 inches high, 10.2 inches deep, and 6.5 inches wide, making it suitable for both stationary and mobile applications. Accessories like remote on/off switches and the Filax automatic transfer switch are available for enhanced functionality and seamless power transfer between sources, ideal for backup or off-grid systems. Certified to meet international safety and EMC standards, the Victron Energy Phoenix Inverter 12/250 is a dependable choice for powering your off-grid or backup power needs with confidence.

Features:

• Continuous Power: 200W with peak capacity of 400W for demanding loads

• Input Voltage Range: 9.2V to 17V, suitable for 12V battery systems

• Output Voltage: 120V or 230V AC, configurable with 50Hz or 60Hz frequency

• VE.Direct Communication Port: Enables remote monitoring and configuration via USB or Bluetooth

• Fully Configurable Settings: Includes low voltage alarms, dynamic cut-off, output voltage, frequency, and ECO mode

• Protection Features: Overload, short circuit, overheating, and battery voltage protection

• Remote On/Off Capability: Connectable via two-pole switch for convenient operation

• Durable Enclosure: Steel chassis with IP21 protection, rated for operating temperatures from -40°C to +65°C

• Multiple Standard Outlets: Includes NEMA 5-15R, Schuko, UK, and AU/NZ sockets for regional compatibility

• Efficiency and Power Management: Up to 88% efficiency, ECO mode for reduced power consumption

• Accessories Available: Remote on/off switch and Filax automatic transfer switch for seamless power transfer

• Certified Compliance: Meets safety and EMC standards including EN-IEC 60335-1, UL 458, and IEC 61000 series
