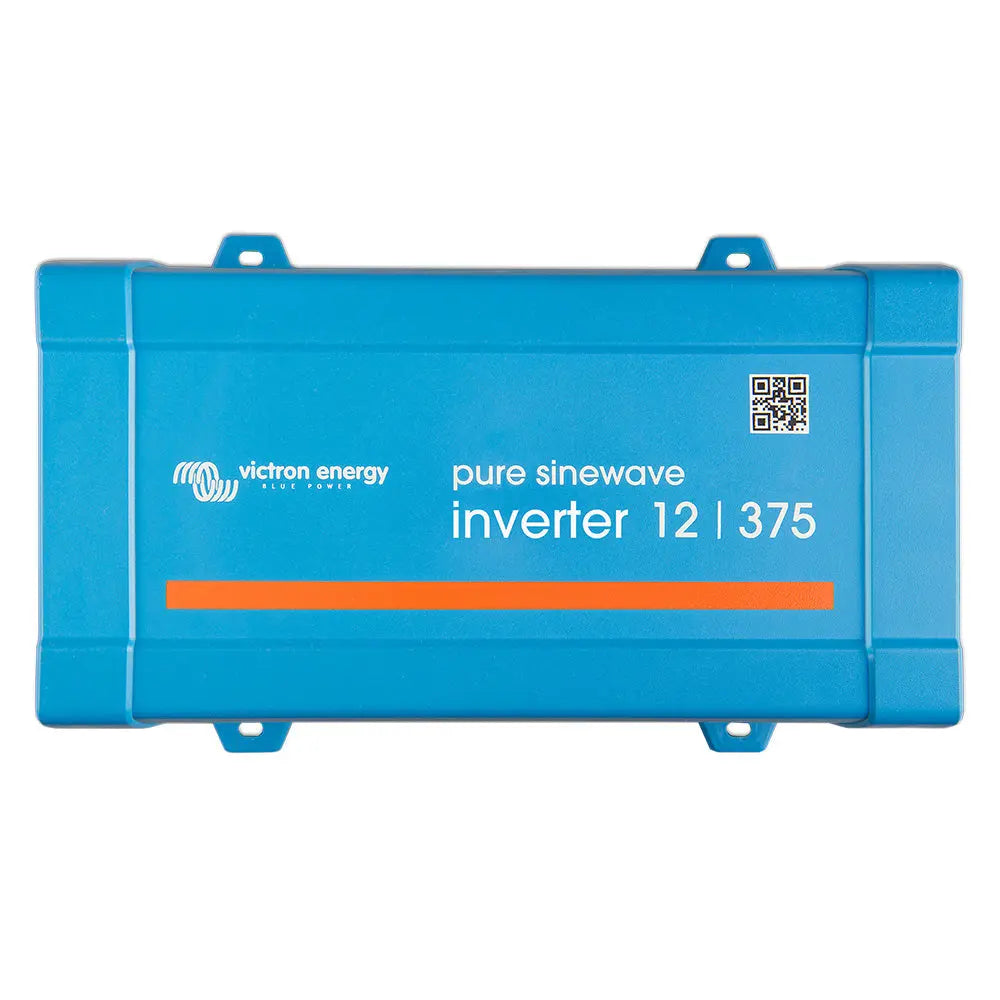

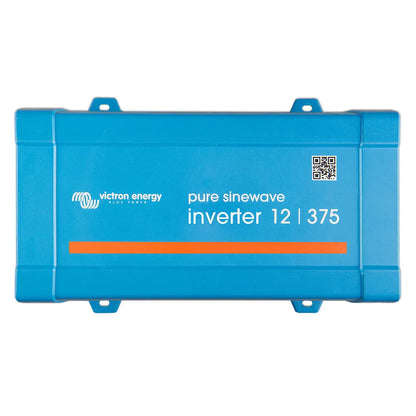

Victron Energy Phoenix Inverter 12/375 - 120V with VE.Direct GFCI Duplex Outlet - 300W

Phoenix Inverter 12/375 - 120V - VE.Direct GFCI Duplex Outlet - 300W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

*This inverter has a GFCI Duplex Outlet.

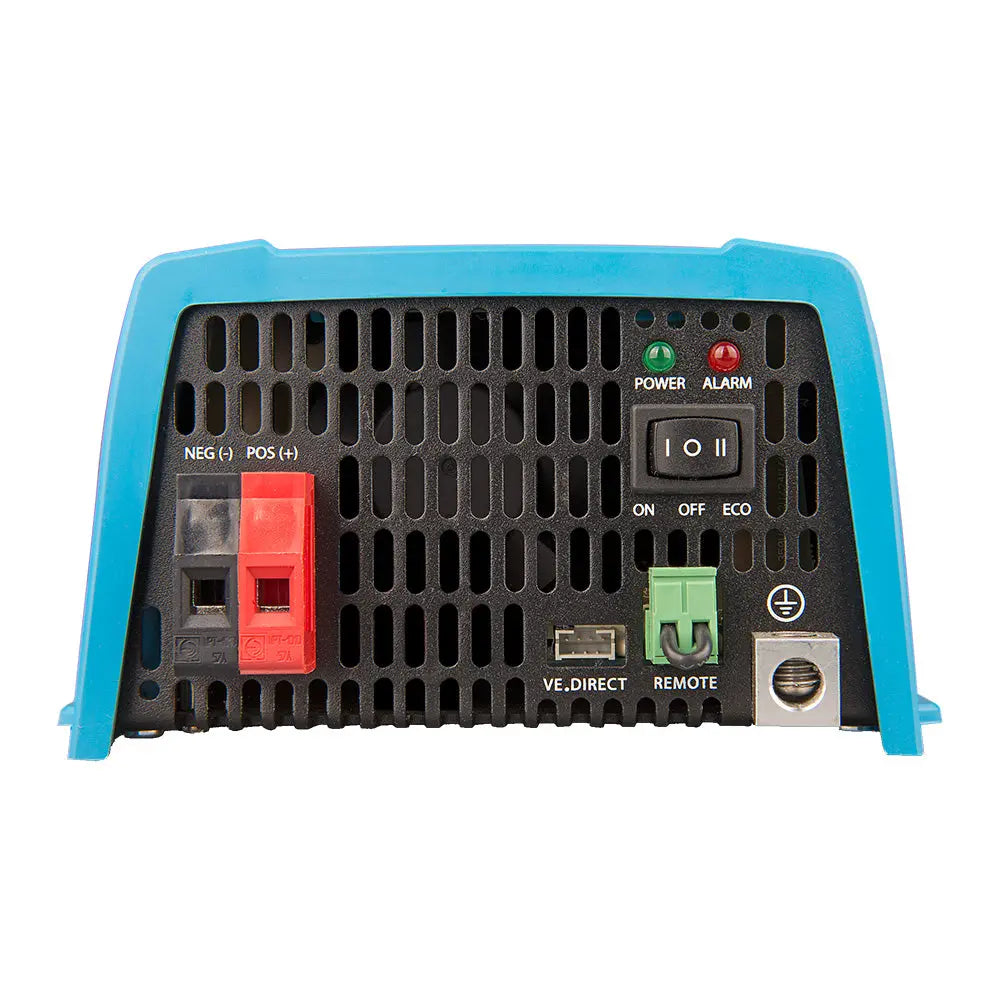

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 375VA
• Cont. Power at 25 degrees C / 40 degrees C: 300 / 260W
• Peak Power: 700W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 89 / 89 / 90%
• Zero-Load Power: 5,6 / 6,1 / 8,5W
• Default Zero-Load Power in ECO Mode (default retry interval: 0,9 / 1,4 / 2,6W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 3,0kg / 6,6lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/375 provides reliable power conversion for mobile and off-grid applications, converting 12V DC power from leisure or automotive batteries into 120V AC. Designed for versatility, it features a fully configurable interface allowing users to adjust low battery voltage alarms, cut-off and restart levels, and output voltage between 210V and 245V, with selectable frequency options of 50Hz or 60Hz. Its advanced full bridge and toroidal transformer topology have been proven over years of reliable operation, offering short-circuit protection, overheating safeguards, and high efficiency to ensure dependable performance even under demanding conditions. The inverter’s high start-up power capability makes it suitable for demanding loads such as LED and halogen lamps, electric tools, and power converters, making it ideal for RVs, boats, and off-grid installations.

Connected via the VE.Direct port, the inverter supports communication with computers through a USB interface cable or with smartphones and tablets using a Bluetooth Smart dongle. This connectivity enables real-time monitoring of input/output voltage, load percentage, and alarms, providing users with comprehensive control and diagnostics. The inverter includes an ECO mode that reduces power consumption by switching to standby when load drops below 15W, with adjustable parameters for power-saving operation. Additionally, a remote on/off switch can be connected for convenient control from a distance.

Constructed with a durable steel chassis and a blue protective plastic cover, the Victron Phoenix 12/375 is built to withstand challenging environments. It comes with multiple AC outlet options, including Schuko, IEC, NEMA, UK, and AU/NZ standards, all protected by an IP 21 enclosure category for safety. The device weighs approximately 6.6 pounds and measures just over 3 inches high, 6.5 inches wide, and 10.2 inches deep, making it suitable for installation in tight spaces. Compatible accessories include a remote on/off switch and the Filax automatic transfer switch for seamless transfer between power sources, ensuring continuous operation of critical equipment.

Meeting rigorous safety and electromagnetic compatibility standards, the Victron Phoenix inverter is suitable for a wide range of applications requiring dependable, configurable, and efficient power conversion. For detailed installation and operation instructions, consult the manual available online. This inverter is an excellent choice for those seeking a robust power solution for off-grid, mobile, or backup power needs.

Features:

• Power Output: 300W continuous, 700W peak power for demanding loads

• Fully Configurable Settings: Low voltage alarms, cut-off, restart levels, output voltage, and frequency

• Connectivity: VE.Direct port for computer and mobile device communication (USB and Bluetooth options available)

• Protection: Short-circuit proof, overheating protection, and multiple safety features

• ECO Mode: Reduces power consumption by switching to standby below 15W load, with adjustable settings

• Remote Control: Compatible with remote on/off switch for convenient operation

• High Reliability: Proven full bridge and toroidal transformer topology for long-lasting performance

• Multiple AC Outlets: Supports various international standards including Schuko, IEC, NEMA, UK, and AU/NZ

• Durable Enclosure: Steel chassis with IP 21 protection category for demanding environments

• Efficiency: Up to 90% efficiency to maximize battery life and minimize energy loss
