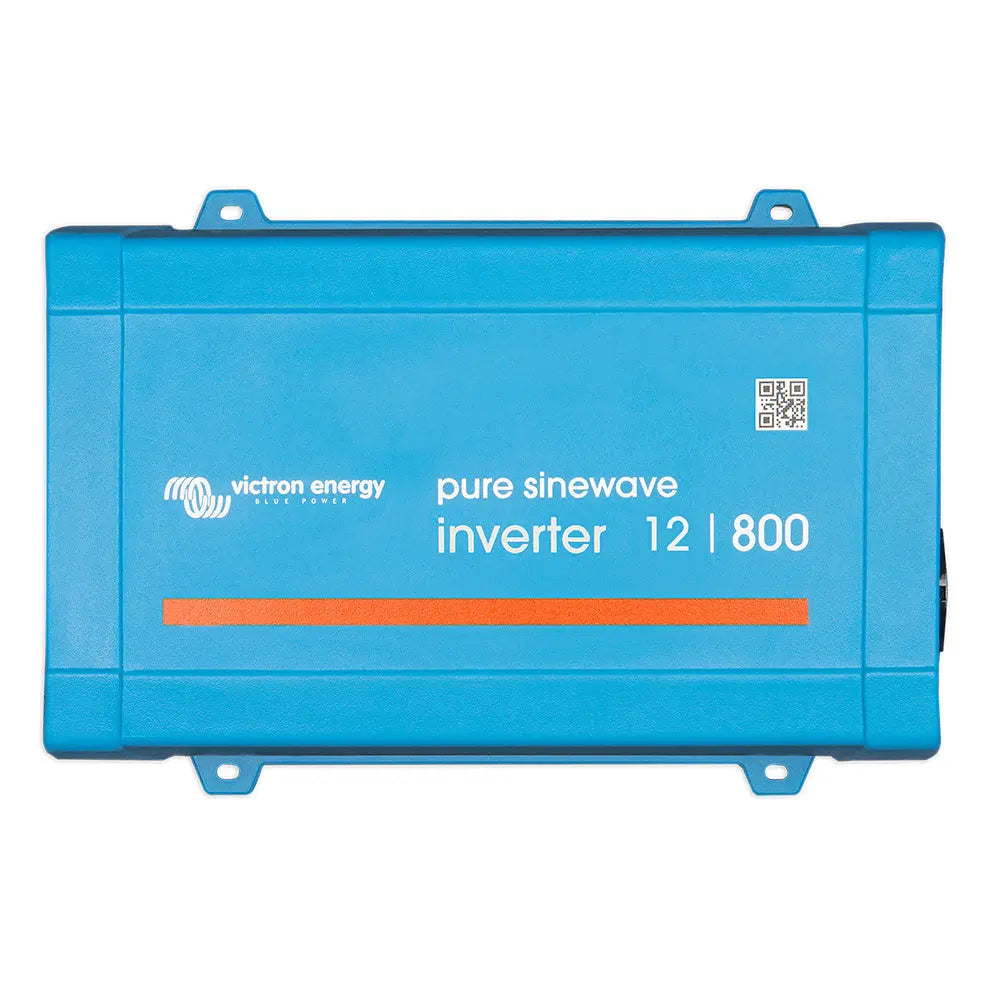

Victron Energy Phoenix Inverter 12/800 with VE.Direct and GFCI Duplex Outlet - 650W

Phoenix Inverter 12/800 - 120V - VE.Direct GFCI Duplex Outlet - 650W

Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

*This inverter has a GFCI Duplex Outlet.

E.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 800VA
• Cont. Power at 25 degrees C / 40 degrees C: 650 / 560W
• Peak Power: 1500W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 90 / 90 / 91%
• Zero-Load Power: 6,5 / 7 / 9,5W
• Default Zero-Load Power in ECO Mode (default retry interval: 1 / 1,5 / 3,0W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 25 / 10 / 10mm / AWG4 / 8 / 8
• Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 5,5kg / 12lbs
• Dimensions (H x W x D, mm): 105 x 230 x 325

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/800 (Part Number: PIN121800510) provides reliable power conversion for off-grid and backup applications. Designed to connect to 12V, 24V, or 48V DC batteries, this inverter enables you to power household devices requiring 120V or 230V AC, making it ideal for camping, remote work sites, or emergency backup systems. Its full bridge plus toroidal transformer topology ensures proven durability and efficiency, with short-circuit and overheating protections built-in to safeguard your equipment. The inverter delivers a continuous power output of 650W and peaks up to 1500W, providing ample capacity for LED lamps, small appliances, and power tools. The adjustable output voltage (210–245V) and frequency (50Hz/60Hz) allow for compatibility with a variety of regional standards, while the high start-up power ensures the ability to handle loads with high inrush currents such as electric tools. The unit's IP21 rated enclosure features a steel chassis with a blue plastic cover, screw terminals for battery connection, and multiple AC outlet options including Schuko, IEC, UK, AU/NZ, and NEMA 5-15R with GFCI, making it suitable for diverse global applications. The built-in ECO mode optimizes energy consumption by switching to standby when the load drops below 15W, with adjustable settings for start/stop power levels. The inverter includes a remote on/off capability, enabling convenient control remotely or integrated into automation systems. Its VE.Direct communication port allows connection to computers, smartphones, or tablets via USB or Bluetooth Smart dongle, enabling real-time monitoring of input/output voltage, load percentage, and alarms. Fully configurable, the inverter allows you to set low battery alarms, cut-off and restart levels, and dynamic load-dependent cut-off, ensuring optimal performance and safety. Designed for demanding environments, the inverter operates within a temperature range from -40°C to +65°C and is protected against short circuits, overloads, high temperatures, and high ripple currents. Its robust steel enclosure and multiple protection features make it a dependable choice for critical power backup needs, whether in mobile setups or stationary installations. For seamless power transfer, Victron recommends pairing with the Filax Automatic Transfer Switch, which provides rapid switchover in under 20 milliseconds, ensuring continuous operation of sensitive electronics. Accessories like remote on/off switches extend control options, while comprehensive safety and EMC standards compliance guarantee reliable operation across various regions and applications. For detailed installation and operation instructions, refer to the official manual available online.

Features:

• Power output: 650W continuous with 1500W peak power for high inrush loads

• VE.Direct communication port for remote monitoring and control

• GFCI duplex outlet suitable for global outlets including Schuko, IEC, UK, AU/NZ, and NEMA 5-15R

• Fully configurable settings including low battery alarms, load-dependent cut-off, and output voltage/frequency

• Eco mode with adjustable standby and startup power thresholds for energy efficiency

• Robust enclosure with steel chassis and plastic cover, rated IP21 for protection against dust and moisture

• Short-circuit proof, overload, and overheat protection for safety and durability

• High start-up power capability suitable for LED lamps, halogen lights, and power tools

• Remote on/off control for flexible operation

• Compatible with automatic transfer switches for seamless load transfer

• Wide operating temperature range from -40°C to +65°C with fan-assisted cooling

• Multiple international AC outlet options for global compatibility

• Advanced safety and EMC compliance, including UL, EN, and IEC standards
