SKU:82608

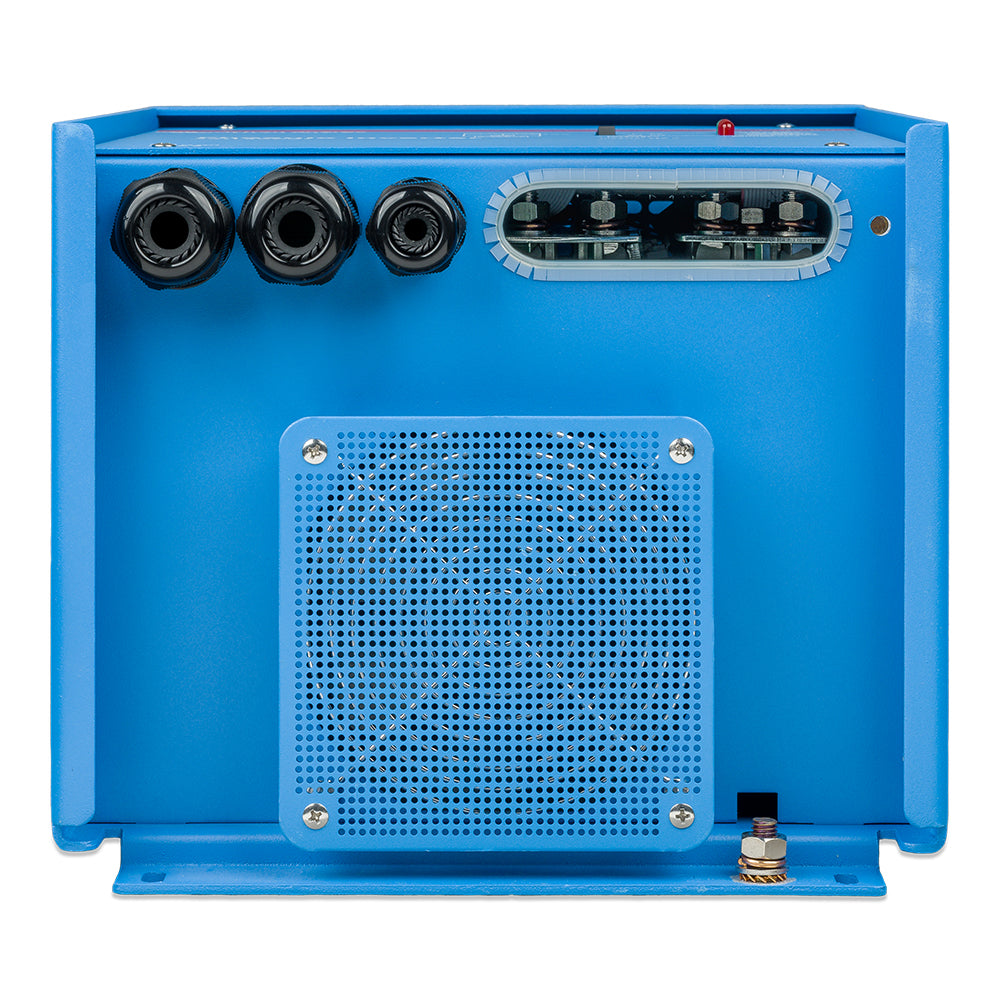

Phoenix Inverter - 12 VDC - 3000W - 120 VAC - 50/60Hz
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Communications interface
These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Victron Energy Phoenix Inverter Part Number PIN123020100 delivers reliable, high-quality power with a pure sine wave output, making it ideal for sensitive electronics and demanding loads. Designed with advanced hybrid high-frequency and line-frequency technologies, this inverter ensures optimal efficiency and robust performance for professional and recreational applications alike. Its compact and lightweight form factor allows for versatile installation in various settings, providing high peak power to handle startup surges of appliances like refrigeration compressors and electric motors.
Equipped with SinusMax technology, the Phoenix inverter offers exceptional start-up power, making it capable of powering challenging loads without issues. Its design emphasizes durability and performance, enabling multiple units—up to six—to operate in parallel or in a three-phase configuration to meet higher power demands. This scalability makes it suitable for complex systems requiring increased output, such as large off-grid setups or backup power systems. The inverter's ability to operate in parallel and three-phase modes offers flexibility for expanding power capacity as needed.
Connectivity options include a VE.Bus port, allowing integration with a PC via the MK3-USB VE.Bus to USB interface, and compatibility with VictronConnect or VEConfigure software. These tools enable users to customize various parameters, including output voltage, frequency, and voltage thresholds, as well as programming relays for alarms or generator start signals. Additionally, the inverter can be monitored and controlled through a GX device like the Cerbo GX, providing real-time system insights and remote management. This comprehensive connectivity ensures optimal system performance and ease of maintenance, making the Phoenix inverter suitable for professional, marine, and mobile applications.
Built for durability and efficiency, the Victron Energy Phoenix inverter guarantees a dependable power source for critical loads. Its high peak power capacity, combined with advanced features like parallel operation and remote monitoring, makes it a versatile choice for a wide range of energy systems. Whether used as a standalone unit or as part of a larger, scalable setup, this inverter offers the performance and flexibility required for demanding power solutions.
Features:
