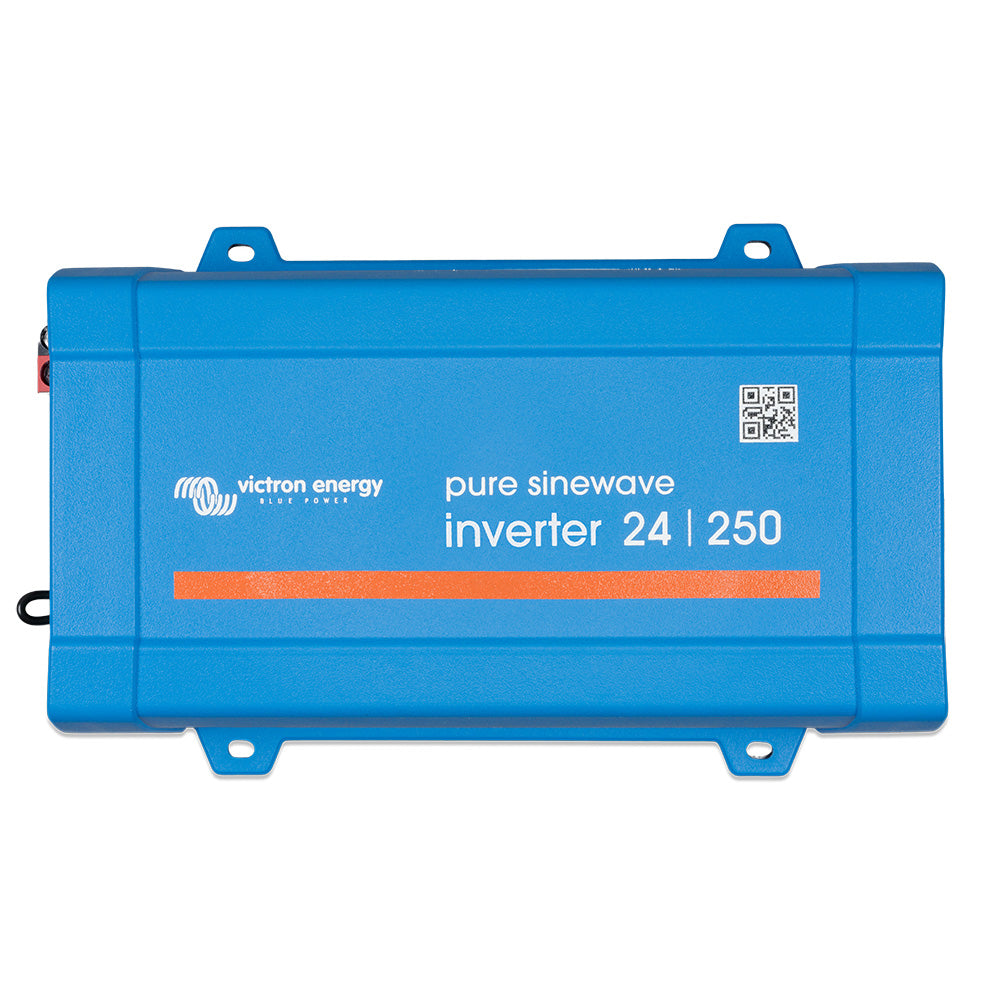

Victron Energy Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458 PIN242510510

Phoenix Inverter 24/250 120V VE Direct NEMA GFCI UL458

The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systemsideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.

Features:

• Pure sine wave output Safely powers sensitive electronics
• VE.Direct communication Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)
• ECO mode Minimizes standby consumption to save battery life
• High surge capacity Starts inductive loads like compressors and pumps
• Full electronic protection Includes overload, short circuit, and temperature safeguards
• NEMA 5-15R or GFCI outlet GFCI models are UL 458 listed for added safety

Specifications:

• Input voltages: 12V, 24V, or 48V (depending on model)
• Output voltage: 120V 3%, 60Hz 0.1% (adjustable)
• No-load consumption: 4.210W (standard) / under 3W (ECO mode)
• Operating temperature: -40C to +65C (fan-assisted)
• Ingress protection: IP21
• Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching

Victron Energy Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458 delivers dependable pure sine wave AC power for 24V battery systems. Designed for marine, RV, mobile, and off-grid applications, the PIN242510510 inverter provides clean, stable power for sensitive electronics, household equipment, communications devices, and other AC loads. Its 250VA capacity, efficient operation, and compact design make it a practical choice where reliable 120V power is needed.

The integrated VE.Direct communication port enables monitoring and configuration through a separate VE.Direct to USB interface or a VE.Direct Smart Bluetooth Dongle using the VictronConnect app. ECO mode reduces standby consumption when loads are inactive, helping conserve battery energy. High surge capacity supports the startup demands of inductive equipment such as pumps, compressors, and motor-driven appliances, while electronic protection helps guard against overload, short circuit, and excessive temperature.

The inverter provides a 120V AC output at 60Hz, with adjustable voltage and frequency settings where supported. This model features a NEMA GFCI receptacle and is UL 458 listed, providing an added level of safety for appropriate mobile and recreational vehicle installations. A screw-terminal DC connection and remote on/off capability support flexible system integration. The fan-assisted design operates across a broad temperature range, and IP21 protection is suitable for clean, sheltered installation environments. Pair the inverter with a Victron Filax 2 for automatic transfer switching when required.

Important: Installation should be completed by a qualified professional according to applicable electrical codes and manufacturer instructions. Please contact your dealer for returns, repairs, or product support related to the Victron Energy Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458.

Features:

• Pure sine wave AC output provides clean power for sensitive electronics
• 24V DC input supports compatible marine, RV, and off-grid battery systems
• VE.Direct communication enables monitoring and configuration through compatible Victron accessories
• ECO mode reduces standby power consumption to help extend battery runtime
• High surge capacity supports startup of inductive loads such as pumps and compressors
• Electronic protection helps prevent damage from overloads, short circuits, and excessive temperature
• NEMA GFCI receptacle provides added electrical safety and is UL 458 listed
• Remote on/off capability and screw-terminal DC connection simplify system integration
• Fan-assisted cooling supports reliable operation across a broad temperature range
• IP21 protection is suited for sheltered installation environments
