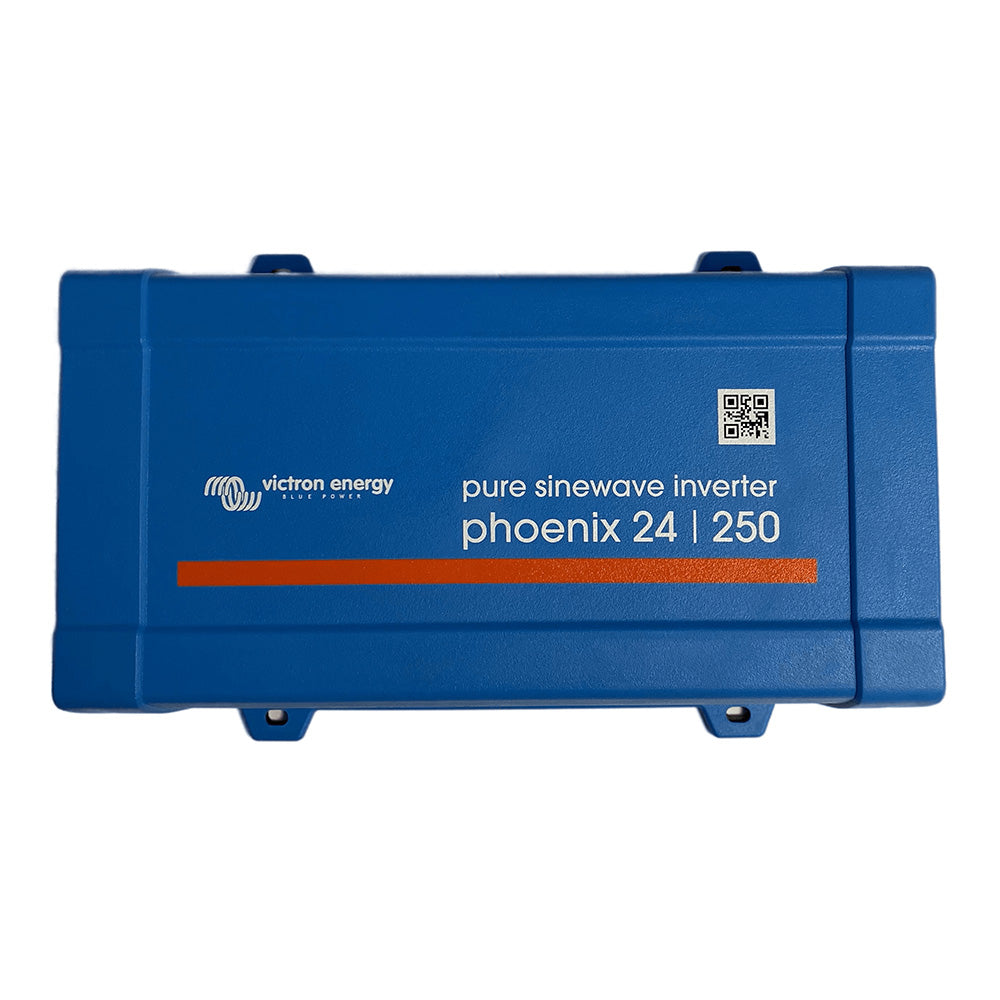

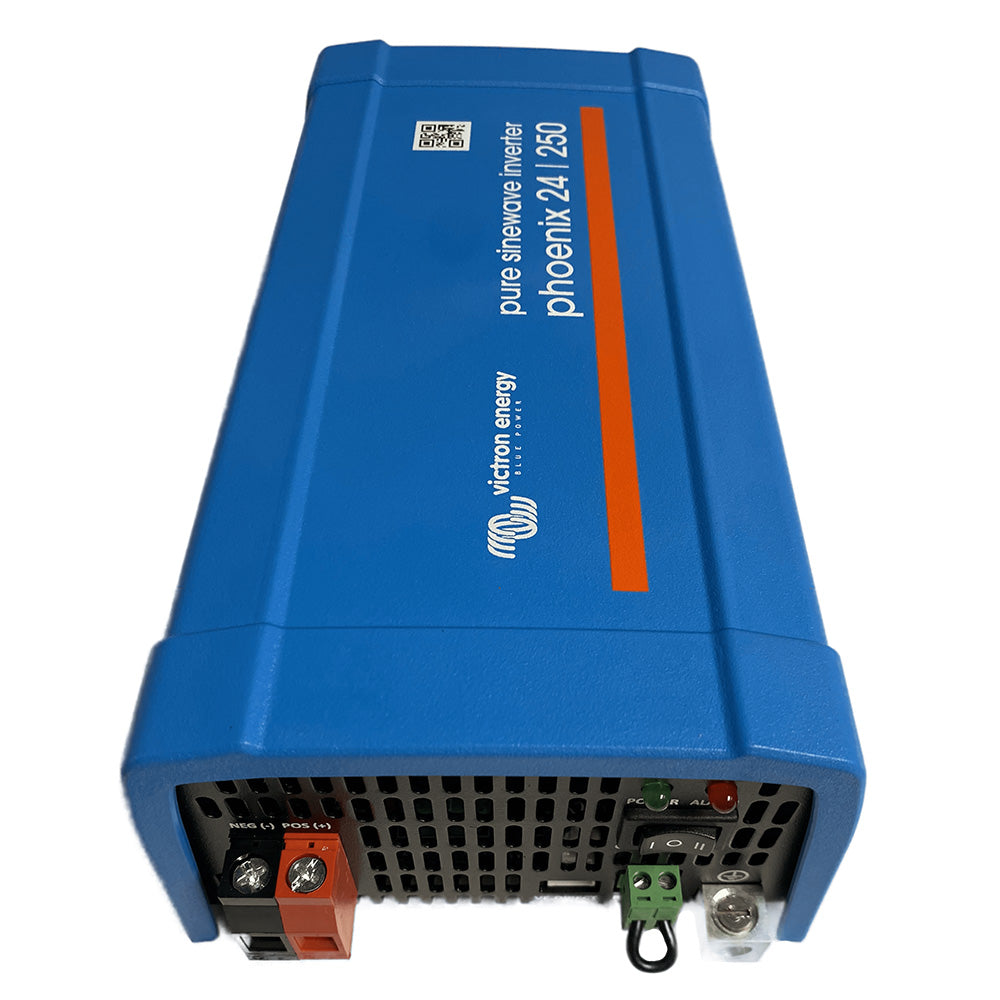

Victron Energy Phoenix Inverter 24VDC - 250VA - 120VAC with VE.Direct and NEMA 5-15R Outlet

Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms
• Please get in touch with your dealer for any returns, repairs, or support issues related to this product.

Phoenix Inverter 24/250 Specifications:

• Continuous Power at 25C: 250VA
• Continuous Power at 25C / 40C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Maximum Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a - f
• Operating temperature Range: -40 to +65C (fan-assisted cooling) / Derate 1,25% per C above 40C
• Humidity (non-condensing): Max 95%

Enclosure:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable cross-Section 10mm^2 / AWG8
• Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.

Accessories:

• Remote On-Off: Yes
• Automatic Transfer Switch: Filax

The Victron Energy Phoenix Inverter model PIN242510500 is a versatile and reliable power conversion solution designed for use with leisure or automotive batteries rated at 12V, 24V, or 48VDC. This inverter converts DC power into household AC power, enabling you to operate standard appliances requiring 120VAC or 230VAC directly from your battery bank. Its compact design and robust construction make it suitable for portable and stationary applications alike, providing dependable power in off-grid, mobile, or backup scenarios. The inverter features a fully configurable interface, allowing users to set low battery voltage alarms, cut-off and restart levels, and dynamic load-dependent cut-off to optimize performance and battery health. With adjustable output voltage between 210 and 245V and frequency options of 50Hz or 60Hz, it offers flexibility to match regional power standards. The ECO mode can be toggled on or off and is designed to reduce power consumption during low load conditions, making it energy-efficient and suitable for extended use. Monitoring capabilities include real-time feedback on input and output voltage, load percentage, and system alarms, accessible via the VE.Direct port, which can connect to a computer through a VE.Direct to USB interface or to smartphones and tablets using a Bluetooth Smart dongle. The inverter’s power output is rated at 250VA continuous, with a peak power of 400W to handle surges typical of appliances with motor start-up. Operating temperature ranges from -40°C to +65°C, with fan-assisted cooling to maintain optimal operation under demanding conditions. Its durable steel chassis with a blue plastic cover ensures protection and longevity, rated IP21 for indoor use. The unit includes screw terminals for secure battery connection and standard AC outlets such as Schuko, IEC-320, UK, AU/NZ, and NEMA 5-15R, enhancing compatibility worldwide. Additional features include remote on/off control and an automatic transfer switch option for seamless power management. The inverter weighs approximately 5.3 pounds and measures roughly 6.5 inches wide, 3.4 inches high, and 10.2 inches deep, making it suitable for a variety of installation environments. Whether for mobile applications, backup power, or off-grid setups, the Victron Phoenix 24VDC inverter provides reliable, configurable, and efficient power conversion to meet your needs.

Features:

• Power capacity: 250VA continuous with 400W peak power for handling surge loads

• Adjustable output voltage: 210 - 245V with selectable 50Hz or 60Hz frequency

• Fully configurable settings: low battery alarms, cut-off, restart, and dynamic load-dependent cut-off

• VE.Direct port for data monitoring and device connection via USB or Bluetooth Smart dongle

• ECO mode: energy-saving feature with adjustable start/stop power levels

• Multiple AC outlets: compatible with Schuko, IEC-320, UK, AU/NZ, and NEMA 5-15R sockets

• Robust construction: steel chassis with blue plastic cover, rated IP21 for indoor use

• Temperature range: -40°C to +65°C with fan-assisted cooling for optimal performance

• Battery connection: screw terminals supporting up to 10mm² / AWG8 cable

• Remote on/off and automatic transfer switch options for seamless power management
