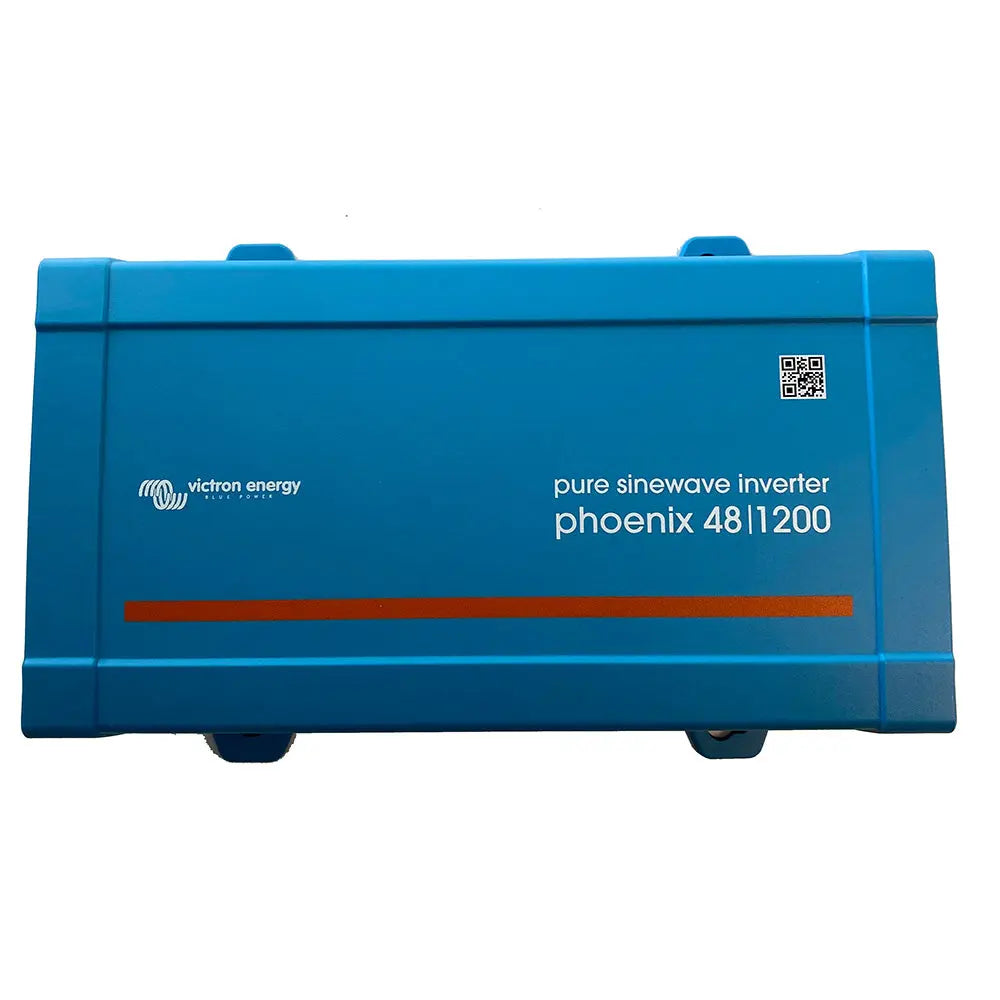

Victron Energy Phoenix Inverter 48VDC - 1200VA, 120VAC with VE.Direct and NEMA 5-15R Outlet

Phoenix Inverter 48VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15R

This Phoenix Inverter allows you to power domestic equipment requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 48VDC.

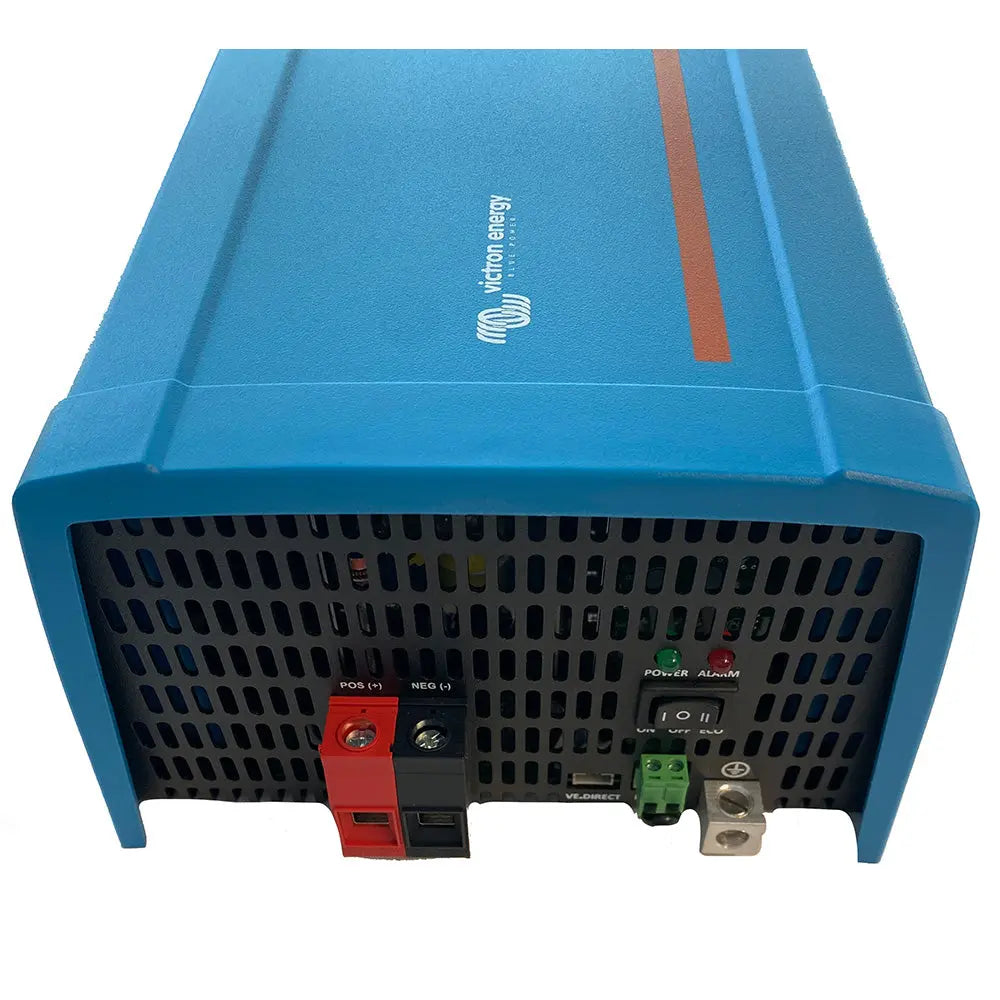

VE.Direct Communication Port

The VE.Direct Port Can Be Connected To:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For the low-power inverters, we recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Output Power at 25C: 1200VA
• Cont. Output Power at 25C/40C: 1000 / 850W
• Peak Power: 2200W
• Output AC voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Maximum Efficiency: 91 / 91 / 92%
• Zero Load Power: 7 / 8 / 10W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 1 / 1,5 / 3,0W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a f
• Operating Temperature Range: -40 to +65C (fan-assisted cooling) Derate 1,25% per C above 40C
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 35 / 25 / 25mm2 / AWG2 / 4 / 4
• Standard AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) / 120V: Nema 5-15R, GFCI
• Protection category: IP 21
• Weight: 7,4kg / 16,3lbs
• Dimensions (h x w x d): 117 x 232 x 327mm / (4.6 x 9.1 x 12.9 inch)

Accessories:

• Remote On-Off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive: ECE R10-4

The Victron Energy Phoenix Inverter model PIN482122500 is a reliable and efficient power solution designed to convert 48VDC battery power into 120VAC or 230VAC AC power suitable for domestic and recreational use. Its robust design features a full bridge and toroidal transformer topology, ensuring long-term performance and protection against short circuits and overheating. This inverter provides a continuous power output of 1200VA, with peak power capabilities reaching up to 2200W, making it ideal for powering a variety of household appliances, LED and halogen lighting, and power tools.

Equipped with a VE.Direct communication port, the inverter allows seamless integration with computers via USB or with smartphones and tablets through Bluetooth Smart dongles. This connectivity enables real-time monitoring of voltage, load percentage, and alarm statuses, providing users with detailed system insights and enhanced control. The inverter is fully configurable, allowing adjustments to low battery voltage alarms, load-dependent cut-off levels, output voltage, frequency, and ECO mode sensitivity, ensuring optimal operation tailored to specific requirements.

Designed for durability and versatility, the Phoenix inverter supports remote on/off switching, facilitating remote system control. Its high start-up power ensures reliable operation of devices with high initial consumption such as electric tools and lighting systems. The ECO mode feature minimizes power consumption during low loads by switching the inverter into standby, with adjustable parameters to suit different usage scenarios. An automatic transfer switch, like the Filax, can be integrated for seamless transfer between power sources, ensuring continuous operation of sensitive electronics.

Constructed with a sturdy steel chassis and a blue plastic cover, the inverter is rated IP21 for protection against dust and water ingress. It features screw terminals for battery connection and multiple standard AC outlets, including NEMA 5-15R, Schuko, IEC-320, UK BS 1363, and AU/NZ AS/NZS 3112, making it compatible with various regional power outlets. Weighing approximately 16.3 pounds, it measures roughly 4.6 x 9.1 x 12.9 inches, designed for easy installation in both stationary and mobile setups. The inverter complies with essential safety and EMC standards, ensuring safe and interference-free operation.

For detailed installation, operation, and troubleshooting instructions, please refer to the owner’s manual available online. Whether used in renewable energy systems, RVs, or backup power setups, the Victron Phoenix Inverter PIN482122500 offers a dependable and configurable power conversion solution suitable for a wide range of applications.
