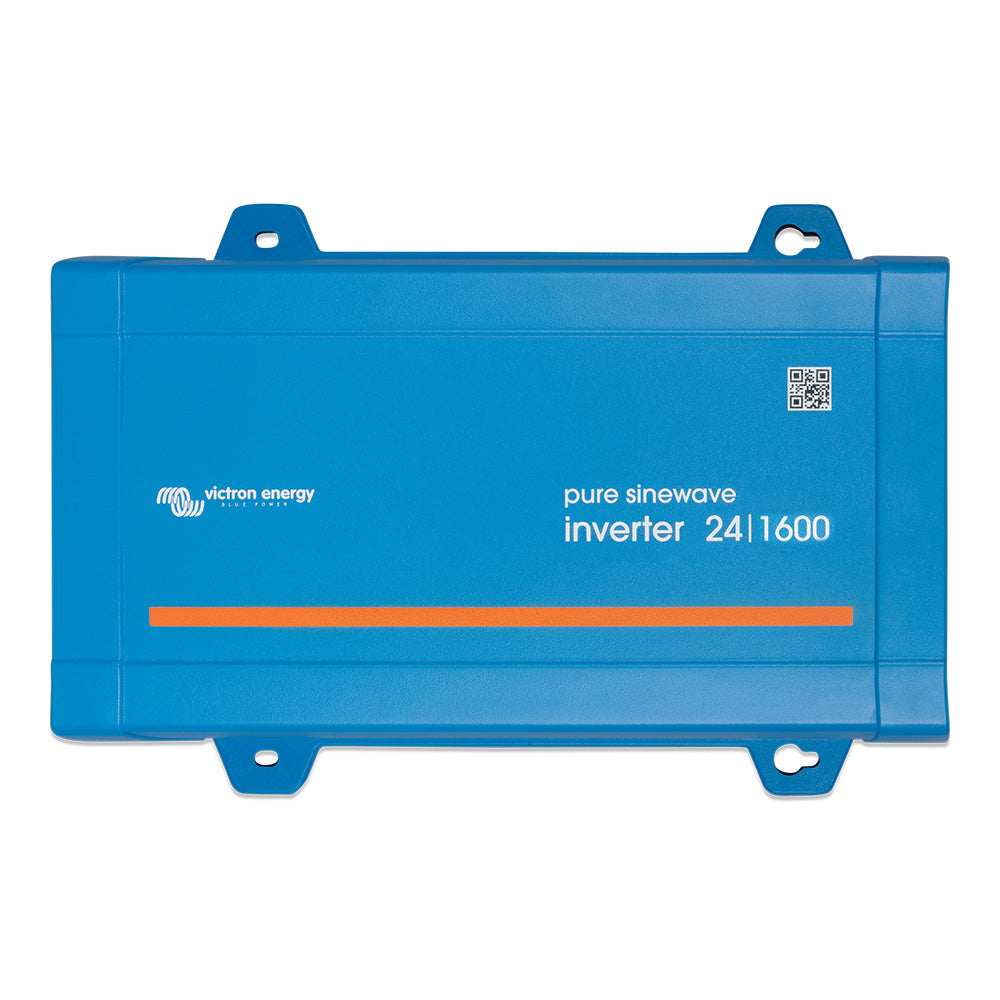

Victron Energy PIN242161510 24V 1600VA Inverter, 120V VE.Direct NEMA GFCI

Inverter 24/1600 120v VE.Direct Nema GFCI (UL 458)

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBooks and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut -off and restart levels
• Dynamic cut -off: load-dependent cut-off level
• Output voltage 2 10 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

In- and output voltage, % load and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.

High start-up power

Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals

No special tools needed for installation

Output Sockets

GFCI

Victron Energy PIN242161510 Inverter delivers reliable 120V AC power from a 24V battery system for mobile, marine, backup power, and off-grid applications. With a 1600VA capacity, this inverter is designed to operate a wide range of equipment and includes a NEMA GFCI output for added protection. Its full-bridge and toroidal transformer design provides dependable performance, while built-in safeguards help protect against short circuits, overloads, and overheating caused by demanding loads or elevated ambient temperatures.

VE.Direct connectivity makes configuration and monitoring convenient. The VE.Direct port can connect to a computer with a VE.Direct to USB interface cable or to Apple and Android smartphones, tablets, MacBooks, and other compatible devices using a VE.Direct Bluetooth Smart dongle. Through a compatible interface, users can monitor input and output voltage, load percentage, and alarm status while adjusting operating parameters to match the installation.

Fully configurable operation includes low-battery alarm trip and reset levels, low-battery shutdown and restart levels, dynamic load-dependent cutoff, adjustable AC output voltage, 50Hz or 60Hz frequency selection, and ECO mode settings. ECO mode reduces standby consumption by switching the inverter into standby when the load falls below a preset level. It periodically checks for an active load and returns to continuous operation when the connected equipment requires power.

Installation and control features include screw-terminal DC connections that require no special tools, a remote on/off connection through the two-pole terminal, and high startup power for loads such as LED power converters, halogen lamps, and electric tools. When uninterrupted transfer between the inverter and another AC source is required, Victron Energy recommends pairing the unit with a Filax Automatic Transfer Switch. The Filax provides rapid transfer to help compatible computers and electronic equipment continue operating with minimal interruption. This inverter is built for professional installations where configurable performance, remote control, and reliable AC power are essential.

Features:

• 24V DC to 120V AC power conversion: Provides dependable AC power from a 24V battery bank with a 1600VA capacity.

• VE.Direct communication: Connects to computers, smartphones, tablets, and other compatible devices for configuration and monitoring.

• Configurable operating parameters: Adjusts low-battery thresholds, dynamic cutoff, output voltage, frequency, ECO mode, and related settings.

• ECO mode: Reduces standby power use by switching to standby below a preset load and periodically checking for demand.

• Built-in protection: Includes short-circuit and overheating protection for dependable operation under demanding conditions.

• High startup power: Helps start power converters, LED lamps, halogen lamps, electric tools, and other equipment with high initial demand.

• Remote on/off control: Supports connection of a remote switch through the dedicated two-pole connector.

• NEMA GFCI output: Provides a protected AC receptacle for compatible connected equipment.

• Screw-terminal DC connection: Simplifies installation without requiring specialized tools.
