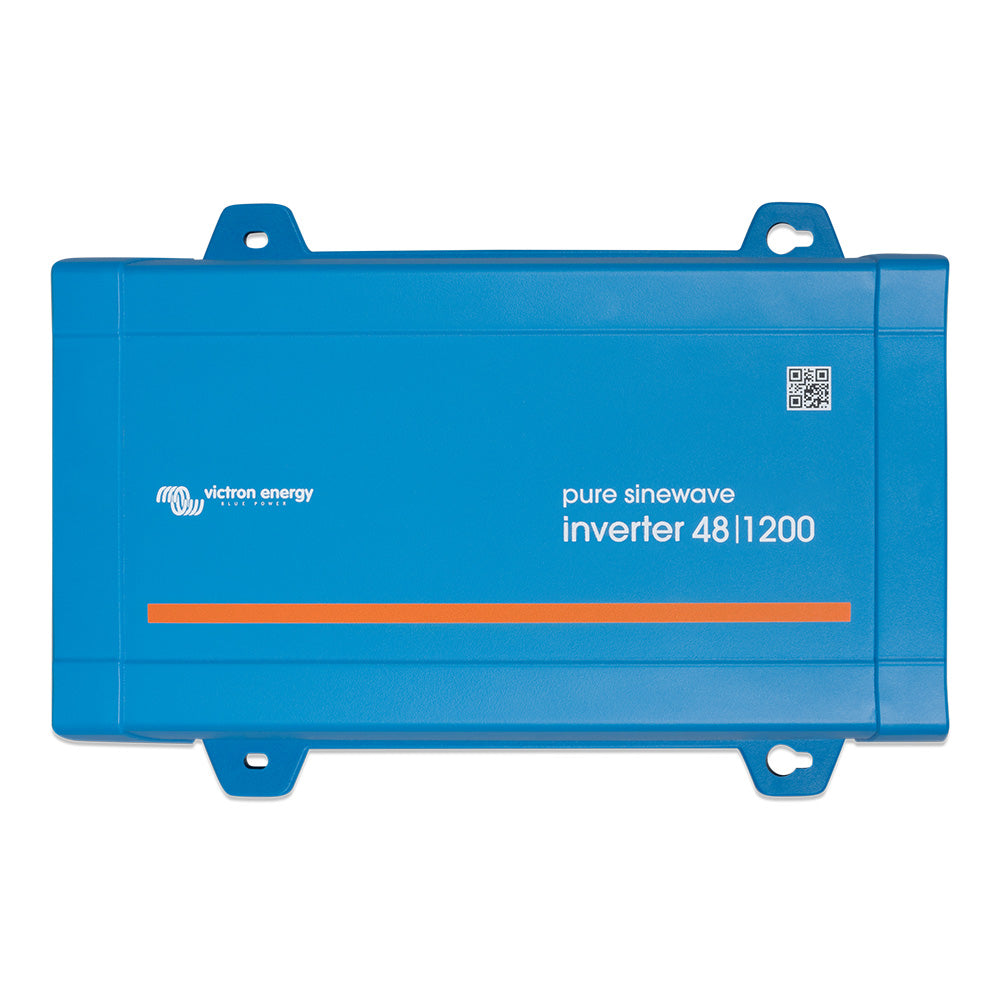

Victron Energy PIN482122520 Inverter 48V 1200VA, 120V AC, VE.Direct, NEMA 5-15R

Inverter 48/1200 120V VE.Direct NEMA 5-15R

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBooks, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable :

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut -off and restart levels
• Dynamic cut -off: load-dependent cut-off level
• Output voltage 2 10 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:In- and output voltage, % load, and alarms

Proven reliability: The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to over load or high ambient temperature.

High start-up power: Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode: When in ECO mode , the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.

Remote on/off:A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

To transfer the load to another AC source: the automatic transfer switch: For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Victron Energy PIN482122520 Inverter 48/1200 120V VE.Direct NEMA 5-15R provides dependable DC-to-AC power conversion for mobile, off-grid, marine, recreational, and backup power systems. Designed for use with a 48V battery bank, this inverter delivers a 120V AC output through a NEMA 5-15R receptacle. Its VE.Direct communication port supports connection to a computer with the appropriate VE.Direct to USB interface cable or to compatible Apple and Android smartphones, tablets, MacBooks, and other devices using a VE.Direct Bluetooth Smart dongle.

Fully configurable: Customize low-battery alarm and shutdown thresholds, restart levels, dynamic load-dependent cut-off behavior, output voltage, frequency, ECO mode operation, and ECO mode sensitivity. The inverter can be configured for 50Hz or 60Hz operation and offers adjustable output voltage settings from 210V to 245V as provided by the manufacturer. Monitoring functions display input voltage, output voltage, load percentage, and active alarms for convenient system oversight.

Reliable operation: The full-bridge and toroidal-transformer design has a proven service history and includes protection against short circuits and overheating caused by overload or elevated ambient temperatures. High start-up power helps operate demanding loads such as LED lamp power supplies, halogen lighting, power converters, and electric tools. ECO mode reduces idle consumption by placing the inverter in standby when the load falls below the preset threshold, then checking periodically for a connected load.

Flexible system integration: A remote on/off switch can be connected through the two-pole connector for convenient control. When transferring a load between this inverter and another AC source, Victron Energy recommends the Filax Automatic Transfer Switch, which provides a rapid changeover suitable for computers and other sensitive electronic equipment. Please contact your dealer for returns, repairs, or product support.

Features:

• 48V DC input with 120V AC output through a NEMA 5-15R receptacle
• 1200VA inverter capacity for off-grid, mobile, marine, recreational, and backup power applications
• VE.Direct port supports computer and mobile-device connectivity with optional interface accessories
• Configurable low-battery alarm, shutdown, restart, and dynamic load-dependent cut-off levels
• Adjustable output voltage and selectable 50Hz or 60Hz frequency
• Monitoring of input voltage, output voltage, load percentage, and alarms
• Short-circuit and overheat protection for dependable operation
• High start-up power for LED power supplies, halogen lamps, power converters, and electric tools
• ECO mode with adjustable load-sensing behavior to reduce standby consumption
• Remote on/off capability through the two-pole connector
