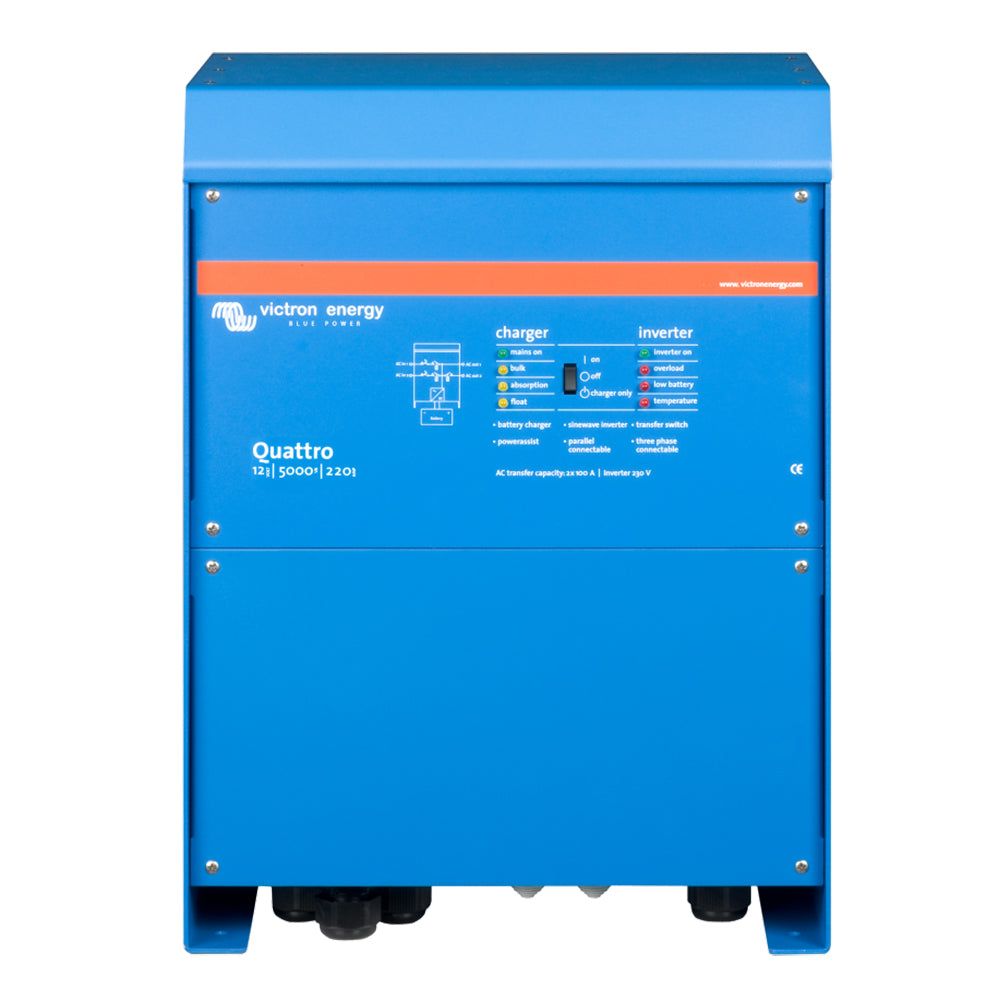

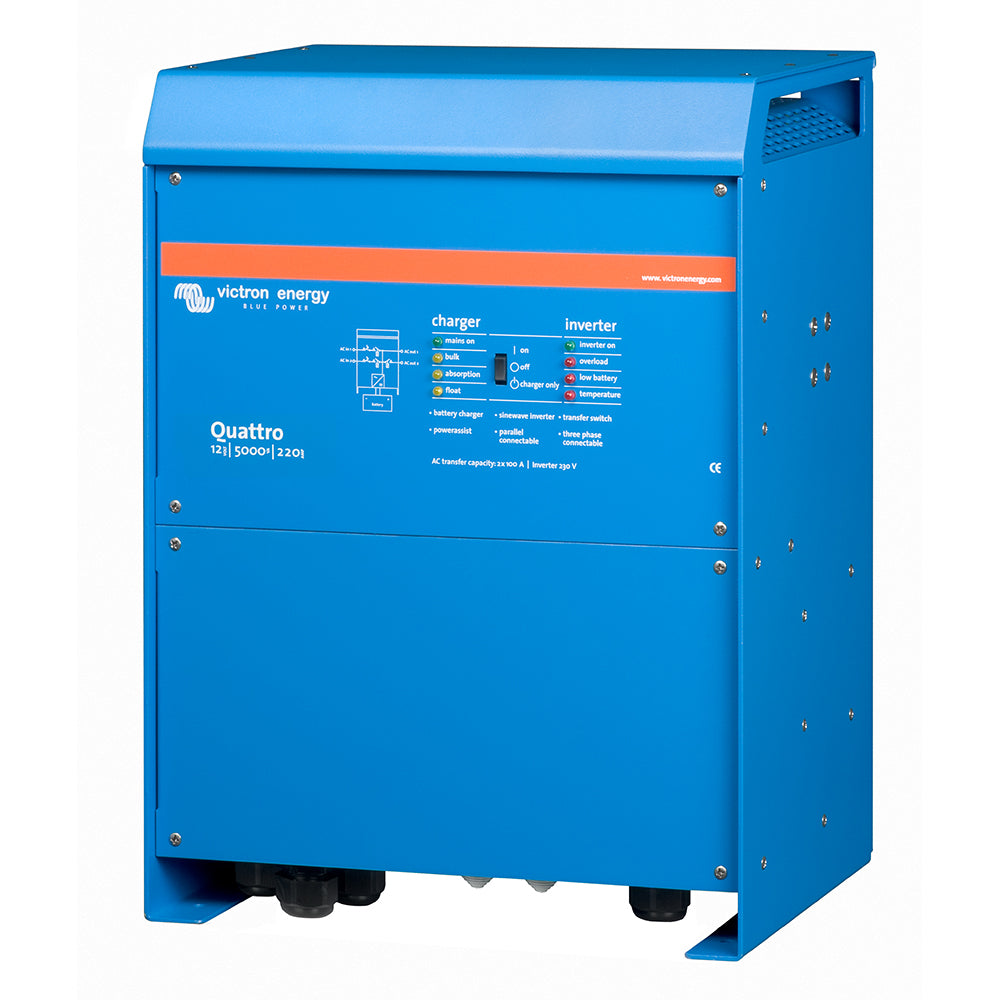

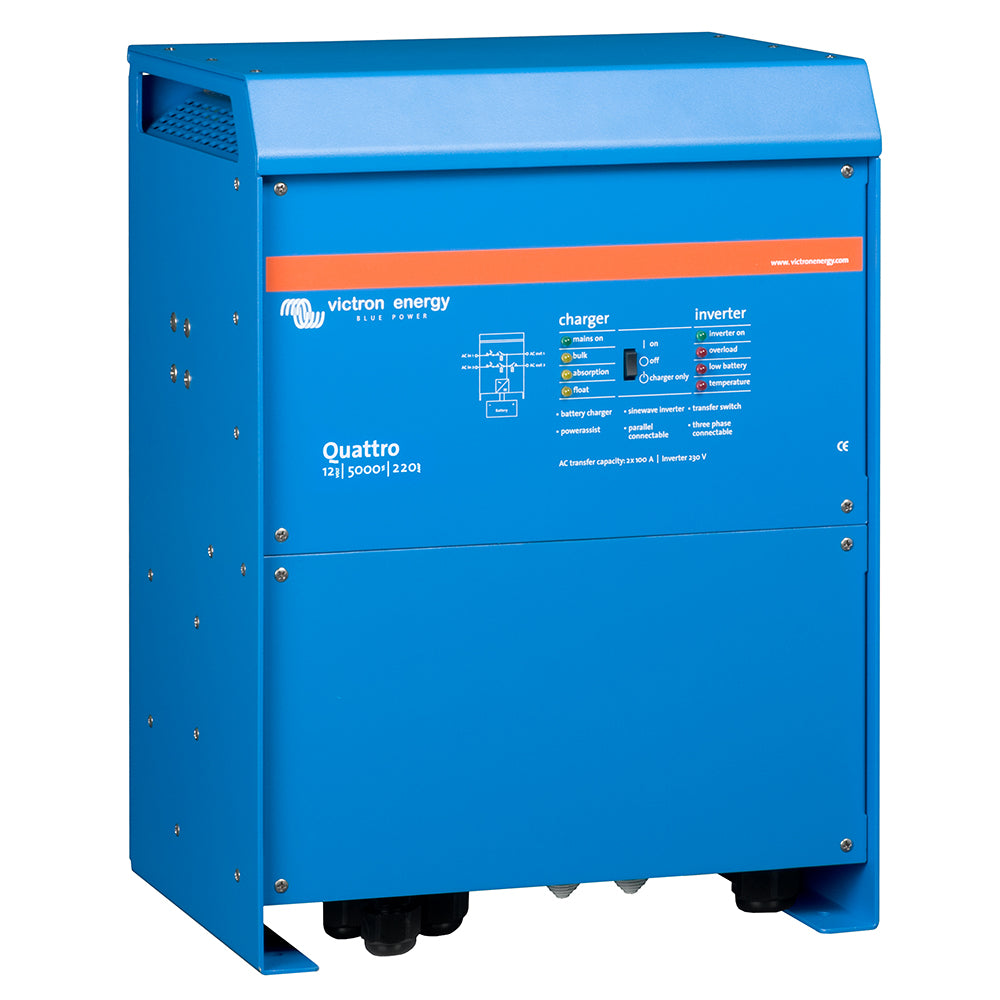

Quattro Inverter/Charger 12 VDC - 5000W - 200AMP Battery Charger - 50AMP Transfer Switch
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS
Features:
Two AC Inputs two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Quattro Inverter/Charger model QUA125021100 delivers reliable power management for demanding off-grid or backup systems. Designed with two AC inputs and outputs, it allows seamless switching between independent sources such as shore power and generators, ensuring continuous operation of connected loads. The no-break transfer capability activates in less than 20 milliseconds, preventing disruptions to sensitive electronics during power source transitions. The second output, active only when AC power is available, is ideal for loads like water heaters or air conditioning that should not discharge the battery. The unique PowerAssist feature intelligently prevents overloads by reducing battery charging or boosting AC power from the battery, maintaining system stability during peak loads. This inverter/charger supports parallel operation of up to six units, enabling virtually unlimited power output, with options for three-phase or split-phase configurations, making it suitable for large-scale or complex systems. The system's remote monitoring and control capabilities via VRM app and portal allow users to oversee and manage the system from anywhere, providing detailed insights and control over system operation, including adjustments via Color Control GX or Venus GX interfaces. Please note, this product ships via truck freight and is oversized, so it does not qualify for standard shipping promotions. For comprehensive details, consult the owner’s manual available online. This product also complies with safety warnings related to chemical exposure, with pertinent information available through the provided link. For returns, repairs, or support, contact your dealer directly.
Features:
Two AC Inputs and Outputs: Connect to independent AC sources with automatic switching for uninterrupted power supply.
No-Break Transfer: Ensures seamless transition during power source changes in less than 20 milliseconds.
PowerAssist Technology: Prevents overloads by reducing battery charging or boosting AC power from the battery as needed.
Parallel Operation: Supports up to six units to achieve higher power output, including options for three-phase or split-phase setups.
Remote Monitoring and Control: Manage and monitor your system remotely via VRM app and portal from any device with internet access.
