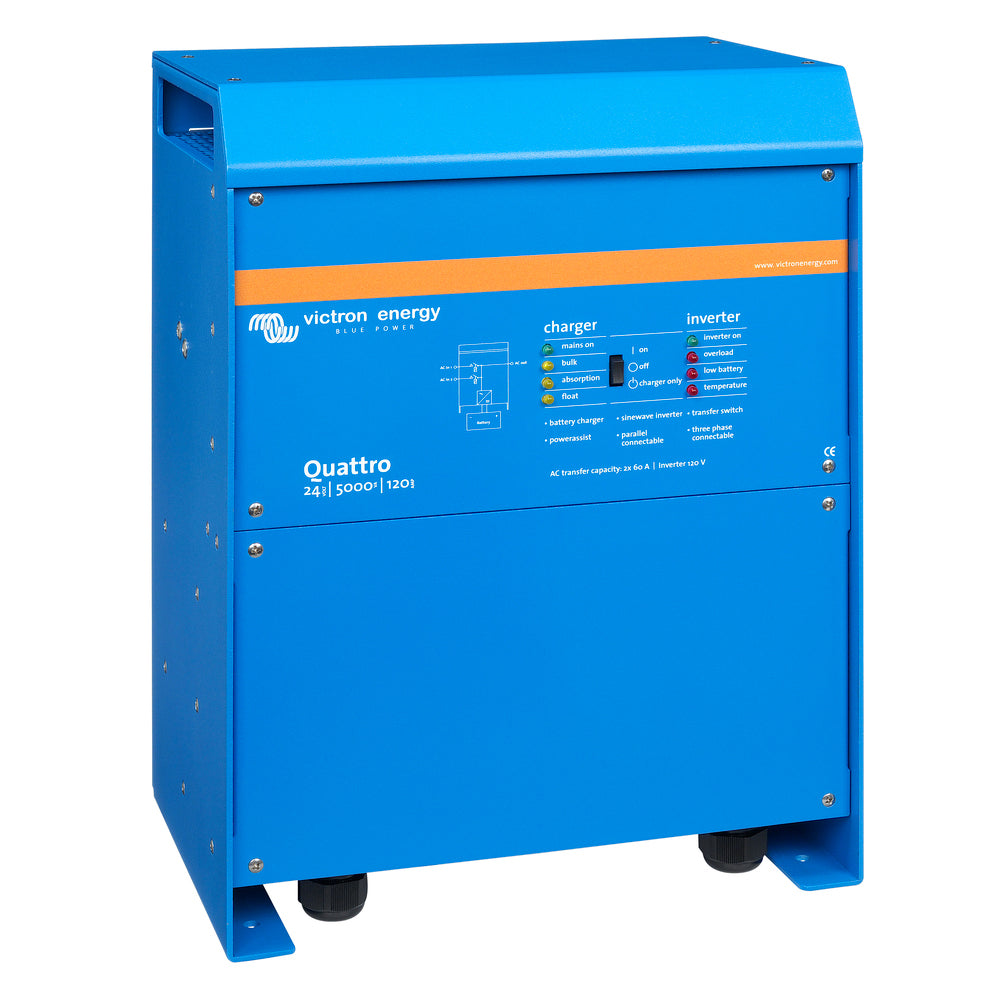

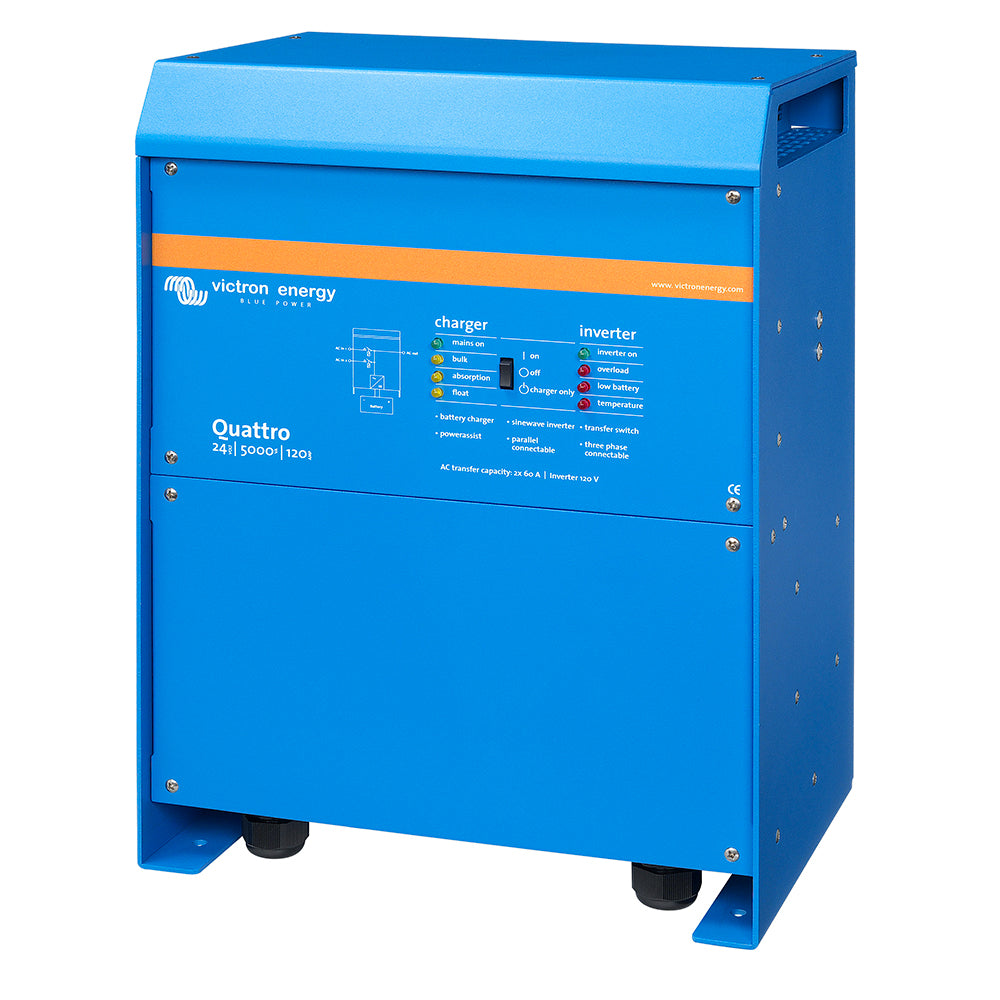

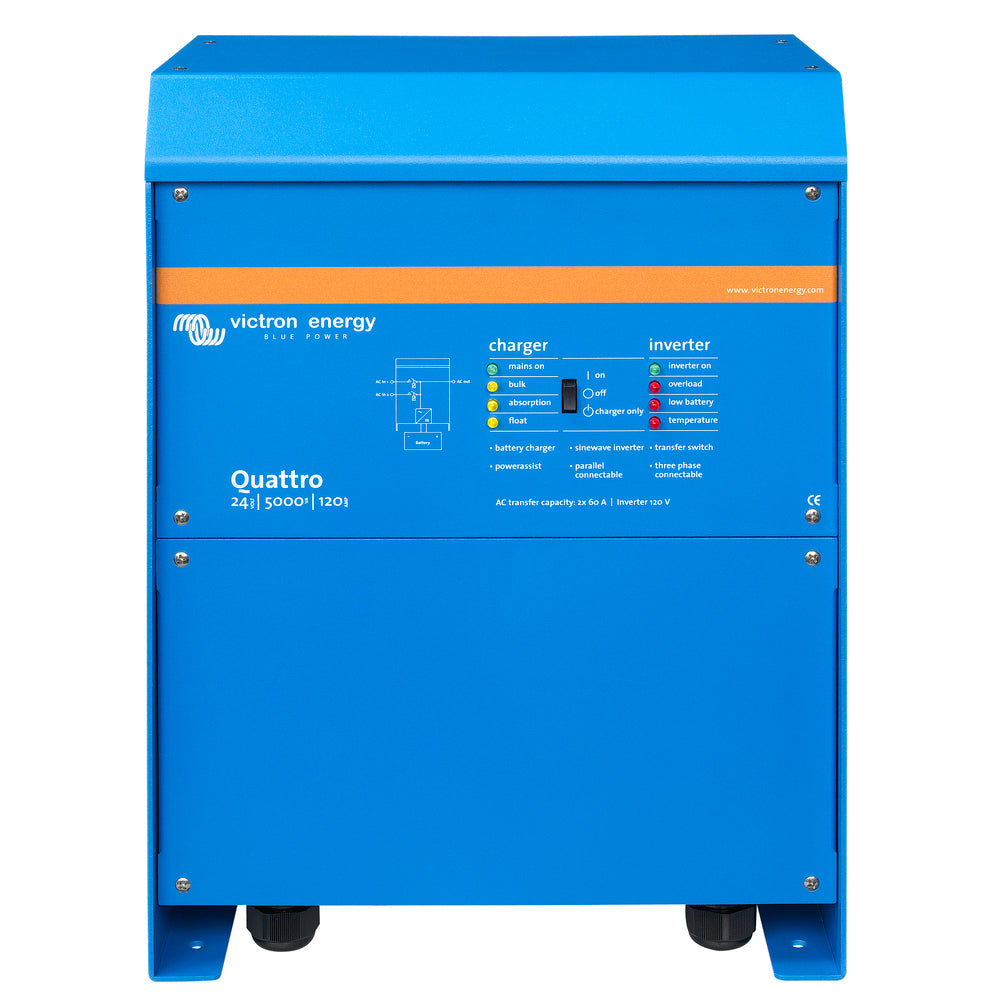

Victron Energy Quattro Inverter/Charger 24V DC – 5000W with Dual 120V AC Inputs and Auto Transfer Switch

Quattro Inverter/Charger 24 VDC - 5000W - 200AMP Battery Charger, 50AMP Transfer Switch

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Features:

• Two AC Inputs two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
• Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Quattro Inverter/Charger model QUA245023110 offers reliable and versatile power management for off-grid or backup power systems. Designed to operate on 24V DC systems, it delivers up to 5000 watts of continuous power, making it suitable for demanding applications. Its dual AC inputs and outputs enable connection to two independent power sources, such as shore power and generators, with seamless automatic switching that occurs in less than 20 milliseconds, ensuring continuous operation of sensitive electronics and appliances. The main output features no-break functionality, while the second output is active only when AC power is available, allowing for the connection of loads that should not deplete the battery bank, such as water heaters and air conditioners. The integrated 200AMP battery charger efficiently replenishes batteries, supporting long-term system reliability. The unit also includes a 50AMP transfer switch for added flexibility and safety in power source management. The Quattro’s unique PowerAssist feature intelligently prevents overloads on limited AC sources by reducing battery charging or boosting output from the battery, ensuring stable power delivery even during peak loads. For larger setups, multiple Quattro units can be paralleled to achieve virtually unlimited power capacity, with options for three-phase or split-phase operation, depending on system requirements. Advanced remote monitoring and control are facilitated by compatibility with the VRM app and portal, allowing users to manage and oversee their power system from anywhere via smartphone, tablet, or computer. Control options are expanded through integration with the Color Control GX or Venus GX, enabling detailed system adjustments and automation. This product is shipped via truck freight and is not eligible for standard shipping promotions. For comprehensive details and warranty information, refer to the provided links. Proper handling and support should be coordinated through your authorized dealer to ensure optimal performance and service life.

Features:

• Two AC Inputs and Two AC Outputs for flexible source management, with automatic switching and no-break functionality

• PowerAssist technology prevents overloads by reducing charging or boosting power from batteries during peak loads

• Parallel operation capability with up to six units for scalable power solutions, including options for three-phase or split-phase configurations

• Remote monitoring and control via VRM app and portal, accessible from smartphones, tablets, or PCs across multiple operating systems

• Includes a 200AMP battery charger and a 50AMP transfer switch for efficient power and system safety
