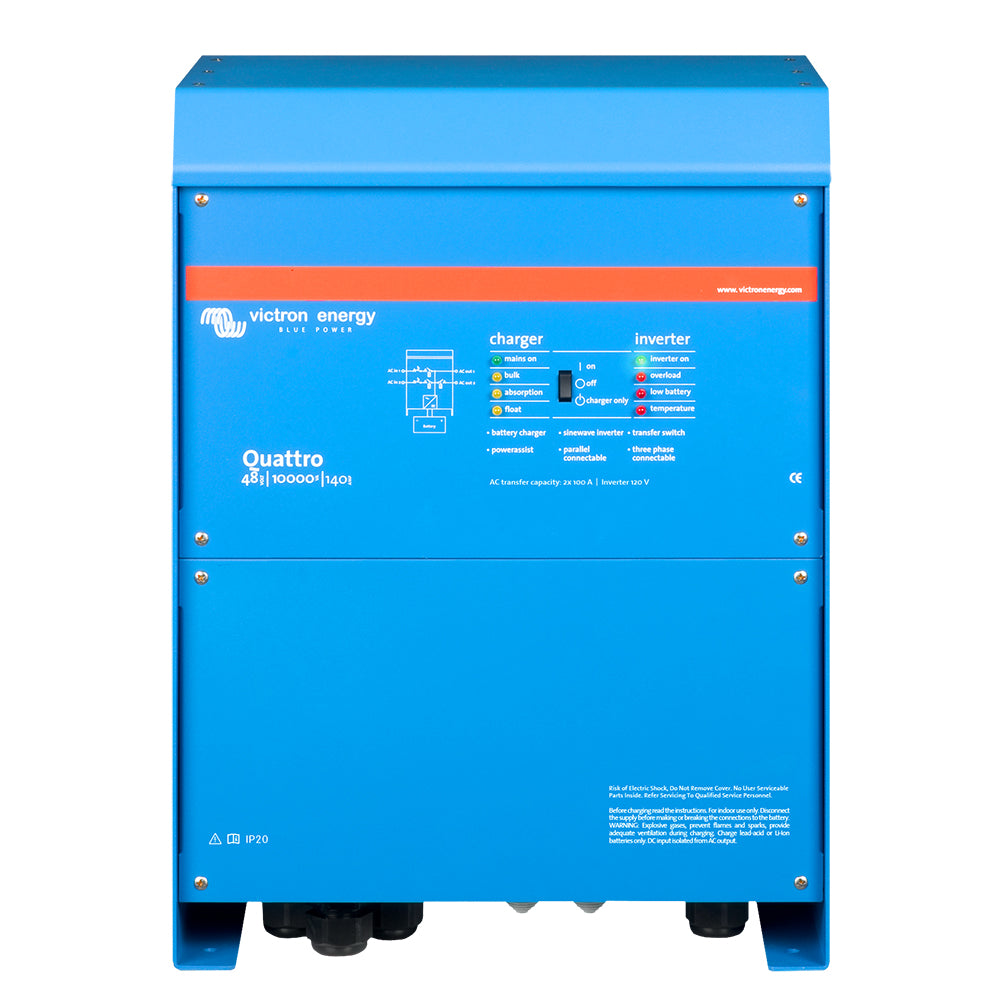

Victron Energy Quattro Inverter/Charger 48 VDC – 10,000W with Dual 120V AC Inputs and Auto Transfer Switch

Quattro Inverter/Charger 48 VDC - 10000W - 200AMP Battery Charger - 50AMP Transfer Switch

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

Features:

• Two AC Inputs two AC Outputs - The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
• Unique PowerAssist feature - The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Quattro Inverter/Charger model QUA483100100 is a high-performance power management solution designed for versatile and reliable energy systems. With a continuous power output of 10,000 watts and a 200 amp battery charger, this unit provides robust support for off-grid, backup, and mobile power applications. Its dual AC inputs and outputs enable connection to multiple power sources, such as shore power and generators, allowing seamless switching with no interruption to connected loads. The main output offers no-break transfer, ensuring sensitive electronics continue to operate smoothly during power source transitions in less than 20 milliseconds. The second output is live only when AC is available, making it suitable for loads like water heaters or air conditioning units that should not draw from the battery when power is present.

Features:

• Dual AC Inputs and Outputs: Connects to two independent AC sources for seamless power transfer and backup support, with no-break functionality on the main output.

• PowerAssist Technology: Prevents overloads by automatically reducing battery charging or boosting output from the battery to support generator or shore power overloads.

• Parallel Operation Capability: Supports up to six units in parallel to achieve higher power outputs, including options for three-phase or split-phase configurations.

• Remote Monitoring and Control: Compatible with VRM app and portal for local or remote system management via LAN or internet, accessible from smartphones, tablets, or computers.

• Compact and Stackable Design: Allows multiple units to be stacked for increased power capacity while maintaining a compact footprint.
