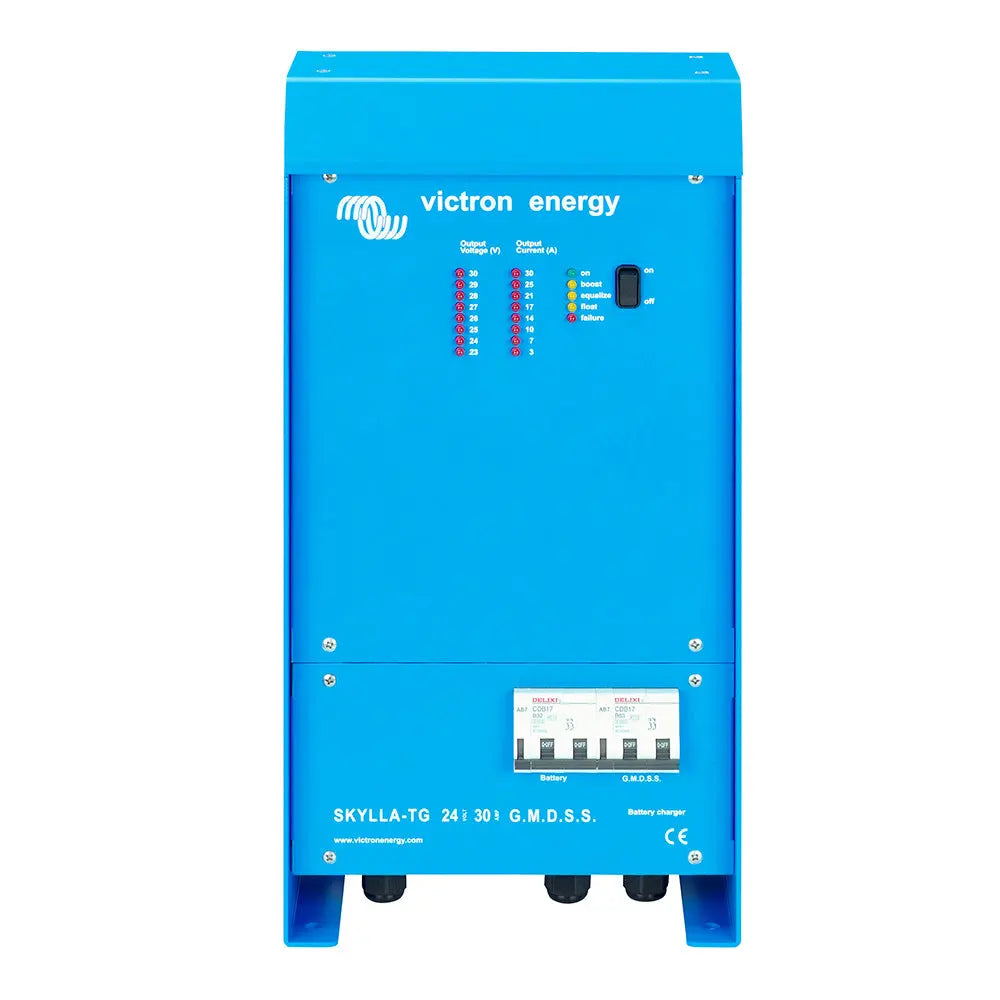

Victron Energy Skylla-TG Charger 24/30 GMDSS for Marine Safety and Power Monitoring

Skylla-TG Charger - 24/30 GMDSS

This Victron Skylla-TG 24/30 Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel.

GMDSS

The Global Maritime Distress Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications.

Power Supply

The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.

Installation Made Easy: The Skylla GMDSS

The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight-wire UTP cable connects the charger to the panel. Skylla TG 24 30 GMDSS

No Adjustments Needed

The whole system is click and go: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.

Battery Time To Go

The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored, so the panel can even indicate the time to go in case of a power supply blackout.

Perfect Charger for Any Type of Battery

Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.

Specifications:

• Input Voltage (V AC): 120 / 230
• Input Voltage Range (V AC): 90-265
• Frequency (Hz): 45-65
• Power Factor: 1
• Charge Voltage Absorption (V DC): 28,5
• Charge Voltage 'Float' (V DC): 26,5
• Charge Current (A): 30 (limited to 22 A at 110 V AC)
• Charge Characteristic: IUoUo (three-step)
• Temperature Sensor: Yes
• Can Be Used as Power Supply: Yes
• Forced Cooling: Yes
• Protection: a, b, c, d
• Operating Temp. Range: -40 to +50 degrees C (-40 122 degrees F)
• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Material Color: Aluminium (blue RAL 5012)
• Battery-Connection: Two 1,5 m Cables
• GMDSS connection One 1,5 m cable (+ to be taken directly from the battery)
• 230 V AC-Connection: Three wire 2,5 mm (AWG 6); Cable Length: 2 m
• Protection Category: IP 21
• Weight kg (lbs.): 6 (13)
• Dimensions H x W x D in mm (H x W x D in inches): 485 x 250 x147 (19.1 x 9.9 x 5.8)

Accessories:

• VE.Net GMDSS panel: To be ordered separately
• UTP-cable: To be ordered separately

Standards

• Safety: EN 60335-1, EN 60335-2-29
• Emission Immunity: EN 55014-1, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-3-3
• Maritime Nav. Radiocomm: IEC 60945
• Protection Key: a) Output short circuit; b) Battery reverse polarity detection; c) Battery voltage too high; d) Temperature too high IEC 60945 Remote panel GMDSS; 2) Up to 40 degrees C (100 degrees F) ambient

The Victron Energy Skylla-TG Charger 24/30 GMDSS is specifically engineered for maritime safety applications, integrating seamless monitoring and alarm functionalities essential for GMDSS compliance. This robust charger connects directly to both the battery system and the GMDSS components, providing real-time data and alarm notifications displayed on a dedicated digital panel (VE.Net GMDSS panel, sold separately). An eight-wire UTP cable simplifies installation, ensuring reliable communication between the charger and the monitoring panel. This design streamlines setup and reduces configuration time, making it ideal for vessels requiring dependable power management and safety communication systems. The system is pre-programmed for GMDSS operations, with an intuitive menu allowing users to modify settings as needed, ensuring straightforward operation even in demanding maritime environments. The built-in battery controller continuously monitors battery capacity and status, offering precise insights into remaining power and estimated time to blackout, which is crucial during emergency situations. This charger supports all battery types, including VRLA and flooded batteries, with adjustable charge voltages to optimize performance and lifespan. Its advanced IUoUo three-step charging characteristic ensures efficient and safe battery replenishment. The durable aluminum enclosure, finished in RAL 5012 blue, provides IP 21 protection, suitable for harsh marine conditions. The unit features a 30A charge current, forced cooling for optimal operation, and comprehensive protection features, including short circuit, reverse polarity, high voltage, and temperature safeguards. Operating across a wide temperature range from -40°F to +122°F, it maintains reliable performance in diverse climates. Compatible with standard 120V or 230V AC power supplies, the Skylla-GMDSS charger offers versatile installation options, with simple cable connections for power, GMDSS, and battery integration. Additional accessories, such as the VE.Net GMDSS panel and UTP cables, are available separately to customize your setup. Compliant with essential safety and electromagnetic compatibility standards, this charger ensures compliance with international maritime regulations. Whether used as a primary power source or as part of a comprehensive safety system, the Victron Energy Skylla-TG Charger 24/30 GMDSS provides a reliable, efficient, and easy-to-integrate solution for maritime communication and safety systems.

Features:

• Designed for GMDSS applications with integrated monitoring and alarm data

• Connects directly to both battery and GMDSS system for streamlined setup

• Displays real-time data and alarms on optional VE.Net GMDSS digital panel

• Pre-programmed for GMDSS functionality with intuitive menu for adjustments

• Built-in battery controller monitors capacity and indicates time to blackout

• Supports adjustable charge voltage for VRLA and flooded batteries

• Advanced IUoUo three-step charging characteristic for optimal battery health

• Heavy-duty aluminum enclosure with IP 21 protection for marine environments

• Operates across a wide temperature range from -40°F to +122°F

• Versatile power input supporting 120V or 230V AC with simple connection

• Includes comprehensive safety protections including short circuit and reverse polarity

• Easy installation with standard cable lengths for power, GMDSS, and battery connections

• Compliant with international safety and electromagnetic standards
