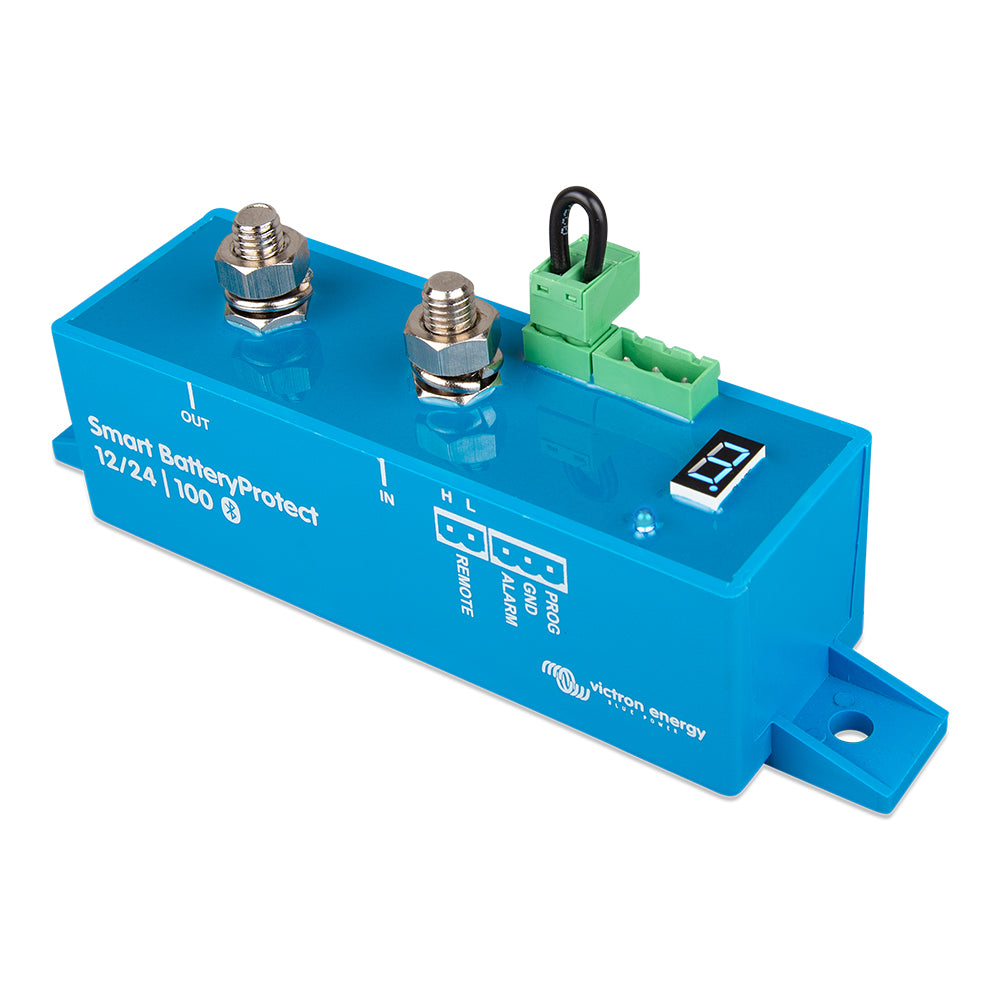

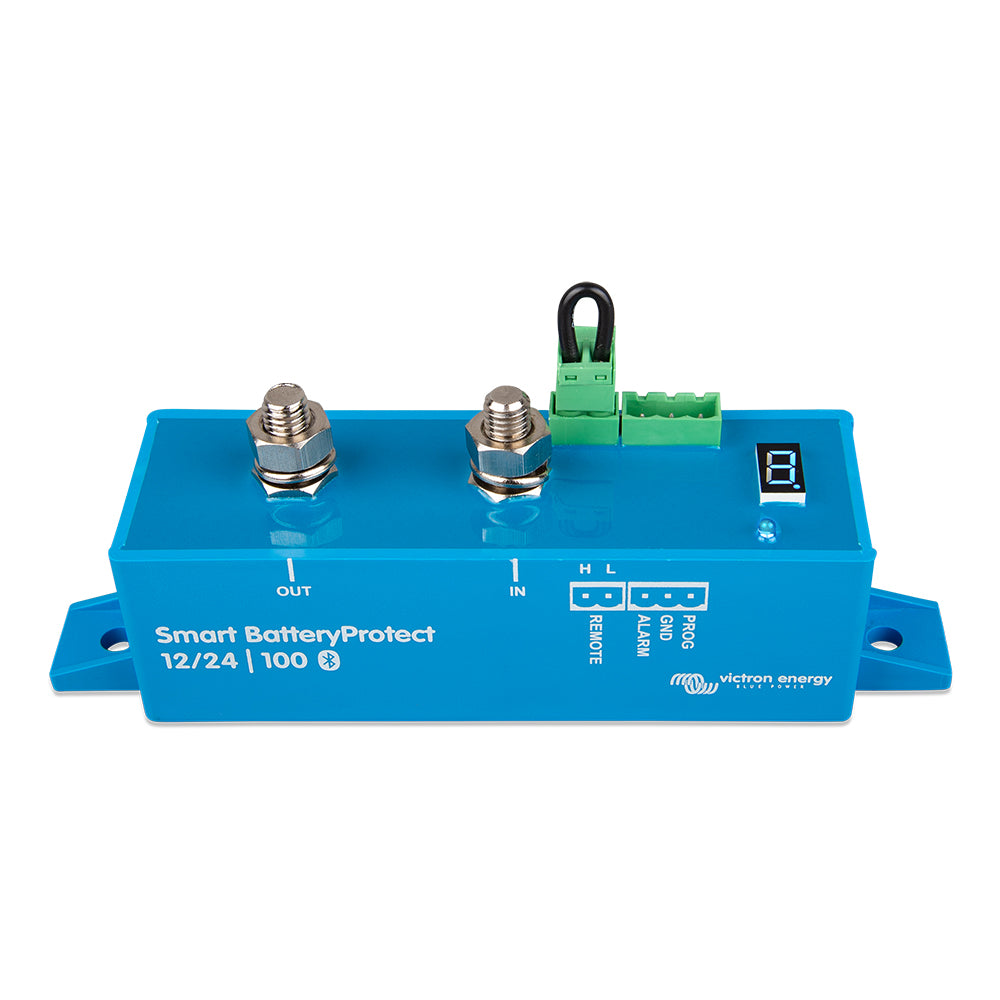

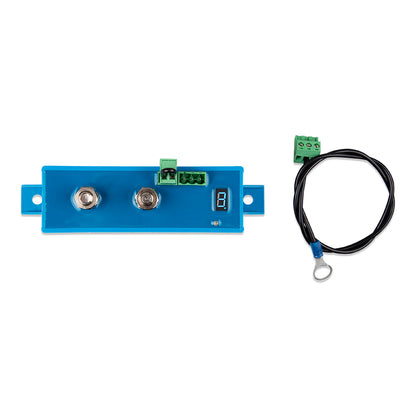

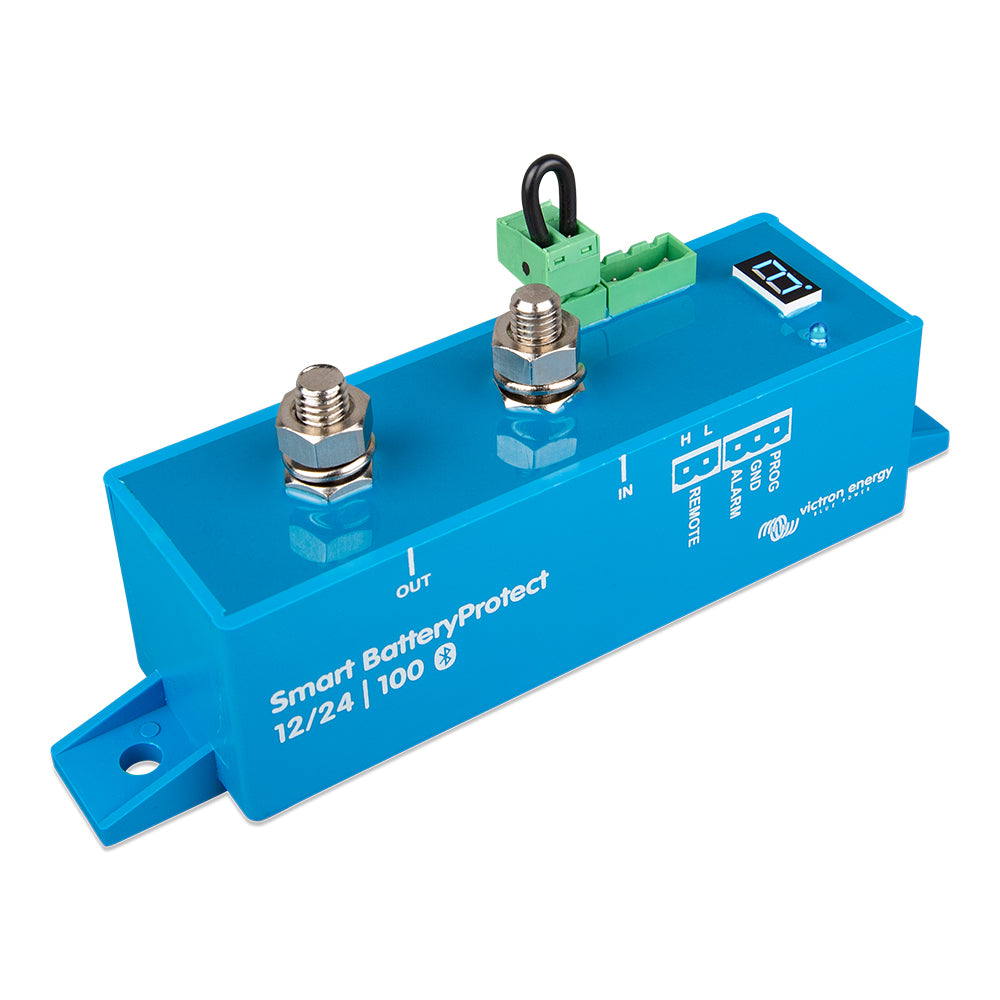

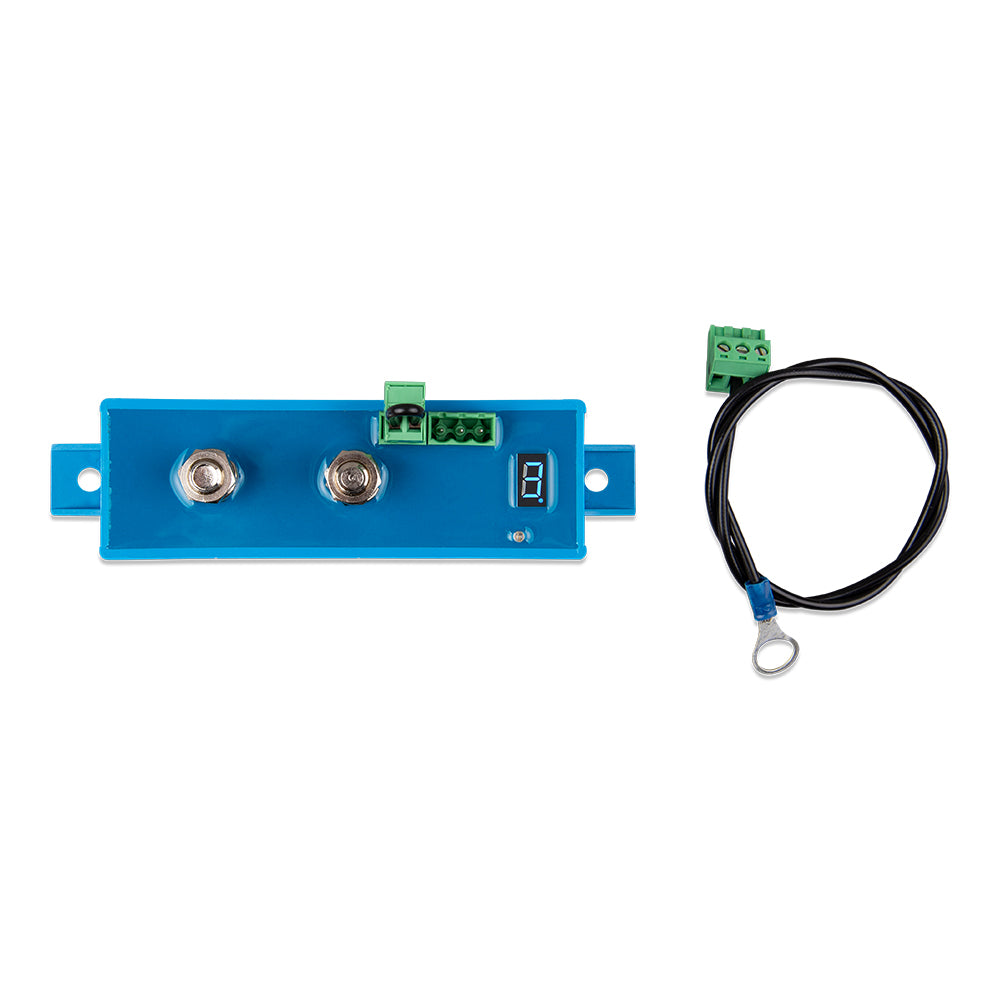

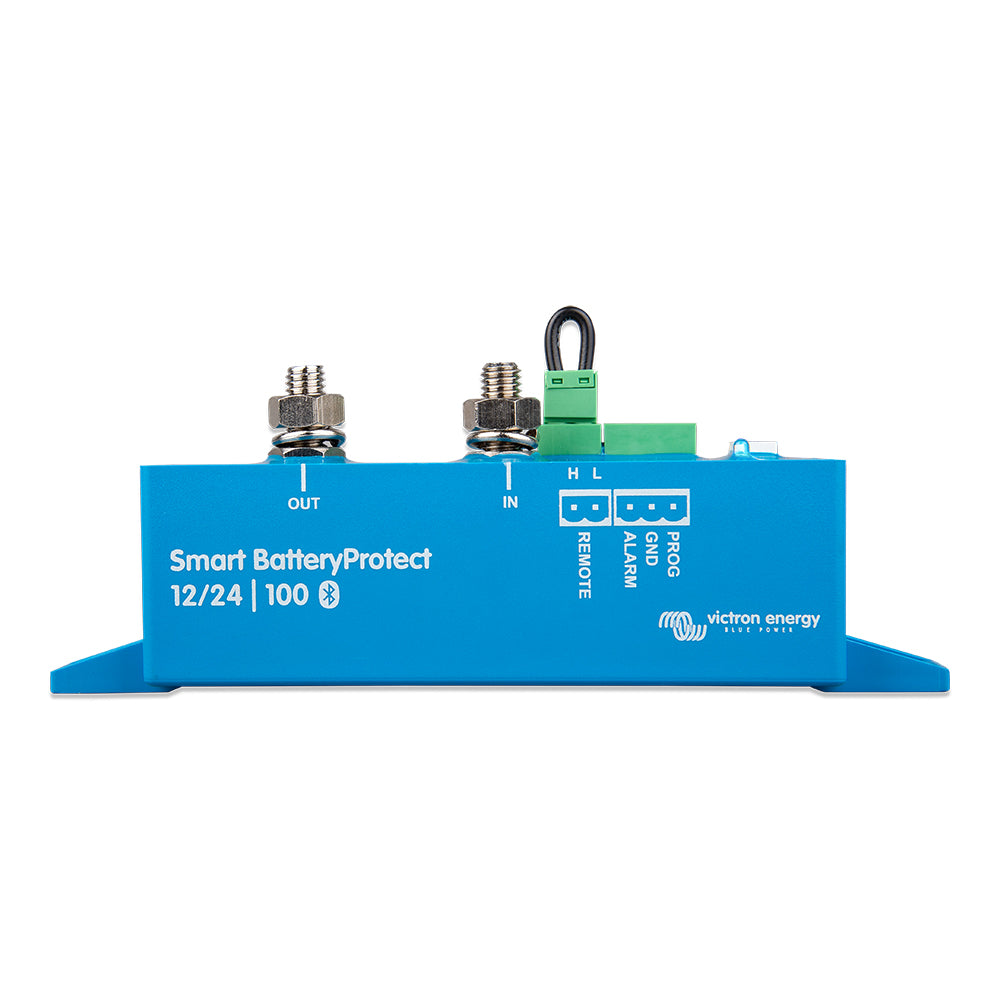

Victron Energy Smart BatteryProtect 100AMP - Bluetooth Capable for 6-35 VDC Systems

Smart BatteryProtect - 100AMP - 6-35 VDC - Bluetooth Capable

Features:

• Protects the battery against excessive discharge and can be used as a system on/off switch The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch.
• 12/24V auto ranging The Smart BatteryProtect automatically detects system voltage one time only.
• Bluetooth: programming made easy When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled.
• A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.
• Ultra-low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
• Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V.
• Ignition proof No relays but MOSFET switches, and therefore no sparks.
• Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.
• Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Smart BatteryProtect model BPR110022000 offers reliable battery management for 12V and 24V systems, ensuring optimal performance and longevity. Designed with advanced features, this device protects your battery from excessive discharge by disconnecting non-essential loads before the battery is damaged, while also functioning as a system on/off switch for convenience. Its automatic voltage detection and Bluetooth capability simplify setup and enable easy remote programming, allowing you to set engage and disengage levels with just a smartphone. Alternatively, you can select from nine predefined settings using the programming pin, providing flexibility for various applications.
Constructed with MOSFET switches instead of relays, this BatteryProtect is ignition-proof and sparks-free, enhancing safety in automotive and marine environments. It includes a special mode for Li-ion batteries, which can be controlled through the VE.Bus BMS, and it can serve as a charge interrupter between a charger and a lithium battery. The device features ultra-low current consumption, vital for preserving battery charge during low voltage shutdowns, and over voltage protection to prevent damage to sensitive loads by disconnecting when voltage exceeds 16.3V or 32.6V. The delayed alarm output activates if the battery voltage dips below the set threshold for more than 12 seconds, providing safety alerts without false alarms during engine starts.
Further, the load is automatically disconnected 90 seconds after voltage drops below the threshold, preventing deep discharge damage, and reconnects 30 seconds after voltage recovers. This intelligent control ensures your batteries are protected during engine start-stop cycles and other fluctuating conditions. Designed for versatility and safety, the Victron Smart BatteryProtect 100AMP is suitable for a wide range of vehicles, boats, and off-grid setups, providing peace of mind with reliable, automated battery management and Bluetooth programmability for quick adjustments and system monitoring.

Features:

• Protects battery against excessive discharge and functions as a system on/off switch

• Automatically detects 12V or 24V system voltage for seamless operation

• Bluetooth enabled for easy remote programming of engage/disengage levels

• Predefined and customizable settings, with Bluetooth disable option if needed

• Special mode for Li-ion batteries, controllable via VE.Bus BMS

• Ultra-low current consumption to preserve battery life during shutdowns

• Over voltage protection disconnects loads if voltage exceeds safe limits

• Ignition-proof design uses MOSFET switches, eliminating sparks

• Delayed alarm output activates if voltage remains low for over 12 seconds

• Automatic load disconnects after 90 seconds of low voltage and reconnects after 30 seconds of recovery
