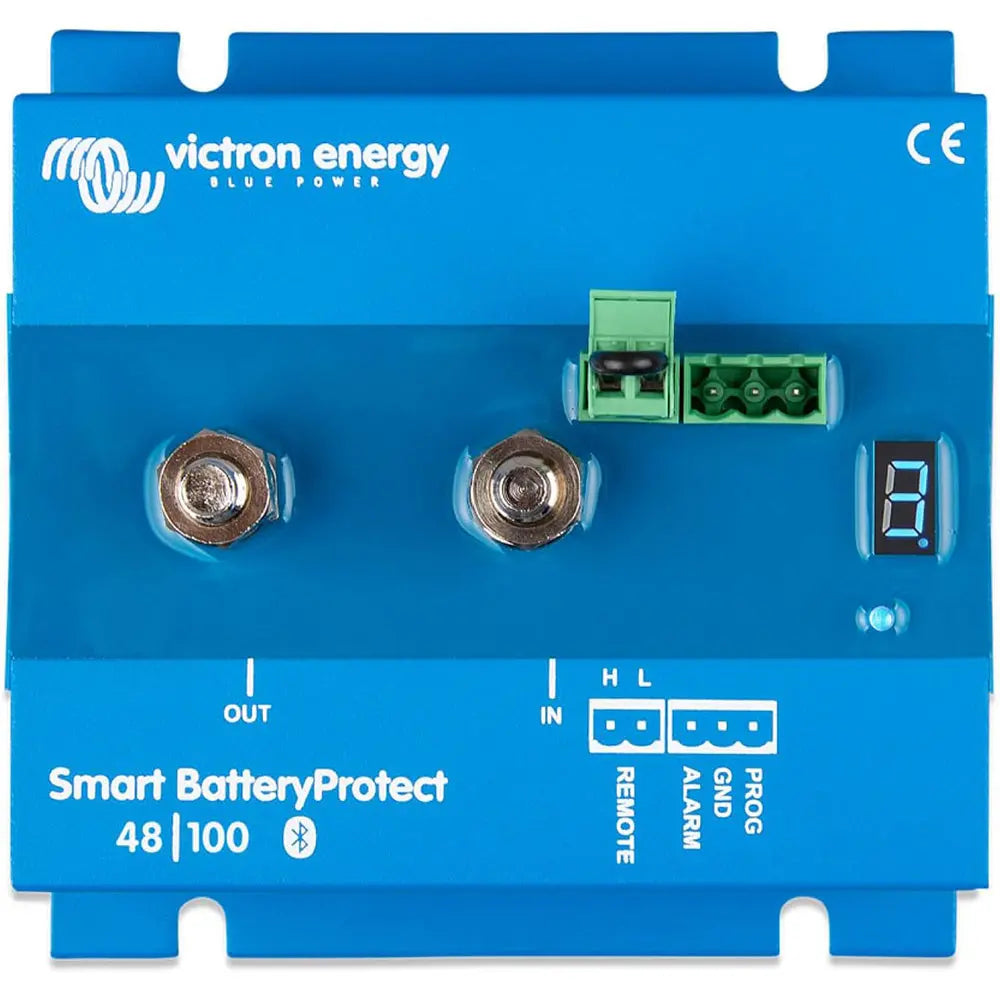

Victron Energy Smart BatteryProtect 48V - 100A Battery Management System

Smart BatteryProtect 48V - 100A

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin. If needed, Bluetooth can be disabled.

The Smart BatteryProtect is a unidirectional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.

The Victron Energy Smart BatteryProtect 48V - 100A is an advanced battery management device designed to safeguard your battery from over-discharge and ensure reliable engine starting. This unit disconnects non-essential loads before the battery reaches a critical low level, preventing potential damage and prolonging battery lifespan. It is particularly suitable for automotive, marine, and renewable energy applications where maintaining battery health is critical. The device features Bluetooth connectivity for easy programming of engage and disengage levels, allowing for customized operation. Alternatively, users can select from nine predefined levels using the programming pin, with the option to disable Bluetooth functionality if desired. The Smart BatteryProtect operates as a unidirectional device, meaning it handles current flow in a single direction—from the battery to the load or charger—making it ideal for systems where current flow is unidirectional. When used with a load, the battery connects to the IN terminal, and the load connects to the OUT terminal. Conversely, for charging applications, the charger connects to the IN terminal. This configuration ensures the device efficiently manages power flow to protect the battery without disrupting normal operation. Designed by Victron Energy, this compact and durable device offers reliable performance for demanding applications. Please contact your dealer for assistance with returns, repairs, or support for this product. The Victron Smart BatteryProtect 48V - 100A combines smart technology and robust construction to provide a dependable solution for battery management in various systems.

Features:

• Bluetooth connectivity for customizable engage/disengage levels

• Predefined engagement options with programming pin for quick setup

• Unidirectional current handling to protect battery health

• Compact design for easy installation in tight spaces

• High current capacity of 100A for demanding applications

• Designed for 48V systems, suitable for automotive and marine use

• Durable construction with reliable performance
