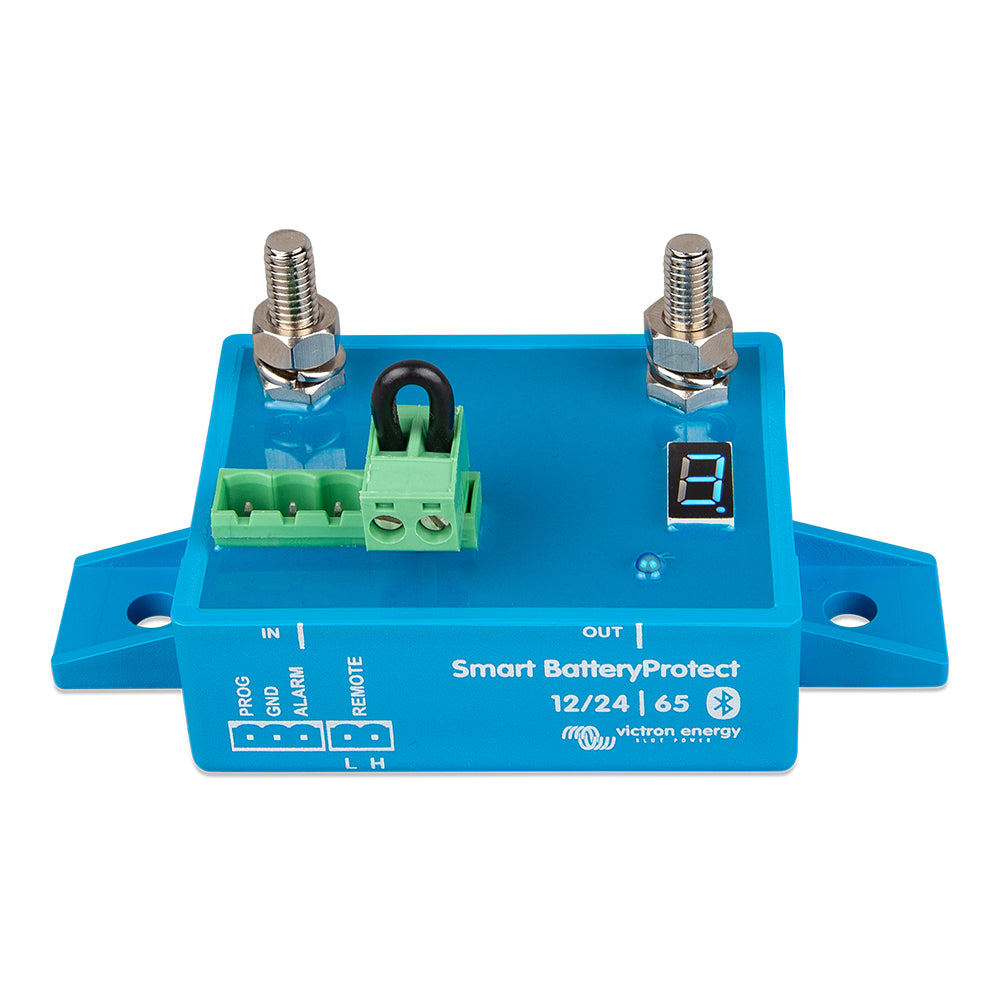

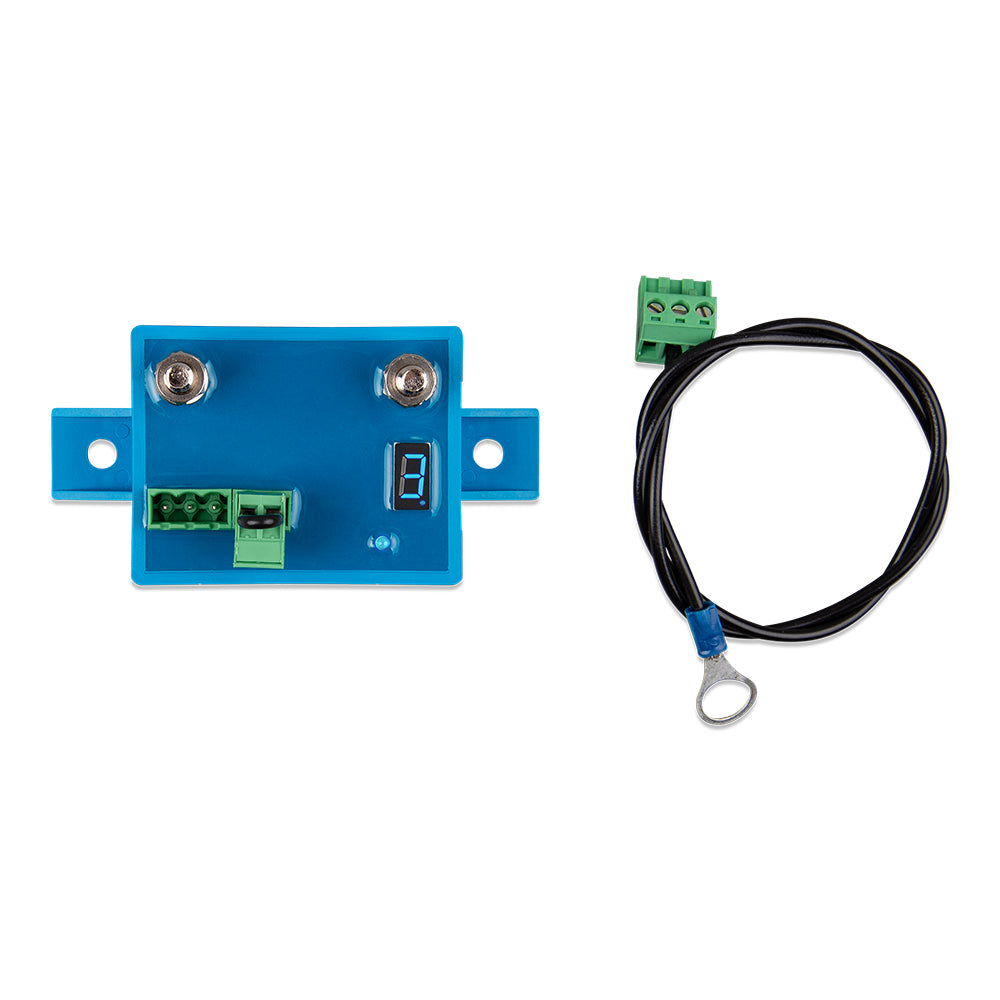

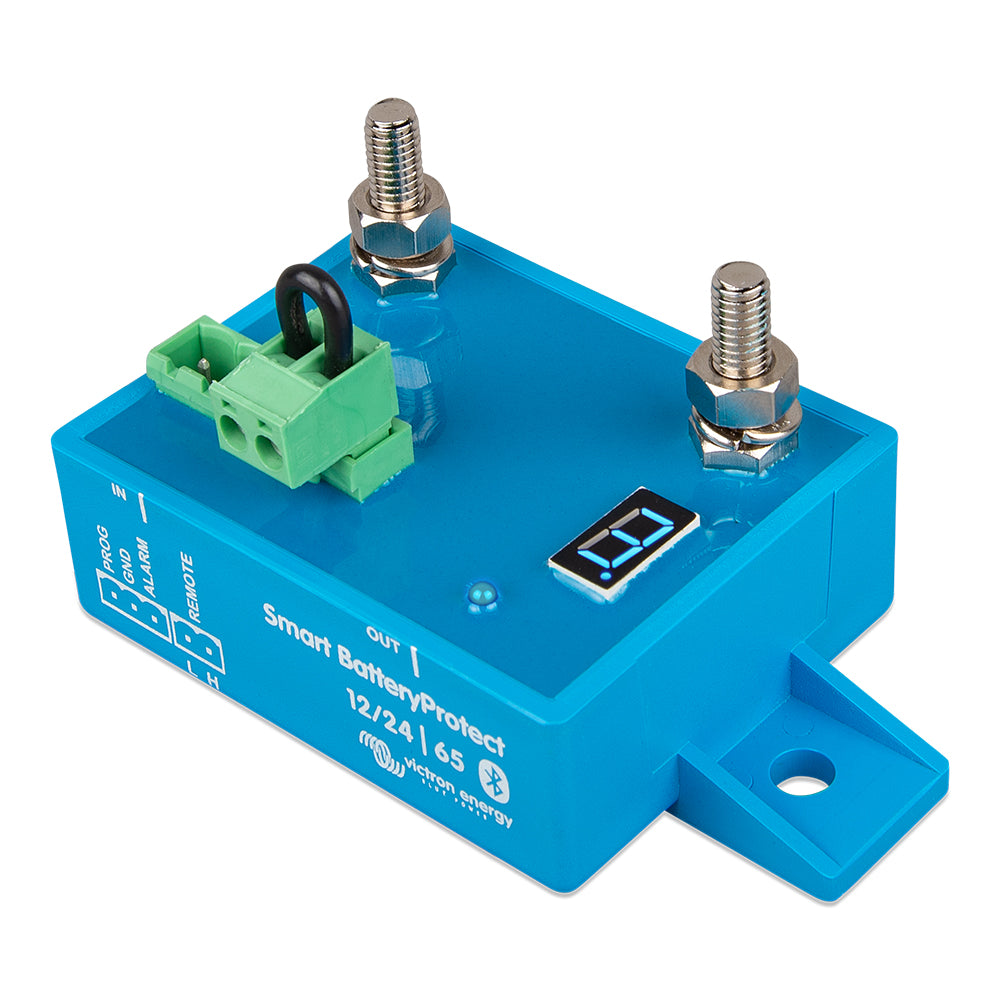

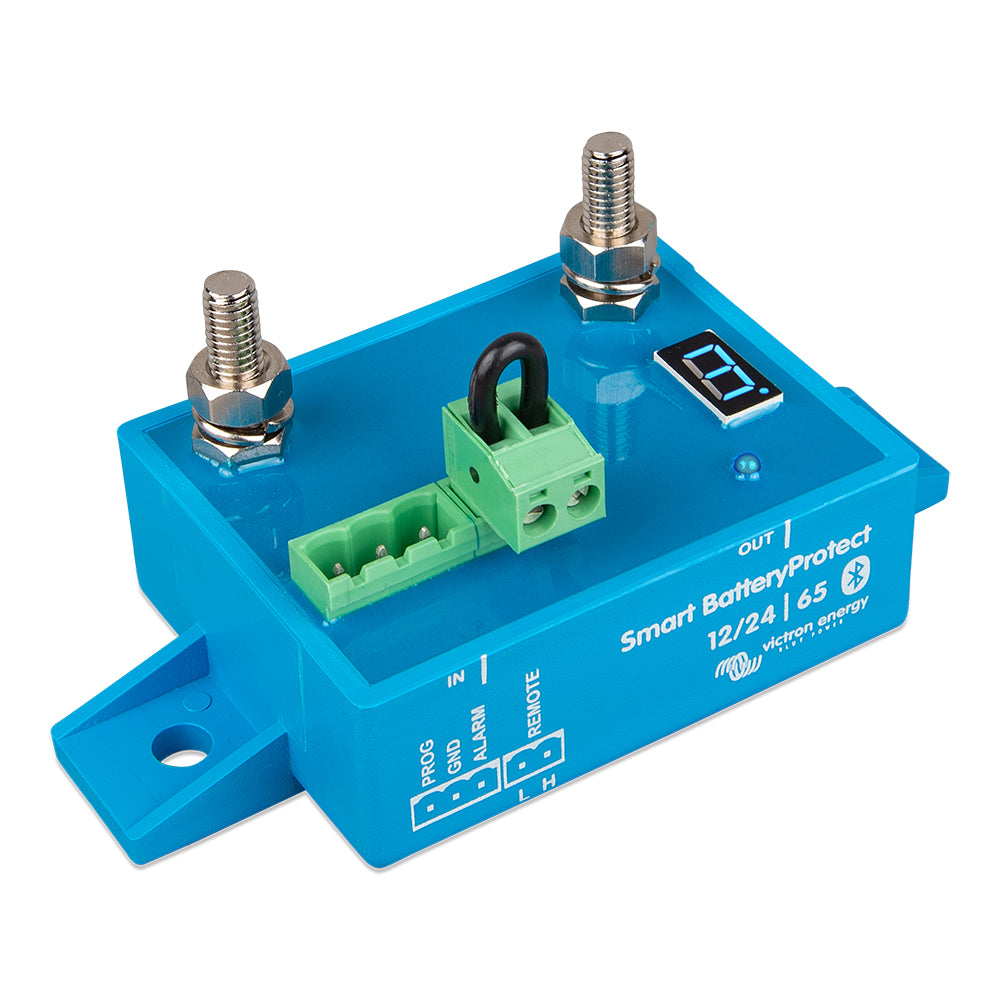

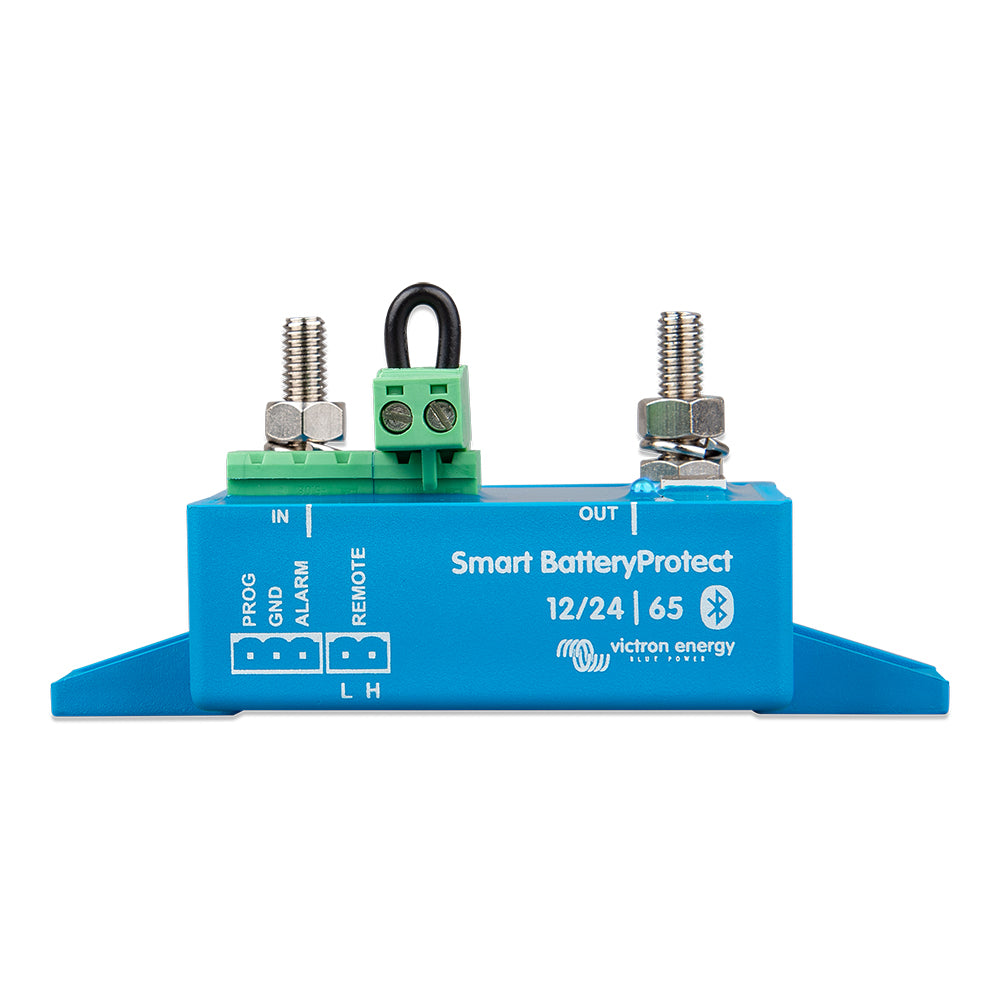

Smart BatteryProtect - 65AMP - 6-35 VDC - Bluetooth Capable
Features:
Protects the battery against excessive discharge and can be used as a system on/off switch The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch.
12/24V auto ranging The Smart BatteryProtect automatically detects system voltage one time only.
Bluetooth: programming made easy When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled.
A special setting for Li-ion batteries In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual.
Ultra-low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V.
Ignition proof No relays but MOSFET switches, and therefore no sparks.
Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.
Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Smart BatteryProtect model BPR065022000 is a high-performance device designed to safeguard your battery system effectively. It protects against excessive discharge, preventing battery damage by disconnecting non-essential loads before the battery becomes critically depleted. This unit also functions as a system on/off switch, allowing easy control over your power system. Its automatic 12/24V auto-ranging feature detects system voltage upon installation, simplifying setup for diverse applications. The Bluetooth capability ensures straightforward programming, enabling users to set engage/disengage levels precisely or select from nine predefined configurations. Bluetooth can be disabled if necessary for security or simplicity. Designed with Li-ion batteries in mind, the BatteryProtect offers specialized settings for these energy-dense cells and can be managed via VE.Bus BMS, or used as a charge interrupter between charger and battery. Its ultra-low current consumption ensures minimal drain on batteries, especially crucial after low voltage shutdowns in Li-ion systems. Over voltage protection prevents damage to sensitive loads by disconnecting the load when voltage exceeds 16.3V or 32.6V, ensuring system safety. The device features ignition-proof MOSFET switches that eliminate sparks, enhancing safety in automotive and marine environments. With a delayed alarm output, the BatteryProtect signals if voltage drops below a preset level for more than 12 seconds, which can activate alarms or alerts. It also supports delayed load disconnection and reconnection, disconnecting loads 90 seconds after voltage drops below the threshold and reconnecting after 30 seconds once voltage recovers. This intelligent management optimizes battery life and system reliability. For detailed wiring diagrams, installation instructions, and safety information, refer to the manual linked on the product page. The BatteryProtect is an essential component for maintaining battery health and ensuring reliable power management in various vehicle and off-grid applications. Please consult your dealer for support, repairs, or returns related to this product.
Features:
Protects against excessive discharge and functions as a system on/off switch
Automatically detects system voltage with 12/24V auto-ranging
Bluetooth programming for easy configuration, with multiple preset levels
Special mode for Li-ion batteries, compatible with VE.Bus BMS
Ultra-low current consumption suitable for Li-ion applications
Over voltage protection to prevent damage to sensitive loads
Ignition-proof design with MOSFET switches, no sparks
Delayed alarm output for voltage drop signals
Delayed load disconnect and reconnect for system stability
