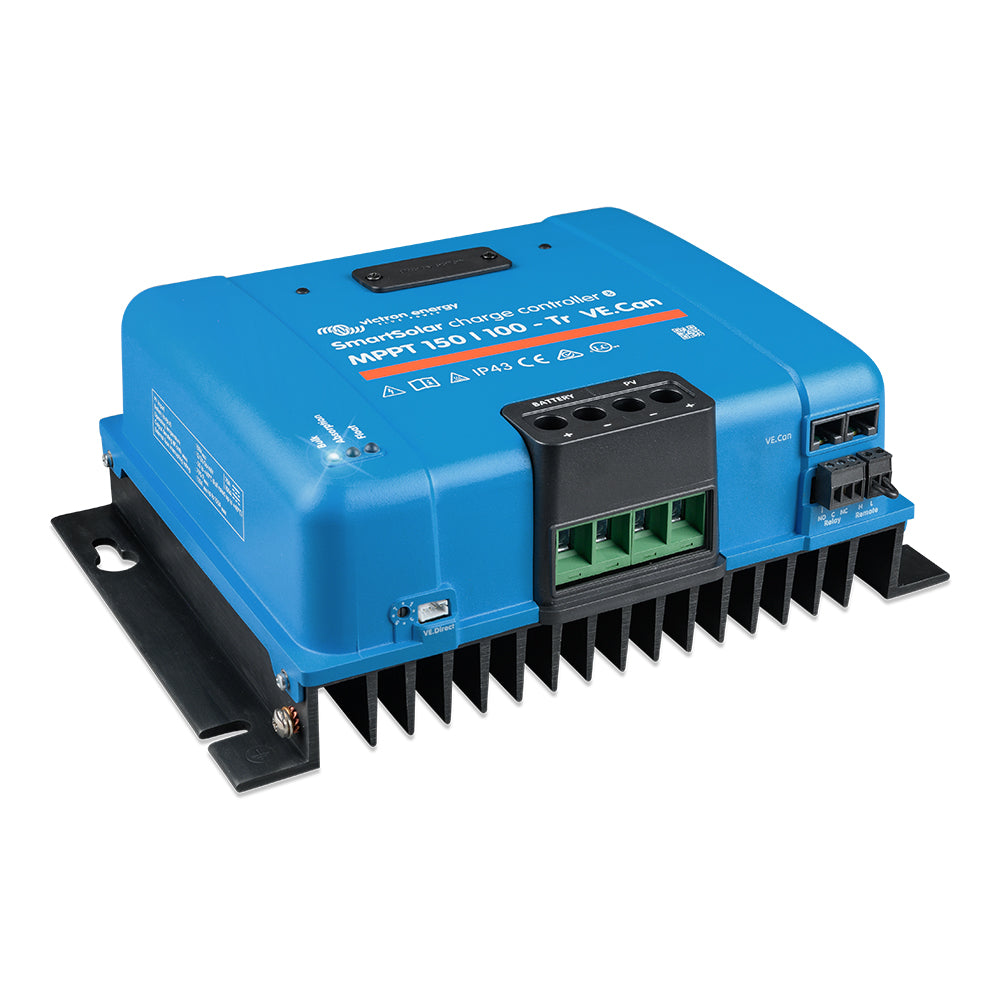

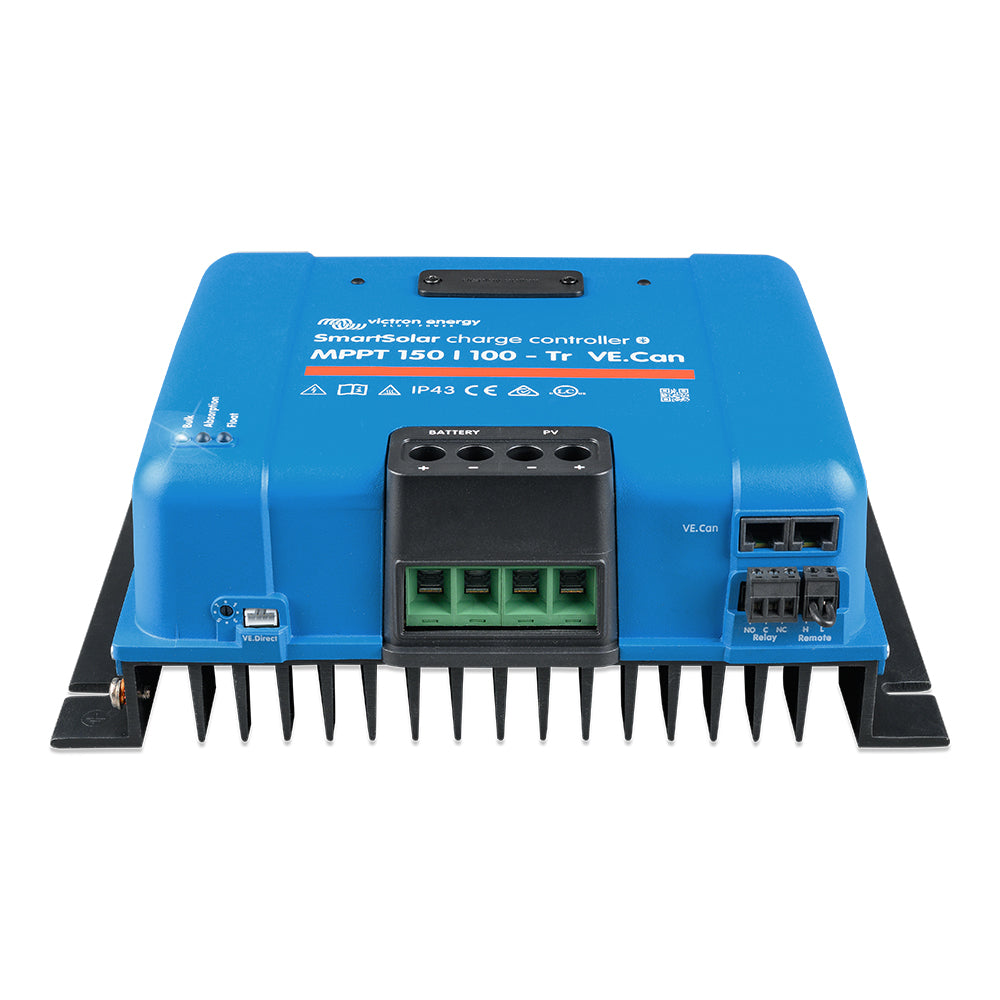

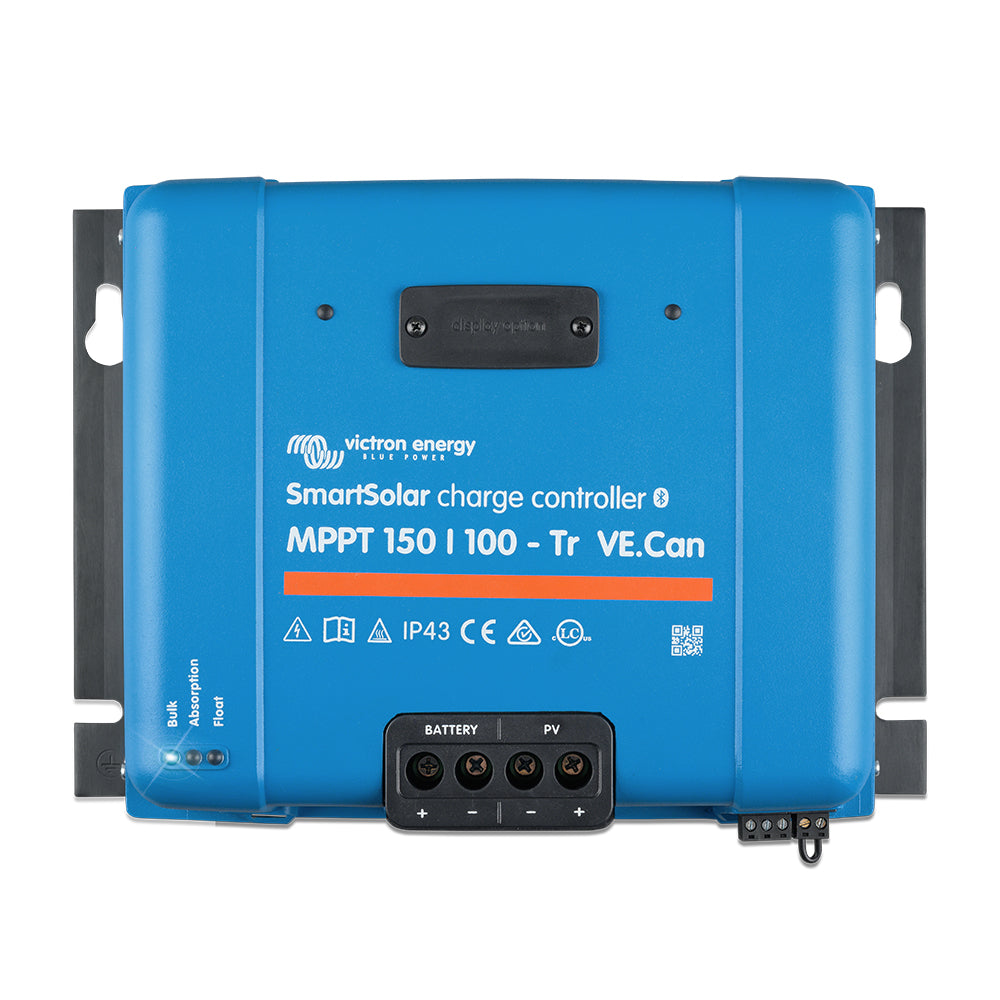

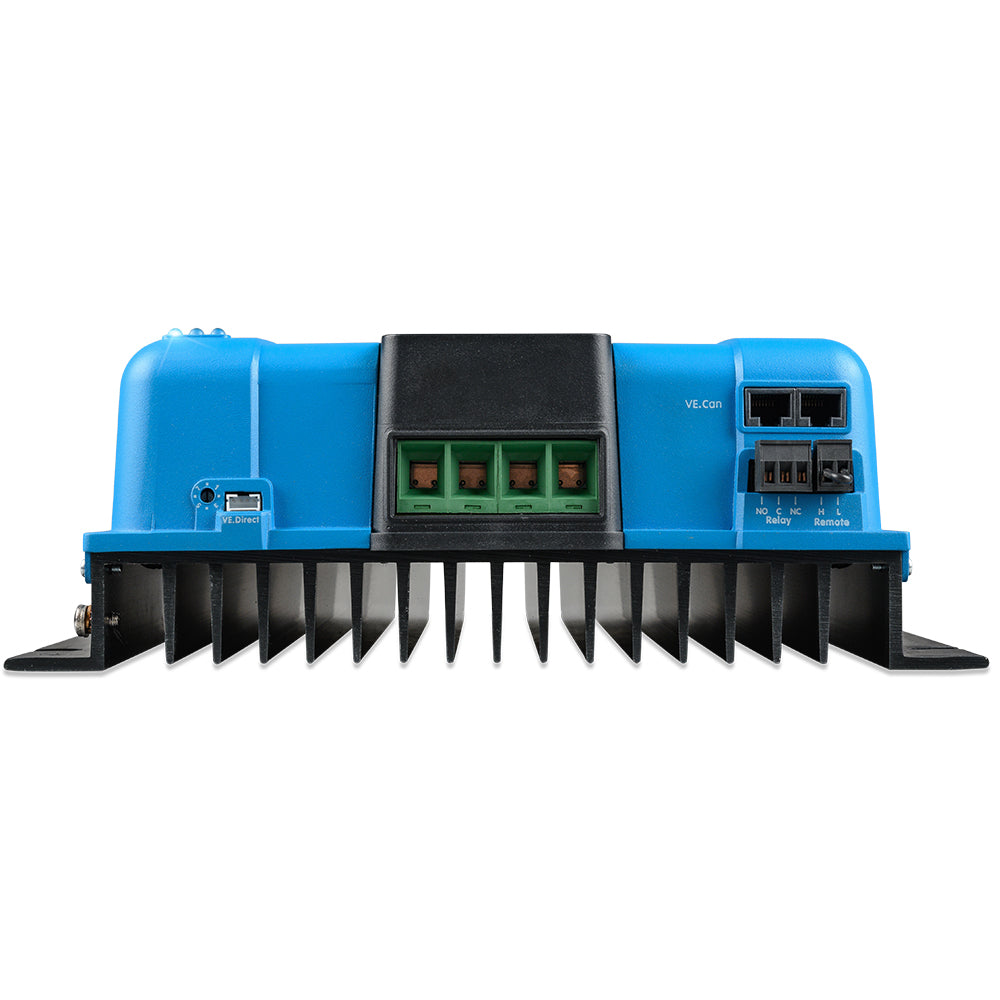

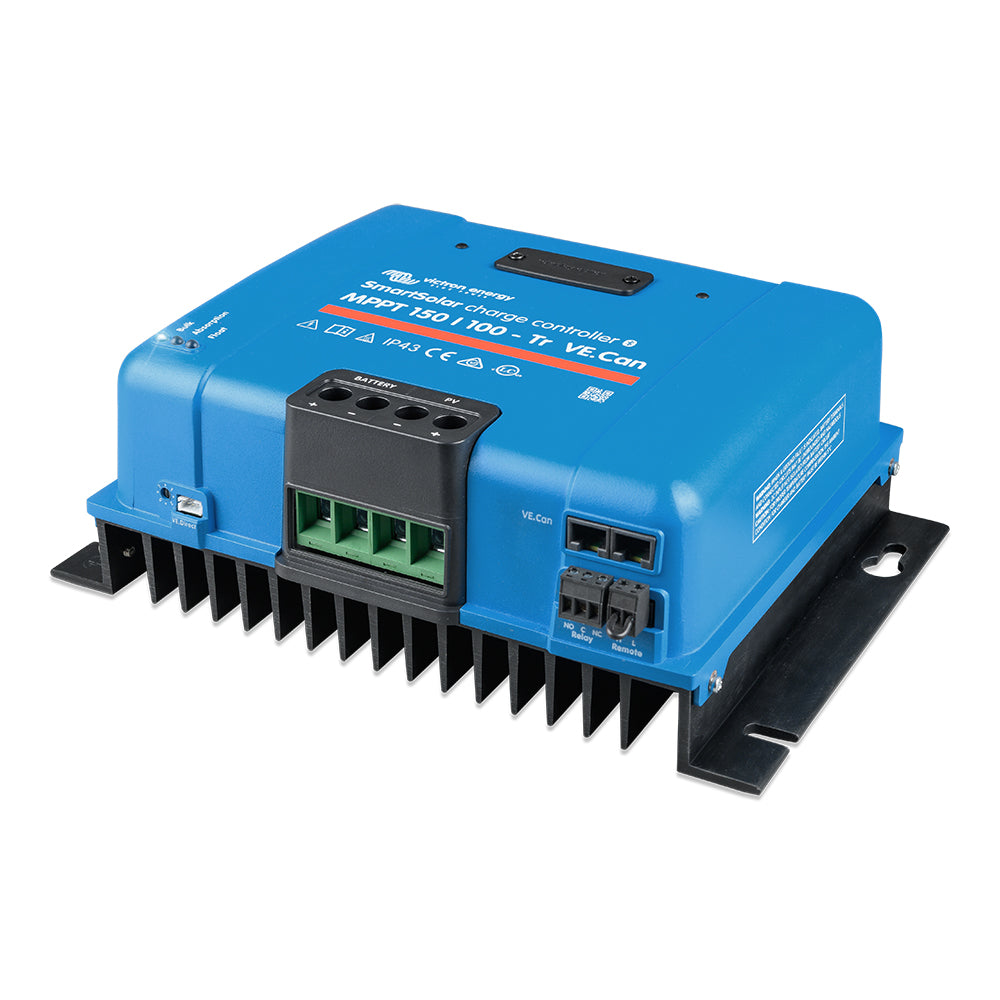

Victron Energy SmartSolar MPPT 150/100-TR VE.Can Solar Charge Controller

SmartSolar MPPT 150/100-TR VE.Can

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply daisy-chained to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, setup, and management, straight from the face of the device.

The Victron Energy SmartSolar MPPT 150/100-TR VE.Can is an advanced solar charge controller designed to maximize energy harvest from your photovoltaic array. Featuring ultra-fast Maximum Power Point Tracking (MPPT), this controller efficiently converts solar energy into usable power, ensuring your battery bank is charged optimally regardless of initial conditions. It can recharge even severely depleted batteries, operating with voltages as low as 0 Volts, provided the cells are healthy. This capability makes it ideal for various applications where battery maintenance and recovery are critical.

Designed to support a PV array of up to 150 or 250 Volt Voc, the SmartSolar VE.Can automatically detects your system voltage (12V, 24V, or 48V) and adjusts its charging parameters accordingly. With current ratings between 70 and 100 amps depending on the model, it delivers reliable power for larger systems. The controller's programmable settings accommodate different battery chemistries such as lead-acid and lithium, providing flexibility for various energy storage solutions. Its user-friendly interface allows for detailed configuration to suit specific system requirements.

Remote monitoring and control are simplified through Bluetooth connectivity via the VictronConnect app. Users can easily set up, manage, and monitor the device remotely, viewing real-time data such as battery voltage, current, PV voltage, and historical performance metrics. The VE.Can ports enable daisy-chaining multiple SmartSolar units, which synchronize their charge stages and share data with a single GX monitoring device. This feature simplifies expanding your solar system while maintaining coordinated operation across all units.

For comprehensive system oversight, the controller integrates with the Victron Remote Management (VRM) portal when connected to the internet. This platform provides detailed insights and remote management capabilities, ensuring optimal system performance. The VE.Direct port offers additional monitoring options or control features, and an optional plug-in LCD display provides live data, setup, and management directly on the device. Whether used in residential, commercial, or off-grid applications, the Victron SmartSolar MPPT 150/100-TR VE.Can offers reliable, efficient, and flexible solar energy management.

Features:

• Ultra-fast MPPT technology for maximum energy harvesting

• Supports PV arrays of up to 150 or 250 Volt Voc

• Compatible with 12V, 24V, and 48V battery systems

• Programmable charge settings for different battery chemistries

• Remote control and configuration via Bluetooth with VictronConnect app

• Daisy-chaining capable for multiple units with CAN bus ports

• Synchronization of charge stages across connected units

• Remote monitoring through Victron Remote Management portal

• VE.Direct port for additional monitoring and control options

• Optional integrated LCD display for live data and system management
