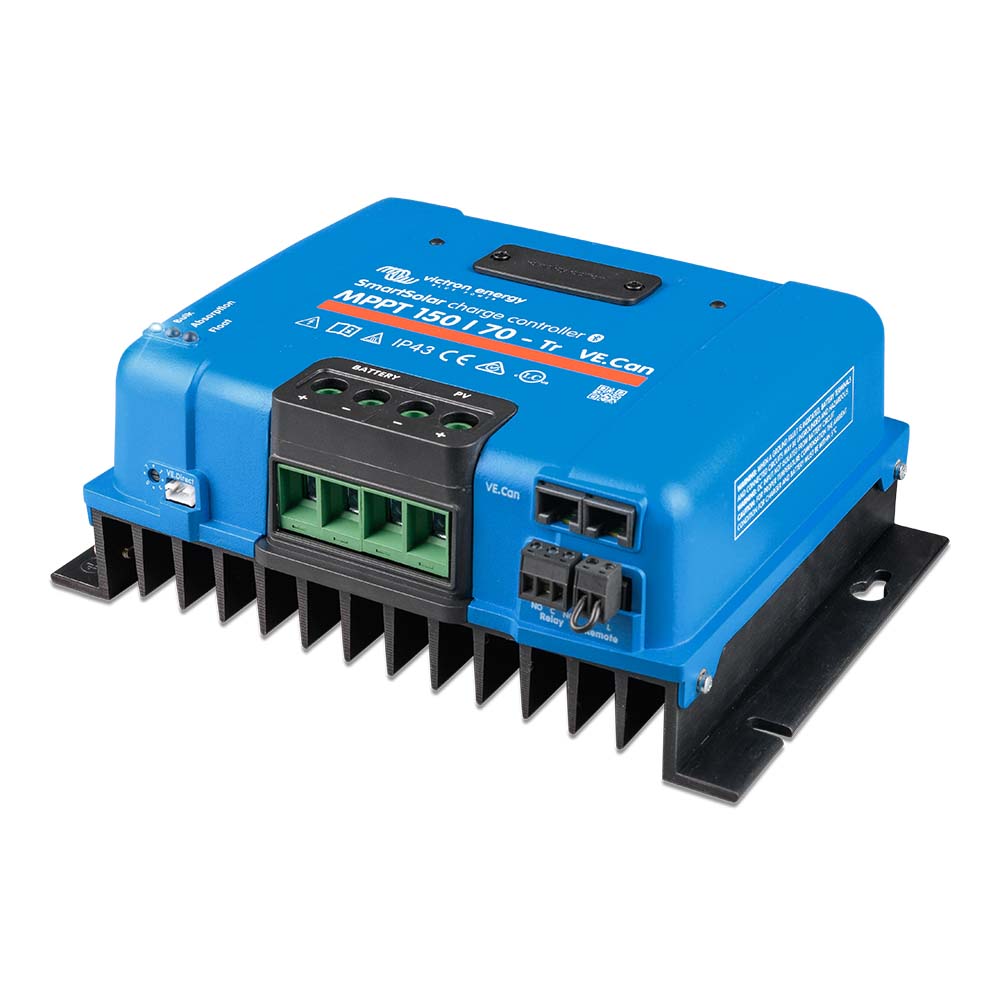

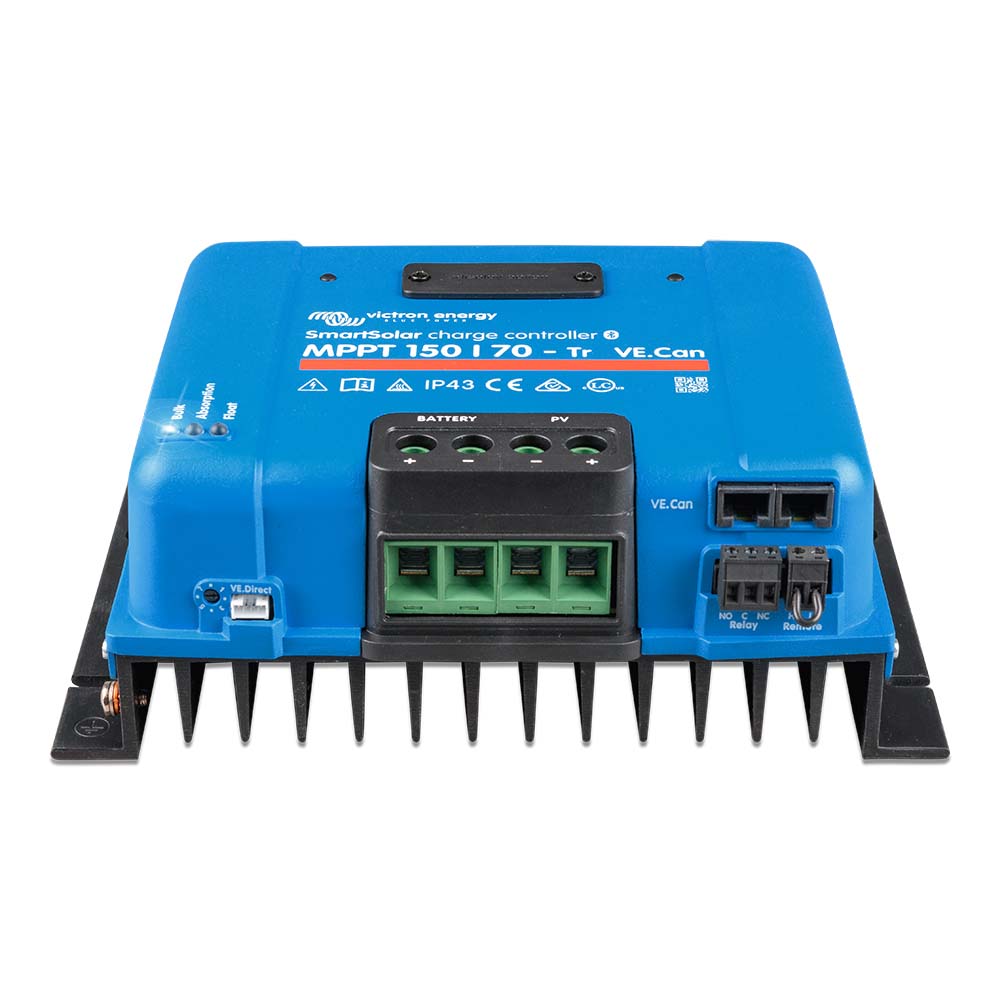

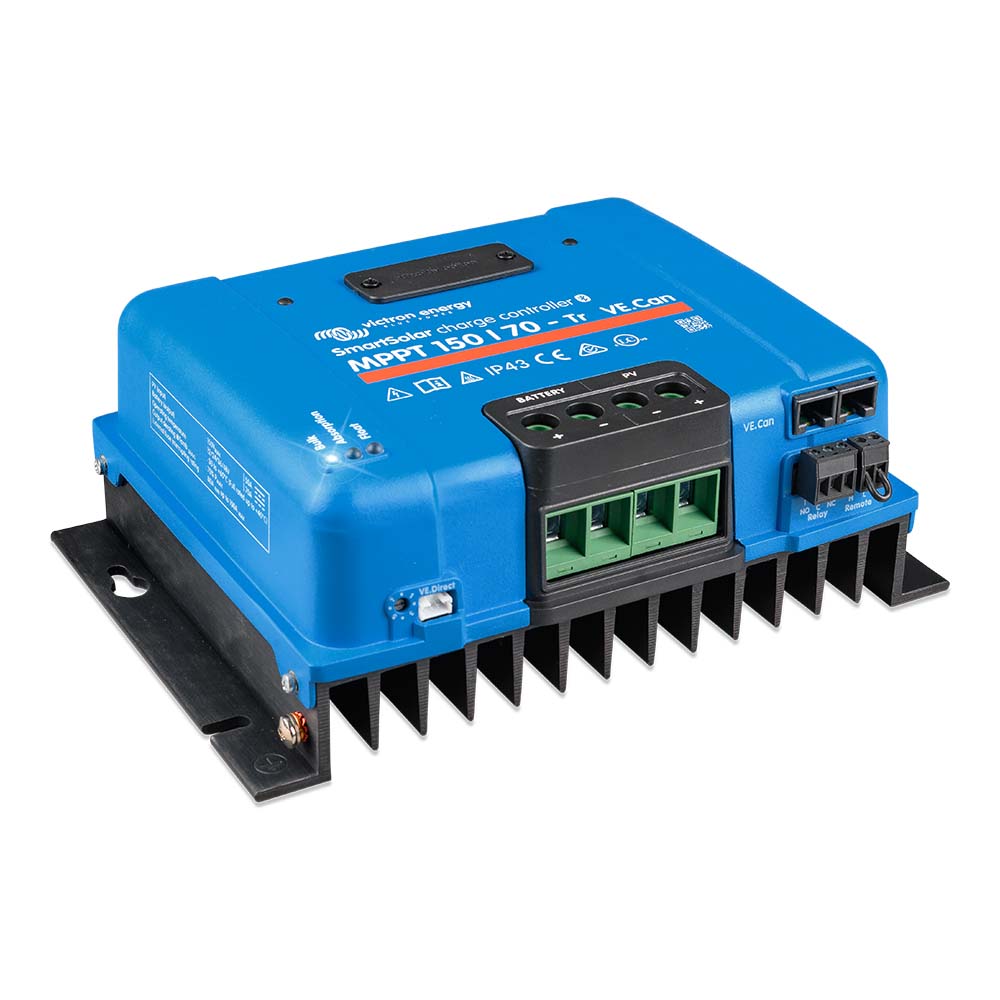

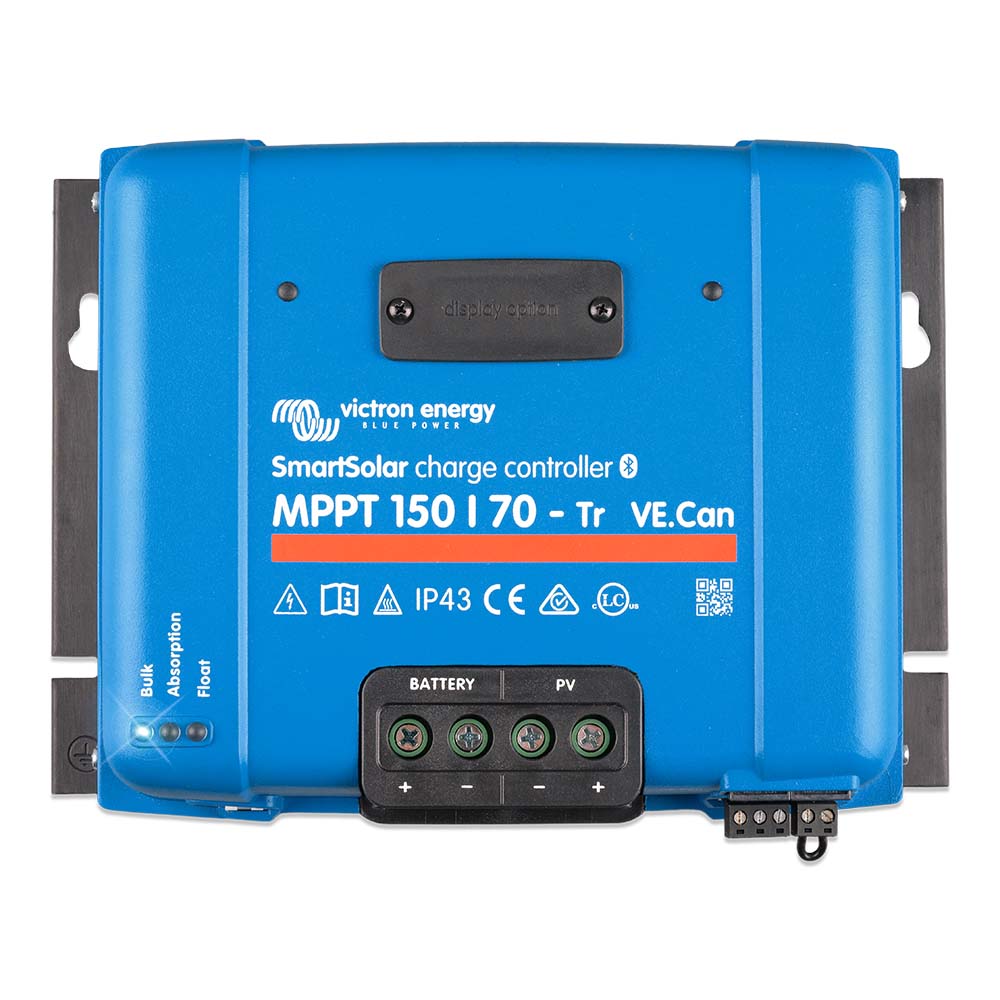

Victron Energy SmartSolar MPPT 150/70-TR VE.CAN Solar Charge Controller

SmartSolar MPPT 150/70-TR VE.CAN - TR VE.CAN Solar Charge Control 150/70-TR VE.CAN Controller

Solar Charge Controller

The MPPT VE.Can SmartSolar charger use the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

The Victron Energy SmartSolar MPPT 150/70-TR VE.CAN is a high-performance solar charge controller designed to maximize energy harvest from your solar array. Equipped with ultra-fast maximum power point tracking (MPPT), this controller efficiently converts solar energy into usable power for your battery bank, whether it’s 12V, 24V, or 48V. Its advanced technology allows it to operate with solar array voltages up to 250 volts Voc, making it suitable for a wide range of photovoltaic setups. The device can deliver charging currents ranging from 70 to 100 amps depending on the configuration, ensuring rapid and reliable battery recharging even from severely depleted states. Its fully programmable charge settings support various battery chemistries, including lead-acid and lithium, offering flexibility for different applications.

The Victron SmartSolar MPPT 150/70-TR VE.CAN supports remote management via Bluetooth, allowing users to monitor and configure the device through the VictronConnect app. This feature provides real-time data on battery voltage and current, PV voltage and current, as well as historical performance metrics. The controller is equipped with CAN bus ports, enabling daisy chaining multiple units for synchronized operation, which simplifies system expansion and integration. Data from connected units can be transmitted via a single RJ45 cable to a GX monitoring device, facilitating comprehensive system oversight.

Designed for convenience and versatility, the SmartSolar controller includes a VE.Direct port for single-unit monitoring or streetlight control, and an optional plug-in LCD display for live data viewing and setup. The device also features an external remote on/off connector, allowing third-party control systems to manage power states. When connected to the internet through a GX device, users gain access to the full capabilities of the Victron Remote Management Portal (VRM), providing remote monitoring and management of the solar system. Built with durability and ease of use in mind, the Victron Energy SmartSolar MPPT 150/70-TR VE.CAN is an essential component for efficient, scalable solar power systems.

Features:

• Ultra fast MPPT technology for optimal energy conversion

• Supports solar array voltages up to 250V Voc

• Adjustable charging current from 70 to 100A

• Fully programmable for various battery types including lead-acid and lithium

• Remote monitoring and configuration via Bluetooth with VictronConnect app

• CAN bus ports for daisy chaining multiple units and system expansion

• Data communication with GX monitoring devices via RJ45 cable

• Includes VE.Direct port for single-unit monitoring and external control

• Optional LCD display for live data and setup at the device

• External remote on/off control compatible with third-party systems

• Seamless integration with Victron VRM portal for remote system management
