SKU:107910

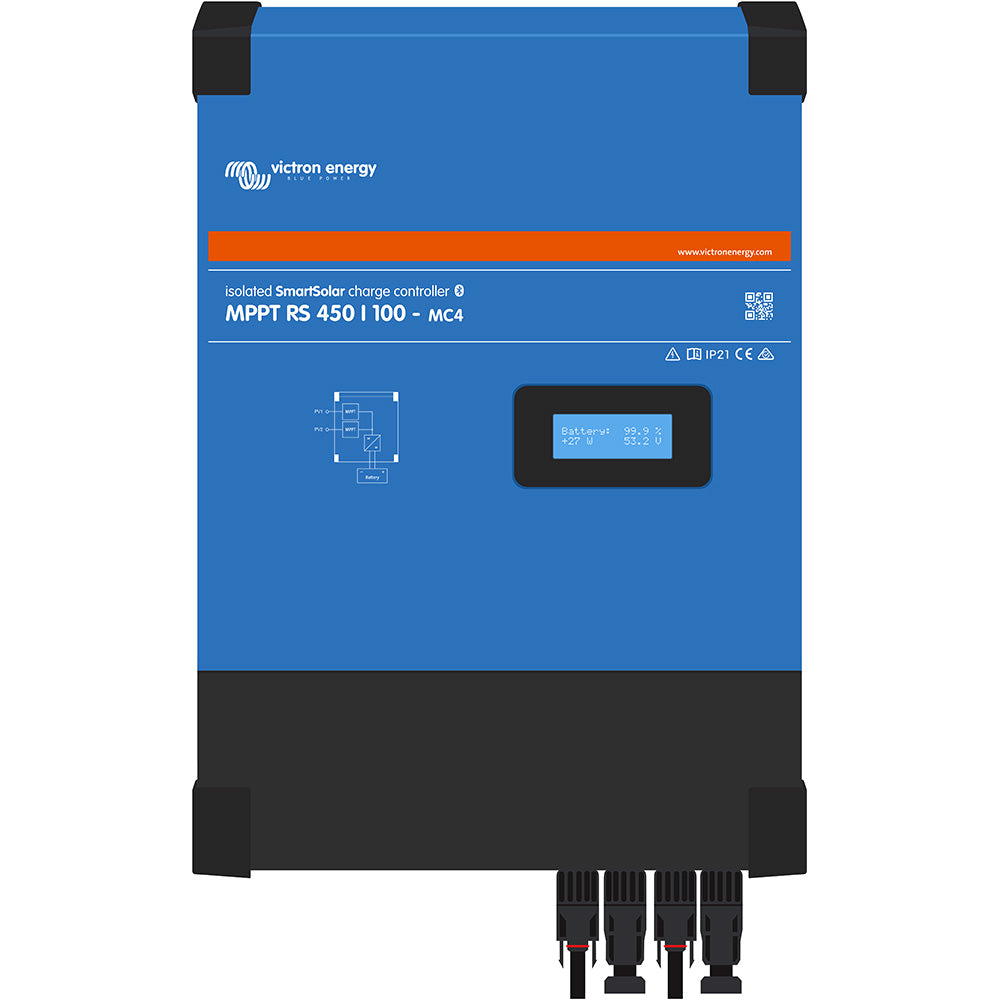

SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100
The SmartSolar MPPT RS solar charge controllers are Victrons solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.
In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.
MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.
Setup monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS VE.Can MPPT units. The additional units are simply daisy chained to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
SmartSolar Display
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both arrays individually including instantaneous and total figures and unit status including any possible error codes.
I/O Connections
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
VictronConnect
VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
Please contact your dealer for any returns, repairs or support issues related to this product.The Victron Energy SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct is a high-performance solar charge controller designed for large PV arrays and 48V battery banks. Suitable for both off-grid and grid-connected systems, this model delivers efficient power management with a wide operating voltage range of 65 to 450 VDC. Its advanced MPPT technology ensures ultra-fast maximum power point tracking, optimizing energy harvest even under fluctuating sunlight conditions. The robust metal casing and fully covered electrical connections enhance safety and durability, making it ideal for demanding installations.
Featuring a 100A or 200A charge current, this controller offers full programmability for various battery chemistries, including lead-acid and lithium systems. The integrated display provides real-time data on battery voltage, charge current, PV array voltage, and system status, including error codes. The device supports independent tracking inputs for multiple PV strings, ensuring optimal energy collection from complex array configurations.
Connectivity is a key benefit of the SmartSolar MPPT 450/100. It incorporates VE.Can bus ports, enabling seamless daisy chaining of multiple units for synchronized operation across large systems. Data can be monitored remotely via the VictronConnect app over Bluetooth, allowing users to configure settings, view live status, and analyze historical trends from anywhere. When connected to a GX device with internet access, the Victron Remote Management Portal (VRM) provides comprehensive remote monitoring and control, making maintenance and system optimization straightforward. For installations without internet, the GlobalLink 520 can facilitate remote monitoring, ensuring flexibility in system management.
The controller's I/O options include a programmable relay and remote sensing capabilities for temperature and voltage, compatible with Victron’s smallBMS and other BMS systems. This flexibility allows integration with various system components for enhanced control and safety. The included display and user interface simplify on-site management, providing instant access to key system metrics and troubleshooting information. Overall, the Victron Energy SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct is a reliable, feature-rich choice for large-scale solar energy systems that demand efficiency, scalability, and remote management capabilities.
Features:
