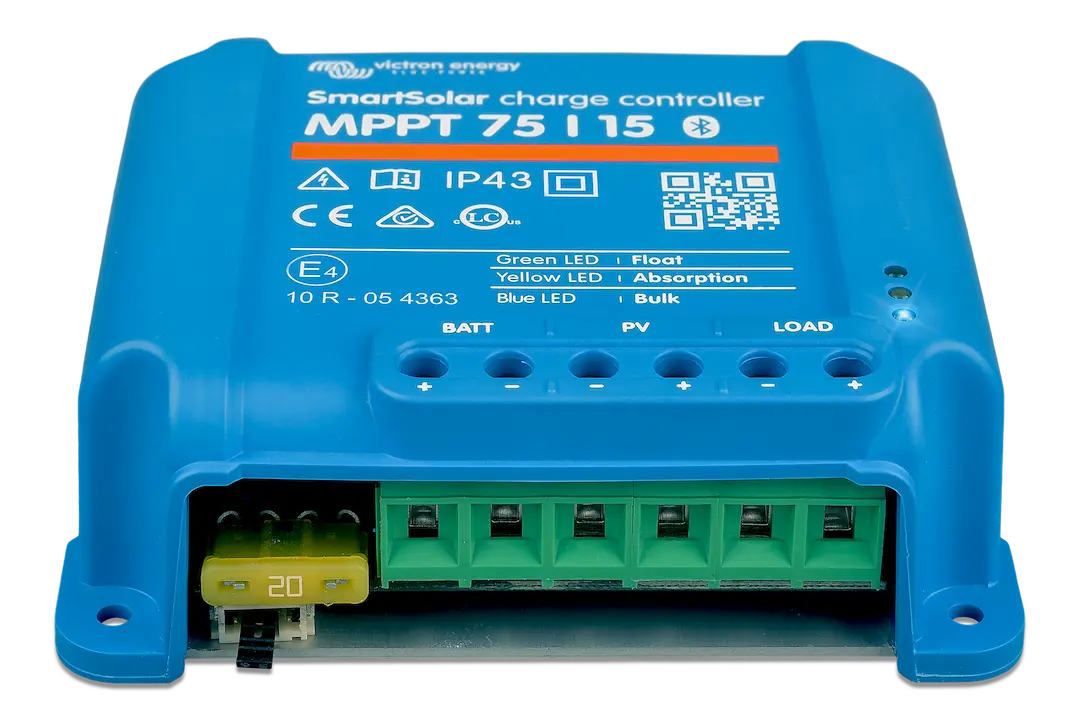

Victron Energy SmartSolar MPPT 75/15 Charge Controller (SCC0750150)

For Use With Solar 12/24 Volt Batteries; Analog Solar Controller; 220 Watt At 12 Volt/ 440 Watt At 24 Volt; 75 Volt AC Power Supply; 15 Amp Charging Current; 4.4 Inch Width x 1.57 Inch Depth x 4 Inch Height Overall Dimension; Blue; 10 Gauge Power Terminals; IP43/ IP22 Rated; 98 Percent Peak Efficiency; -30 Degree Celsius To 60 Degree Celsius Operating Temperature; EN/IEC 62109-1/ UL 1741/ CSA C22.2 Standards; With Built-In Bluetooth

The Victron Energy SmartSolar MPPT 75/15 Charge Controller is designed for efficient and reliable solar power management in small to medium-sized photovoltaic systems. This advanced MPPT (Maximum Power Point Tracking) charge controller optimizes solar energy harvesting by continuously tracking the optimal voltage and current, ensuring maximum efficiency even under varying sunlight conditions. Its compact design makes it suitable for a wide range of applications, from RVs and boats to off-grid solar systems. The device is built with durable components to withstand outdoor environments and features a user-friendly interface for easy setup and monitoring.

Equipped with a 75V maximum PV open circuit voltage and a 15A maximum charge current, the SmartSolar MPPT 75/15 supports flexible system configurations. It incorporates advanced features such as temperature compensation, battery voltage regulation, and programmable settings to adapt to different battery types and system requirements. Its efficient power tracking technology ensures minimal energy loss, maximizing your solar power output. The controller’s robust construction and high-quality materials contribute to its long-term reliability, making it a vital component for sustainable solar energy systems. Whether you're upgrading an existing system or installing a new one, the Victron Energy SmartSolar MPPT 75/15 offers the performance and flexibility needed for optimal solar energy utilization.

Features:

• Maximum PV open circuit voltage: 75V

• Maximum charge current: 15A

• Advanced MPPT tracking for maximum power efficiency

• Temperature compensation and battery voltage regulation

• Compatible with various battery types including lead-acid and lithium
