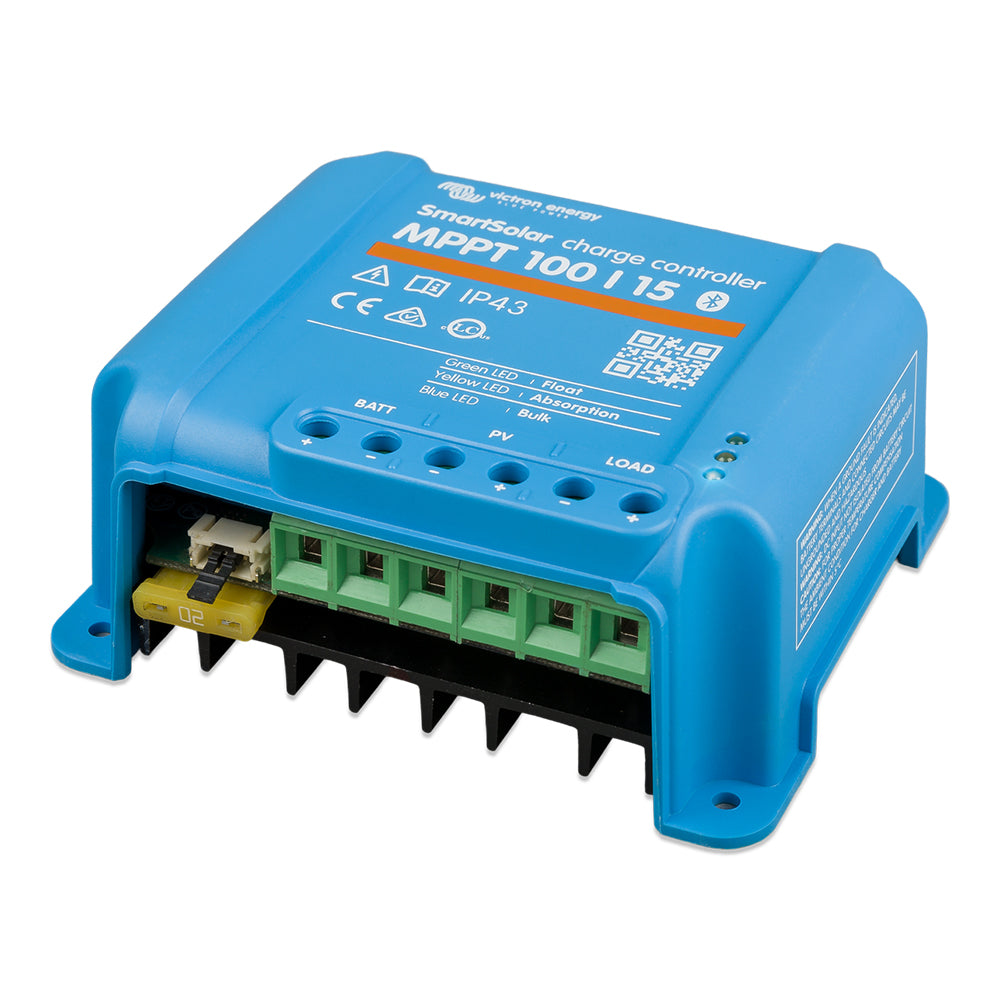

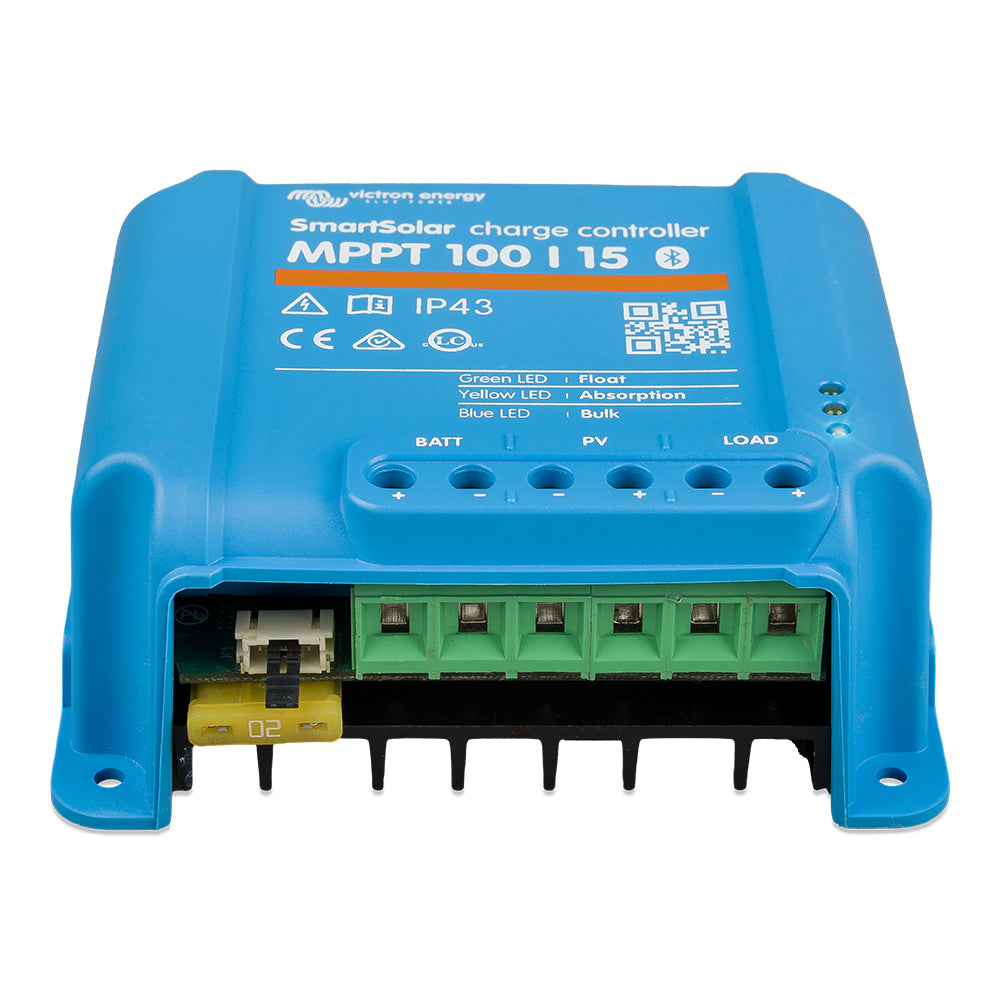

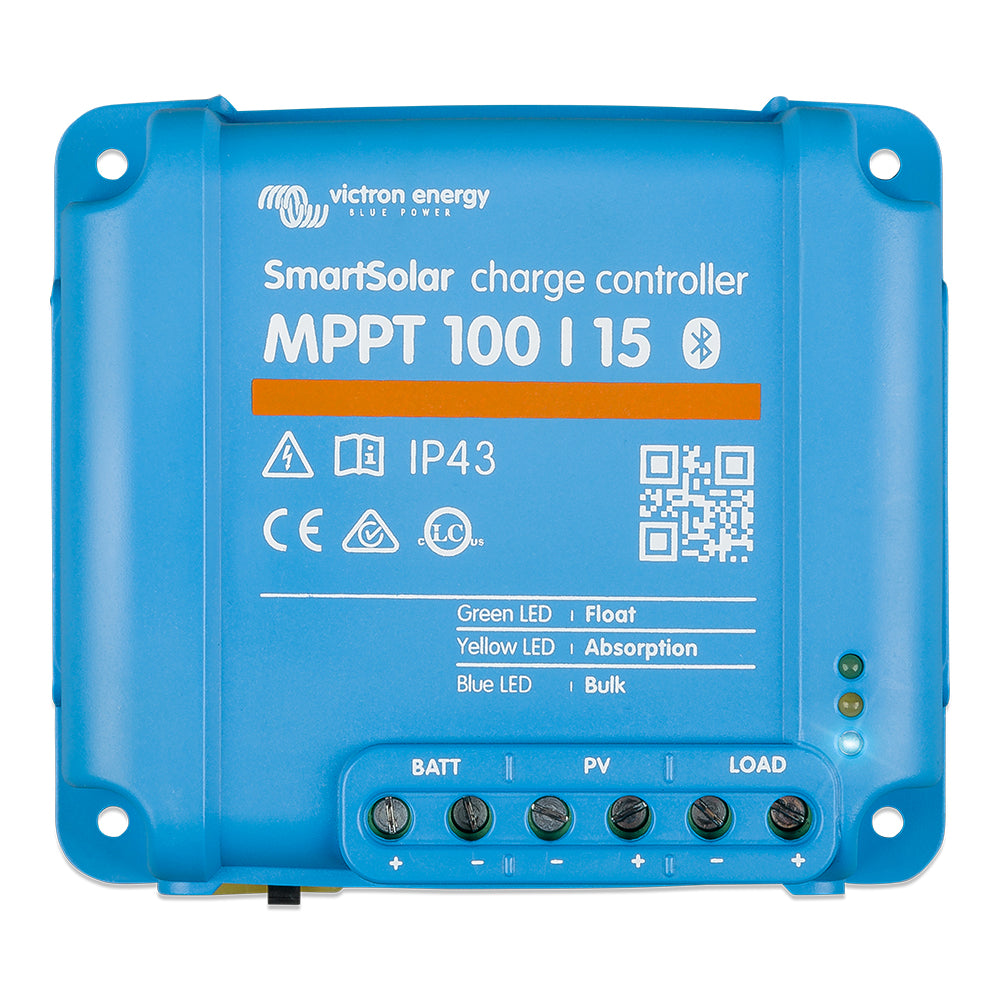

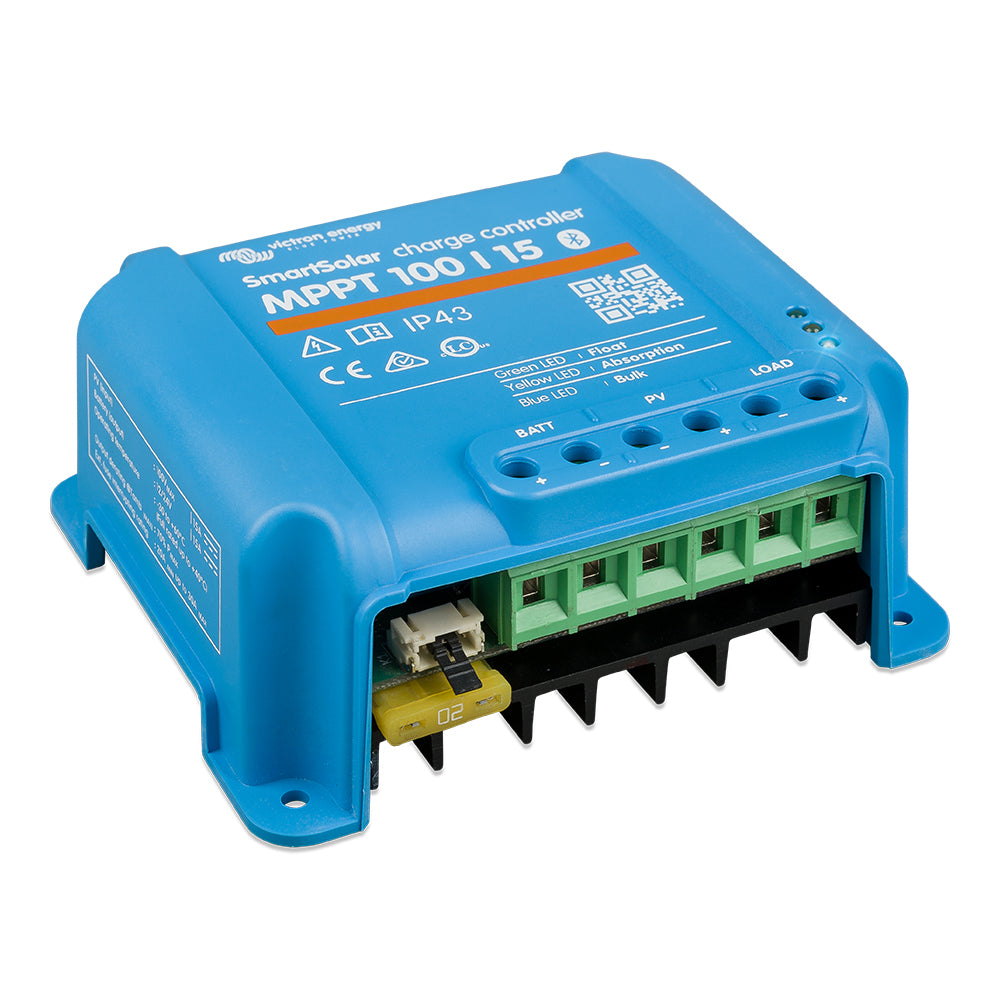

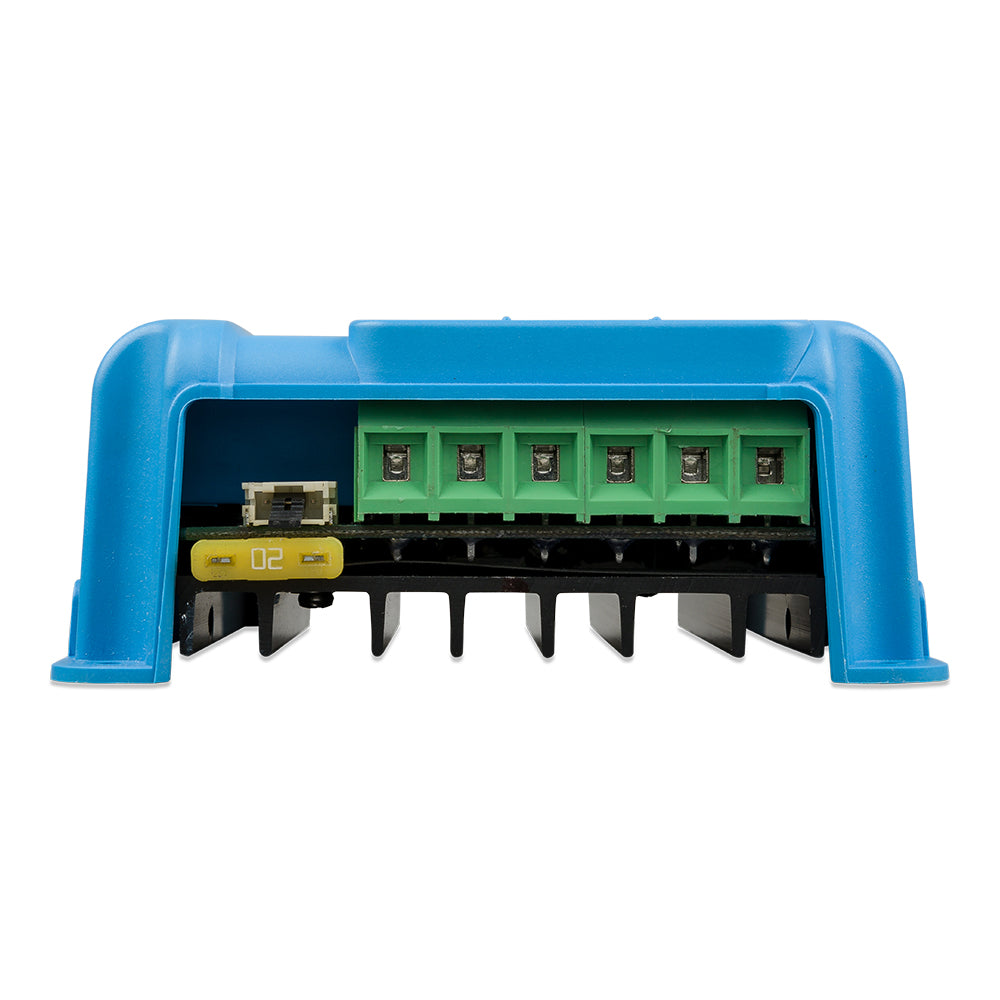

Victron Energy SmartSolar MPPT Charge Controller 100V 15AMP - Efficient Solar Power Management

SmartSolar MPPT Charge Controller - 100V - 15AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller, part number SCC110015060R, is designed to optimize your solar energy system with advanced features and reliable performance. This 15-amp unit supports a maximum voltage of 100V, making it suitable for a wide range of off-grid and on-grid solar applications. Its innovative design ensures maximum power extraction from your solar panels, even under variable weather conditions, helping you achieve more efficient energy harvesting. The built-in Bluetooth Smart technology allows seamless wireless setup, monitoring, and firmware updates via a mobile app, providing real-time insights into your system’s performance.

Connectivity options include VE.Direct for wired connections to devices such as the Color Control GX or PC, ensuring flexible integration within your existing energy setup. The ultra-fast Maximum Power Point Tracking (MPPT) algorithm improves energy capture by up to 30% compared to traditional PWM controllers and 10% over slower MPPT units, especially under fluctuating sunlight or cloud cover. This means more solar energy converted into usable power, ultimately reducing your reliance on grid or backup sources.

The controller features a load output that protects your battery from over-discharge by disconnecting loads when the battery voltage drops below a pre-set level. This function can be managed through a relay interface or an intelligent battery management algorithm, which helps prolong battery life by ensuring proper charge cycles. The internal temperature sensor adjusts absorption and float charge voltages based on ambient temperature, further enhancing battery health and system efficiency. Optional external sensors via Bluetooth provide additional monitoring capabilities, allowing you to track battery voltage and temperature remotely.

Designed for durability and ease of use, the Victron SmartSolar MPPT Charge Controller incorporates a programmable battery charge algorithm, day/night timing, and light dimming options to customize system operation. Its compact form and robust construction make it suitable for various solar projects, whether for RVs, boats, or off-grid homes. Backed by a comprehensive warranty, this controller offers reliable performance and peace of mind for long-term energy management. Please consult your dealer for support and support-related services to ensure optimal system integration and operation.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection to compatible devices

• Ultra-fast MPPT algorithm improves energy harvest by up to 30%

• Load output to prevent battery over-discharge with relay interface

• Intelligent battery management to extend battery lifespan

• Programmable battery charge algorithms for tailored performance

• Day/night timing and light dimming options for system control

• Internal temperature sensor adjusts charge voltages based on ambient temperature

• Optional external sensors for remote battery voltage and temperature monitoring
